Inline vs Standard Springer: Wholesale Supplier Fitment Guide

Most buyers assume all springer front ends are interchangeable because they look identical from a distance.

Inline and Standard Springer front ends are not interchangeable due to distinct triple tree spacing and offset dimensions; selecting the wrong type leads to frame interference, incorrect rake, and costly returns. The critical difference lies in the distance between the upper and lower triple trees and how the steering stem aligns with the axle, not merely the aesthetic length of the legs. For purchasing managers sourcing from a wholesale springer fork supplier China, verifying these dimensional specs against the specific model year is the only way to ensure fitment accuracy.

I have stood on the floor of major trade shows watching seasoned distributors nod along to sales pitches, only to receive angry emails weeks later when their containers arrived. One Texas distributor ordered a mixed batch of springer assemblies for a Softail project. The units looked perfect in the photos, but upon installation, the front wheel rubbed aggressively against the tank during full lock turns. The issue was not a manufacturing defect but a fundamental mismatch: he had ordered Inline units for a frame designed for Standard geometry. The steering head angle and triple tree spacing were off by just enough to alter the trail significantly, causing the clearance issue. This is why I always tell buyers to measure the neck-to-axle distance deviation before confirming an order. [NEED_CITE: factory service manual specifications for triple tree spacing]

Understanding this distinction is vital for anyone building a reliable aftermarket catalogue. Let us break down exactly what defines these geometries and how to verify them.

What Defines Inline vs. Standard Springer Geometry?

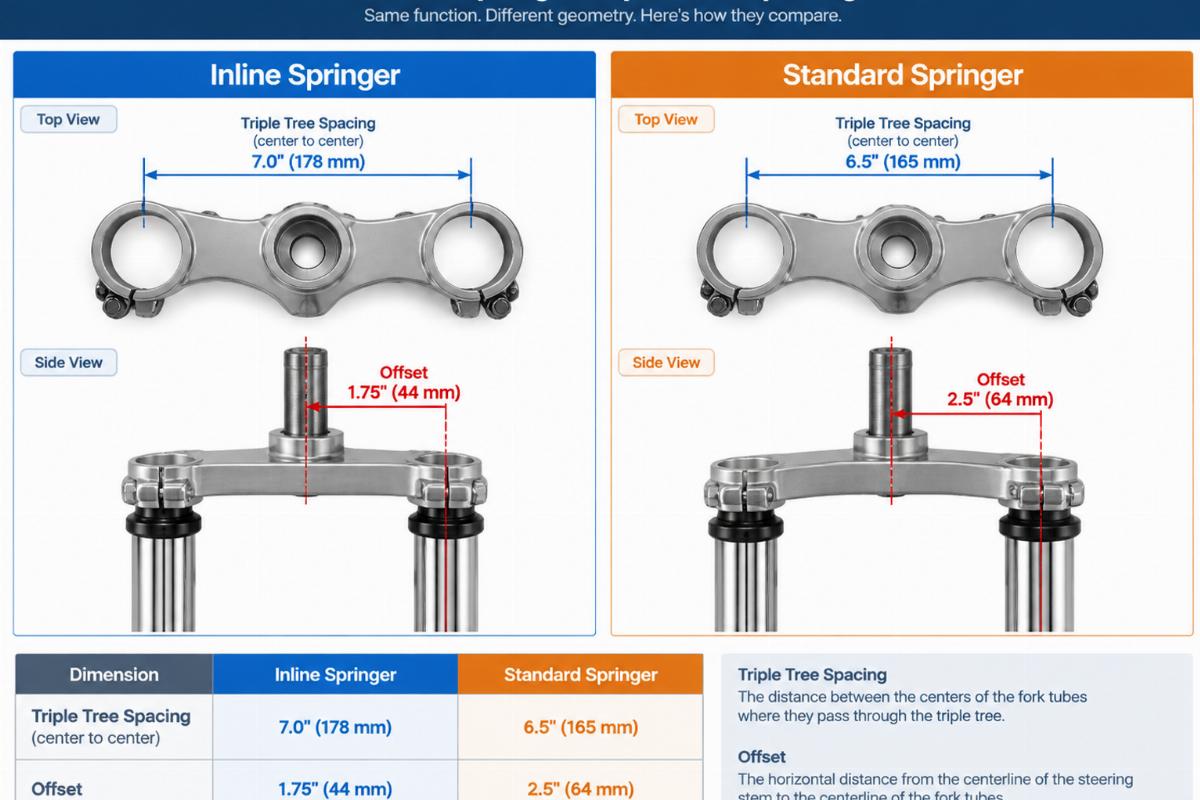

The core difference between Inline and Standard Springer front ends is not the visual length of the forks but the internal geometry of the triple trees and the steering stem offset. Many buyers mistakenly believe that if the bolt patterns match, the part will fit. This is a dangerous assumption.

In a Standard Springer setup, the triple trees are spaced to align with the original equipment manufacturer’s design for specific model years, typically maintaining a certain amount of offset to achieve the correct trail and handling characteristics. The steering stem passes through the center of the upper triple tree but may have a specific offset relative to the lower tree to position the axle correctly within the frame neck. [NEED_CITE: industry fitment standards for motorcycle front end geometry]

Conversely, an Inline Springer features a different triple tree spacing and often a zero-offset or reduced-offset design where the steering axis aligns more directly with the axle centerline. This changes the mechanical leverage and the spatial relationship between the front wheel and the frame downtubes. If you install an Inline unit on a frame designed for a Standard unit, the altered geometry can cause the front fender to sit too high or too low, and more critically, it can cause the handlebars or the top of the fork assembly to interfere with the fuel tank or the instrument cluster.

When sourcing from a wholesale springer fork supplier China, do not rely on product titles alone. Request the specific triple tree spacing measurements and the offset data. A reputable supplier will provide these dimensions as part of their fitment sheet. Without this data, you are guessing, and in the aftermarket parts business, guessing leads to returns.

How Do Dimensions Affect Frame Fitment?

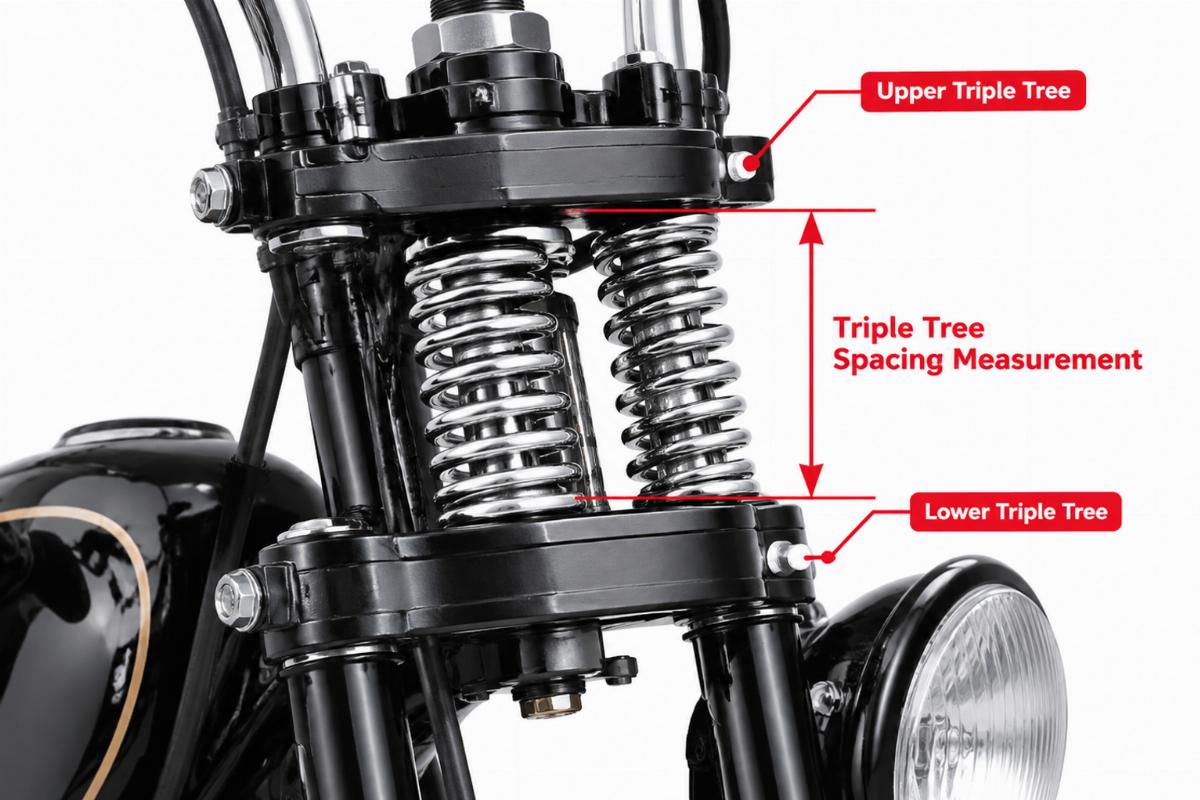

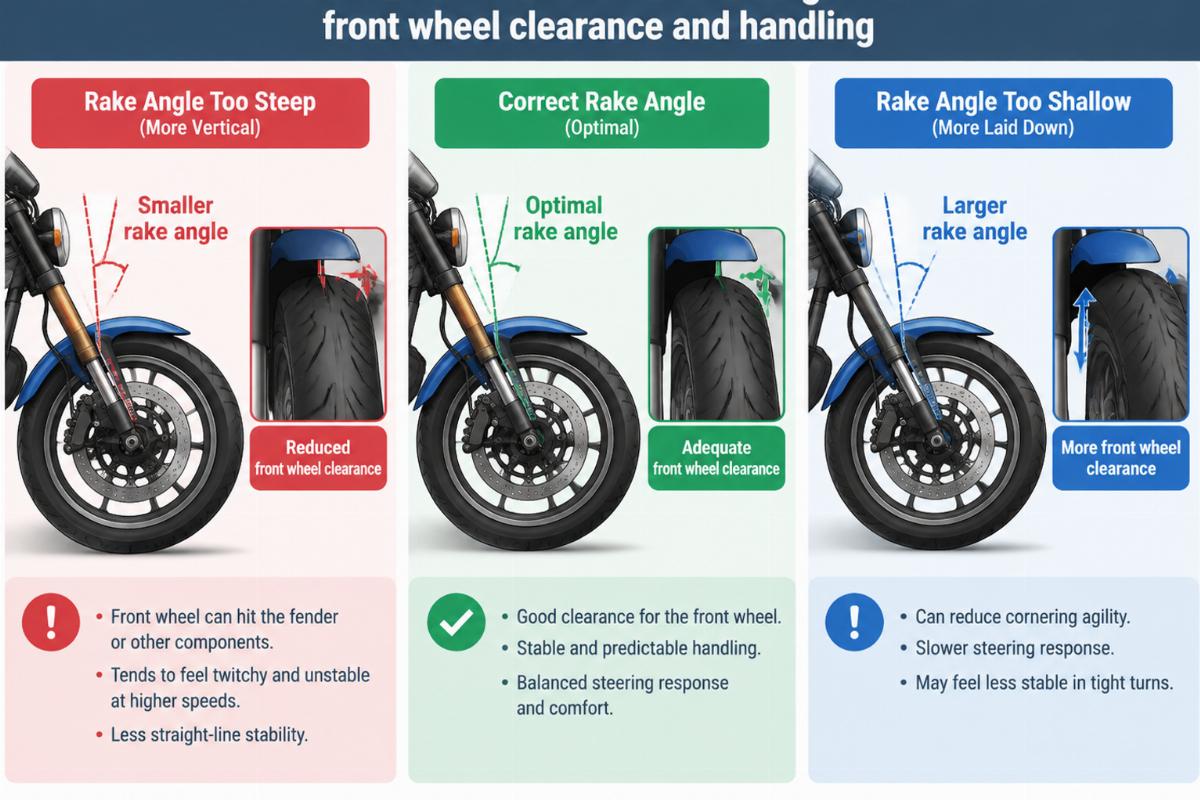

Incorrect spacing does not just look wrong; it fundamentally alters the motorcycle’s geometry. When the triple tree spacing is mismatched, the rake angle changes. Rake is the angle of the steering head relative to vertical. A change in rake affects the trail, which is the distance between the point where the steering axis intersects the ground and the point where the front tire contacts the ground. [NEED_CITE: physics of motorcycle handling geometry]

If the rake becomes too steep, the motorcycle may feel twitchy and unstable at higher speeds. If it becomes too shallow, the steering may feel heavy and unresponsive. But beyond handling, there is the physical issue of clearance. In the case of the Texas distributor mentioned earlier, the Inline unit’s geometry caused the front assembly to sit slightly further back or higher than intended, leading to the tank rubbing.

Another common issue arises with extended kits. Buyers often want a longer look, but extending the legs without adjusting the triple tree spacing or the rocker geometry can lead to binding in the steering head bearings. The bearings are designed for a specific load path. Changing the leverage arm by altering the front end dimensions can prematurely wear out these bearings, leading to customer complaints about “loose steering” shortly after installation.

For Harley-Davidson Softail models, the frame neck is integrated into the chassis in a way that leaves little room for error. Unlike older frames with more adjustable head cups, Softail frames require precise adherence to the original triple tree spacing. Deviating from this standard without proper engineering validation is a recipe for disaster. This is why cross-referencing OEM numbers is not just a bureaucratic step but a technical necessity. [NEED_CITE: OEM cross-reference verification methods]

Which Models Require Which Type?

Not all motorcycles use the same Springer geometry. The requirements vary significantly by model family and production year. Understanding these distinctions is crucial for any purchasing manager building a diverse inventory.

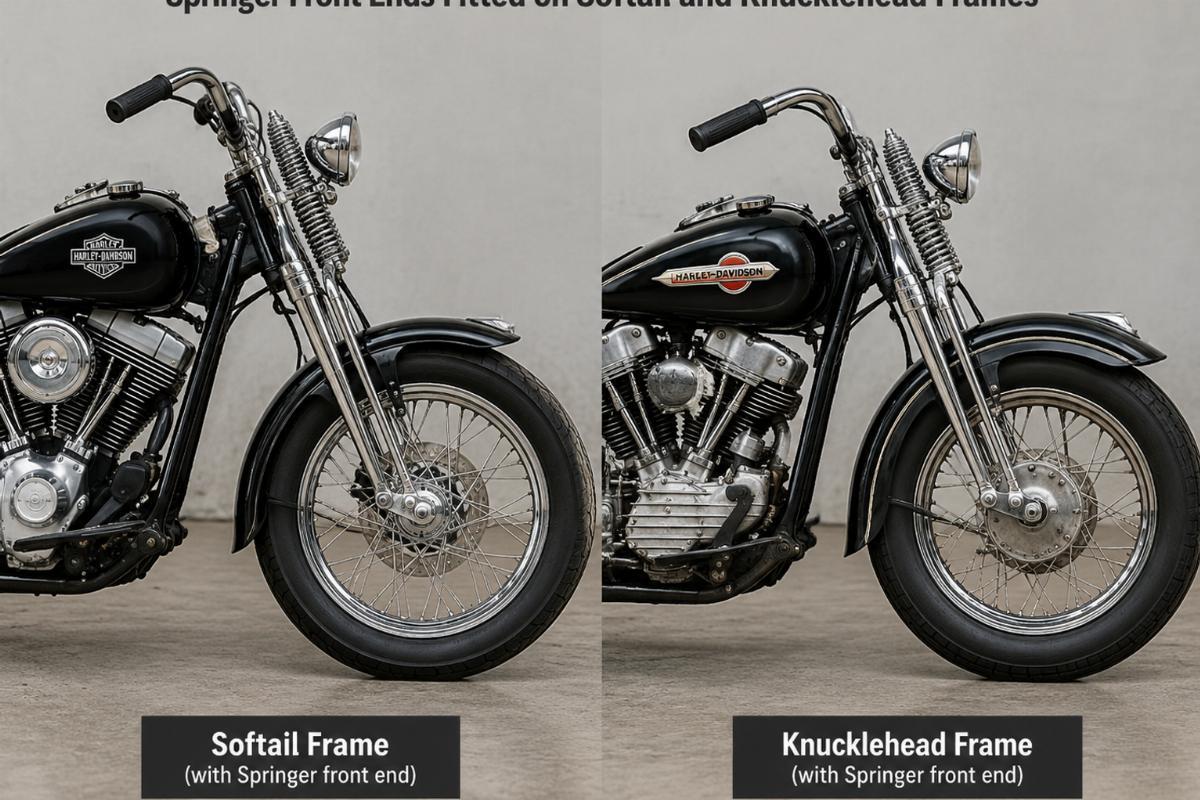

Harley-Davidson Softail models, particularly the FLSTS and FXSTS Springer Softails from the Evolution and Twin Cam eras, have specific requirements. These bikes were designed with a Standard Springer geometry in mind, although some aftermarket modifications exist. However, swapping to an Inline style without verifying the frame compatibility can lead to the clearance issues previously discussed. The Softail frame’s rigid rear end means the front suspension geometry is critical for overall ride comfort and stability.

Pre-1984 Big Twins, including Knucklehead, Panhead, and Shovelhead models, often require specific rocker geometry. A European restorer once contacted me regarding a pre-1984 Knucklehead build. He needed a springer front end that matched the original rocker stud spacing and bumper placement. Standard aftermarket units often miss these subtle historical details, leading to fitment problems with the original fenders and lighting mounts. In this case, comparing the stock length versus the extended kit dimensions was not enough; we had to verify the rocker arm pivot points against the factory service manual. [NEED_CITE: factory service manuals for pre-1984 Harley-Davidson models]

Yamaha XS650 builds represent another category. While not a V-twin, the XS650 is a popular platform for custom bobber and chopper builds. These projects often utilize adapted Springer front ends. The fitment here is less about strict OEM adherence and more about custom fabrication tolerance. However, even in custom builds, the triple tree spacing must match the modified frame neck. An importer in Australia once queried about batch consistency for a mixed order of XS650 and Harley parts. The concern was not just the chrome finish but whether the mounting brackets for the XS650 units were consistent across batches. Consistency in machining tolerances is key for custom builders who do not have the time to re-machine mounting points.

Knowing which model requires which type prevents the embarrassment of shipping the wrong part. It also builds trust with your customers, who will appreciate your technical accuracy.

How to Verify Fitment Before Ordering?

Verification is the most critical step in the procurement process. Relying on photos or generic descriptions is insufficient. To minimize return rates, you must implement a rigorous verification protocol.

First, always request the model year range. A part that fits a 1995 Softail may not fit a 2005 model due to subtle changes in the frame neck or electrical routing. Second, ask for photos of the actual part, specifically focusing on the triple trees and the steering stem. Compare these images with known OEM examples. Third, use OEM cross-reference numbers. While we do not sell genuine OEM parts, using OEM numbers as a reference point ensures that the aftermarket part matches the original dimensions. [NEED_CITE: method for using OEM numbers as fitment reference]

A practical method is to measure the neck-to-axle distance on the existing motorcycle and compare it with the specifications provided by the supplier. If the supplier cannot provide this measurement, consider it a red flag. A professional wholesale springer fork supplier China should have these dimensions readily available.

Additionally, request a fitment sheet with your sample order. This document should list the compatible model years, the key dimensions, and any superseded part numbers. Having this documentation allows you to answer customer questions confidently and reduces the likelihood of errors. In one instance, a buyer avoided a costly mistake by checking the fitment sheet and realizing that the unit he selected was designed for a Wide Glide setup, not the Narrow Glide frame he was working on. The tube diameter and triple tree spacing were different, and the fitment sheet clearly highlighted this distinction.

Conclusion

Fitment is defined by dimensions, not appearance.

Selecting the correct Springer front end requires a clear understanding of triple tree spacing and offset. By verifying these specifications against the specific model year and using OEM cross-references, you can ensure accurate fitment and minimize returns. Always prioritize technical data over visual assumptions when sourcing from any supplier.
