Chrome Leaf Spring Fork Assembly 44cm – Fits Custom Chopper
Verified Front-End Production — Every leaf spring fork assembly for custom chopper builds is manufactured in our own facility to ensure exact stem dimensions and frame compatibility.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Leaf Spring Fork Assembly |
| Stem Diameter | 1″ |
| Axle Diameter | 3/4″ |
| Thread | 1″ x 24 |
| Length | 44cm |
| Finish | Chrome (all components), Black (rear leg) |
| Kit Contents | Spring, rockers, top tree, stay bars, 3/4″ axle, chrome acorn nuts, top crown nut, headlamp brackets |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom Chopper | Confirm with model and year | Verify steering neck dimensions and desired ride height prior to installation. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Resolving Geometry Mismatches in Chopper Front Ends
Exact stem threads and overall lengths prevent ruined rake and trail.
I spent years on the buyer side sourcing parts for Classic Big Twin pre-1984 chopper builds before switching to the supply side. I still remember a custom leaf spring fork assembly I ordered for a restorer. The supplier just listed it without stating the overall length or stem thread. When it arrived, the 44cm length and 1-inch stem completely mismatched the early frame neck. The front end sat way too high, ruining the rake and trail, and the top crown nut wouldn’t even thread on. That mess taught me to always verify exact dimensions and frame compatibility before dispatching any custom springer. Custom builders often struggle with incomplete front-end kits or unclear overall lengths that disrupt ride height and steering geometry on chopper builds [NEED_CITE: frame geometry specifications for custom springer setups].
Checking Steering Neck Compatibility
Before mounting this leaf spring fork assembly for custom chopper projects, measure your frame’s steering neck bore. The 1″ stem diameter and 1″ x 24 thread must align perfectly with your specific triple tree and top nut requirements. A mismatch here means the front end simply will not seat correctly in the frame.
Evaluating Ride Height and Rake
The 44cm overall length, measured from the lever tree base to the axle, directly dictates your bike’s stance. Confirm this measurement aligns with your desired ride height and rake geometry. Altering the length changes the trail, which affects how the bike handles at low speeds and during cornering [NEED_CITE: steering geometry principles for springer front ends].
Understanding Core Dimensions

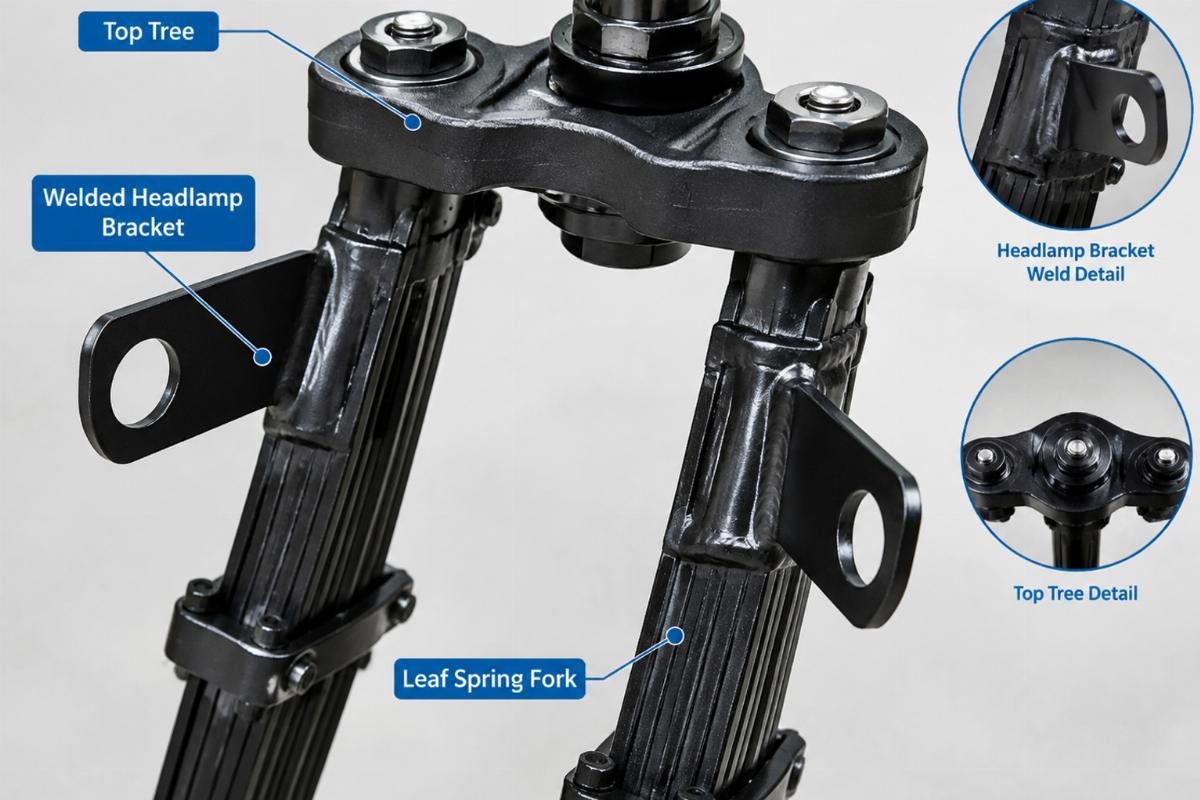

The 3/4″ axle diameter ensures compatibility with standard custom wheel hubs, while the included chrome acorn nuts secure the setup. The top tree features a standard springer configuration for mounting risers, allowing you to dial in your handlebar position. Headlamp brackets are welded in place for direct bottom headlamp mounting, saving you fabrication time.
The Hidden Cost of Unverified Dimensions
Ordering a front end without confirmed dimensions leads to costly delays. If the stem thread is wrong, the bike sits on the shop floor waiting for a new top nut or steering stem. If the length is off, you might have to modify the frame or order a completely different assembly, wasting weeks of build time. Inaccurate fitment data passed down through catalogs only compounds these errors.
Sourcing Directly from the Manufacturer

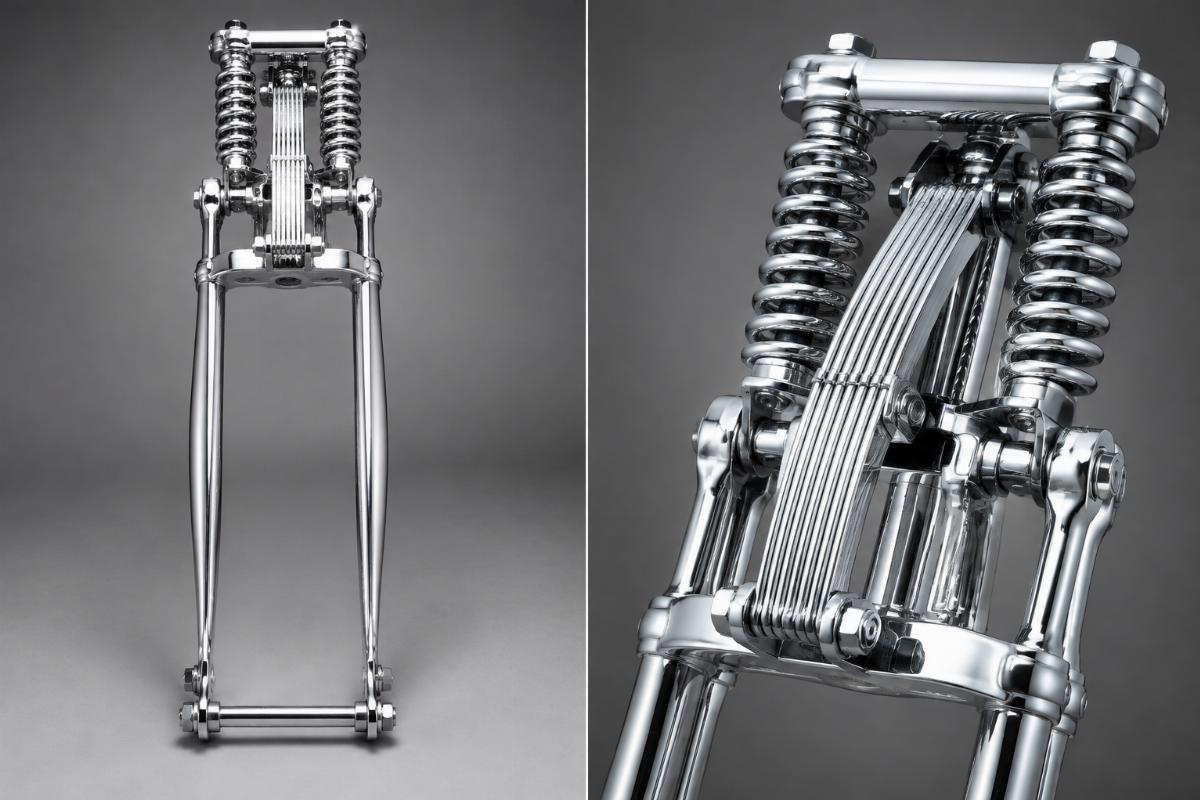

We produce this leaf spring fork assembly for custom chopper builds in our own facility, ensuring strict control over the 44cm length and 1″ stem thread. You get consistent chrome and black finishes across all components, including the rear leg. We support one-piece minimum orders, allowing custom builders to buy exactly what they need for a single project without meeting high volume quotas.
Included Documentation
- Fitment sheet stating applicable platforms and year ranges
- Key dimensions including fork length and stem diameter
- Finish specification for chrome and black components
- Quality inspection record for the complete kit
Pre-Installation Verification
- Verify the 1″ stem diameter and 1″ x 24 thread match your steering neck
- Confirm the 44cm length aligns with your desired rake geometry
- Check that the 3/4″ axle diameter fits your wheel hub
- Inspect the welded headlamp brackets for secure mounting points
- Ensure all kit contents, including the top crown nut, are present
Requesting a Fitment Check
Send your model and year for a fitment check to ensure this leaf spring fork assembly for custom chopper builds matches your frame. Provide your steering neck measurements, desired overall length, and finish requirements. We will verify compatibility and supply a sample for fitment confirmation before you place a bulk order.
Frequently Asked Questions
Q: How do I confirm this leaf spring fork assembly fits my specific custom chopper frame?
A: Measure your steering neck bore to ensure it accepts a 1″ stem diameter with a 1″ x 24 thread. Verify that the 44cm overall length matches your desired ride height and rake geometry. Send us your frame details for a final fitment check before ordering.
Q: What key dimensions should I measure on my frame to ensure the 44cm length and 1″ stem will fit?
A: Check the inner diameter of your steering neck tubes and the thread pitch of your existing top nut. Compare these against the 1″ stem and 1″ x 24 thread. Measure your current front end or calculate the required 44cm length to maintain your target rake and trail.
Q: Does the kit include all necessary hardware like the top crown nut and axle nuts?
A: Yes, the kit is complete and includes the spring, rockers, top tree, stay bars, 3/4″ axle, chrome acorn nuts, top crown nut, and welded headlamp brackets. You will not need to source these basic assembly components separately for your build.
Q: Can I order a single leaf spring fork assembly for a one-off custom build?
A: Absolutely. We support custom builders and restorers with a one-piece minimum order. You do not need to meet high volume quotas to purchase this front end for a single chopper project. We also offer sample supply for fitment confirmation.
Q: How consistent is the chrome and black finish quality between different production batches?
A: Since we manufacture these front ends in our own facility, we maintain strict quality control over our finishing processes. The chrome on all components and the black finish on the rear leg remain consistent across batches, ensuring a uniform look when parts are fitted side by side.
