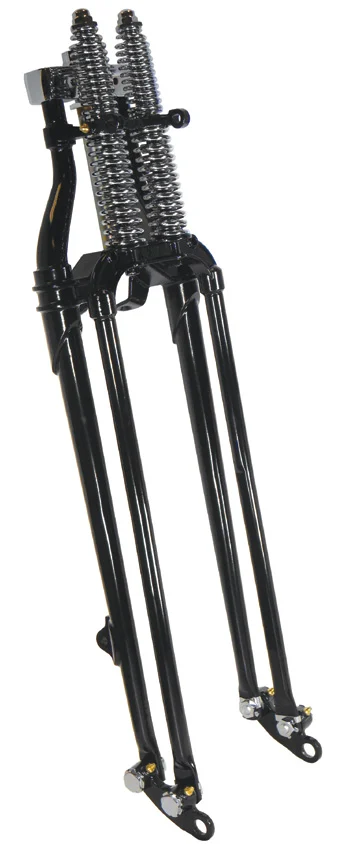

Fitment Checked Custom Springer Front End 18″ for Sportster 1952-1981

Front-end depth verified — We confirm fitment against platform family and model year range before quoting this 18-inch gloss black unit.

Product Specification

Fitment

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

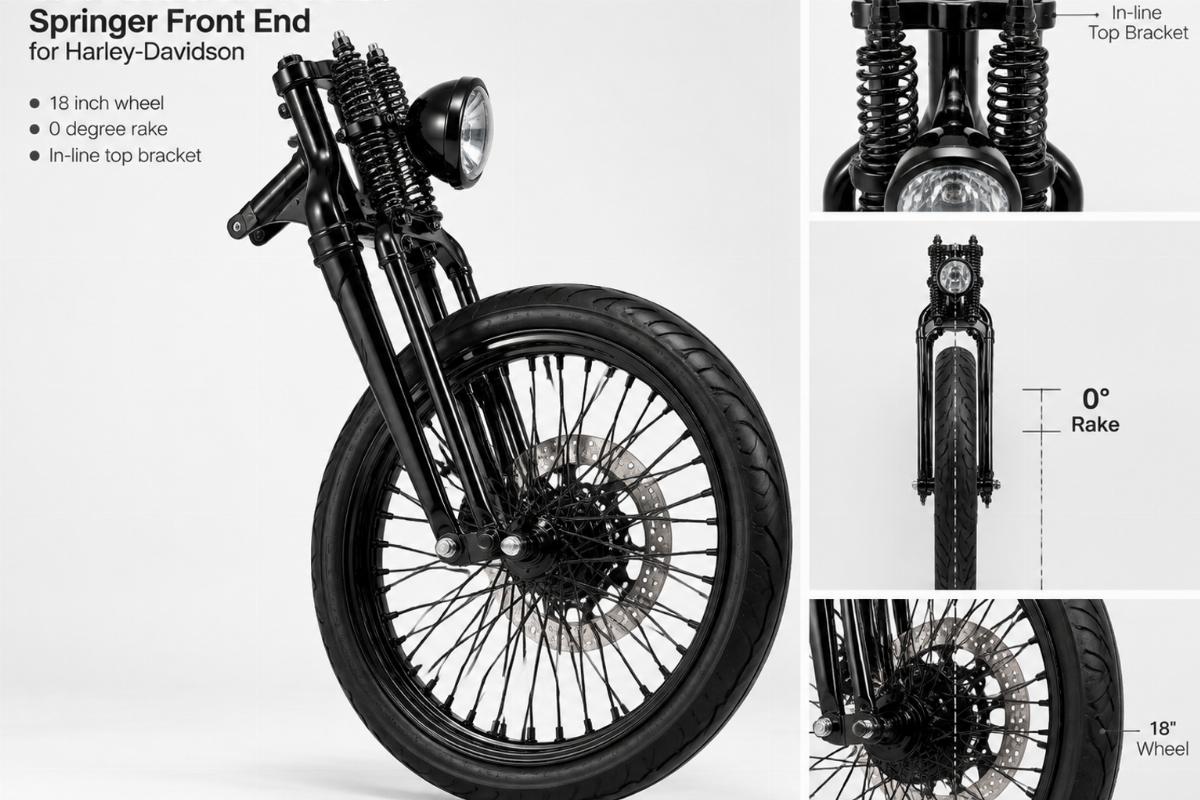

Why 0° Rake and Exact Length Matter for Your Build

A custom springer front end for harley-davidson with zero rake completely alters steering geometry if the frame neck angle is not accounted for.

I once shipped an 18-inch gloss black springer to a builder who just said it was for a Sportster. He never specified the rake or overall length. When the fork arrived, the zero-degree rake and 4 3/4-inch rise mount centers completely threw off his steering geometry and triple tree spacing. He had to tear the whole front end down. That taught me to always verify exact length, rake, and mount spacing before clearing any order. When you order a custom springer front end for harley-davidson, assuming a standard rake will lead to the same costly teardown.

Verifying Frame Neck Compatibility for 1952-1981 Sportster

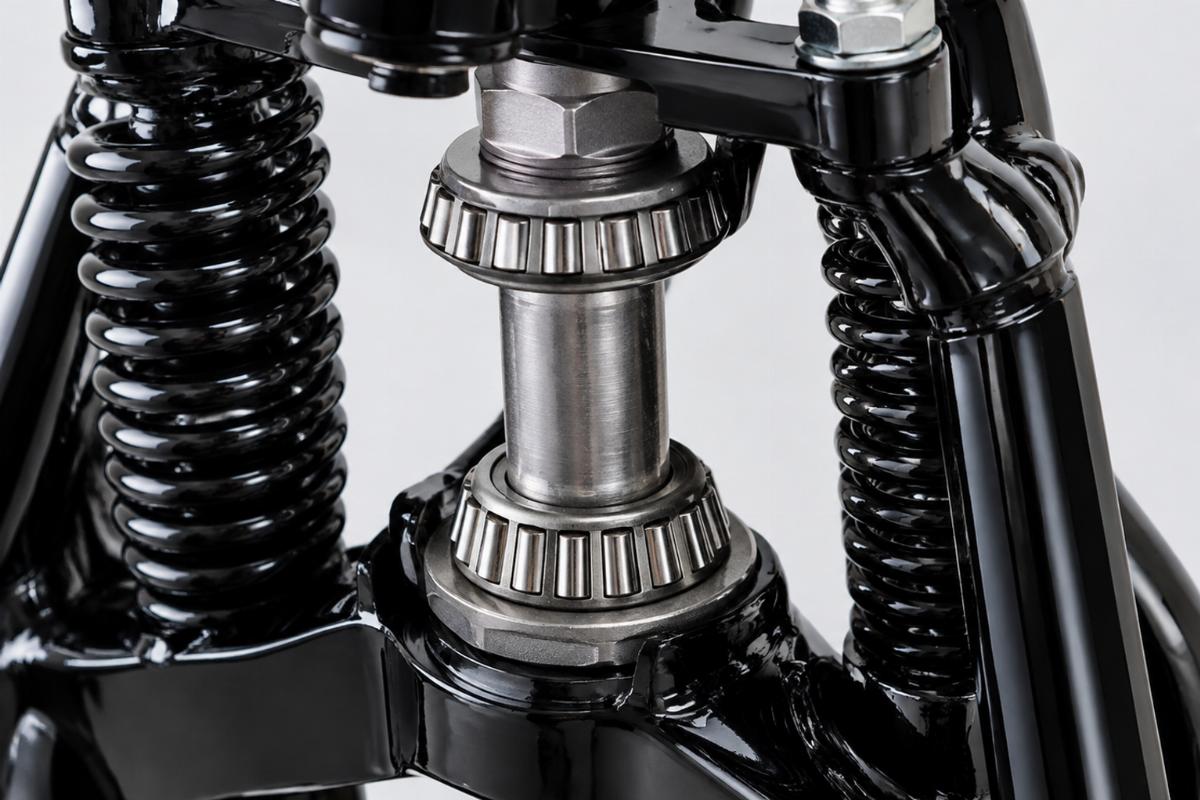

Fitting this custom springer front end for harley-davidson onto a 1952-1981 Sportster requires a neck cup conversion kit because the 1″ O.D. steering stem and Timken type bearings differ from the stock setup. You must confirm that the conversion kit matches your specific frame year to ensure the steering stem drops in correctly. Overlooking this dimension means the fork simply will not seat in the frame neck.

Checking Axle and Brake Rod Clearances

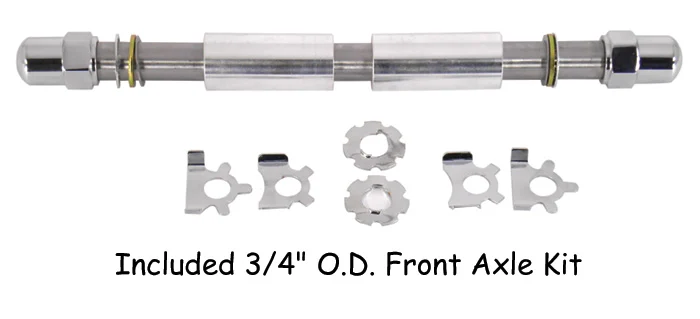

The 8 3/4″ axle rocker spacing and 3/4″ O.D. axle dictate which wheel hub and brake setup you can run. The universal 5/8″ brake rod mount on the right rear leg is designed for disc brakes, but you must measure your existing caliper bracket spacing. If the 4 3/4″ rise mount centers do not align with your handlebar risers, the controls will sit at an unnatural angle.

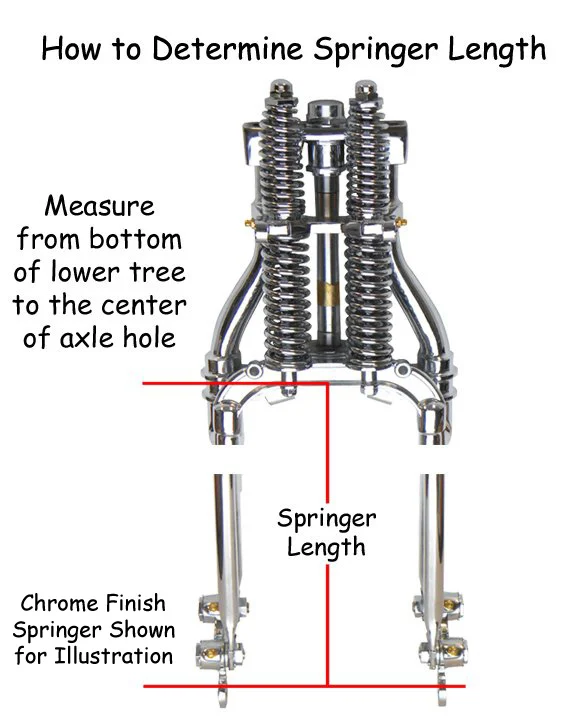

Understanding the 18-Inch Overall Length

This unit measures 18″ overall, with a 20″ distance from the bottom of the lower tree to the axle center. This specific length determines your ride height and how the front fender clears the tire. When replacing a worn unit or building a custom chopper, matching this exact 18″ length is critical to maintaining the intended stance of the bike.

The Hidden Cost of Ignoring Mount Spacing

Sending a fork with the wrong rise mount centers or an incorrect steering stem diameter means the bike sits on the shop floor for weeks. Builders often copy fitment tables from outdated forums, passing errors down the line until a part arrives that physically cannot be mounted. A 1/2-20 thread mismatch or an 8 3/4″ rocker spacing that is off by even a fraction of an inch requires custom machining or scrapping the build entirely.

Sourcing from a Front-End Specialist

We manufacture our own springer front ends and chassis hardware, ensuring the gloss black finish is consistent across batches. We offer a one-piece minimum order, allowing independent repair shops and custom builders to buy exactly what they need for a single project. Every custom springer front end for harley-davidson is checked against the platform family and year range before we release a quotation. We also provide samples for fitment confirmation before you commit to bulk orders for your distribution catalog.

Documentation Included With Your Shipment

• Fitment sheet stating applicable platforms and year ranges for this 18-inch unit
• Key dimensions including 18-inch overall length and 1-inch steering stem diameter
• Finish specification detailing the gloss black batch consistency
• Quality inspection record verifying axle rocker spacing and thread sizes
• Warranty terms covering manufacturing defects on the springer assembly

Pre-Installation Checks for the Shop Floor

• Measure your frame neck to confirm compatibility with the 1″ O.D. steering stem
• Verify the 4 3/4″ rise mount centers align with your chosen handlebar setup
• Check the 8 3/4″ axle rocker spacing against your wheel hub and brake caliper
• Inspect the gloss black finish for any transit damage before beginning assembly
• Ensure the neck cup conversion kit is on hand if installing on a 1952-1981 Sportster

Requesting a Fitment Check

Send us your exact model, year range, and a photograph of your current steering neck to verify if this custom springer front end for harley-davidson is the correct match. Include your required finish and quantity, and let us know if you need a sample unit for a test fit before placing a larger order. We will cross-reference your details against our platform database and reply with a confirmed fitment sheet.

Frequently Asked Questions

Q: How do I confirm if my 1952-1981 Sportster fits this 18-inch springer?

A: You must verify your frame steering neck dimensions against the 1″ O.D. steering stem. Installation on these specific Sportster years requires a neck cup conversion kit to adapt the Timken type bearings. Send us your exact model and year for a fitment check before ordering.

Q: What dimensions should I measure for axle and brake compatibility?

A: Measure your wheel hub to ensure it matches the 8 3/4″ axle rocker spacing and 3/4″ O.D. axle. For the brakes, confirm your caliper bracket aligns with the universal 5/8″ brake rod mount located on the right rear leg of the fork.

Q: How does the 0-degree rake affect my motorcycle geometry?

A: An in-line top bracket with 0-degree rake means the fork does not add any additional angle. You must calculate how this interacts with your specific frame neck angle to determine the final steering geometry and trail, ensuring the bike handles correctly.

Q: Can I order a single unit for a custom build?

A: Yes, we support a one-piece minimum order for custom builders and independent repair shops. You can also request a sample supply for fitment confirmation on the shop floor before committing to bulk quantities for your inventory.
