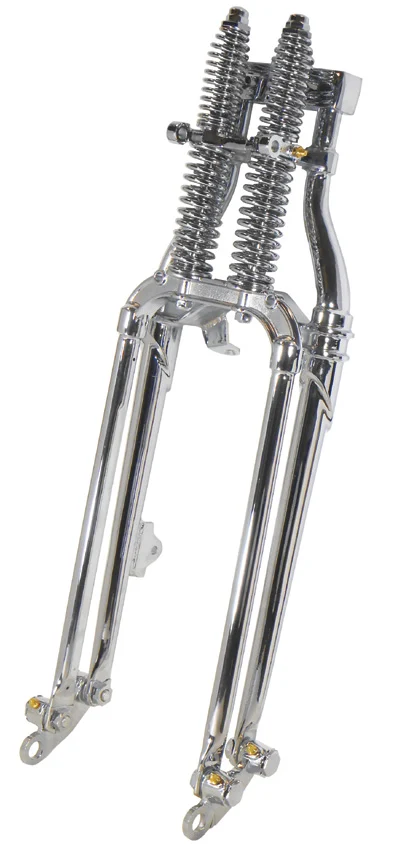

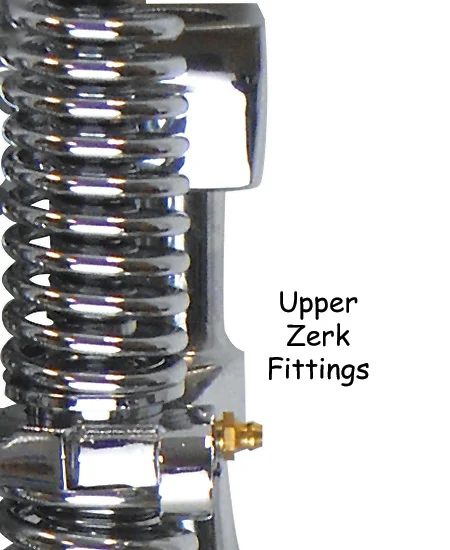

Chrome Custom Springer Front End 26″ – Fits K Model and Sportster

Complete Springer Assemblies In-House — Every 26″ over-stock length is physically measured for steering stem diameter and axle rocker spacing before dispatch.

Product Specification

Fitment

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Why 0° Rake on a Custom Springer Front End 26 Inch Changes Frame Geometry

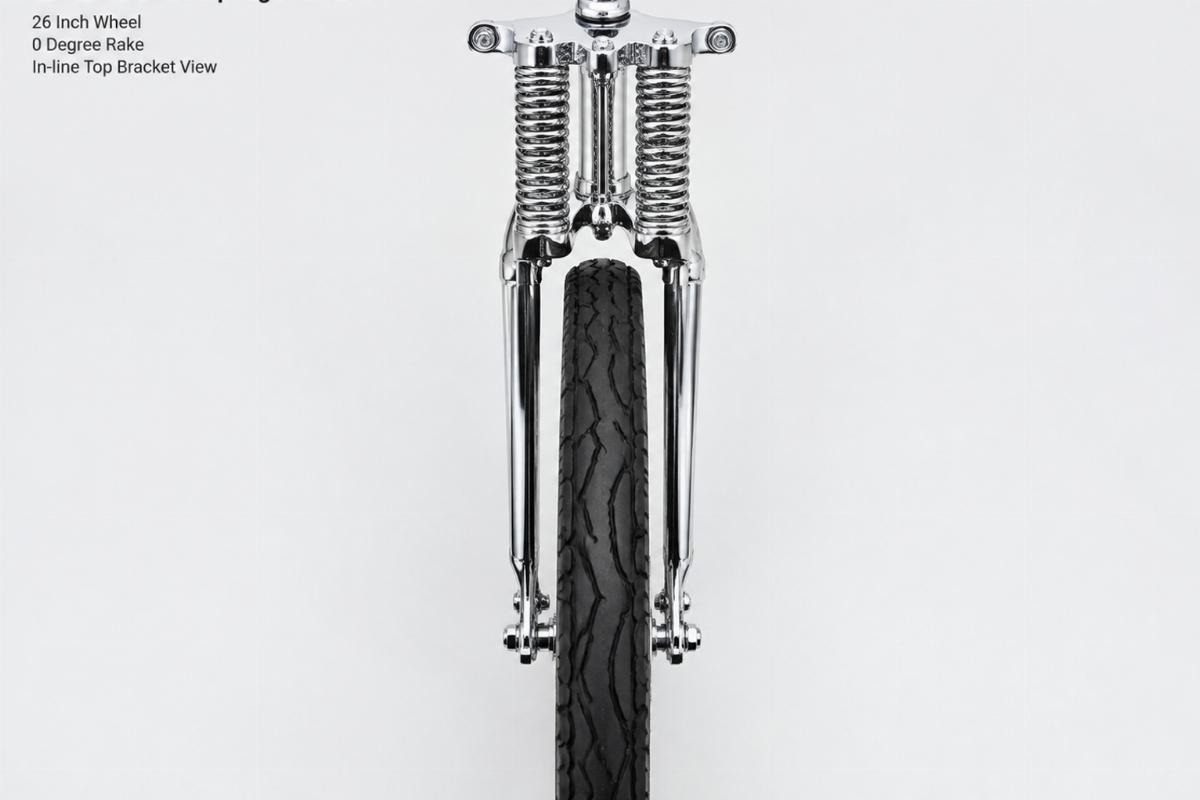

A 0° rake combined with a 26″ overall length pushes the front end significantly higher, altering the stock ride height and steering geometry.

I still remember a 26″ antique style springer shipped for a Springer Softail build where the buyer only checked overall length. The 0° rake pushed the front end way too high, ruining the geometry because the steering neck cups wouldn’t seat right. Always verify frame geometry impact when switching to this extended length.

Verifying the 1″ Steering Stem for Timken Bearings

When fitting this custom springer front end 26 inch, the 1″ O.D. steering stem must match your frame’s neck bearing specifications. This dimension is designed specifically for Timken type bearings, meaning standard tapered roller bearings will not seat correctly without the proper conversion kit. Measuring your existing steering stem before ordering prevents the front end from binding or sitting too high in the tree.

Checking Rise Mount Centers and Brake Rod Alignment

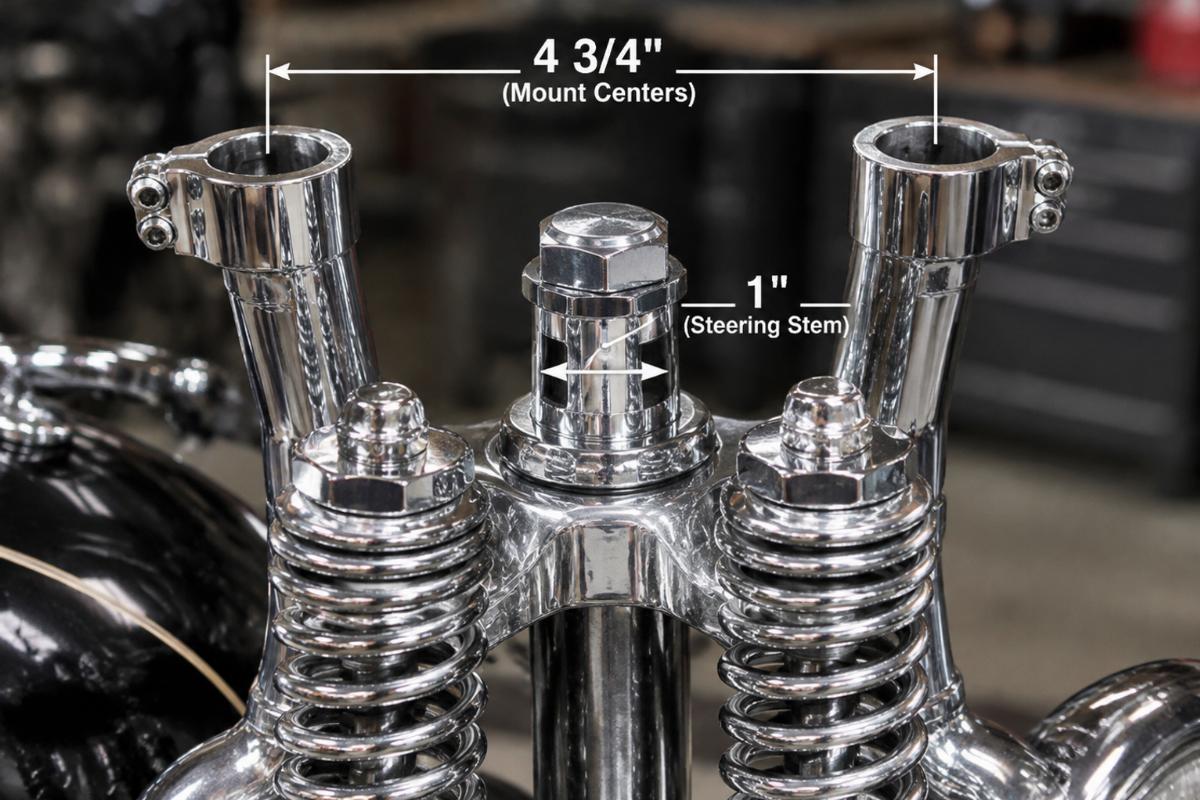

The 4 3/4″ rise mount centers and 1/2-20 thread dictate which handlebars can be installed directly onto the top bracket. Additionally, the universal brake rod mount on the right rear leg features a 5/8″ hole for disc brakes. If your custom build uses a different brake linkage spacing, you will need to fabricate an adapter rather than forcing the rod, which could bend the mounting ear.

How 26″ Overall Length and 20″ Standard Measurement Affect Installation

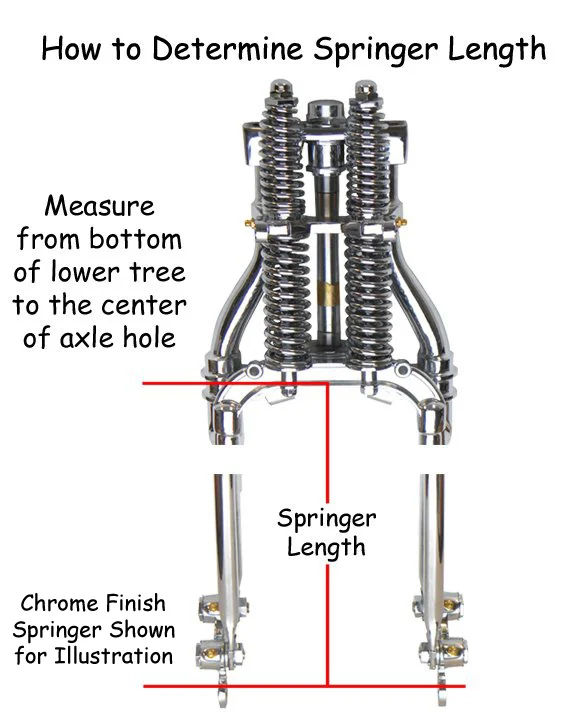

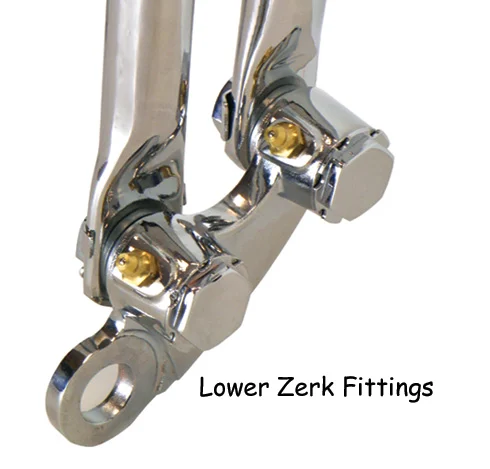

The 26″ overall length includes the top bracket and axle, while the 20″ standard measurement is taken from the bottom of the lower tree to the axle center. This distinction is critical when calculating how much the front end will drop or rise compared to your stock setup. The 8 3/4″ axle rocker spacing on the cast rockers also determines the wheel alignment within the forks, ensuring the axle sits square before tightening.

The Hidden Cost of Ignoring Neck Cup Conversion Requirements

Installing this front end on a K Model or Sportster without the required neck cup conversion kit will prevent the 1″ steering stem from seating properly in the frame. I have seen shops spend days machining adapters or returning the part because they assumed the 0° rake would fit their stock Sportster neck directly. Skipping this verification step leaves the bike stuck on the lift, delaying the entire build timeline.

Sourcing Fitment-Checked Front Ends for Custom Builds

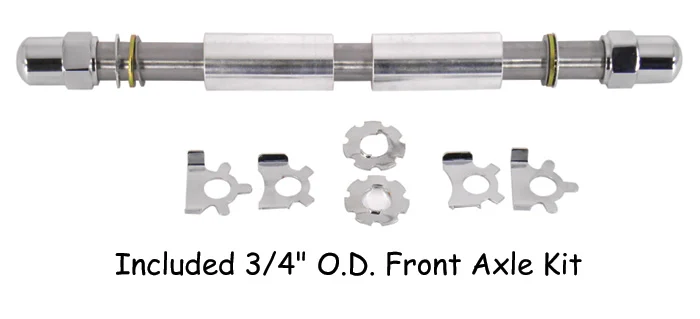

We manufacture these complete springer assemblies in our own facility, ensuring the 26″ length and 0° rake are verified against platform specifications. Every custom springer front end 26 inch is checked for chrome finish consistency and critical dimensions like the 3/4″ axle O.D. before quotation. We support single-piece minimum orders, allowing restoration shops and custom builders to order exactly what they need for one specific project without bulk commitments.

Documentation Provided with Your Shipment

• Fitment sheet listing the K Model and Sportster 1952-1981 year ranges this part was checked against
• Key dimensions document detailing the 26″ overall length, 1″ steering stem, and 0° rake
• Chrome finish specification and quality inspection record for the plated surfaces
• Packing photographs showing the 8 3/4″ axle rocker spacing and top bracket condition
• Commercial invoice and packing list with HS code support for customs clearance

Receiving and Pre-Installation Checks

• Verify the 26″ overall length and 20″ standard measurement match your frame geometry calculations
• Measure the 1″ steering stem O.D. to confirm compatibility with your neck cup conversion kit
• Inspect the chrome plated finish for any shipping damage before mounting the top bracket
• Check the 5/8″ brake rod mount hole on the right rear leg for proper disc brake linkage fit
• Ensure the 4 3/4″ rise mount centers and 1/2-20 threads are clean and undamaged
• Have a qualified technician confirm frame alignment before final assembly of the front end

Send Your Model and Year for a Fitment Check

Provide your exact model designation and year range so we can verify if this custom springer front end 26 inch matches your frame specifications. Include a photograph of your current steering neck or the part number from your old assembly if available. Let us know if you require a sample for physical fitment confirmation before committing to a larger order for your shop.

Frequently Asked Questions

Q: How does a 26″ over stock springer with 0° rake affect ride height and steering geometry?

A: A 0° rake combined with a 26″ overall length pushes the front end significantly higher than stock. This alters the ride height and steering geometry, requiring you to verify frame clearance and neck cup fitment before installation to ensure the bike handles correctly.

Q: What specific neck cup conversion is needed to fit this springer on a 1952-1981 Sportster or K Model?

A: You need a neck cup conversion kit designed to adapt the 1″ O.D. steering stem to the Sportster or K Model frame neck. This kit ensures the steering stem seats properly and the 0° rake does not push the front end too high for the frame geometry.

Q: How do I measure my frame to confirm compatibility with the 4 3/4″ rise mount centers?

A: Measure the distance between the mounting holes on your handlebar risers or top bracket. The 4 3/4″ rise mount centers with 1/2-20 threads must align perfectly with your chosen handlebars to ensure secure mounting without modifying the bar or the springer top bracket.

Q: Can I order a single springer front end for a custom build, or is there a minimum order quantity?

A: We support single-piece minimum orders for custom builders and restoration shops. You can order one custom springer front end 26 inch for a specific project, and we will verify the fitment against your platform and year range before dispatching the part.

Q: What dimensions are included in the fitment and cross-reference documentation?

A: The documentation includes the 26″ overall length, 20″ standard measurement, 1″ steering stem diameter, 0° rake, and 8 3/4″ axle rocker spacing. It also lists the applicable platform and year ranges, ensuring you have all critical dimensions to verify frame compatibility before installation.
