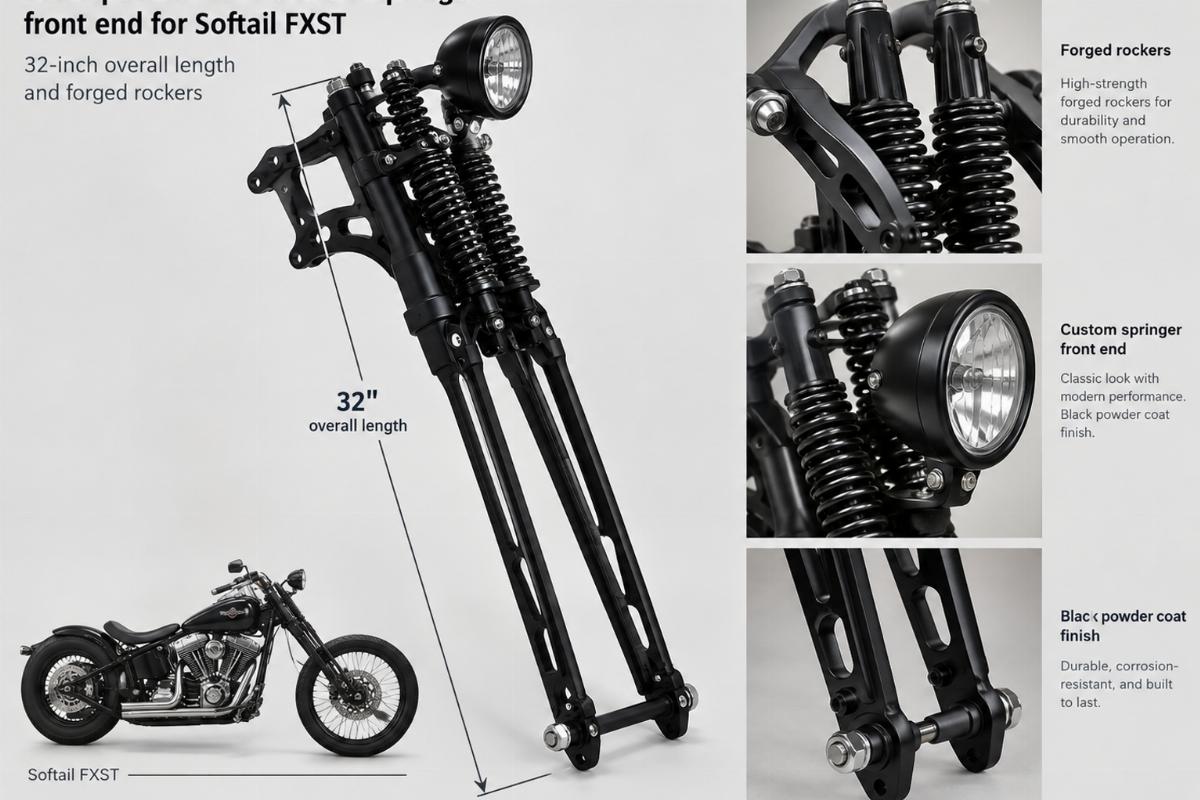

Black Powder Coat Custom Springer Front End 32″ – Fits Softail FXST
Front-End Depth Verified — This 32-inch custom springer front end for Softail FXST is measured for overall length and tree spacing before dispatch to ensure geometry matches your build.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Custom Springer Front End |
| Finish | Black powder coat |
| Length | 32″ overall (+8″ over standard 24″ length) |
| Steering Stem O.D. | 1″ |
| Bearing Type | Timken type |
| Axle Kit O.D. | 3/4″ |
| Rocker Spacing | 9 1/4″ |
| Riser Mount Centers | 4 3/4″ |
| Riser Mount Thread | 1/2-20 |
| Kit Contents | Fully assembled springer, 3/4″ O.D. axle kit with brake mount pivot, thrust washer, and hub spacers |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Softail (FXST) | Confirm with model and year | +8″ over standard length (32″ overall) alters ride height and steering geometry. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Over-Stock Springer Lengths Cause Geometry Guesswork
A 32-inch overall length fundamentally changes the rake and trail compared to a standard 24-inch setup.
When sourcing a custom springer front end for Softail FXST builds, catalogs often list “over stock” lengths without clarifying the exact overall measurement or its geometric impact. I have seen builders order extended forks without calculating the resulting trail, leading to a front end that feels dangerously heavy and unresponsive. Because this unit features a forged in-line top bracket with no built-in rake, the 32-inch length directly dictates your steering geometry. You must verify frame compatibility before ordering to avoid a mismatched ride height [NEED_CITE: frame geometry specifications by model year for Softail platforms].
Verifying Tree Spacing and Riser Compatibility
Before clearing any order for a custom springer front end for Softail FXST, I physically measure the tree spacing and riser mount centers. This assembly features 4 3/4″ riser mount centers with a 1/2-20 thread pattern. If your handlebar setup requires a different pullback or width, confirming these centers prevents the need for aftermarket adapter plates. The 1″ O.D. steering stem is designed specifically for Timken type bearings, meaning your neck bearing kit must match this exact diameter to prevent steering play or binding [NEED_CITE: steering stem diameter variations across Softail frame generations].
Assessing Rocker Spacing for Custom Wheel Builds

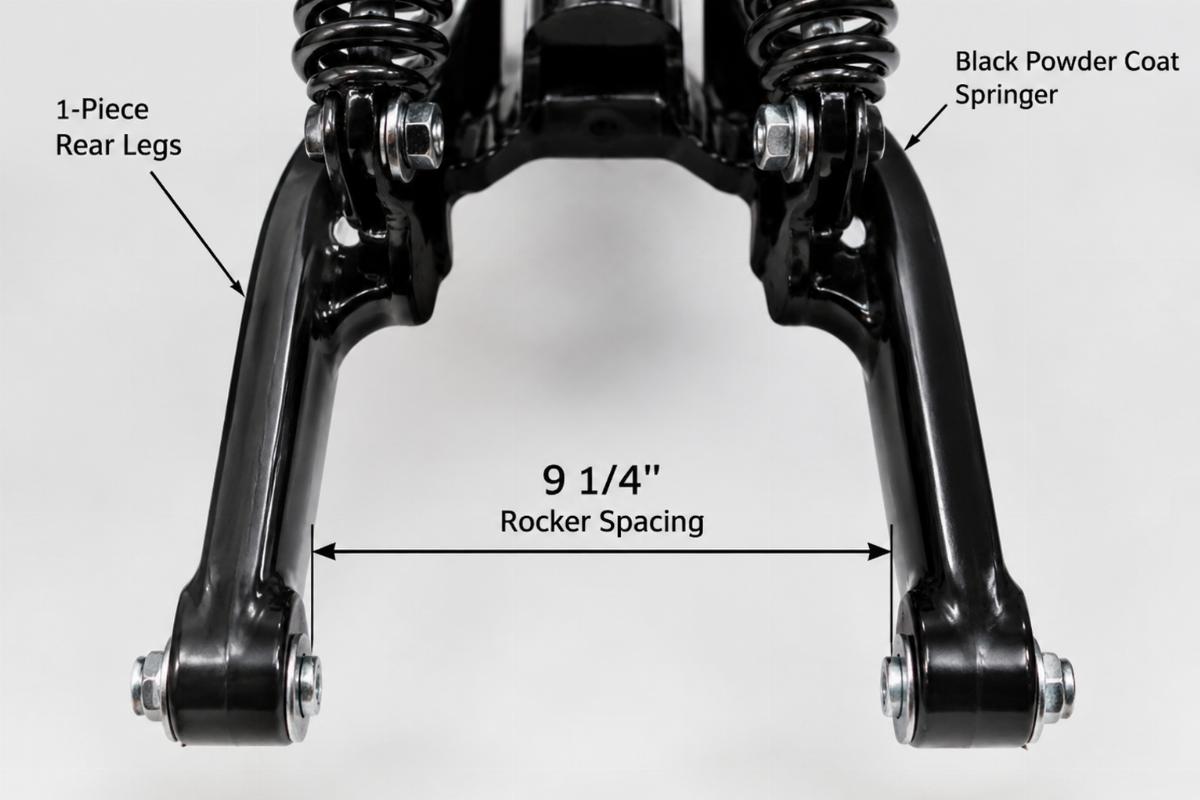

The 9 1/4″ rocker spacing on this unit is a critical dimension for your wheel selection. I once inspected a build where the rocker spacing did not align with the custom wheel hub width, forcing the builder to halt assembly and source different spacers. This fully assembled springer includes a 3/4″ O.D. axle kit with a brake mount pivot, thrust washer, and hub spacers. However, custom spacers may still be required depending on the specific wheel used. Always compare the 9 1/4″ measurement against your wheel hub before finalizing the build plan.
The Hidden Cost of Unchecked Front-End Dimensions
Ordering a front end without verifying the 32-inch overall length or the 1″ steering stem O.D. often results in the bike sitting on the workbench for weeks. A mismatched steering stem means the neck bearings will not seat, while an incorrect overall length can cause the fender to interfere with the tire at full compression. When dimensions are copied from outdated catalogs without physical verification, these errors propagate through the supply chain. Checking the exact overall length and tree spacing ensures the custom springer front end for Softail FXST bolts directly into your verified frame geometry [NEED_CITE: front end dimension changes across model years for custom builds].
Sourcing Front Ends with Confirmed Dimensions
We produce this custom springer front end for Softail FXST in our own facility, allowing us to verify every dimension before it leaves the workbench. You receive a black powder coat finish applied in controlled batches to ensure consistency across multiple orders. Our fitment is confirmed against the platform family before quotation, and we provide a cross-reference sheet to align your build requirements. Whether you need a single unit for a shop build or multiple assemblies for inventory, we support a minimum order from one piece. Sample supply is also available for fitment confirmation before you commit to a bulk order.
Documentation and Fitment Records
- Fitment sheet stating the Softail FXST platform and confirming the 32-inch overall length.
- Cross-reference sheet with applicable dimensions marked for build verification.
- Key dimension report detailing the 1″ steering stem O.D. and 9 1/4″ rocker spacing.
- Finish specification document for the black powder coat application.
- Quality inspection record verifying the included 3/4″ O.D. axle kit components.
Pre-Installation Verification Checklist
- Verify the 32-inch overall length against your frame geometry to confirm rake and trail expectations.
- Check the 4 3/4″ riser mount centers and 1/2-20 threads against your chosen handlebars.
- Inspect the black powder coat finish for any transit damage before beginning assembly.
- Confirm the 9 1/4″ rocker spacing matches your custom wheel hub width.
- Ensure the 1″ O.D. steering stem matches your Timken type neck bearing kit.
- Have a qualified technician review the included 3/4″ axle kit and hub spacers for your specific wheel.
Requesting a Fitment Check
Send your model and year for a fitment check to ensure this 32-inch assembly matches your Softail FXST frame. Provide your required finish, quantity, and any specific wheel hub measurements you are targeting. If you are setting up a new custom build, request a sample to verify the tree spacing and overall length before placing a larger order.
Frequently Asked Questions
Q: How does the 32-inch overall length affect the steering geometry on my FXST?
A: The 32-inch length adds 8 inches over the standard 24-inch setup, which directly alters the rake and trail. Because the forged in-line top bracket has no built-in rake, the extended length will raise the front end and change the steering feel. You must verify your frame geometry to ensure the resulting trail remains within your desired handling parameters for the build.
Q: What dimensions must I measure to confirm this springer fits my frame?
A: You need to verify the 1″ O.D. steering stem matches your neck bearings and check the tree spacing against your frame neck. Additionally, confirm the 4 3/4″ riser mount centers align with your handlebar setup. Measuring the 32-inch overall length against your frame will help you predict the final ride height and fender clearance before installation.
Q: Does the kit include all axle hardware, or do I need custom spacers?
A: The kit includes a fully assembled springer and a 3/4″ O.D. axle kit complete with a brake mount pivot, thrust washer, and hub spacers. However, custom spacers may still be required depending on the specific wheel hub width you are using. You should compare the 9 1/4″ rocker spacing to your wheel hub to determine if additional custom spacers are necessary.
Q: Can I order a single sample to verify the finish and fitment?
A: Yes, we support a minimum order from one piece, making it easy to order a single sample for your custom build. We recommend ordering a sample to physically verify the black powder coat finish quality, the 32-inch overall length, and the tree spacing before committing to a bulk order for your shop or distribution catalog.
