Fitment Checked 24″ Chrome Springer Fork for Custom FXST Softail
In-house Springer Production — We manufacture this 24″ chrome springer fork in our own facility, ensuring direct control over steering stem alignment and rocker spacing.
Product Specification
Part Type | Springer Fork
| Parameter | Value |
|---|---|
| Finish | Chrome plated |
| Overall Length | 24″ |
| Standard Length | 20″ (lower tree to axle center) |
| Rake | 0° (in-line top bracket) |
| Steering Stem O.D. | 1″ |
| Bearing Type | Timken® type |
| Axle Rocker Spacing | 8 3/4″ |
| Axle O.D. | 3/4″ |
| Rise Mount Centers | 4 3/4″ |
| Rise Mount Thread | 1/2-20 |
| Brake Rod Mount | Universal, right rear leg (5/8″ hole) |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Vintage FL | Confirm with model and year | 20″ standard length comparable to vintage FL fork length |
| K Model | 1952-1981 | Requires neck cup conversion kit for installation |
| Sportster | 1952-1981 | Requires neck cup conversion kit for installation |
| FXST Softail | modern | Same fitment style as modern FXST Softail |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Resolving Geometry Confusion in 24″ Chrome Springer Fork for Custom and FXST Softail Builds

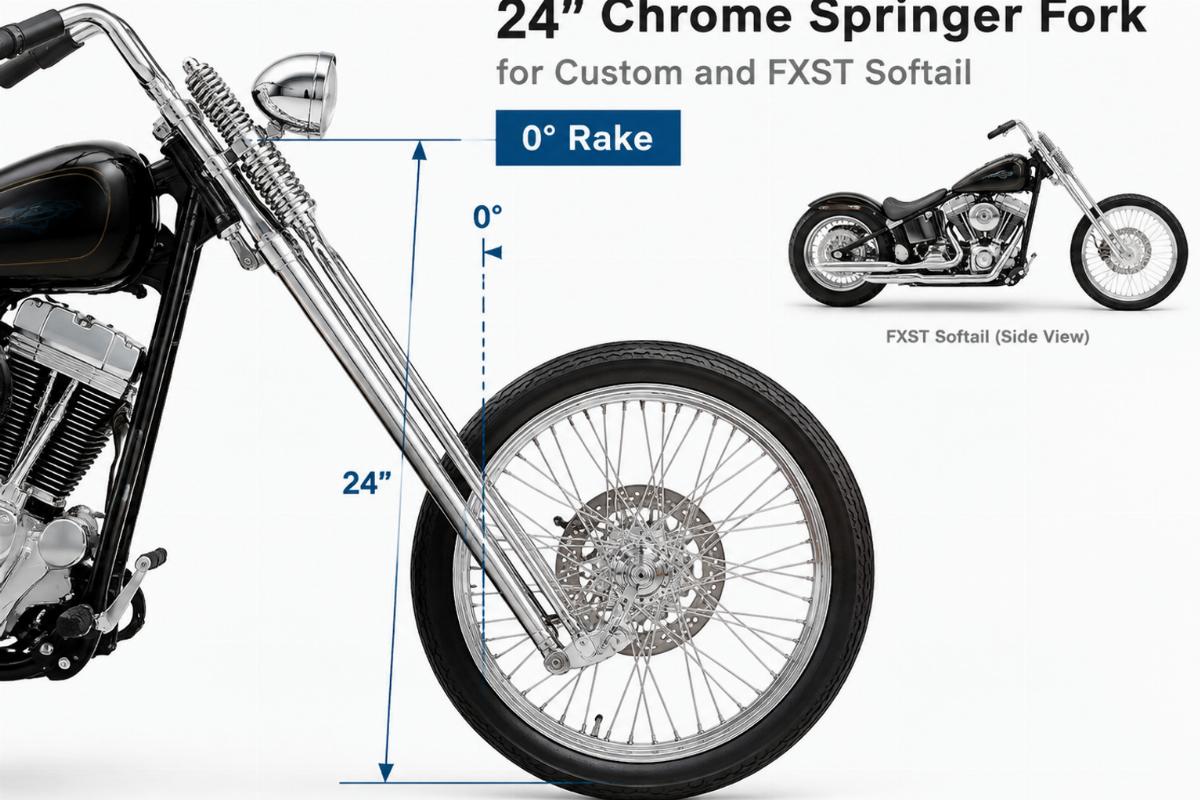

A 0° rake changes trail and ride height immediately upon mockup.
Listings for a 24″ chrome springer fork for custom and FXST Softail builds often hide the rake angle and axle rocker spacing. When a shop receives a fork without these dimensions, the steering geometry fails, and the wheel misaligns with the cast rockers. Verifying the overall length and mounting centers prevents the bike from sitting unfinished on the lift [NEED_CITE: frame geometry specifications by model year].
Verifying Steering Stem and Bearing Compatibility
Before ordering a 24″ chrome springer fork for custom and FXST Softail projects, confirm the 1″ O.D. steering stem matches your triple tree. The Timken® type bearing requires precise neck cup sizing to prevent binding. Checking these dimensions against your specific frame year ensures the fork rotates smoothly without modifying the steering head.
Matching Rise Mounts and Brake Clearances
The 4 3/4″ rise mount centers and 1/2-20 thread dictate which handlebar risers will bolt directly to the top bracket. Additionally, the universal right rear leg brake rod mount features a 5/8″ hole for disc brake setups. Confirming these clearances with your chosen caliper and riser setup avoids fabrication delays during the final assembly stage [NEED_CITE: mounting hardware variations across custom front end setups].
How Fork Dimensions Dictate Custom Geometry

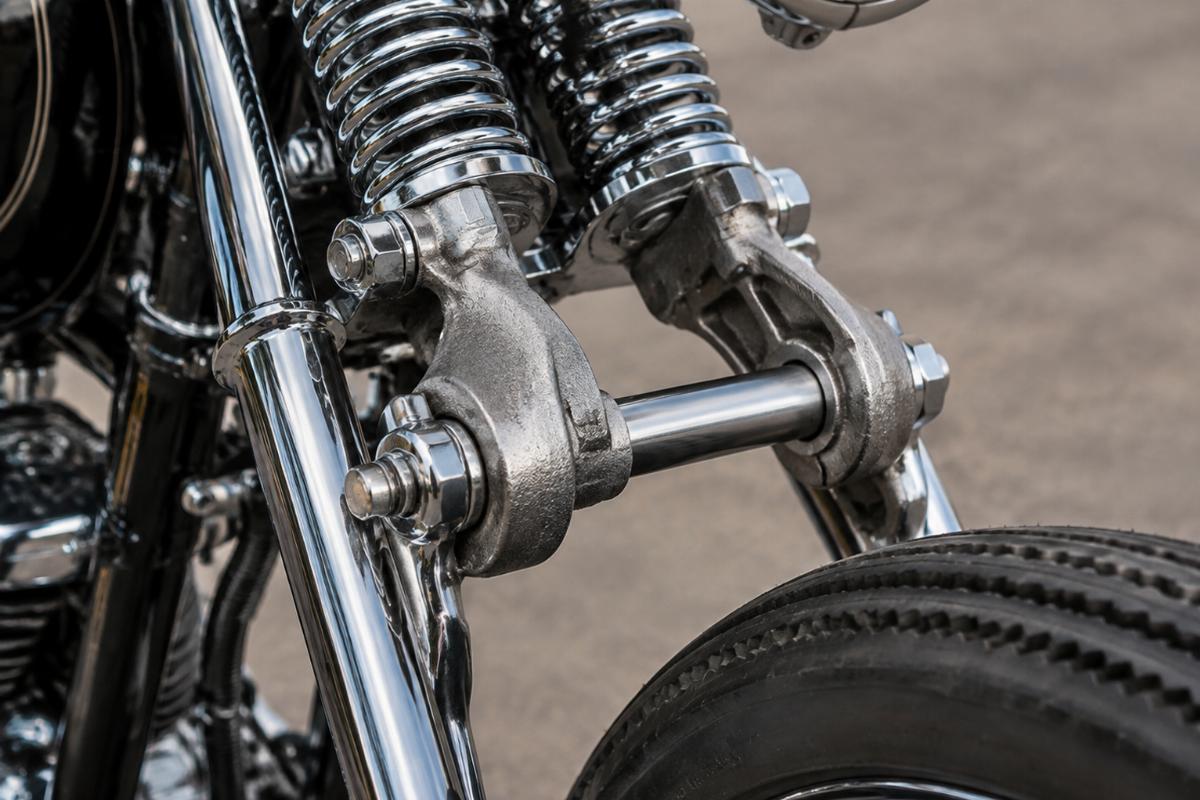

The 24″ overall length and 20″ standard measurement from the lower tree to the axle center directly alter the front-end profile. A 0° rake in-line top bracket means the fork does not add built-in angle, requiring the frame neck angle to dictate the trail. The 8 3/4″ spacing between cast axle rockers and the 3/4″ O.D. axle must align perfectly with the wheel hub width to maintain structural integrity and visual symmetry.
The Hidden Cost of Unverified Springer Dimensions
Ordering a springer without confirming the rake and rocker spacing often results in a wheel that sits too far forward or backward, ruining the chassis balance. If the steering stem O.D. is incorrect, the neck bearings will not seat, forcing a return or expensive machining. Missing the need for a neck cup conversion kit on a 1952-1981 Sportster leaves the bike stranded in the workshop until the correct adapter arrives [NEED_CITE: steering head dimension changes across vintage model years].
Sourcing Directly from the Front-End Specialist
We produce this 24″ chrome springer fork in our own facility, allowing us to control the chrome plating consistency across batches. Our catalogue consolidates complete springer assemblies and early springer parts under one account, simplifying your procurement. We verify fitment against the platform and year range before quotation, ensuring the 1″ stem and 8 3/4″ rocker spacing match your build requirements. You can order a single piece for a custom build without facing minimum order blocks, and we supply samples for physical fitment confirmation before you commit to bulk purchases.
Documentation Included With Your Shipment
- Fitment sheet listing each year range this part was checked against
- Cross-reference sheet with Harley-Davidson numbers marked reference only
- Key dimensions including fork length over stock and steering stem diameter
- Finish specification detailing the chrome plating process
- Quality inspection record covering stem alignment and rocker spacing
- Packing photographs showing the fork secured for transit
Pre-Installation Checks for Your Workshop
- Verify the 1″ steering stem O.D. slides freely into your specific triple tree
- Confirm the 4 3/4″ rise mount centers align with your chosen handlebar risers
- Check the 8 3/4″ axle rocker spacing against your front wheel hub width
- Inspect the chrome plating for consistency before disassembling for paint or powder coat
- Ensure the neck cup conversion kit is on hand if adapting to a 1952-1981 Sportster
- Store the fork in a dry environment to prevent surface oxidation before installation
Requesting a Fitment Check for Your Build
Send your exact model designation and year range so we can verify the 24″ length and 0° rake against your frame geometry. Provide photographs or measurements of your current steering stem and rise mounts if the part number is unknown. Let us know if you require a single piece for a custom FXST Softail or a sample to confirm the 8 3/4″ rocker spacing before a larger order.
Frequently Asked Questions
Q: How do I confirm if this 24″ springer fork fits my specific custom build or FXST Softail?
A: Provide your exact model designation and year range so we can verify the 24″ overall length and 0° rake against your frame geometry. We check the 1″ steering stem O.D. and 8 3/4″ axle rocker spacing against your specific triple tree and wheel hub to ensure proper alignment before quotation.
Q: What key dimensions must I measure to ensure steering stem and rise mount compatibility?
A: Measure your triple tree to confirm it accepts a 1″ O.D. steering stem and Timken® type bearings. Check the distance between your riser mounting holes to verify they match the 4 3/4″ rise mount centers and 1/2-20 thread on the top bracket of this fork.
Q: Does the 0° rake on this fork affect the steering geometry and ride height?
A: Yes, a 0° rake in-line top bracket means the fork adds no built-in angle, so your frame neck angle entirely dictates the trail and ride height. This requires careful measurement of your frame geometry to ensure the 24″ overall length achieves your desired front-end profile without compromising steering.
Q: Can I order a single piece for a custom build without minimum order quantities?
A: Yes, we support single-piece orders for custom builders and repair shops working on individual projects. You can order one 24″ chrome springer fork directly, and we also offer sample supply for physical fitment confirmation before you commit to larger bulk orders for your catalogue.
Q: What additional parts are needed to install this springer on a 1952-1981 Sportster or K Model?
A: Installing this fork on a 1952-1981 Sportster or K Model requires a neck cup conversion kit to adapt the 1″ steering stem to the older frame dimensions. Ensure you source this conversion kit separately, as it is not included with the fork assembly but is mandatory for proper fitment on these vintage platforms.
