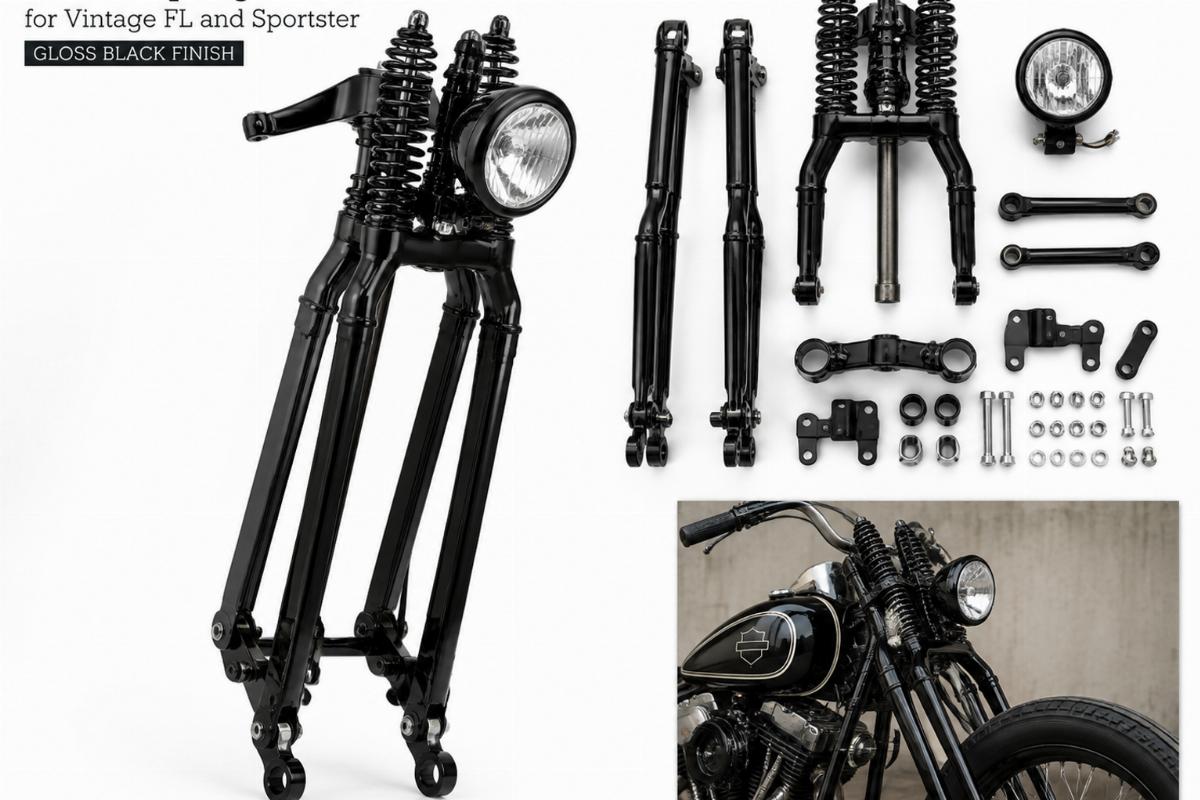

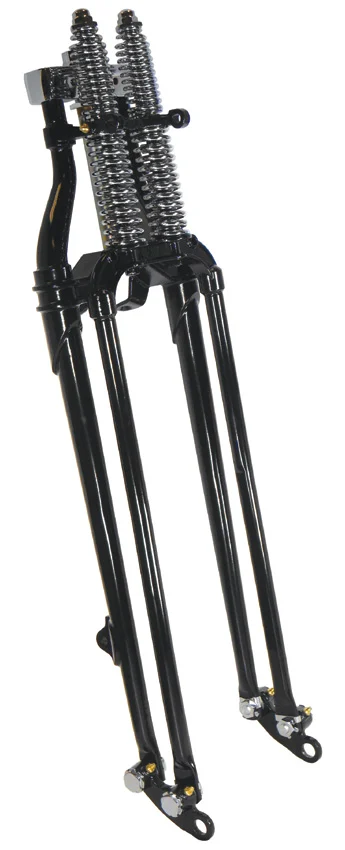

Springer Front End 22″ Gloss Black for Vintage FL, Sportster 1952-1981

In-house Springer Production — Every custom springer front end for vintage fl and sportster is manufactured in our own facility to guarantee exact steering stem dimensions and consistent gloss black finish across batches.

Product Specification

Fitment

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Why 0 Degree Rake and Exact Length Matter for Your Build

A custom springer front end for vintage fl and sportster must match your frame’s steering geometry to maintain proper trail and ride height.

When sourcing a custom springer front end for vintage fl and sportster, buyers often encounter listings that state an overall length without explaining the rake impact. I have seen builds where a 22 inch fork with a 0 degree rake was installed on a frame expecting built-in angle, causing the front end to sit too high and ruining the trail. Verifying the exact measurement from the lower tree to the axle center prevents these geometry issues before the bike reaches the assembly stage.

Verifying Frame Compatibility Before Quoting

Confirming the exact platform and year range is the first step when ordering a custom springer front end for vintage fl and sportster. Vintage FL models require checking the standard length compatibility, while K Model and Sportster platforms from 1952-1981 need the specific neck cup conversion kit. We cross-reference your frame details against our fitment database to ensure the 1 inch steering stem and 8 3/4 inch axle rocker spacing align with your chassis.

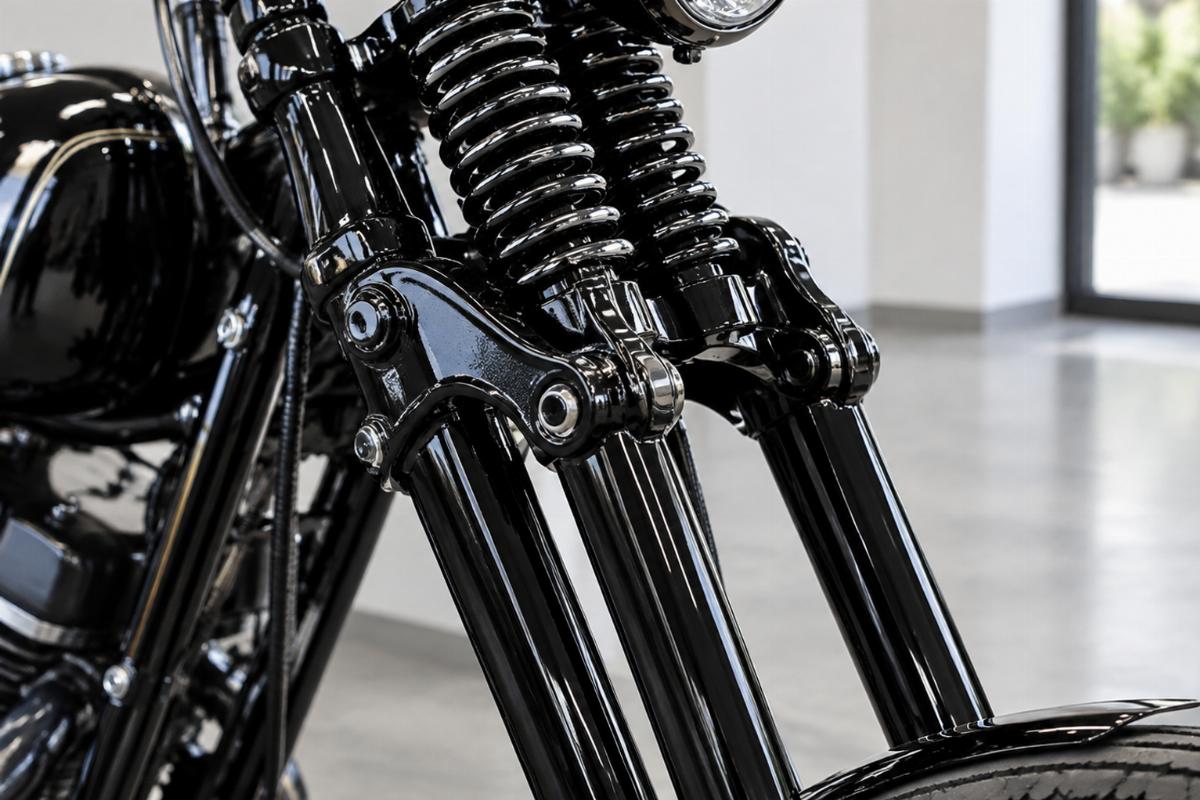

Maintaining Gloss Black Finish Consistency

Finish consistency between gloss black batches is critical when a custom springer front end for vintage fl and sportster is fitted alongside other chassis components. Variations in coating thickness or gloss levels become highly visible once the parts are mounted side by side on a completed build. Our in-house production process controls the coating environment to ensure the gloss black finish matches across different production runs. This attention to surface detail ensures the front end integrates seamlessly with the rest of the motorcycle’s aesthetic.

How Steering Stem and Axle Spacing Affect Assembly

The 1 inch steering stem O.D. dictates the specific Timken type bearings and head cup kits required for your steering neck. If the stem diameter is mismatched, the front end cannot be secured safely to the frame. The 8 3/4 inch axle rocker spacing on these cast rockers determines the wheel hub width and brake clearance. Additionally, the 4 3/4 inch rise mount centers with 1/2-20 threads must align perfectly with your handlebar risers or clamps. The universal brake rod mount on the right rear leg features a 5/8 inch hole, which must be verified against your specific disc brake caliper setup to ensure proper linkage alignment.

The Hidden Cost of Incorrect Dimension Matching

Ordering a front end without confirming the 0 degree rake and overall length often leads to severe steering geometry errors that make the motorcycle unrideable. A mismatched steering stem O.D. means the part arrives but cannot be installed without modifying the frame neck or sourcing different bearings. When axle rocker spacing is incorrect, the wheel will not sit centered, forcing a complete teardown to source new spacers or a different fork. These fitment failures result in idle shop bays, delayed customer deliveries, and additional freight costs for returning the incorrect parts. Relying on unverified dimension lists from other suppliers often passes these errors down the supply chain.

Why Source This Front End From Us

Our own production facility manufactures these springer front ends, ensuring direct control over the 22 inch overall length and gloss black finish quality. We provide a detailed fitment sheet that explicitly states the applicable platforms and year ranges for Vintage FL and Sportster models. Every quotation includes a cross-reference check against your frame requirements, confirming the 1 inch steering stem and 0 degree rake specifications. We support single-piece minimum orders, allowing custom builders to purchase exactly what they need for one specific build without bulk requirements. Sample supply is available for fitment confirmation before you commit to larger batch orders.

Documentation Included With Your Shipment

• Fitment sheet stating applicable platforms and confirmed year ranges for Vintage FL and Sportster.
• Key dimensions sheet detailing the 22 inch overall length, 20 inch tree-to-axle measurement, and 0 degree rake.
• Finish specification document confirming the gloss black coating standards.
• Quality inspection record verifying steering stem O.D. and axle rocker spacing.
• Commercial invoice and packing list with HS code and customs documentation support.

Pre-Installation Checks for Your Shop

• Verify the 1 inch steering stem O.D. matches your frame’s neck bearing requirements before assembly.
• Confirm the 8 3/4 inch axle rocker spacing aligns with your wheel hub and brake setup.
• Check the gloss black finish under shop lighting to ensure consistency with your other chassis parts.
• Ensure the neck cup conversion kit is on hand if installing on a K Model or Sportster from 1952-1981.
• Have a qualified technician verify the 5/8 inch brake rod mount hole aligns with your disc brake linkage.

Send Your Details for a Fitment Check

To ensure this custom springer front end for vintage fl and sportster fits your specific project, send us your exact model designation and year range. Provide a photograph or measurements of your current steering neck and axle setup if the part number is unknown. Let us know if you require the neck cup conversion kit for your Sportster platform and whether you need a sample for trial fitting before placing a bulk order.

Frequently Asked Questions

Q: How do I confirm my Vintage FL or Sportster model year fits this springer?

A: Provide your exact model designation and production year. We will cross-reference this against our fitment database to verify if the standard length is compatible for Vintage FL models or if the 1952-1981 Sportster requires the specific neck cup conversion kit for proper installation.

Q: What dimensions must I measure for 0 degree rake steering geometry?

A: You must measure the distance from the bottom of the lower triple tree to the axle center, which is 20 inches for this unit. Additionally, verify your frame’s steering neck angle to ensure the 0 degree in-line top bracket maintains the correct trail and ride height for your specific build.

Q: Does the kit include the neck cup conversion for Sportster models?

A: The conversion kit is required to install this front end on K Model and Sportster platforms from 1952-1981. You must explicitly request the conversion kit during the inquiry process so we can include it in your quotation and shipment, as it is not automatically bundled with the fork assembly.

Q: Can I order a single piece for a custom build?

A: Yes, we support a minimum order of one piece. This allows custom builders and independent repair shops to purchase a single custom springer front end for a specific project without being forced into bulk quantities, ensuring you get the exact finish and dimensions needed for your build.
