Gloss Black Custom Springer Front End 24″ – Fits FXST Softail
Single-piece minimum order — Custom springer front ends for FXST Softail are available from one unit, allowing custom builders to source exactly what is needed for a single chassis build without bulk requirements.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Custom Springer Front End |
| Finish | Gloss Black |
| Overall Length | 24″ |
| Standard Length (Lower Tree to Axle Center) | 20″ |
| Rake | 0° (in-line top bracket without built-in rake) |
| Steering Stem O.D. | 1″ |
| Bearing Type | Timken type |
| Axle Rocker Spacing | 8 3/4″ (cast rockers) |
| Axle O.D. | 3/4″ |
| Rise Mount Centers | 4 3/4″ |
| Rise Mount Thread | 1/2-20 |
| Brake Rod Mount | Universal, right rear leg, 5/8″ hole (for disc brakes) |
| Assembly | Fully assembled |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| FXST Softail (modern) | Confirm with model and year | Same as modern FXST Softail |
| K Model | 1952-1981 | Requires neck cup conversion kit to install |
| Sportster | 1952-1981 | Requires neck cup conversion kit to install |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

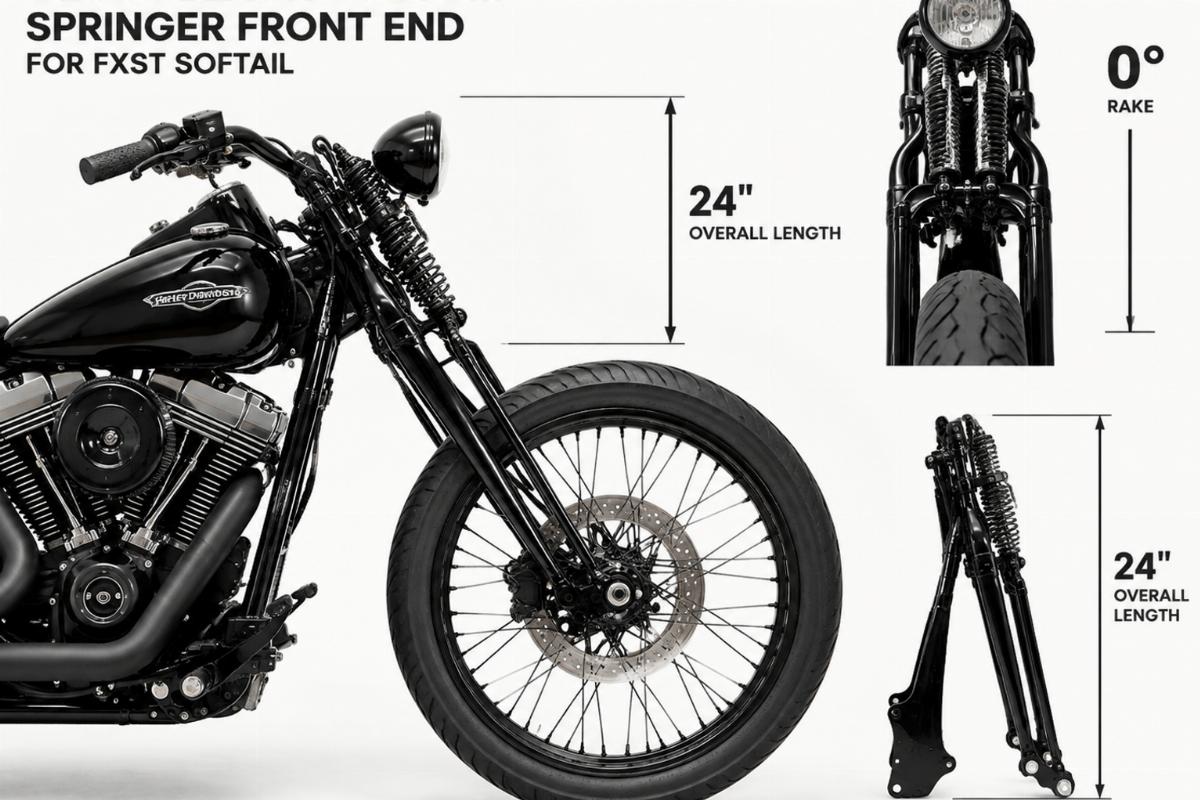

Checking Overall Length and Rake for Your Custom Springer Front End for FXST Softail
A 24″ overall length with 0° rake dictates exact ride height and steering geometry, requiring frame-specific verification before installation.
When sourcing a custom springer front end for FXST Softail builds, buyers often face listings that state an over-stock length without explaining the rake impact. I remember a customer ordering a 24″ gloss black springer for a custom FXST Softail build. He completely ignored the 0° rake and the 8 3/4″ spacing between the cast axle rockers. When it arrived, the front end sat way too high, totally ruining the steering geometry and messing up the fender alignment. It taught me that just matching the 1″ steering stem is not enough; you have to check the overall length and rocker measurements before bolting it down [NEED_CITE: frame geometry specifications by model year].
Matching Steering Stem Diameter and Bearing Type
Fitting a custom springer front end for FXST Softail starts with the steering stem. This unit features a 1″ O.D. steering stem designed for Timken type bearings. If your frame neck was machined for a different stem diameter or a taper bearing setup, this front end will not seat correctly. Always measure the frame neck bore and confirm the bearing type against the 1″ stem specification to avoid machining delays [NEED_CITE: steering head bearing dimensions across model years].

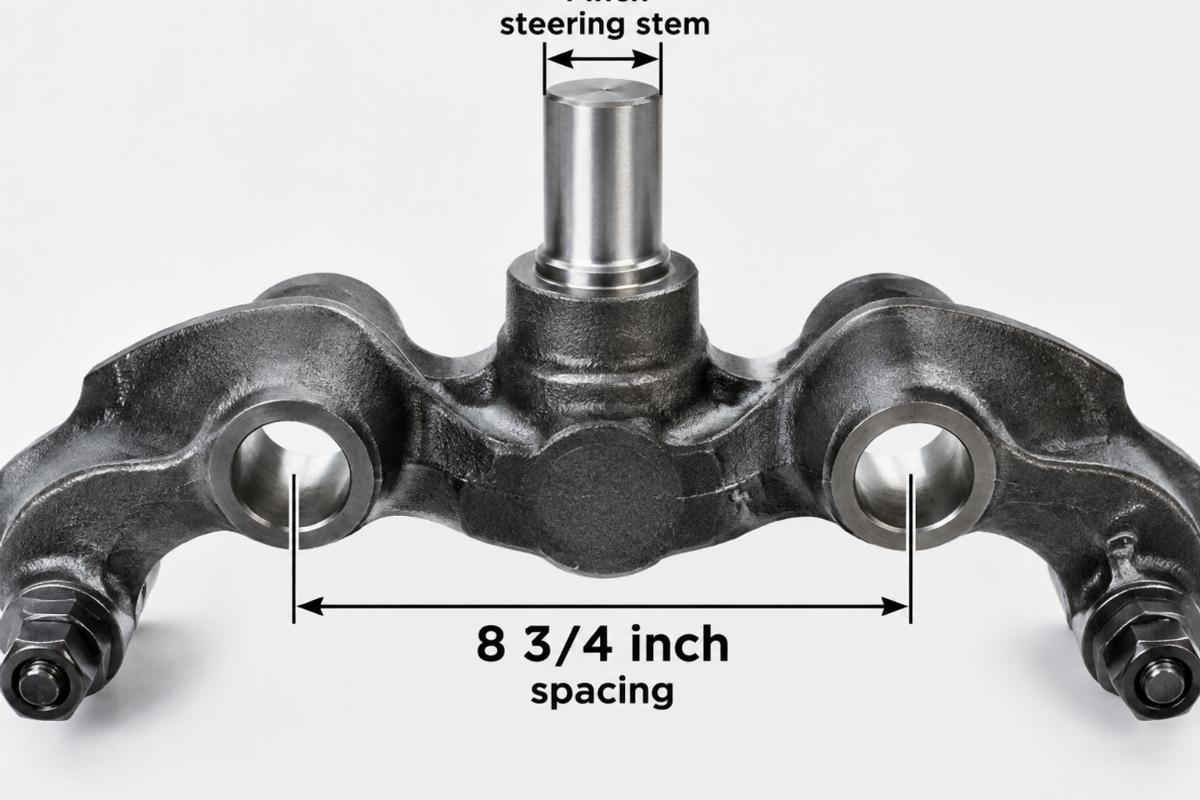

Evaluating Axle Rocker Spacing and Mount Dimensions
The cast rockers on this assembly measure 8 3/4″ in spacing. This dimension directly affects wheel alignment and brake caliper placement. Additionally, the rise mount centers sit at 4 3/4″ with a 1/2-20 thread. Verifying these measurements against your planned handlebar risers and axle hardware ensures the front end bolts together without forcing components out of alignment [NEED_CITE: axle spacing and mount thread standards for springer assemblies].
The Hidden Cost of Overlooking Frame Geometry
Ignoring the difference between standard and over-stock lengths often leaves a bike unrideable. A front end that sits too high alters the trail, making the steering feel nervous or unresponsive. Conversely, missing the 0° rake specification means the builder has no built-in angle to compensate, requiring aftermarket triple trees or risers to correct the geometry. These misfits result in wasted machining time, delayed builds, and parts sitting on the shelf [NEED_CITE: steering geometry calculations for springer front ends].
Sourcing from a Front-End Specialist
This custom springer front end for FXST Softail is produced in our own facility, ensuring direct control over the gloss black finish consistency. We offer complete springer assemblies and multiple over-stock lengths in one catalogue, backed by cross-reference checks against OEM numbers marked reference only. Fitment is confirmed against the platform and year range before quotation, and we support single-piece orders for custom builders working on individual chassis projects.
Documentation Provided
- Fitment sheet listing applicable platforms and confirmed year ranges
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions including 24″ overall length and 1″ steering stem diameter
- Finish specification for the gloss black coating
- Quality inspection record for the fully assembled unit
- Warranty terms and packing photographs
Receiving and Pre-Installation Checks
- Verify the 24″ overall length and 20″ standard length against your frame drawings
- Confirm the 1″ O.D. steering stem matches your frame neck bearing requirements
- Measure the 8 3/4″ axle rocker spacing to ensure wheel and brake alignment
- Inspect the gloss black finish for any shipping damage before disassembly
- Have a qualified technician review the 1/2-20 rise mount threads for riser compatibility
- Store the fully assembled unit in a dry environment to protect the finish
Requesting a Fitment Check
Send your model and year for a fitment check to confirm this custom springer front end for FXST Softail matches your chassis. Provide your frame neck bore measurement, desired handlebar rise, and any specific axle spacing requirements. If you are building a K Model or Sportster from 1952-1981, let us know so we can include the necessary neck cup conversion kit details in your quotation.
Frequently Asked Questions
Q: How do I confirm if this 24″ springer fits my specific FXST Softail model year?
A: Send your exact model and year for a fitment check. We verify the 1″ steering stem, 8 3/4″ rocker spacing, and 24″ overall length against your frame geometry. A fitment sheet detailing the confirmed year ranges is provided before quotation to ensure compatibility with your modern FXST Softail chassis.
Q: What is the difference between the 20″ standard length and 24″ overall length?
A: The 20″ measurement is taken from the bottom of the lower triple tree to the axle center, while the 24″ is the total overall length. Checking both dimensions against your frame geometry is essential to determine the final ride height and steering geometry for your custom springer front end for FXST Softail build.
Q: Can I order a single piece for a custom build without meeting a bulk minimum?
A: Yes, we support a one-piece minimum order. Custom builders and repair shops can source a single fully assembled gloss black springer for an individual chassis project. You receive the same fitment verification, documentation, and finish consistency as our bulk distribution orders.
Q: Do you provide samples for fitment confirmation before placing bulk orders?
A: Sample supply is available for fitment confirmation before bulk orders. We recommend ordering one unit to verify the 1″ steering stem, 0° rake, and 4 3/4″ rise mount centers against your specific frame and handlebar setup before committing to a larger catalogue purchase.
