Aftermarket Replacement Custom Springer Front End for Softail
Single-Piece Fitment Verification — We check the 24-inch length and 1-inch steering stem against your specific Softail frame requirements before dispatching even a single unit.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Custom Springer Front End |
| Finish | Black Powder Coat |
| Overall Length | 24″ (bottom bearing to axle center) |
| Steering Stem O.D. | 1″ |
| Bearing Type | Timken type |
| Axle Kit O.D. | 3/4″ |
| Width Between Rockers | 9 1/4″ |
| Riser Mount Centers | 4 3/4″ |
| Riser Mount Thread | 1/2-20 |

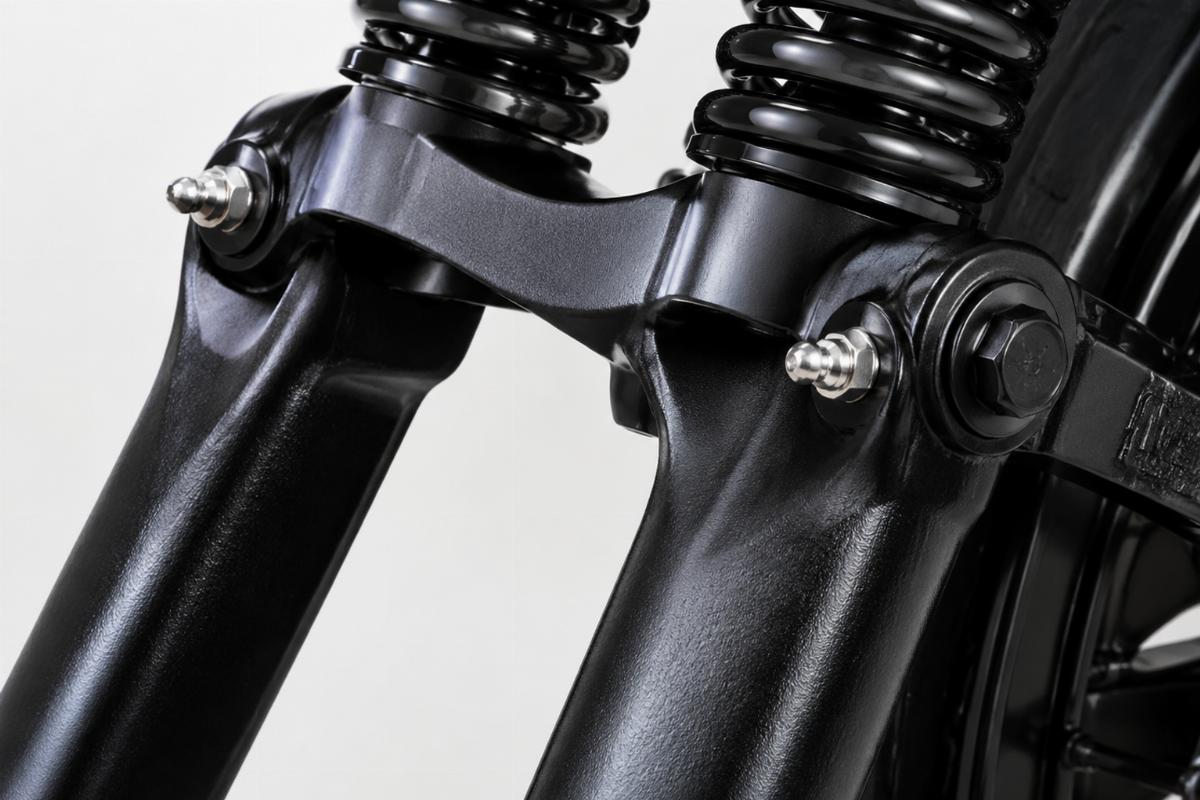

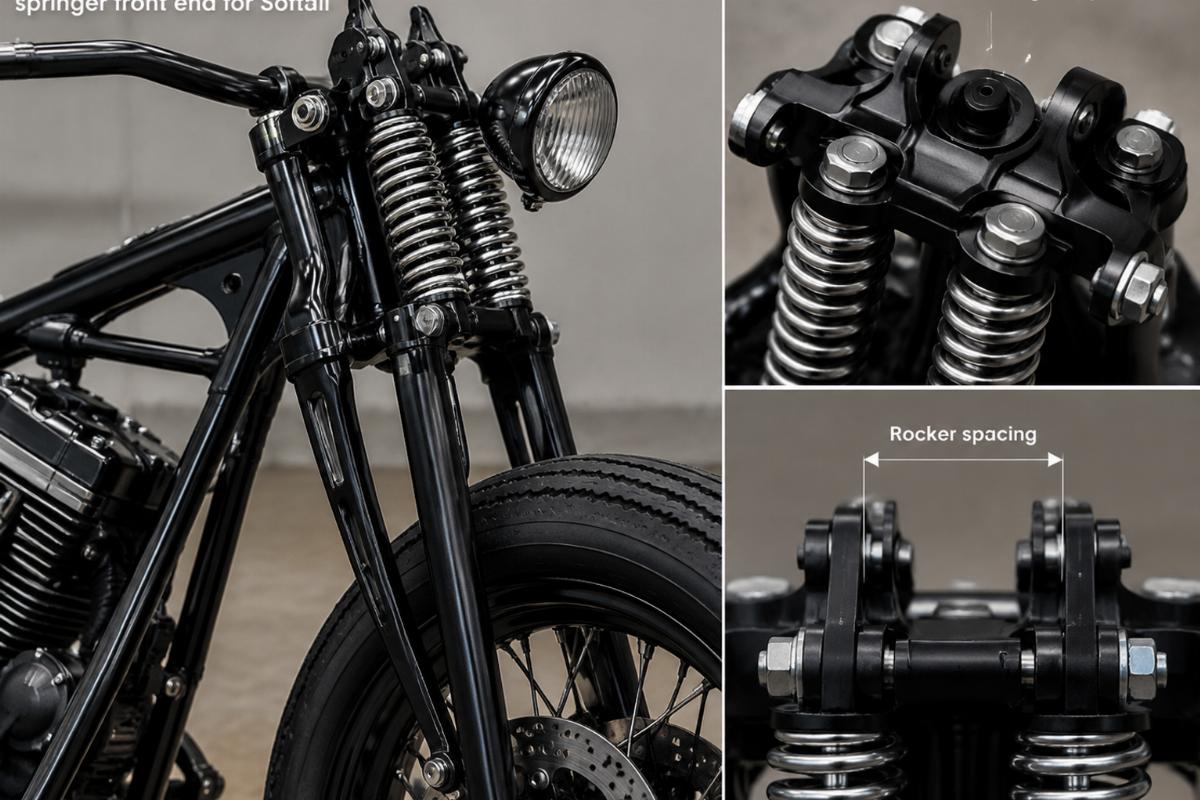

| Assembly Features | Fully assembled, forged in-line top bracket without built-in rake, forged rockers, 1-piece rear legs, rocker grease fittings, rear legs threaded for right or left brakes |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Softail (FXST) | Confirm with model and year | Verify 1″ steering stem and 9 1/4″ rocker spacing against frame specs. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Geometry Clarity Matters for a Custom Springer Front End for Softail
A 24-inch length means nothing if the steering stem and rocker spacing do not match your neck.
Builders often focus on the visual profile of a front end, but a custom springer front end for softail platforms requires exact dimensional alignment to maintain correct ride height and steering geometry [NEED_CITE: frame geometry specifications for springer conversions]. When the 1-inch steering stem or the 9 1/4-inch width between rockers is overlooked, the forged top bracket will not seat properly. This forces a complete teardown and delays the build, turning a straightforward installation into a geometry troubleshooting session.
Verifying Steering Stem and Neck Compatibility
Before mounting this custom springer front end for softail builds, the 1-inch O.D. steering stem must align with your frame’s neck bearing requirements. This unit is designed for Timken type bearings, meaning the neck cup and race must match this specific bearing profile. If the frame was previously modified or uses a different bearing standard, the stem will not seat correctly, leading to steering bind or dangerous looseness [NEED_CITE: steering head bearing compatibility across custom frames].
Checking Rocker Width and Riser Alignment
The 9 1/4-inch width between rockers and 4 3/4-inch riser mount centers dictate your handlebar and control clearance. When selecting bars for this custom springer front end for softail applications, ensure the pullback and rise do not interfere with the fuel tank or brake lines. The 1/2-20 riser mount thread is standard, but verifying the exact center-to-center distance prevents the need for custom riser modifications or offset mounts.
Interpreting the 24-Inch Overall Length
The 24-inch measurement, taken from the bottom bearing to the axle center, directly impacts your ride height and rake. Unlike stock replacements, this custom springer front end for softail platforms features a forged in-line top bracket without a built-in rake. This means the final steering geometry relies entirely on your frame’s neck angle and the triple tree offset. Always calculate the expected trail before finalizing the build to ensure the bike handles predictably [NEED_CITE: rake and trail calculation methods for springer front ends].
The Hidden Cost of Overlooking Frame Dimensions
Ordering a front end based solely on visual length often leads to costly delays. If the 1-inch steering stem does not match the frame neck, or the 9 1/4-inch rocker width clashes with the tank, the bike sits on the lift while you source adapters or machine new parts. A custom springer front end for softail projects requires confirming these exact measurements against the specific frame, not just the model name, to avoid tearing down a completed assembly to swap out mismatched hardware.
Sourcing with Fitment Certainty
We verify the 24-inch length and 1-inch steering stem against your specific frame requirements before dispatch. This custom springer front end for softail builds is produced in our own facility, ensuring the black powder coat finish remains consistent across batches. We support single-piece orders for custom builders, providing a fitment sheet that documents the exact dimensions checked against your platform.
Documentation Provided
- Fitment sheet stating applicable platforms and year ranges.
- Key dimensions including fork length and steering stem diameter.
- Finish specification for the black powder coat application.
- Quality inspection record for the forged components.
- Warranty terms covering manufacturing defects.
Receiving and Pre-Installation Checks
- Verify the 24-inch overall length matches your frame requirements.
- Confirm the 1-inch steering stem slides smoothly into the neck.
- Check the 9 1/4-inch rocker width against your tank clearance.
- Inspect the black powder coat for any shipping damage or chips.
- Ensure the 1/2-20 riser threads are clean and undamaged.
- Have a qualified technician verify all clearances before final assembly.
Requesting a Fitment Check
Send your specific Softail model and year range to confirm this 24-inch unit matches your frame geometry. Provide the measured neck bearing size and any custom triple tree offsets you are using. Let us know if you require a sample for test-fitting before placing a larger order for your shop.
Frequently Asked Questions
Q: How do I confirm if this 24″ springer front end fits my specific Softail model and year?
A: Send your exact model and year range so we can verify the 1-inch steering stem and 9 1/4-inch rocker spacing against your frame specifications. We provide a fitment sheet detailing the dimensions checked for your specific platform before dispatch.
Q: What key dimensions should I measure on my frame to ensure the springer length and steering stem match?
A: Measure the distance from the bottom bearing to the axle center to confirm the 24-inch length. Check the inner diameter of your steering neck to ensure it accepts a 1-inch O.D. stem with Timken type bearings.
Q: Does the axle kit include all necessary spacers, or will I need custom spacers for my wheel?
A: The 3/4-inch axle kit is included, but custom spacers may be required depending on the specific wheel hub width and brake rotor setup you are using. Measure your wheel hub spacing to determine if additional spacers are needed.
Q: Can I order a single springer front end for a custom build, or is there a minimum order quantity?
A: We support single-piece orders for custom builders and repair shops. There is no minimum order quantity, and we verify the fitment dimensions for your specific frame before dispatching even a single unit.
Q: How do you ensure the black powder coat finish remains consistent across different production batches?
A: We produce these front ends in our own facility and maintain strict quality inspection records for the black powder coat application. A finish specification document is included with your order to ensure batch consistency.
