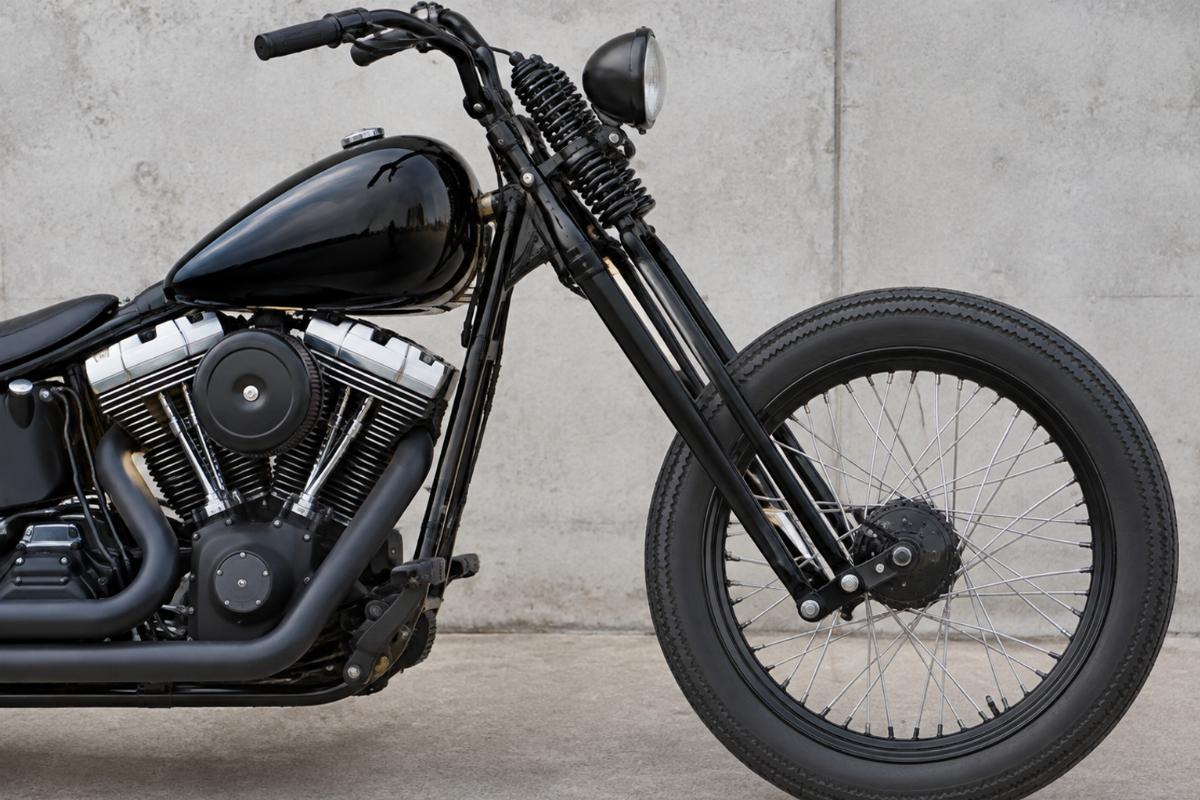

Aftermarket Replacement Custom Springer Front End 22″ for FXST
Verified Platform Fitment — Every custom springer front end for fxst is checked against frame geometry and bearing-to-axle measurements before dispatch to prevent steering issues.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Custom Springer Front End |
| Finish | Black Powder Coat |
| Overall Length | 22″ |
| Length Specification | -2″ Length |
| Steering Stem O.D. | 1″ |
| Bearing Type | Timken® type |
| Axle Kit O.D. | 3/4″ |
| Axle Kit Contents | brake mount pivot with thrust washer and hub spacers |
| Width (between rockers) | 9 1/4″ |
| Riser Mount Centers | 4 3/4″ |
| Riser Mount Thread | 1/2-20 |
| Assembly | Fully assembled with forged in-line top bracket |
| Rear Legs | 1 piece from rocker to top tree, threaded for right or left brakes |

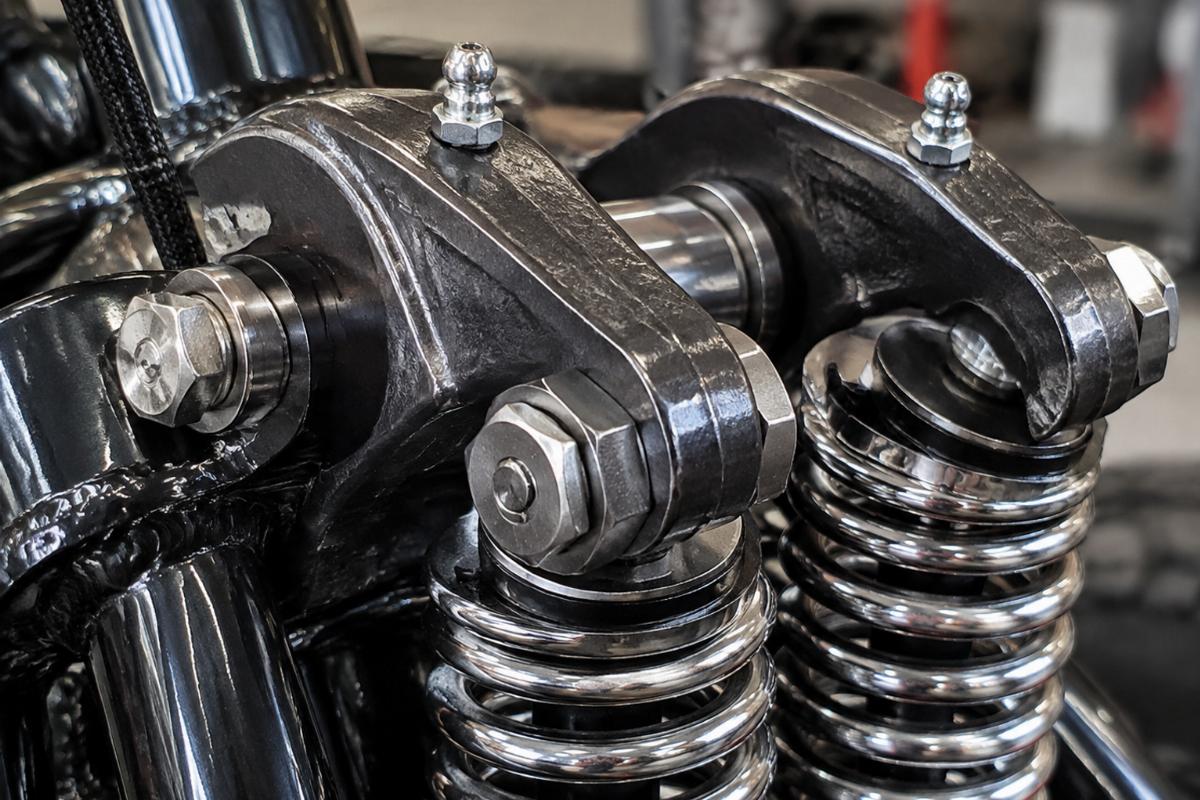

| Rockers | Forged, includes grease fittings |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| FXST | Confirm with model and year | Comparable to a standard length FXST front end |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Resolving Geometry Confusion in Over-Stock Springer Selections
A 22″ overall length directly alters the ride height and trail compared to standard configurations.
I grew up in the Yangtze River Delta moto-parts hub, learning the trade from an old master on the front line. Over the years, I have seen builders order a 22″ over stock springer for an FXSTS without checking the rake. The front end sat too low, ruining the steering geometry and making the bike handle terribly [NEED_CITE: factory service manual specifications by model year]. That mistake taught me to always verify the bearing-to-axle measurement and overall length before shipping. Now, every custom springer front end for fxst gets double-checked for ride height and trail impact to ensure it fits the platform perfectly.
Checking Neck Bearing and Stem Compatibility
When sourcing a custom springer front end for fxst, the 1″ steering stem O.D. must match your frame’s neck bearing and tree specifications. If the stem diameter is even slightly off, the steering will bind or develop dangerous play. We verify this 1″ dimension against the Timken® type bearing requirement to guarantee a precise fit for your specific FXST frame.
Verifying Riser and Axle Spacing
The 9 1/4″ width between the rockers and the 4 3/4″ riser mount centers dictate whether your handlebars and triple trees will align correctly. Furthermore, the 3/4″ axle kit O.D. must match your wheel hub spacing. Custom spacers may be required depending on the wheel used, so confirming these exact measurements prevents costly rework during assembly [NEED_CITE: axle spacing variations across custom wheel builds].
The Hidden Cost of Unverified Dimensions
Ordering a front end without confirming the -2″ length specification often leads to a bike that sits improperly on the showroom floor or in the shop bay. If the 1/2-20 riser mount threads or the 4 3/4″ centers do not align with your chosen bars, the entire assembly must be torn down. We have seen shops lose days of labor simply because a copied fitment table failed to account for frame-specific rake changes.
Sourcing Directly from the Front-End Specialist
We produce this custom springer front end for fxst in our own facility, ensuring the forged in-line top bracket and rear legs meet strict dimensional tolerances. Our one-piece minimum order allows independent repair shops and custom builders to purchase a single unit for a specific build without hitting arbitrary volume blocks. Every black powder coat finish is inspected for consistency, and the 3/4″ axle kit is fully populated with the required brake mount pivot and hub spacers before packing.
Documentation Included with Your Shipment
- Fitment sheet stating applicable platforms and year ranges
- Key dimensions including fork length over stock and steering stem O.D.
- Finish specification for the black powder coat
- Quality inspection record for the forged components
- Warranty terms covering the assembly and hardware
Pre-Installation Verification Checklist
- Verify the 22″ overall length matches your frame geometry requirements.
- Confirm the 1″ steering stem slides smoothly into your Timken® type neck bearings.
- Check that the 9 1/4″ rocker width clears your chosen front tire and fender.
- Ensure the 3/4″ axle kit includes the correct thrust washer and hub spacers for your wheel.
- Inspect the black powder coat finish for any shipping damage before mounting.
- Have a qualified technician verify the 1/2-20 riser mount threads before installing handlebars.
Requesting a Fitment Check
Send your FXST model details and year range to verify this 22″ assembly matches your frame. Provide a photograph or measurements of your current steering stem and axle setup if the original parts are unavailable. Let us know if you require a sample for fitment confirmation before committing to a larger order for your shop.
Frequently Asked Questions
Q: How do I measure my frame to confirm a 22″ custom springer will fit correctly?
A: Measure the distance from the bottom bearing race to the center of the front axle on your current setup or frame jig. Compare this baseline to the 22″ overall length of this assembly. You must also check the steering head angle to understand how the -2″ length change will affect the final ride height and trail.
Q: What are the differences between this 22″ springer and a standard FXST front end?
A: This assembly features a -2″ length specification, meaning it sits lower than a standard reference length. The 1″ steering stem and 9 1/4″ rocker width remain consistent with typical custom requirements, but the reduced overall length demands a careful review of your frame’s neck geometry to avoid negative trail impacts.
Q: Does the 3/4″ axle kit include all necessary spacers for my specific wheel?
A: The kit includes a brake mount pivot with a thrust washer and standard hub spacers. However, custom spacers may be required depending on the specific wheel hub width and brake rotor setup you are using. Always measure your wheel hub spacing against the 3/4″ axle dimensions before final assembly.
Q: Can I order a single custom springer front end for a one-off build?
A: Yes, we support a one-piece minimum order. This allows custom builders and independent repair shops to procure a single fully assembled unit for a specific project without meeting high volume thresholds. We still perform the same double-check on ride height and trail impact for single units.
Q: How do you ensure the black powder coat finish is consistent across different batches?
A: We apply the black powder coat in our own facility under controlled conditions. Every custom springer front end for fxst undergoes a visual quality inspection record check before dispatch to ensure the finish matches our specifications and remains consistent, whether you are ordering one unit or stocking multiple assemblies.
