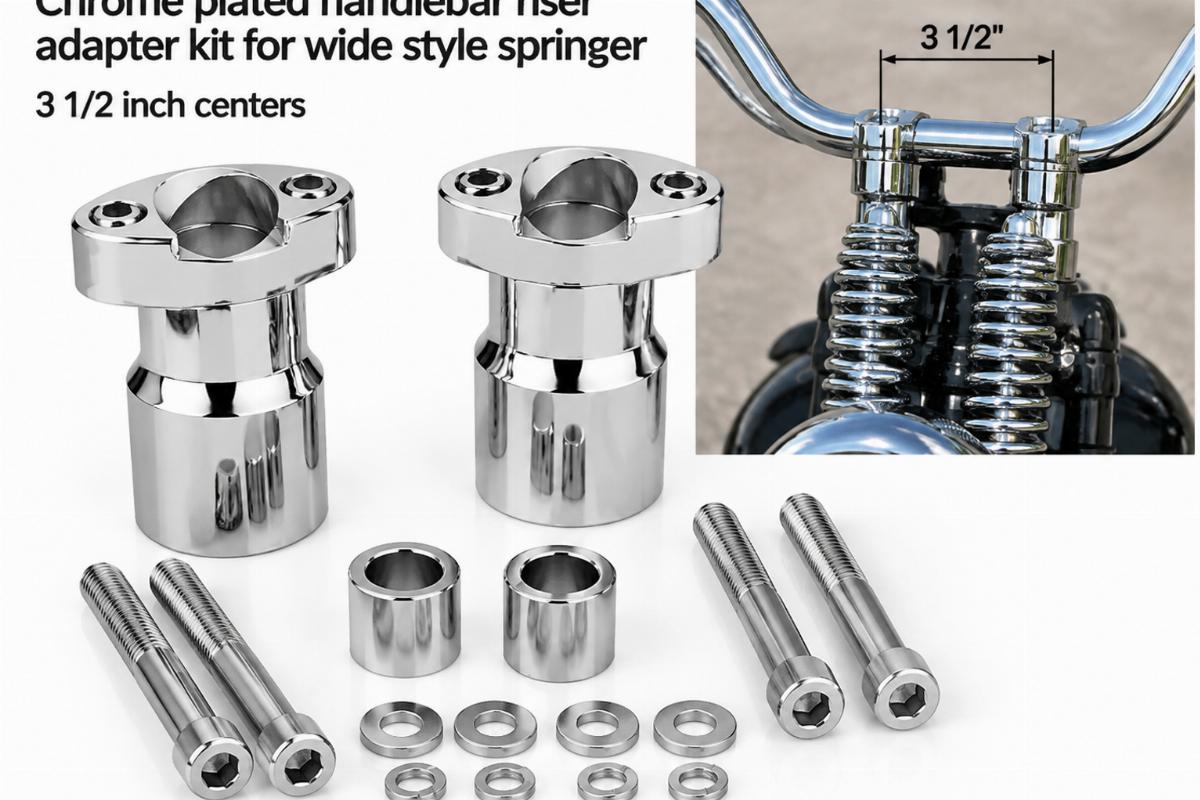

Handlebar Riser Adapter Kit 3 1/2″ Centers – Fits Wide Style Springer
Fitment Verified by Year Range — Every handlebar riser adapter kit for wide style springer is checked against specific triple tree widths and stem spacing before quotation to prevent mounting failures.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebar Riser Adapter Kit |
| Finish | Chrome Plated |
| Centers | 3 1/2″ |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Wide Style Springer (Custom Springer) | Confirm with model and year | Verify 3 1/2″ center spacing matches triple tree drilling. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Preventing Stem Hole Misalignment with a Handlebar Riser Adapter Kit for Wide Style Springer
Incorrect center spacing forces adapters off the triple tree axis.
Sourcing a handlebar riser adapter kit for wide style springer front ends without verifying the exact tree width often leads to mismatched mounting holes. When the 3 1/2″ centers do not align with the stem drilling, the build stalls at the assembly stage. Shops frequently order based on visual resemblance in photos, only to find the adapters sit skewed or fail to mount entirely [NEED_CITE: factory service manual specifications for triple tree drilling by custom springer year].
Checking Triple Tree Drilling for Wide Style Setups
Before quoting a handlebar riser adapter kit for wide style springer builds, we measure the exact distance between the stem holes on the triple tree. Custom springer setups vary in their drilling patterns, and a generic 3 1/2″ assumption can ruin the mounting geometry. Confirming this dimension ensures the adapter kit sits flush and square against the tree.
Verifying Riser Clamp Compatibility
The adapter kit must also accommodate the specific riser clamp diameter you plan to use, whether that is 1 in or 1-1/4 in. A handlebar riser adapter kit for wide style springer front ends requires precise inner bore matching to prevent the risers from shifting under load. We cross-reference your chosen riser size with the adapter specifications to guarantee a secure fit [NEED_CITE: riser clamp diameter variations across custom springer configurations].

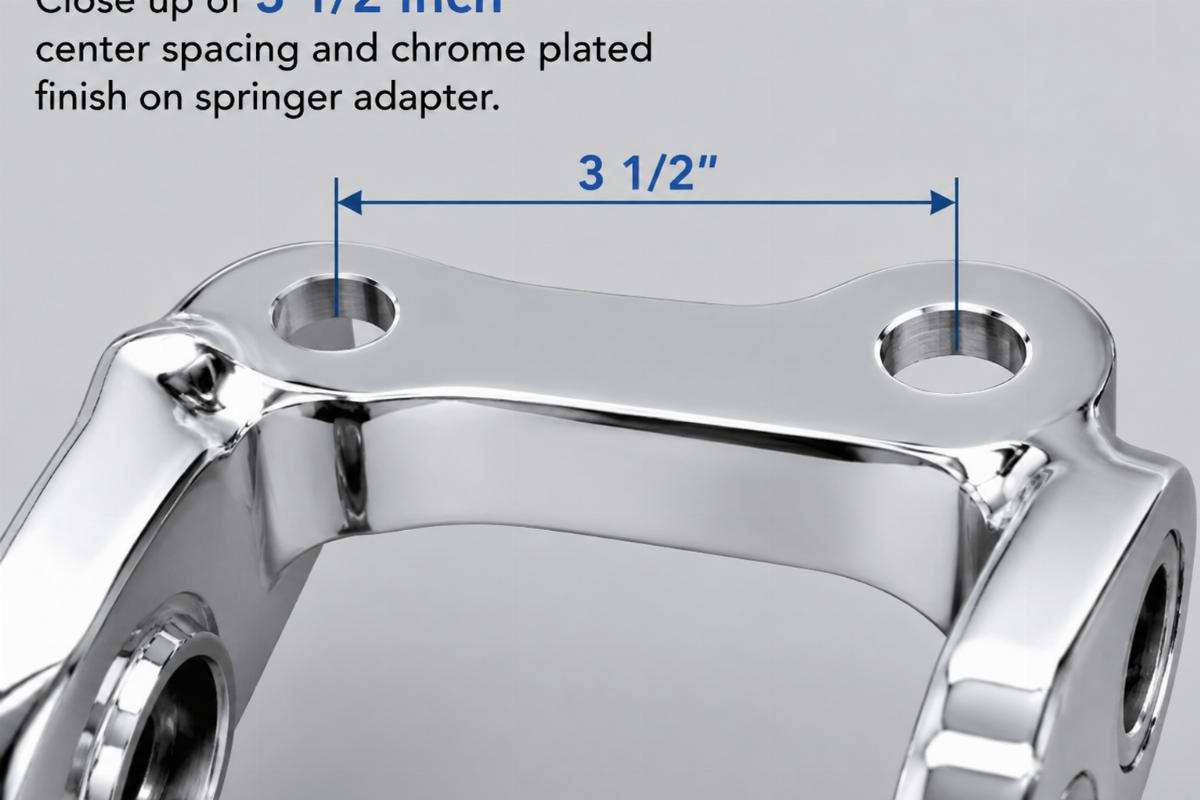

Understanding the 3 1/2″ Center Dimension
The 3 1/2″ center spacing dictates the lateral placement of your handlebars relative to the steering stem. On a wide style springer, this width must perfectly mirror the triple tree stem holes to maintain straight steering geometry. If the centers are even slightly off, the handlebars will pull to one side, making the bike impossible to ride straight.
The Hidden Cost of Skipped Dimension Checks
I started in the warehouse checking part numbers before moving to the front line. A shop once ordered a 3 1/2″ center handlebar riser adapter kit for an FXSTS Springer Softail but only provided the model name, omitting the year. Early FXSTS models featured a different triple tree width and stem spacing. When the kit arrived, the 3 1/2″ centers simply did not align with the stem holes. The bike sat on the lift for weeks while the correct adapters were sourced, costing the shop valuable billable time [NEED_CITE: triple tree width changes across early and late FXSTS model years].
Sourcing with Fitment Certainty
We verify the exact tree width and year range before quoting any handlebar riser adapter kit for wide style springer applications. Our front-end depth allows us to supply complete springer assemblies and related hardware under one account. Chrome plated finish options are checked for batch consistency, ensuring the adapters match your existing front-end chrome. We support custom builders with a one-piece minimum order, so you can secure the right part for a single build without bulk commitments.
Documentation Provided
- Fitment sheet stating applicable platforms and confirmed year ranges
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions including 3 1/2″ center spacing and finish specification
- Quality inspection record detailing chrome batch consistency
- Packing photographs showing the adapter kit and included hardware
Receiving and Pre-Installation Checks
- Verify the 3 1/2″ center spacing matches your custom springer triple tree drilling
- Inspect the chrome plated finish for uniformity across both adapter plates
- Confirm the riser clamp bores match your chosen handlebar diameter
- Check that all mounting hardware and spacers are present in the kit
- Store the adapter kit in a dry environment to preserve the chrome finish
Requesting a Fitment Check
Send your specific custom springer model, year, and a photo of your triple tree stem holes to confirm the 3 1/2″ centers. Include your intended riser clamp diameter and the quantity needed for your build. We will return a fitment sheet and quotation detailing the exact dimensions before you commit to the order.
Frequently Asked Questions
Q: How do I confirm this handlebar riser adapter kit for wide style springer fits my specific triple tree?
A: Measure the exact distance between the stem holes on your triple tree. If the distance is 3 1/2″, this adapter kit will align correctly. Provide your custom springer model, year, and a photo of the tree to our team for a definitive fitment verification before ordering.
Q: What dimensions must I measure on my custom springer triple tree before ordering?
A: You must measure the center-to-center distance between the stem holes to ensure it matches the 3 1/2″ spacing. Additionally, verify the diameter of the riser clamp bores to ensure they accept your chosen 1 in or 1-1/4 in risers without binding.
Q: Can I order a single handlebar riser adapter kit for a one-off custom build?
A: Yes, we support custom builders and repair shops with a one-piece minimum order. You do not need to meet a bulk quantity threshold to purchase this chrome plated adapter kit for a single custom springer project or restomod build.
Q: How is finish consistency maintained across different batches of chrome plated accessories?
A: We inspect the chrome plated finish on every batch to ensure visual uniformity. When you order this adapter kit alongside other front-end components, we verify the chrome tone matches, preventing mismatched finishes once the parts are installed side by side on the bike.
