Springer Fork Assembly 22″ Black and Copper for Softail 1984-Up

[Finish Consistency Documented] — Black and copper batches are documented for color matching across the 22 inch springer fork assembly for softail.

Product Specification

Fitment

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Geometry Impact of a Shorter Springer Length

A 22″ length alters ride height and steering geometry compared to the standard 24″ FXST front end.

When sourcing a 22 inch springer fork assembly for softail builds, the overall length directly dictates the front-end stance. Dropping two inches from the standard measurement changes the rake and trail, which affects how the motorcycle handles at low speeds and during cornering. Builders must verify frame geometry before ordering to ensure the shortened front end aligns with the intended custom profile rather than creating unintended steering quirks.

Verifying Steering Stem and Riser Compatibility

The 1″ O.D. steering stem is designed for Timken type bearings, requiring exact neck bearing matches to prevent binding. Riser compatibility is equally critical; the riser mount centers sit at 4 3/4″ with a 1/2-20 thread. If your handlebars require different pullback or rise, confirming these mount dimensions ensures the bars clamp securely without stressing the forged in-line top bracket.

Evaluating Rear Leg and Axle Construction

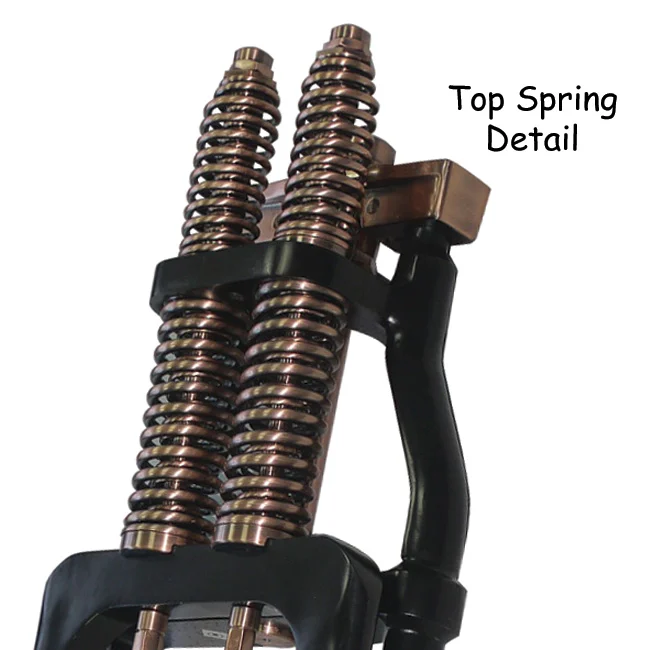

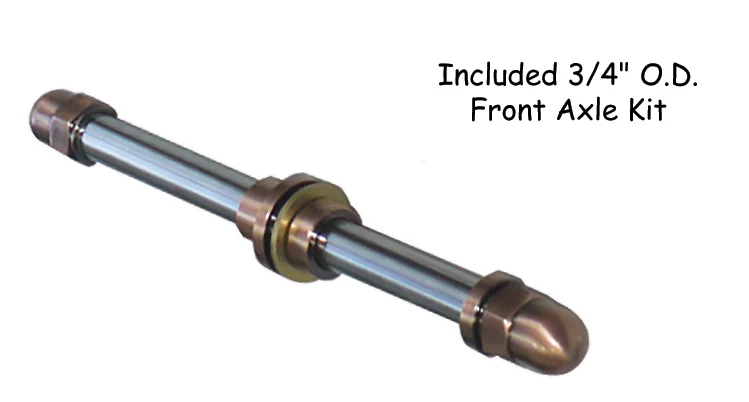

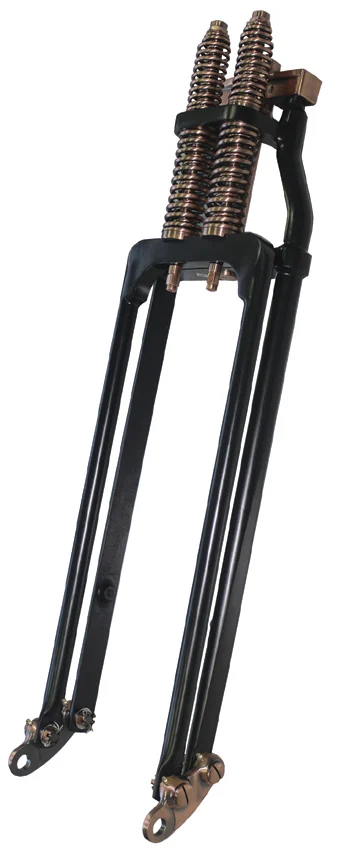

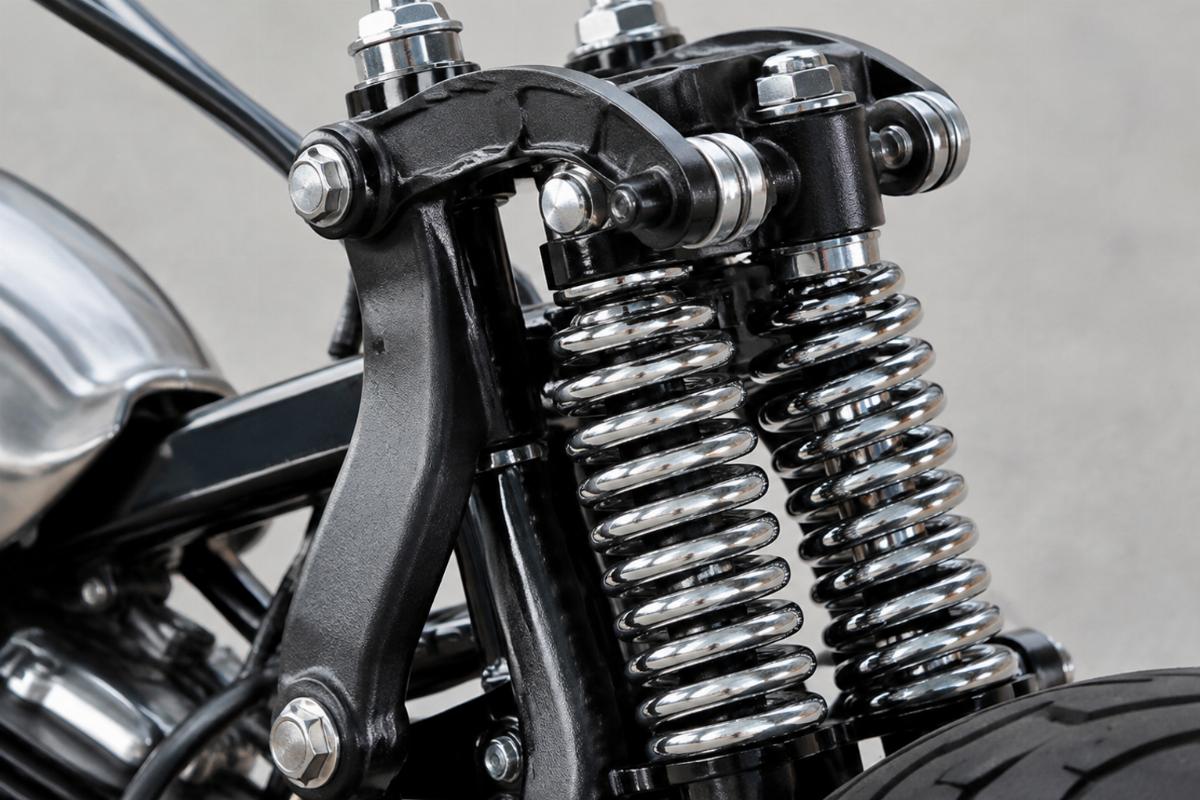

This 22 inch springer fork assembly for softail utilizes 1-piece rear legs running from the rocker to the top tree, threaded to accept right or left brake setups. The 3/4″ O.D. axle kit includes a brake mount pivot, thrust washer, and hub spacers. Because custom wheel widths vary, verifying that the included hub spacers match your specific wheel hub spacing prevents lateral misalignment.

Dimensional Breakdown for Custom Builds

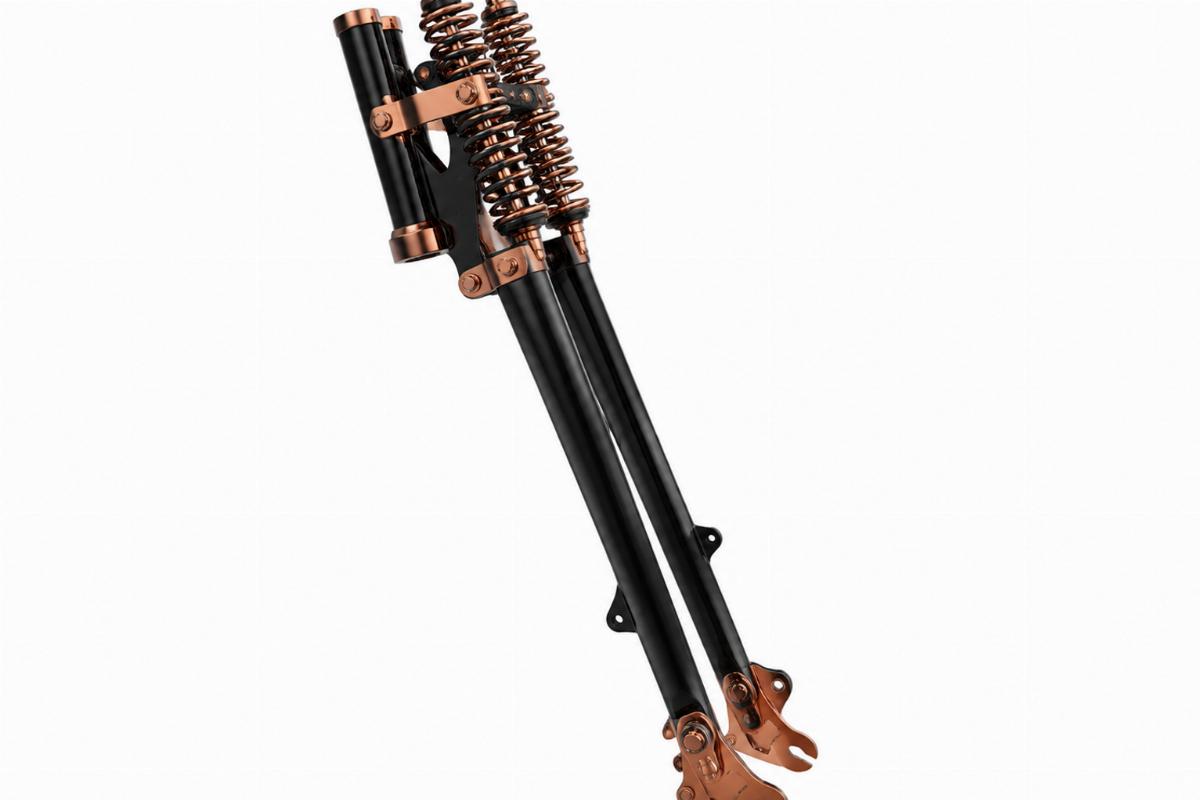

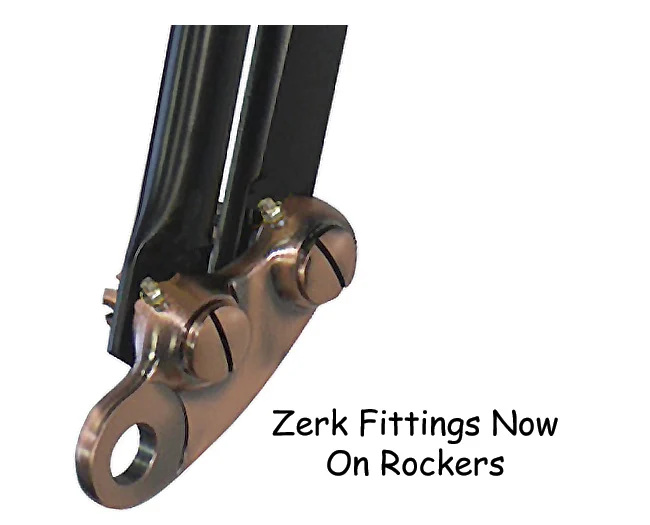

Understanding the physical dimensions of this front end prevents installation failures. The 9 1/4″ rocker spacing dictates the width of the front tire and fender clearance. The forged rockers and 1″ front rails provide the structural baseline, while the top bracket lacks built-in rake. This means the steering angle is entirely dependent on the neck cup installation and frame geometry. Measuring the distance from the bottom bearing to the axle center confirms the 22″ overall length before final assembly.

Hidden Costs of Incorrect Front-End Sizing

Ordering a springer without confirming the length difference can leave a motorcycle stranded on the lift. A 22″ front end on a frame expecting a 24″ standard length will lower the front significantly, potentially causing the fender to strike the tire or the headlight to sit below the handlebars. Additionally, if the riser mount thread is ignored, custom handlebars cannot be attached without re-tapping or using adapters, delaying the build and adding unexpected machining costs.

Sourcing Directly from the Manufacturer

We produce front-end and chassis parts in our own facility, ensuring the forged rockers and 1-piece rear legs meet strict dimensional tolerances. Our catalogue offers front-end depth, combining complete assemblies with early springer and hydraulic fork parts under one account. The black and copper finish options are documented for batch consistency, ensuring parts match when ordered together. We support a one-piece minimum order, allowing custom builders to purchase a single 22 inch springer fork assembly for softail projects without bulk requirements.

Documentation Provided with Your Order

• Fitment sheet stating applicable platforms and year ranges for the 1984-up Softail
• Key dimensions including the 22″ fork length over stock and 1″ steering stem diameter
• Finish specification detailing the black and copper batch consistency
• Quality inspection record verifying rocker spacing and riser mount threads
• Packing photographs showing the axle kit and hub spacers included

Pre-Installation Checks and Verification

• Verify the 22″ overall length matches your frame geometry requirements before mounting
• Check the 1/2-20 riser mount thread and 4 3/4″ centers against your handlebars
• Inspect the black and copper finish for any shipping damage or surface defects
• Confirm the axle kit O.D. and included hub spacers fit your specific wheel setup
• Ensure the Timken type bearings match the 1″ steering stem O.D. and frame neck cups

Requesting a Fitment Check

Send your model and year for a fitment check to confirm this 22 inch springer fork assembly for softail matches your build. Provide your frame year, handlebar riser requirements, and wheel hub spacing so we can verify the dimensions. If you are unsure about the steering stem length or rocker spacing, share a photograph or measurement of your current setup. We can supply a sample for fitment confirmation before you commit to a bulk order for your shop.

Frequently Asked Questions

Q: How does a 22″ over-stock springer length affect rake and trail compared to the standard 24″ FXST front end?

A: A 22″ length reduces the overall front-end height by two inches compared to the standard 24″ measurement. This reduction alters the rake and trail, which changes the steering geometry and ride height. Builders must calculate these changes against their specific frame to ensure the motorcycle handles correctly and maintains proper ground clearance.

Q: What are the exact riser mount dimensions and thread specifications for this springer assembly?

A: The riser mount centers are spaced at 4 3/4″ and feature a 1/2-20 thread. These dimensions are critical for selecting compatible handlebars and risers. Ensuring your chosen bars match this thread and spacing prevents the need for custom adapters and guarantees a secure clamp on the forged in-line top bracket.

Q: Does the axle kit include all necessary spacers, or do I need to source custom spacers for my specific wheel?

A: The kit includes an axle kit with a brake mount pivot, thrust washer, and standard hub spacers. However, because custom wheel widths and hub designs vary significantly, you may need to source custom spacers to center the wheel perfectly between the 1-piece rear legs and accommodate your specific brake rotor setup.

Q: Can I order a single springer fork assembly for a custom build without meeting a high minimum order quantity?

A: Yes, we support a one-piece minimum order. This allows custom builders, independent repair shops, and restoration specialists to purchase a single 22 inch springer fork assembly for softail projects without being blocked by bulk requirements. You can order exactly what you need for a specific bike build.

Q: How do you ensure finish consistency between black and copper batches across different production runs?

A: We document the finish specification for every batch to ensure color and texture consistency. When you order the black and copper finish, we provide records detailing the batch characteristics. This prevents mismatched parts when ordering additional components or replacements later, ensuring the front end looks uniform once fully assembled.
