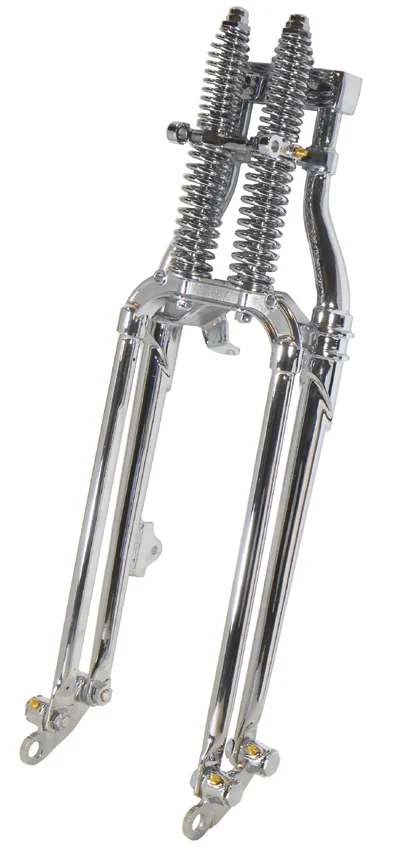

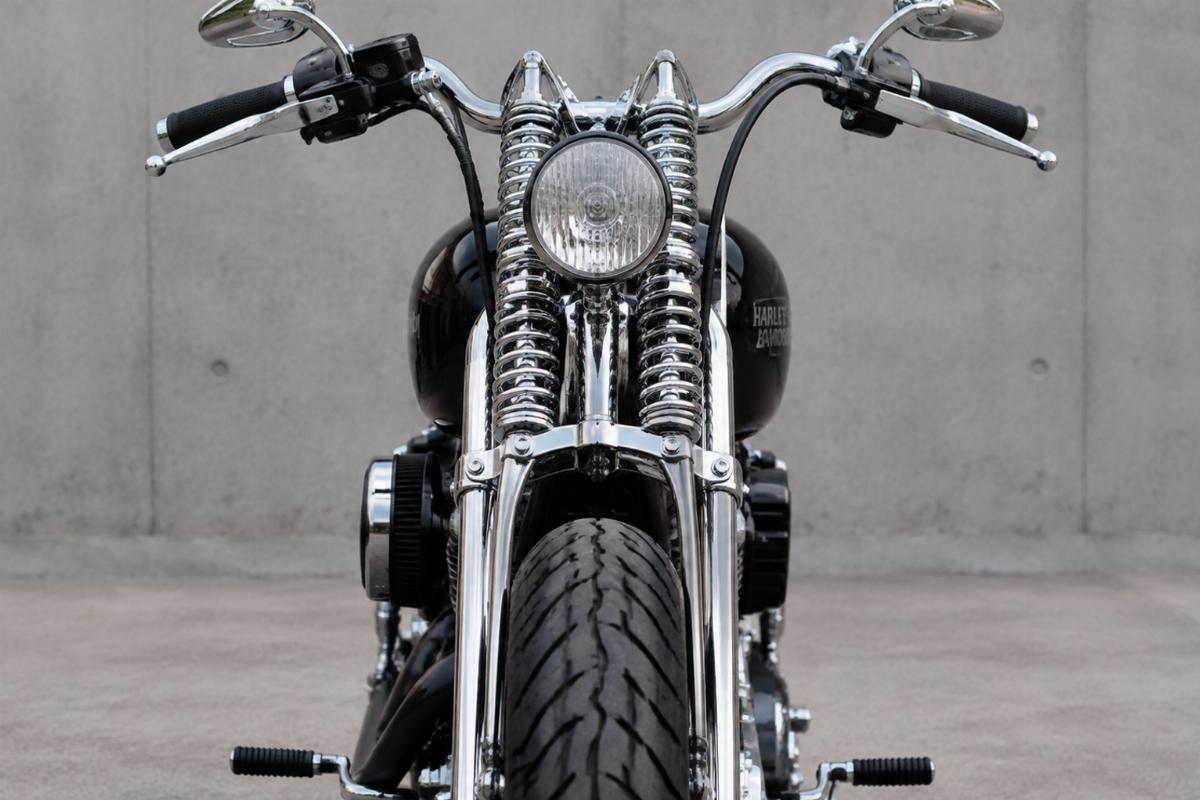

Custom Springer Front End for Harley-Davidson Sportster 1952-1981 – Aftermarket Replacement

Complete Front-End Depth — Offering multiple over-stock lengths and verified platform fitments in a single catalogue to eliminate steering geometry guesswork.

Product Specification

Fitment

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Resolving Steering Stem and Neck Cup Mismatches

A 1″ O.D. steering stem demands exact neck cup dimensions to seat properly.

When sourcing a custom springer fork for harley-davidson sportster builds, builders often overlook the transition from stock trees to aftermarket springers. I have seen frames sit on the lift for weeks because the steering stem diameter did not match the neck bearings, or the tree spacing pushed the axle out of alignment. Verifying the 1″ O.D. requirement and confirming the neck cup conversion kit availability prevents these geometry failures before the parts even arrive.

Verifying Frame Geometry for 0° Rake

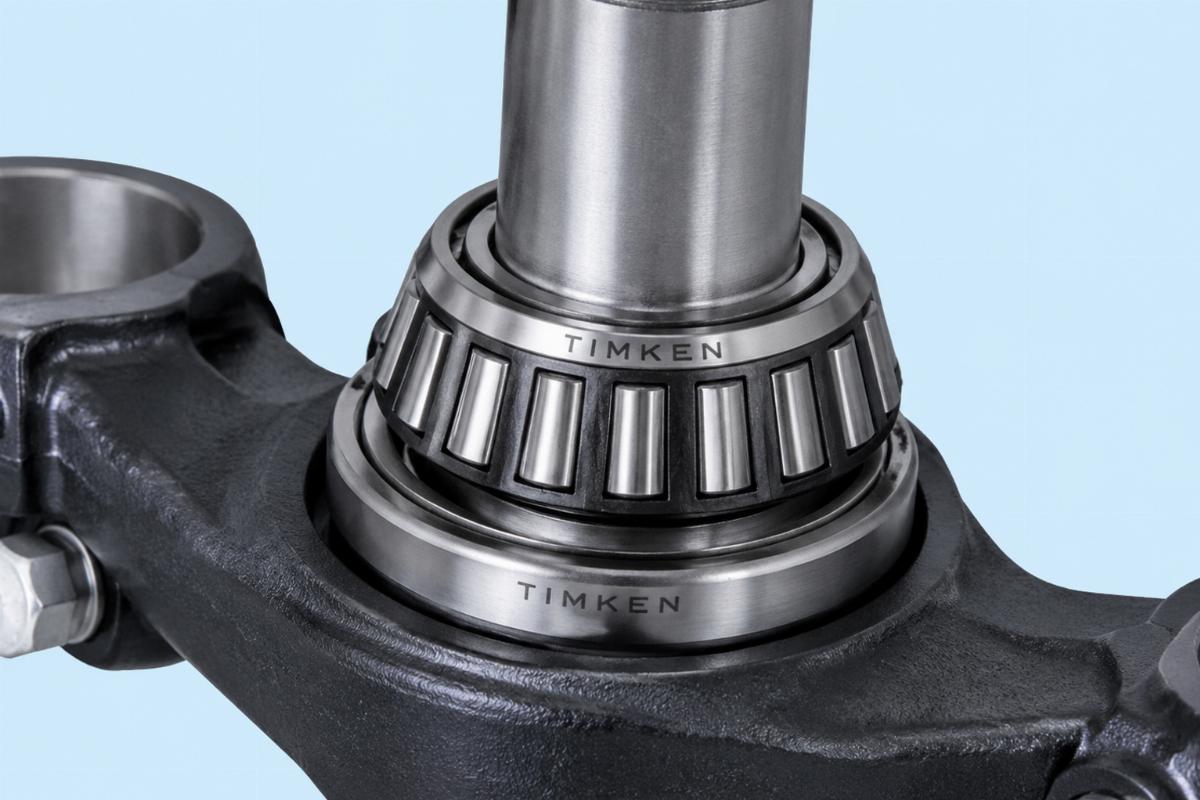

Installing a custom springer fork for harley-davidson sportster platforms requires checking the frame neck angle. Since this unit features a 0° rake with an in-line top bracket, it relies entirely on the frame’s existing geometry to set the trail. If the frame was previously modified or if the neck cups are worn, the steering will feel vague. Always measure the neck cup bore to ensure it accepts the Timken® type bearings required for this 1″ stem.

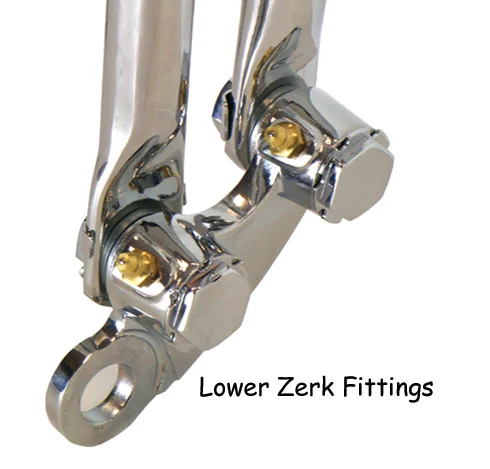

Checking Tree Spacing and Axle Alignment

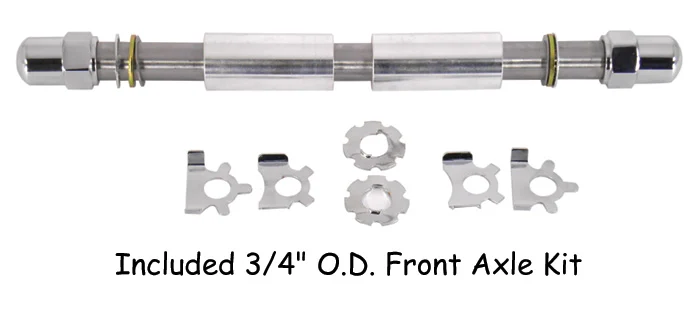

The 8 3/4″ spacing between the cast axle rockers dictates the front wheel hub width. When adapting this custom springer fork for harley-davidson sportster frames, the axle must slide through the rockers without binding. Measure the distance between the rockers and compare it to your wheel hub. If the spacing is off, the bearings will preload incorrectly, leading to premature wear and stiff steering.

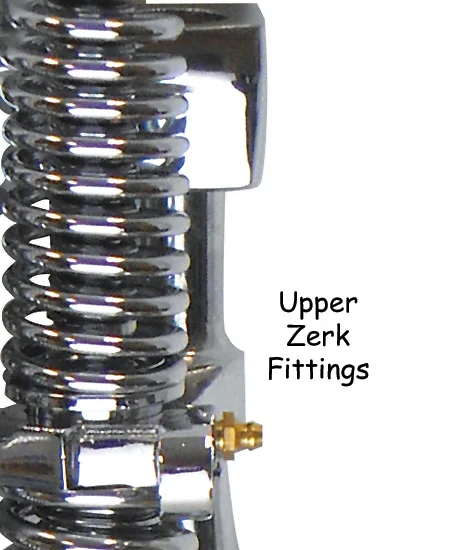

Interpreting Critical Springer Dimensions

The 18″ overall length and 20″ tree-to-axle measurement define the ride height and stance. The 4 3/4″ rise mount centers with 1/2-20 threads determine handlebar fitment. The 5/8″ brake rod mount on the right rear leg is specifically sized for disc brake caliper actuation. Ignoring these dimensions usually results in handlebars that do not clear the tank or brake rods that fail to reach the caliper.

The Hidden Cost of Incorrect Fitment

Ordering a front end without verifying the neck cup requirements often leads to the bike sitting disassembled on the shop floor. A 1″ steering stem will not seat in a frame designed for a different diameter, and forcing it will crack the tree. Furthermore, if the 4 3/4″ rise mount centers do not align with your chosen handlebars, you will need to source different risers or bars, delaying the build and adding unexpected costs.

Sourcing from a Fitment-Focused Specialist

We verify the platform family and year range before quoting any front end. Our catalogue provides complete springer assemblies with clear length and rake statements. We offer chrome and black finish options with consistent batch quality. You can cross-reference dimensions against your existing parts, and we support single-piece orders for custom shops building one bike at a time.

Documentation Provided

• Fitment sheet listing the 1952-1981 K Model and Sportster year ranges.
• Key dimensions including 18″ length, 1″ stem O.D., and 8 3/4″ rocker spacing.
• Finish specification for the chrome plated surface.
• Quality inspection record verifying the 5/8″ brake rod mount hole.
• Warranty terms covering manufacturing defects on the cast rockers.

Pre-Installation Inspection Checklist

• Verify the 1″ O.D. steering stem slides freely into your neck cups.
• Confirm the 8 3/4″ axle rocker spacing matches your front wheel hub.
• Check the chrome plating for any chips or pitting on the lower legs.
• Ensure the 5/8″ brake rod mount hole is clear of plating buildup.
• Have a qualified technician inspect the Timken® type bearings before pressing.
• Store the unit in a dry environment to prevent surface oxidation before fitting.

Requesting a Fitment Check

Send your frame model and year range to confirm the neck cup requirements for your specific build. Provide a photograph or measurements of your current steering stem if the frame has been modified. Let us know if you need the neck cup conversion kit included or if you require a sample for test fitting before placing a larger order.

Frequently Asked Questions

Q: How do I confirm my 1952-1981 Sportster frame fits this 1″ steering stem?

A: Measure the inner diameter of your steering neck cups. This unit requires a 1″ O.D. steering stem designed for Timken® type bearings. If your frame originally used a different stem diameter, you must use the required neck cup conversion kit to adapt the frame to this specific front end.

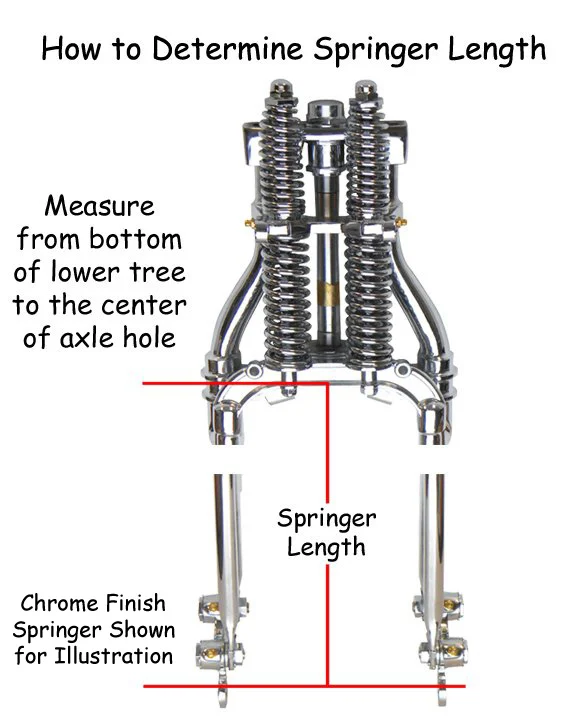

Q: What is the difference between the 18″ title length and the 20″ tree-to-axle measurement?

A: The 18″ length is the nominal overall classification for this custom springer fork for harley-davidson sportster applications. The 20″ measurement is the actual physical distance from the bottom of the lower triple tree to the center of the axle, which determines your final ride height and front-end geometry.

Q: Does this front end include the neck cup conversion kit for Sportster installation?

A: The conversion kit is not included in the standard springer assembly package. It must be requested separately during the inquiry process. We verify the exact kit requirement based on your frame year to ensure the 1″ steering stem seats correctly in your specific neck.

Q: Can I order a single springer front end for a custom build?

A: Yes, we support single-piece orders for custom builders and repair shops. There is no minimum order quantity blocking a single unit for a one-off build. We provide a fitment sheet and key dimensions to ensure the 8 3/4″ rocker spacing and 4 3/4″ rise mounts align with your project.
