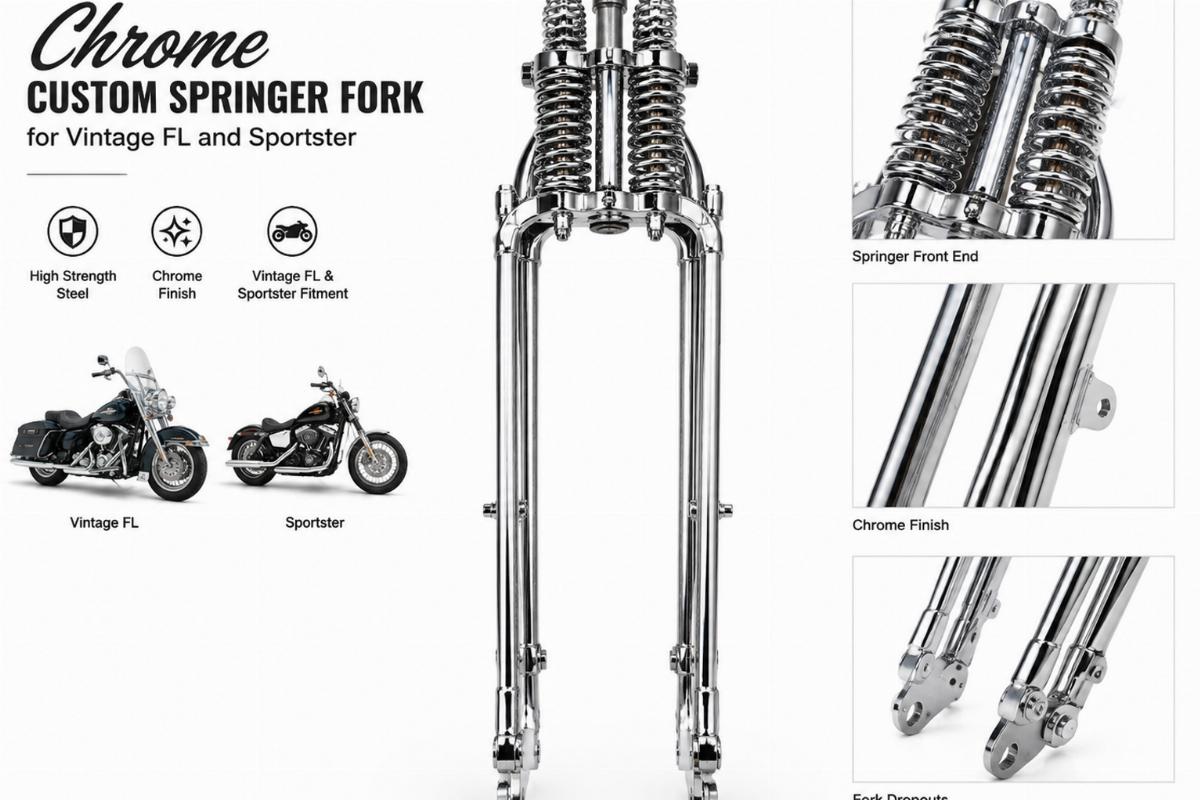

Chrome Custom Springer Fork 20″ – Fits Vintage FL & Sportster
Fitment Verified by Platform — Every custom springer fork for vintage FL and Sportster builds is checked against exact frame measurements and steering stem dimensions before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Custom Springer Fork |
| Finish | Chrome plated |
| Overall Length | 20″ (measured from the bottom of the lower tree to the axle center) |
| Rake | 0° (in-line top bracket without built in rake) |
| Steering Stem O.D. | 1″ |
| Bearing Type | Timken type |
| Axle Rocker Spacing | 8 3/4″ |
| Axle O.D. | 3/4″ |
| Rise Mount Centers | 4 3/4″ |
| Rise Mount Thread | 1/2-20 |
| Brake Rod Mount Position | Right rear leg |
| Brake Rod Mount Hole Size | 5/8″ |
| Brake Type Compatibility | Disc brakes |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Vintage FL model | Confirm with model and year | Comparable to vintage FL model fork length. |
| K Model and Sportster | 1952-1981 | Requires neck cup conversion kit for installation. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Resolving Steering Stem Mismatches on Early Frames

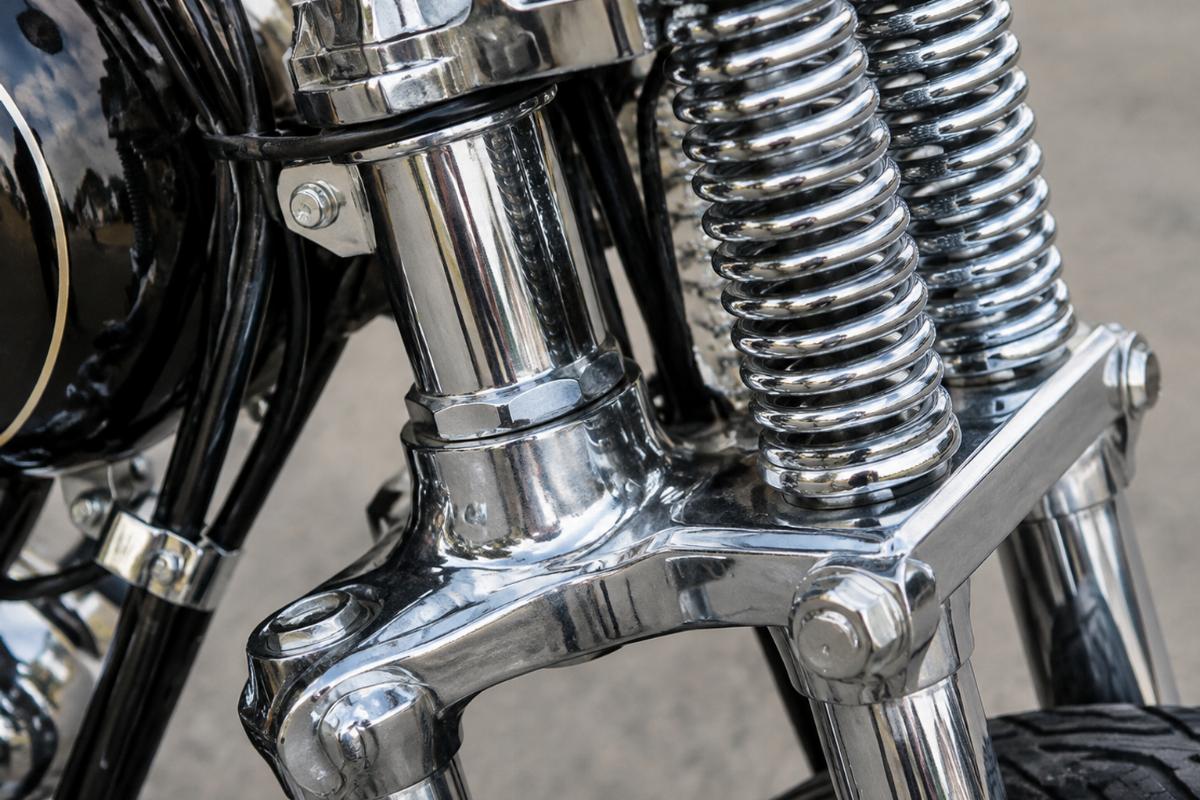

A 0° rake and 1″ steering stem require exact neck cup compatibility to seat correctly.
When sourcing a custom springer fork for vintage FL and Sportster projects, builders often overlook the steering stem diameter and neck cup dimensions. I once saw a 20-inch zero-rake setup shipped to a builder who simply specified a Sportster without the exact year. The steering stem would not seat right in the early frame because the neck cup dimensions were completely off. He had to source a neck cup conversion kit just to make it fit the 1952 to 1981 frames. Verifying the exact year and frame measurements prevents the bike from sitting on the lift waiting for adapter parts [NEED_CITE: frame geometry changes across early Sportster and FL model years].
Checking Frame Geometry for 20-Inch Zero-Rake Setups
When replacing the front end on a Vintage FL or K Model, the 20-inch overall length and 0° rake directly affect the ride height and steering geometry. Because this custom springer fork for vintage FL applications uses an in-line top bracket without built-in rake, the triple tree angle and frame neck angle must align perfectly. Builders must measure the distance from the bottom of the lower tree to the axle center to ensure the 20-inch length matches their intended stance. Failing to account for the zero-rake design can result in altered trail and handling characteristics that differ from the original setup [NEED_CITE: factory service manual specifications for rake and trail by model year].
Verifying Axle and Mounting Dimensions
The 8 3/4″ axle rocker spacing and 3/4″ axle O.D. must match the front wheel hub and brake setup. Since this fork is compatible with disc brakes, the right rear leg features a 5/8″ brake rod mount hole. The rise mount centers are set at 4 3/4″ with a 1/2-20 thread, which dictates the handlebar clamp compatibility. Confirming these specific dimensions against your existing handlebars and fender mounts ensures the custom springer fork for vintage FL builds bolts together without requiring fabricated adapters or modified mounting brackets.
The Cost of Overlooking Conversion Kits
Ordering a front end without confirming the steering stem requirements often leads to project delays. If a builder assumes a 1″ O.D. steering stem will drop directly into a 1952 to 1981 Sportster frame, the front end will not seat properly. The hidden cost is not just the return shipping, but the downtime while sourcing a neck cup conversion kit. Furthermore, if the axle rocker spacing is assumed rather than measured, the wheel may not center correctly within the fork legs, requiring custom spacers or a completely different axle setup to achieve proper alignment.
Sourcing Front Ends with Documented Dimensions
We produce this custom springer fork for vintage FL applications in our own facility, ensuring the 20-inch length and chrome plated finish meet consistent standards. Every unit is checked against the platform family and year range before quotation, so you know exactly which frame it targets. We offer a one-piece minimum order, allowing custom shops to order a single replacement fork for a specific build without meeting high volume thresholds. Cross-reference sheets are provided to help match your existing hardware to the 1″ steering stem and Timken type bearing requirements.
Documentation Provided
- Fitment sheet stating applicable platforms and year ranges for Vintage FL and Sportster models.
- Key dimensions sheet detailing the 20″ overall length, 0° rake, and 1″ steering stem O.D.
- Cross-reference sheet with OEM numbers marked reference only for hardware matching.
- Finish specification confirming the chrome plated surface treatment for quality inspection.
- Installation notes highlighting the neck cup conversion kit requirement for 1952-1981 frames.
Receiving and Pre-Installation Checks
- Measure the 20″ overall length from the lower tree to the axle center to confirm it matches your order.
- Verify the 1″ O.D. steering stem and Timken type bearing compatibility with your frame neck.
- Check the 8 3/4″ axle rocker spacing against your front wheel hub and disc brake setup.
- Inspect the chrome plated finish for consistency across the legs, trees, and axle rockers.
- Confirm the 5/8″ brake rod mount hole on the right rear leg aligns with your brake hardware.
- Ensure the neck cup conversion kit is on hand if installing on a 1952-1981 K Model or Sportster.
Requesting a Fitment Verification
Send your exact model designation and year range to confirm if this 20-inch zero-rake setup matches your frame geometry. Provide the steering stem diameter and neck cup measurements if you are adapting this to an early Sportster or Vintage FL chassis. Let us know if you require a sample for fitment confirmation before placing a bulk order for your shop’s inventory.
Frequently Asked Questions
Q: How do I confirm if my 1952 to 1981 Sportster fits this 20-inch springer?
A: You must verify the steering head cup compatibility for the 1″ O.D. steering stem. For 1952 to 1981 K Model and Sportster frames, this fork requires a neck cup conversion kit to install correctly. Always check the exact frame measurements and year range before ordering to ensure the steering stem seats properly.
Q: What is the exact overall length and rake of this fork?
A: The overall length is 20 inches, measured from the bottom of the lower tree to the axle center. It features a 0° rake with an in-line top bracket and no built-in rake. This geometry directly impacts ride height and steering trail, so verify your frame angles before installation.
Q: What additional parts are needed for K Model or Sportster installation?
A: A neck cup conversion kit is required to install this springer on K Model and Sportster frames from 1952 to 1981. The 1″ steering stem and Timken type bearings must match the conversion kit specifications to ensure the front end seats correctly in the frame neck.
Q: Can I order a single piece of this chrome springer fork?
A: Yes, we accept single-piece minimum orders for custom builders and repair shops working on one specific bike. You can order one unit for fitment confirmation or a complete custom build without needing to meet high volume thresholds or bulk purchasing requirements.
