Fitment Checked Custom Springer Front End for Vintage FL

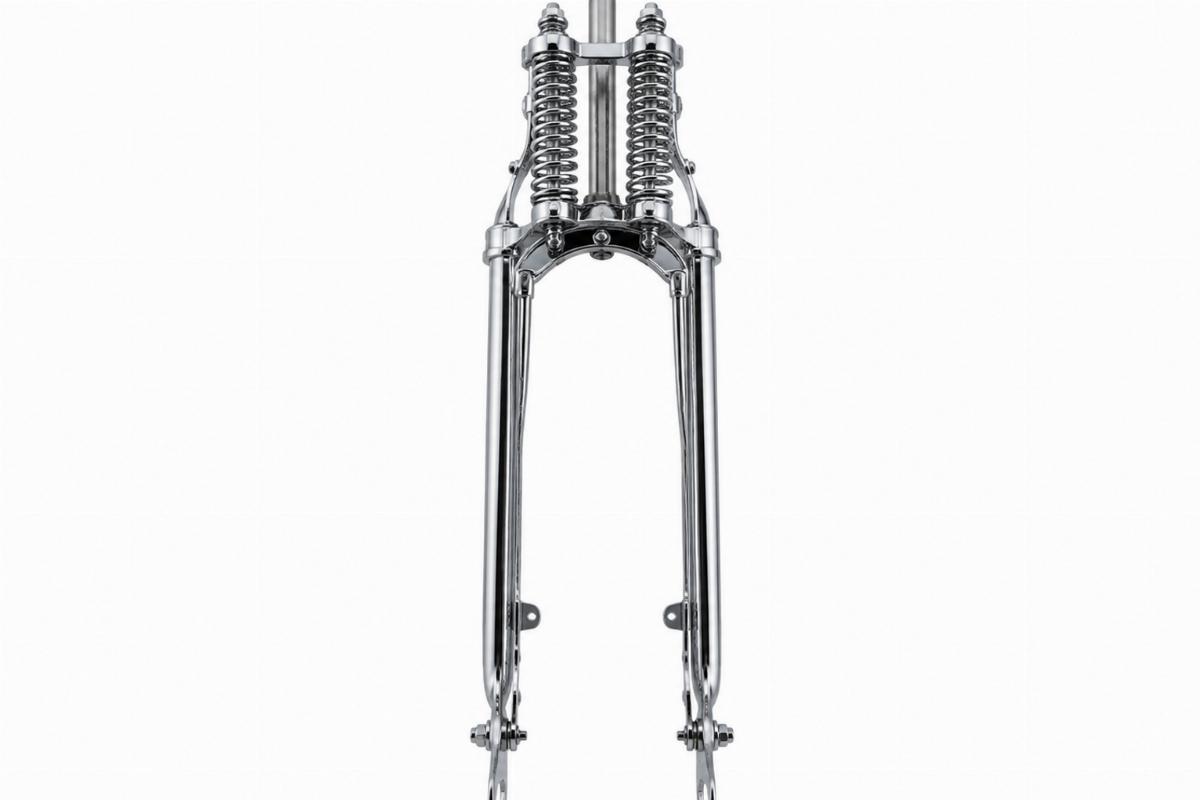

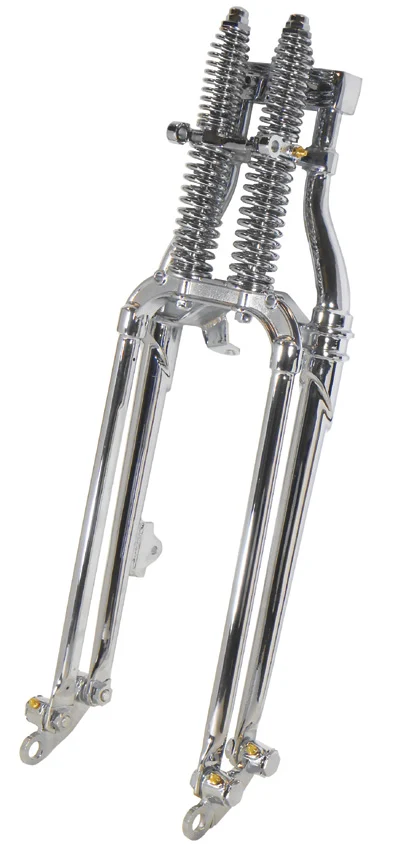

Front-end depth confirmed — This 22-inch custom springer fork for vintage fl and sportster is supplied as a complete assembly with verified over-stock lengths for exact frame geometry.

Product Specification

Fitment

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Why 0° Rake and 22″ Length Demand Strict Frame Verification

A 0° rake in-line top bracket completely shifts the steering geometry if the frame neck angle is not matched.

When sourcing a custom springer fork for vintage fl and sportster builds, buyers often assume an over-stock length simply raises the front end. In reality, a 22″ overall length paired with a 0° rake alters the trail and ride height significantly compared to a factory-angled tree. If the 8 3/4″ axle rocker spacing does not align with your specific fender and tire clearance, the front end will bind or look disproportionate. We verify these exact dimensions against your frame before confirming any fitment to prevent geometry failures on the assembly line.

Verifying Steering Stem and Bearing Compatibility

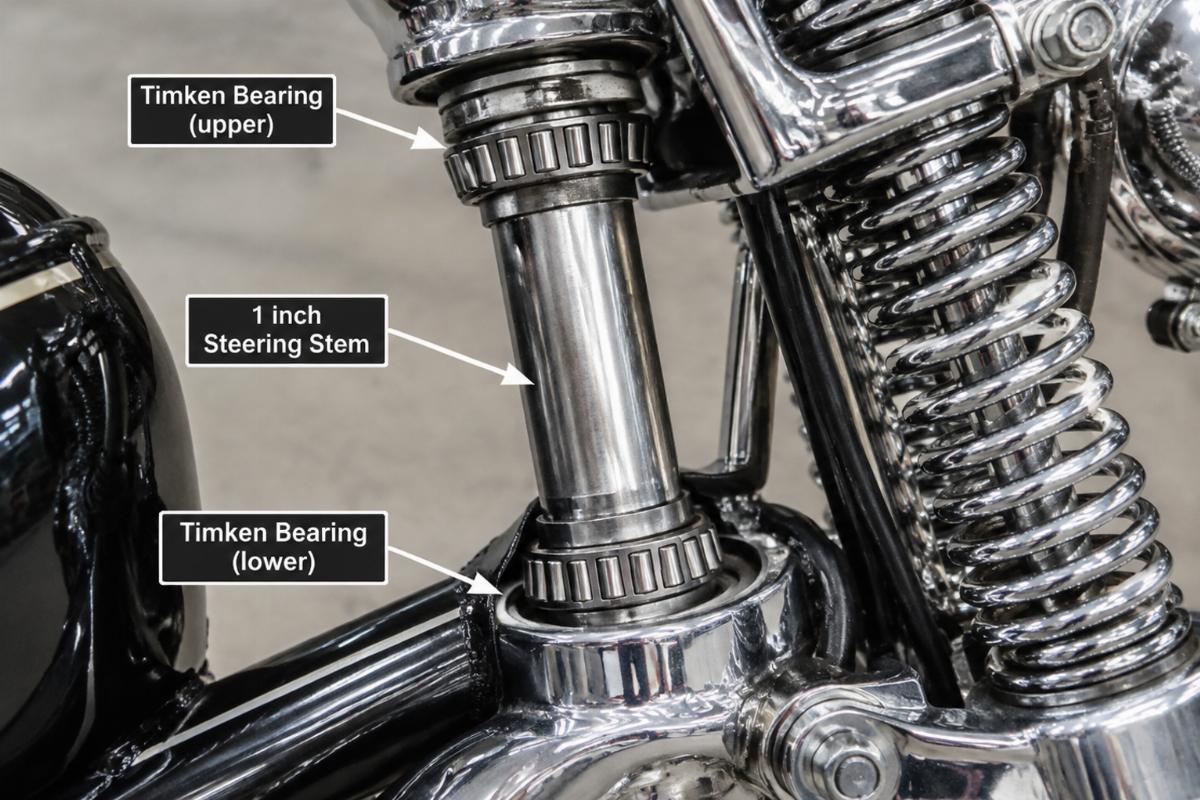

The 1″ O.D. steering stem on this unit is designed specifically for Timken type bearings. Before ordering a custom springer fork for vintage fl and sportster, you must measure your frame’s steering neck to ensure it accepts this exact stem diameter and bearing type. A mismatch here means the triple trees will not seat properly, leading to dangerous steering play or inability to assemble the front end. We cross-reference your frame’s neck specifications to guarantee the stem and bearing interface is correct.

Checking Riser Mounts and Brake Clearances

Proper handlebar and brake integration relies on the 4 3/4″ rise mount centers and 1/2-20 thread. When building a custom springer fork for vintage fl and sportster, verify that your chosen risers match this spacing and thread pitch. Additionally, the universal 5/8″ hole on the right rear leg must align with your specific disc brake rod mount setup. Overlooking these mounting details results in misaligned controls or brake linkage interference.

The Hidden Cost of Ignoring Rocker Spacing

I once shipped a 22″ chrome springer for a vintage build where we verified the 1″ O.D. steering stem but completely missed the 8 3/4″ spacing between the cast rockers. The fender clearance was totally off, and the front end ruined the geometry of the bike. When a custom springer fork for vintage fl and sportster arrives with incorrect rocker spacing, the wheel will not center, and the fender will rub against the tire. This forces the shop to halt the build, source a new assembly, and absorb the return freight costs.

Sourcing Directly from the Front-End Specialist

We manufacture our own springer front ends, meaning this 22″ chrome unit is produced under our direct quality control rather than being sourced from a generic catalog. We offer a one-piece minimum order, allowing custom builders to purchase a single sample for fitment confirmation before committing to bulk orders. Every custom springer fork for vintage fl and sportster is checked against platform families and year ranges prior to quotation. We also provide cross-reference support against older manual numbers to ensure you get the correct replacement for discontinued models.

Documentation Included with Your Shipment

• Fitment sheet stating applicable platforms and confirmed year ranges
• Key dimensions including 22″ overall length and 8 3/4″ rocker spacing
• Finish specification detailing the chrome plating process
• Quality inspection record verifying steering stem and axle measurements
• Packing photographs showing the assembled front end and protective wrapping

Pre-Installation Checks for Your Shop

• Measure your frame steering neck to confirm 1″ O.D. steering stem compatibility
• Verify the 8 3/4″ axle rocker spacing clears your specific fender and tire
• Check that the 4 3/4″ rise mount centers match your handlebar risers
• Inspect the chrome plating for any transit damage before disassembly
• Ensure the neck cup conversion kit is on hand for K Model and Sportster installs
• Have a qualified technician verify all structural clearances before final assembly

Send Your Model Details for a Fitment Check

To ensure this custom springer fork for vintage fl and sportster fits your project perfectly, send us your exact model designation and year range. Provide a photograph or measurements of your current steering neck and fender clearance if the numbers are unknown. Let us know if you require a single sample piece to verify the chrome finish and dimensions before placing a larger order for your shop.

Frequently Asked Questions

Q: How do I confirm my vintage FL model year fits this 22″ springer fork?

A: Since the exact year range for Vintage FL is not standardized in the source data, you must verify your frame’s steering neck dimensions and overall fork length requirements. Send us your model details and a photograph of the front end, and we will cross-reference the 1″ steering stem and 22″ length against your specific frame to confirm fitment before you order.

Q: What dimensions must I measure on my frame before installing a 0° rake springer?

A: You must measure the steering neck to ensure it accepts the 1″ O.D. steering stem and Timken type bearings. Additionally, check the available space for the 8 3/4″ axle rocker spacing and verify that the 0° rake will not cause the 22″ overall length to interfere with your fender or frame stops at full compression.

Q: Which conversion kit is required to install this springer on a K Model or Sportster 1952-1981?

A: Installation on K Model and Sportster platforms from 1952 to 1981 requires a specific neck cup conversion kit to adapt the 1″ steering stem to the frame’s steering head. We can supply the correct conversion kit alongside the custom springer fork to ensure all hardware matches your platform’s year range and mounting specifications.

Q: Can I order a single sample piece to verify fitment and chrome finish?

A: Yes, we support a one-piece minimum order specifically for fitment confirmation. You can order a single 22″ chrome plated unit to verify the 8 3/4″ rocker spacing, steering stem diameter, and finish consistency against your frame and other parts before committing to a bulk purchase for your dealership or custom shop.

Q: How does the 22″ overall length affect the ride height compared to standard vintage lengths?

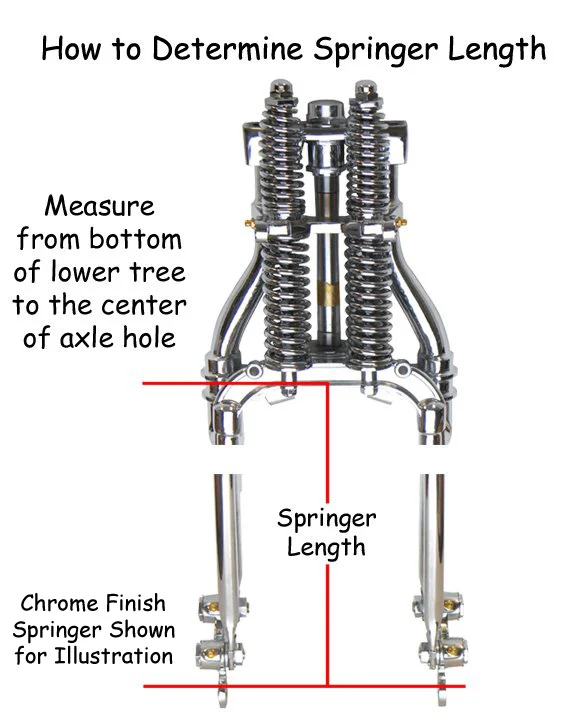

A: The 22″ overall length, with a 20″ measured length from the lower tree to the axle center, will raise the front end compared to standard stock lengths. Because this unit features a 0° rake in-line top bracket, it will also alter the steering geometry and trail. You must calculate these changes against your frame’s original angles to ensure the ride height and handling characteristics match your build goals.
