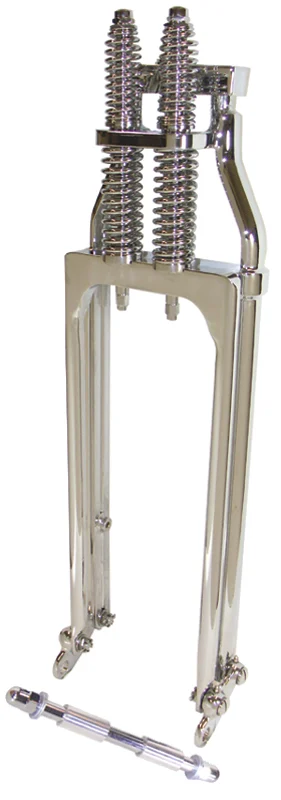

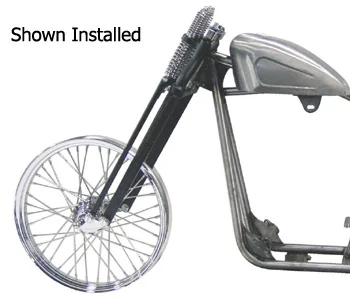

Fitment Checked Custom Springer Front End 24″ Chrome for FXST Softail

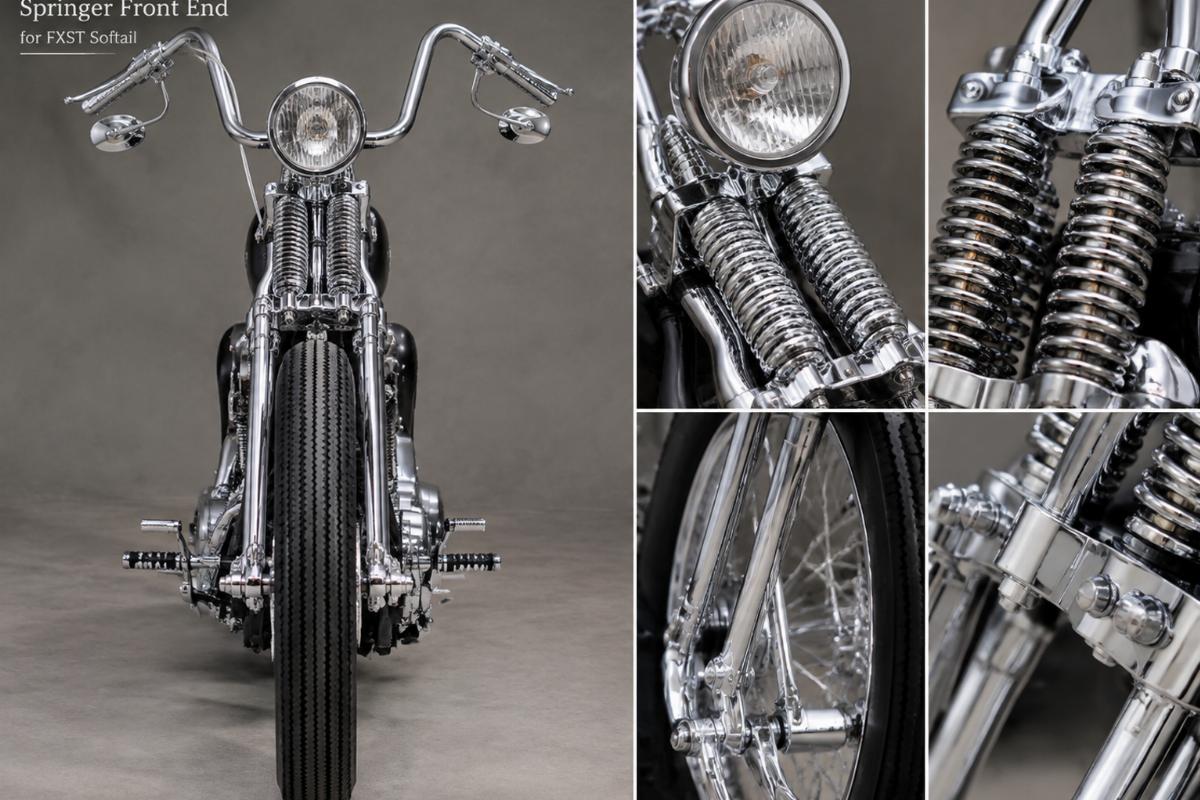

Chrome Finish Consistency — Every chrome plated custom springer front end for fxst softail undergoes batch inspection to ensure uniform plating thickness and clarity across production runs.

Product Specification

Fitment

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Why Exact Steering Stem Dimensions Dictate Your Build

A 1-inch steering stem requires an exact match with your triple tree neck bore to prevent binding or dangerous wobble.

When sourcing a custom springer front end for fxst softail, assuming the neck will accept any stem diameter is a common mistake. We have seen builders order a unit only to find the stem too thick for their early triple trees, leaving the bike stuck on the lift. Verifying the 1-inch O.D. against your specific frame neck prevents this costly mismatch.

Matching the 1-Inch Stem to Your Triple Tree

The 1-inch steering stem O.D. on this custom springer front end for fxst softail is designed for Timken® type bearings. You must confirm that your existing or replacement triple trees are machined for this exact diameter and bearing type. A mismatch here means the stem will either not drop in or will rattle loosely in the neck, ruining the steering geometry of your build.

Verifying Rocker Spacing and Axle Width

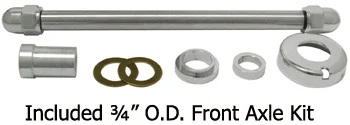

Beyond the stem, the 9 1/4-inch rocker spacing and 3/4-inch axle kit O.D. must align with your chosen wheel and brake setup. If your wheel hub expects a different axle width or your caliper mounts do not clear the 9 1/4-inch gap, the assembly will not seat correctly. Always measure your wheel hub and brake components before finalizing the front end selection.

Decoding the 24-Inch Length and Riser Mounts

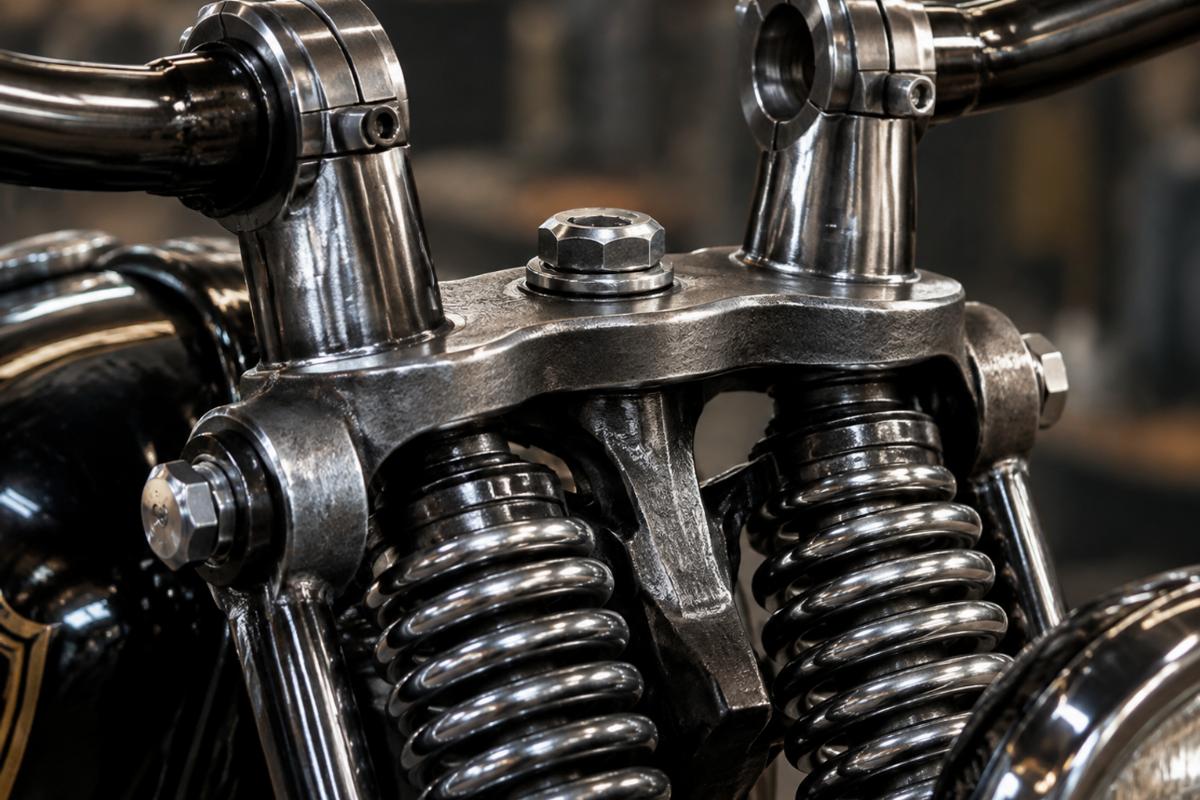

This unit measures 24 inches from the bottom bearing to the axle center, providing a standard length profile. The forged in-line top bracket features riser mount centers at 4 3/4 inches with a 1/2-20 thread. These dimensions dictate your ride height and handlebar choice; selecting risers that do not match the 4 3/4-inch center or the 1/2-20 thread will leave you without a secure mounting point for your controls.

The Hidden Cost of Overlooked Front-End Measurements

I still cringe thinking about the time we shipped a 24-inch custom springer to a builder who assumed it would drop right into his early triple trees. The stem was too thick for his neck, and the rockers hit his tank because the spacing was never verified against his specific model year. When a front end arrives with the wrong stem size or rocker clearance, the bike sits on the shop floor for weeks while you source adapters or machine new parts, completely derailing your build timeline.

Sourcing Direct from the Front-End Specialist

We produce our springer front ends in our own facility, allowing us to control the chrome plating process and maintain batch consistency. Because we specialize in front-end depth, we offer this custom springer front end for fxst softail with verified dimensions rather than guessing from generic catalogs. We support a one-piece minimum order, meaning you can buy a single unit for a custom build without hitting arbitrary wholesale thresholds. Every unit is checked against platform and year range requirements before it leaves the bench.

Documentation and Verification Sheets

• Fitment sheet listing the FXST Softail platform and confirming the 24-inch length over stock
• Key dimensions sheet detailing the 1-inch steering stem O.D. and 9 1/4-inch rocker spacing
• Finish specification document outlining the chrome plating standards for batch consistency
• Quality inspection record verifying the 4 3/4-inch riser mount centers and 1/2-20 thread
• Packing photographs showing the unit and axle kit before dispatch

Receiving and Pre-Installation Checks

• Verify the 1-inch steering stem O.D. slides smoothly into your triple tree neck without binding
• Measure the 9 1/4-inch rocker spacing to ensure clearance for your tank and wheel
• Check the 24-inch length from the bottom bearing to the axle center against your build plan
• Inspect the chrome plating for uniform clarity and ensure no shipping damage occurred
• Confirm the rear legs are threaded correctly for your specific right or left brake setup
• Store the unit in a dry environment to protect the chrome finish before installation

Send Your Specs for a Fitment Check

To ensure this custom springer front end for fxst softail matches your project, send us your exact model year and a photo of your current triple tree. Include your wheel hub spacing and handlebar riser requirements so we can verify the 1-inch stem and 4 3/4-inch mount centers. We will confirm the fitment and provide a quotation, or supply a sample for your shop to test-fit before a larger order.

Frequently Asked Questions

Q: How do I confirm if this 24-inch springer fits my specific FXST Softail model year?

A: Send us your exact model year and a photo of your triple tree. We verify the 1-inch steering stem O.D. and 24-inch length against your frame neck to ensure it drops in correctly. We provide a fitment sheet confirming the platform match before you order.

Q: What key dimensions must I measure when replacing a stock FXST front end with this custom springer?

A: You must measure your triple tree neck bore to confirm it accepts a 1-inch stem. Check your wheel hub for the 3/4-inch axle compatibility and verify the 9 1/4-inch rocker spacing clears your tank. Measure your riser mounts to match the 4 3/4-inch centers.

Q: Does the 3/4-inch axle kit include all necessary hardware for my specific wheel setup?

A: The axle kit includes the 3/4-inch O.D. axle and basic hardware, but custom spacers may be required depending on your specific wheel hub width and brake rotor setup. We recommend measuring your hub width to determine if additional spacers are needed for center alignment.

Q: Can I order a single custom springer front end for a one-off custom build?

A: Yes, we support a one-piece minimum order for custom builders and repair shops. You can order a single unit for your project without meeting high wholesale thresholds. We also offer sample supply for fitment confirmation before you commit to bulk orders.

Q: How is the chrome finish consistency maintained across different production batches?

A: We produce these front ends in our own facility and inspect every chrome plated batch for uniform plating thickness and clarity. This ensures that if you order now or reorder later, the finish matches the high standard required for a visible custom build component.
