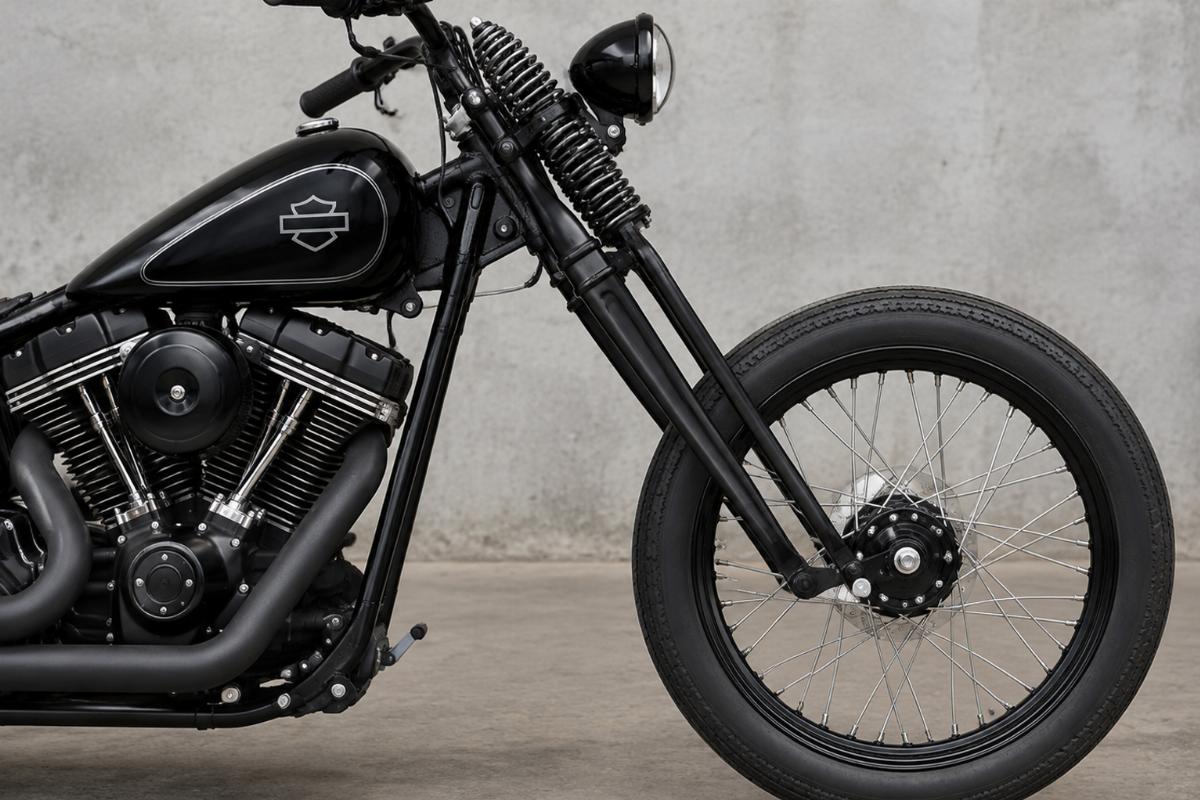

Aftermarket Replacement 30″ Custom Springer Front End for FXST
Black Finish Consistency — Every batch of this 30-inch custom springer front end for FXST undergoes visual inspection to ensure the black powder coat matches across components, preventing mismatched aesthetics on the bike.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Custom Springer Front End |
| Finish | Black powder coat |
| Length | 30″ (+6″ over stock) |
| Standard Length Measurement | 24″ (from bottom bearing to axle center) |
| Steering Stem O.D. | 1″ |
| Bearing Type | Timken® type |
| Axle Kit O.D. | 3/4″ |
| Width Between Rockers | 9 1/4″ |
| Riser Mount Centers | 4 3/4″ |
| Riser Mount Thread | 1/2-20 |
| Top Bracket | Forged in-line without built-in rake |

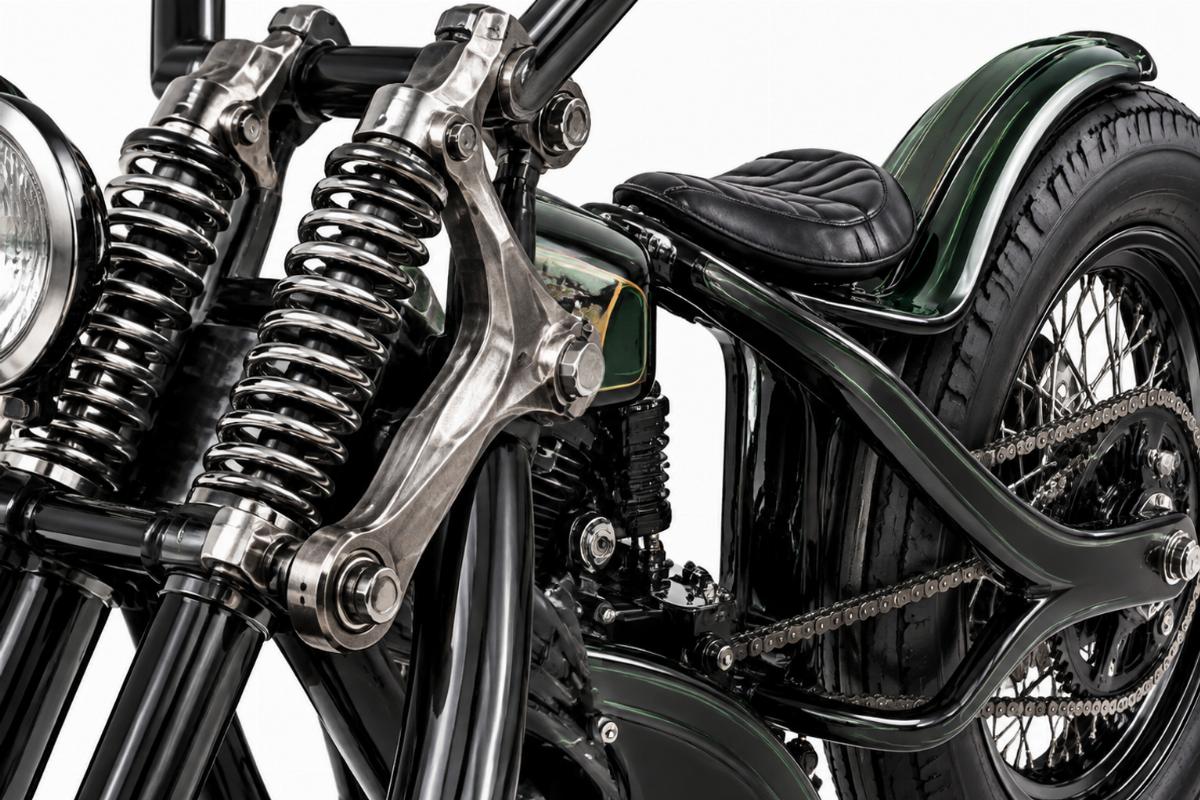

| Rockers | Forged with grease fittings |
| Rear Legs | 1 piece from rocker to top tree, threaded for right or left brakes |
| Kit Contents | Axle kit including brake mount pivot with thrust washer and hub spacers |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| FXST | Confirm with model and year | Verify frame geometry for +6″ over stock length and 1″ steering stem. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Avoiding Steering Geometry Errors with Over-Stock Springer Lengths
Clear length statements prevent steering geometry errors.
Springer forks offered over stock often lack clear statements on overall length and geometry impact, making it hard to judge ride height and steering changes. When a builder assumes a standard length without checking the exact overall measurement, the fork can bottom out on frame stops. This 30-inch custom springer front end for FXST adds 6 inches over the 24-inch standard, which completely alters the ride height and rake [NEED_CITE: frame geometry specifications by model year]. Verifying these dimensions before ordering ensures the front end matches the intended stance without compromising the steering head.
Checking Frame Compatibility for Extended Fork Lengths
Installing a 30-inch custom springer front end for FXST requires confirming that the frame can accommodate the extended reach. The +6″ over stock length changes the distance from the steering neck to the axle, which may affect fender clearance and brake line routing. Buyers must measure the existing frame geometry to ensure the longer rear legs will not interfere with the frame stops or the tank during full compression.
Evaluating Steering Stem and Bearing Requirements
The 1-inch steering stem O.D. on this front end dictates the specific neck bearing and race sizes required for installation. If the frame’s steering head cups are machined for a different diameter, the front end will not seat correctly, leading to dangerous play or binding. Always cross-reference the 1-inch stem requirement against your frame’s neck dimensions before finalizing the build [NEED_CITE: steering head cup dimensions across FXST generations].
Understanding Key Dimensions for Build Planning
The 24-inch standard measurement, taken from the bottom bearing to the axle center, provides the baseline for calculating the 30-inch overall length. The 9 1/4-inch width between rockers determines the front wheel hub spacing, while the 4 3/4-inch riser mount centers with 1/2-20 threading specify the handlebar clamp compatibility. These fixed dimensions mean the wheel, tire, and handlebars must be selected to match the 3/4-inch axle kit and the forged in-line top bracket without built-in rake.
The Hidden Cost of Unverified Over-Stock Forks
Ordering an extended springer without confirming the exact overall length often results in the fork bottoming out on the frame stops, halting the build entirely. A 30-inch front end looks similar to a 24-inch unit in a catalogue, but the extra 6 inches completely changes the ride height and steering geometry. When the geometry is wrong, the bike cannot be safely ridden, forcing the builder to source a new front end and wasting weeks of shop time [NEED_CITE: steering geometry changes with fork length increases].
Sourcing Front Ends with Verified Fitment Data
We confirm fitment against the platform family and model year range before quoting any custom springer front end for FXST. Key dimensions, including the 30-inch overall length and 1-inch steering stem, are provided upfront to prevent geometry mismatches. Our minimum order starts at one piece, allowing custom builders to order a single front end for a specific project without meeting high volume thresholds.
Documentation Provided with Your Shipment
- Fitment sheet listing the FXST platform and confirming the +6″ over stock length
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions sheet detailing the 30″ length, 1″ stem, and 3/4″ axle
- Finish specification for the black powder coat batch consistency
- Quality inspection record verifying forged components and thread sizing
- Packing photographs showing the axle kit and hub spacers included
Receiving and Inspecting the Front End
- Verify the 30-inch overall length matches the specification before assembly
- Check the black powder coat finish on the 1-piece rear legs for consistency
- Confirm the 1″ steering stem O.D. matches your frame’s neck bearings
- Inspect the 3/4″ axle kit and thrust washer for completeness
- Ensure the 1/2-20 riser mount threads are clean and undamaged
- Store the front end in a dry environment to protect the black powder coat
Requesting a Fitment Check for Your Build
Send your exact FXST model and year to verify that the +6″ over stock length aligns with your frame geometry. Provide a photograph or measurements of your current steering neck if the year range is unclear. Let us know if you require a sample for fitment confirmation before committing to the order.
Frequently Asked Questions
Q: How does a +6″ over stock springer length affect my frame geometry and ride height?
A: A +6″ over stock length significantly raises the front end and alters the rake and trail. This changes the steering geometry, making the bike turn slower and potentially causing the fork to bottom out on frame stops if the frame is not designed for the extended length. Always verify frame clearance before installation.
Q: What wheel hub dimensions are required to work with the included 3/4″ axle kit?
A: The front wheel hub must have a spacing that matches the 9 1/4″ width between the rockers. The hub must also accept a 3/4″ axle and accommodate the included brake mount pivot, thrust washer, and custom spacers depending on the specific wheel and brake setup used.
Q: Can I order a single custom springer front end for a one-off build?
A: Yes, we support minimum orders starting from one piece. This allows custom builders and restoration shops to order a single front end for a specific project without being blocked by high minimum order quantities. Sample supply is also available for fitment confirmation.
Q: How do you ensure finish consistency for black powder coat across different batches?
A: We maintain strict quality control over our black powder coat application to ensure visual consistency. Every batch undergoes inspection to guarantee that the finish on the rockers, legs, and top bracket matches perfectly, preventing mismatched aesthetics when parts are fitted side by side.
Q: What documentation is provided to confirm fitment and dimensions before dispatch?
A: We provide a fitment sheet stating the applicable platforms, a cross-reference sheet with OEM numbers marked reference only, and a key dimensions sheet detailing the fork length, steering stem diameter, and riser mount spacing. A quality inspection record and finish specification are also included.
