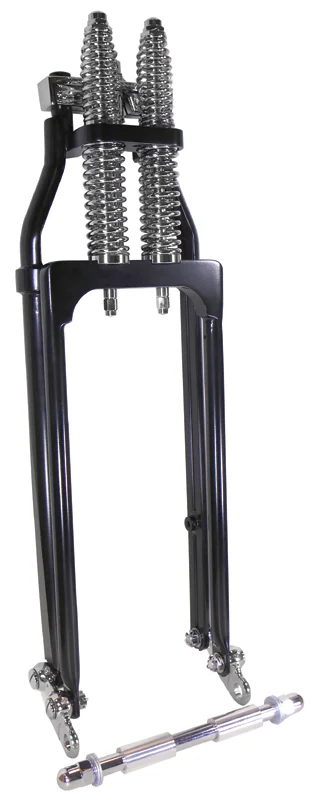

Single Piece Order Custom Springer Front End for FXST Softail 1984-Up

Own facility production — every custom springer front end for fxst softail is built in-house, ensuring steering stem and over-stock length specs match your frame geometry before shipping.

Product Specification

Fitment

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Calculating Geometry Impact for a Custom Springer Front End for FXST Softail

Always calculate the trail and ride height impact before bolting on a plus-four springer.

I remember selling a 26-inch springer to a builder who only checked model fitment. He ignored the overall length and rake impact. When he bolted it on, the steering geometry was completely ruined, and the ride height was dangerously low. That taught me to always verify the exact over-stock length and steering stem specs before shipping.

Checking Steering Stem and Neck Bearing Compatibility

A 1″ O.D. steering stem requires a matching Timken type neck bearing in your frame. If the frame was originally built for a different stem diameter, the custom springer front end for fxst softail will not seat correctly. Always measure the frame neck before ordering to avoid machining delays.

Evaluating Riser Mount Spacing and Thread Pitch

The 4 3/4″ riser mount centers and 1/2-20 thread dictate which handlebar risers will bolt directly to the top tree. If your preferred bars require a different thread pitch or wider spacing, you will need adapter plates. Confirming these dimensions ensures the custom springer front end for fxst softail accepts your chosen controls without modification.

Interpreting the 28-Inch Overall Dimension

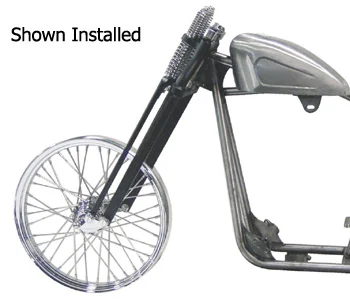

This unit measures 28″ from the bottom bearing to the axle center, which is +4″ over the standard 24″ length. Because it is supplied without a built-in rake, this extended length directly alters the steering axis. You must compare this 28″ dimension against your frame’s stock geometry to determine the final trail and ride height.

The Hidden Cost of Ignoring Frame Geometry Changes

Ordering a plus-four springer without checking the trail can leave a bike unrideable. The extended length pushes the front wheel forward, changing the steering axis and potentially causing the fender to hit the frame on full compression. Shops that skip this calculation often face costly rework or have to machine custom steering stops to prevent frame damage.

Why Source This Front End From Our Catalogue

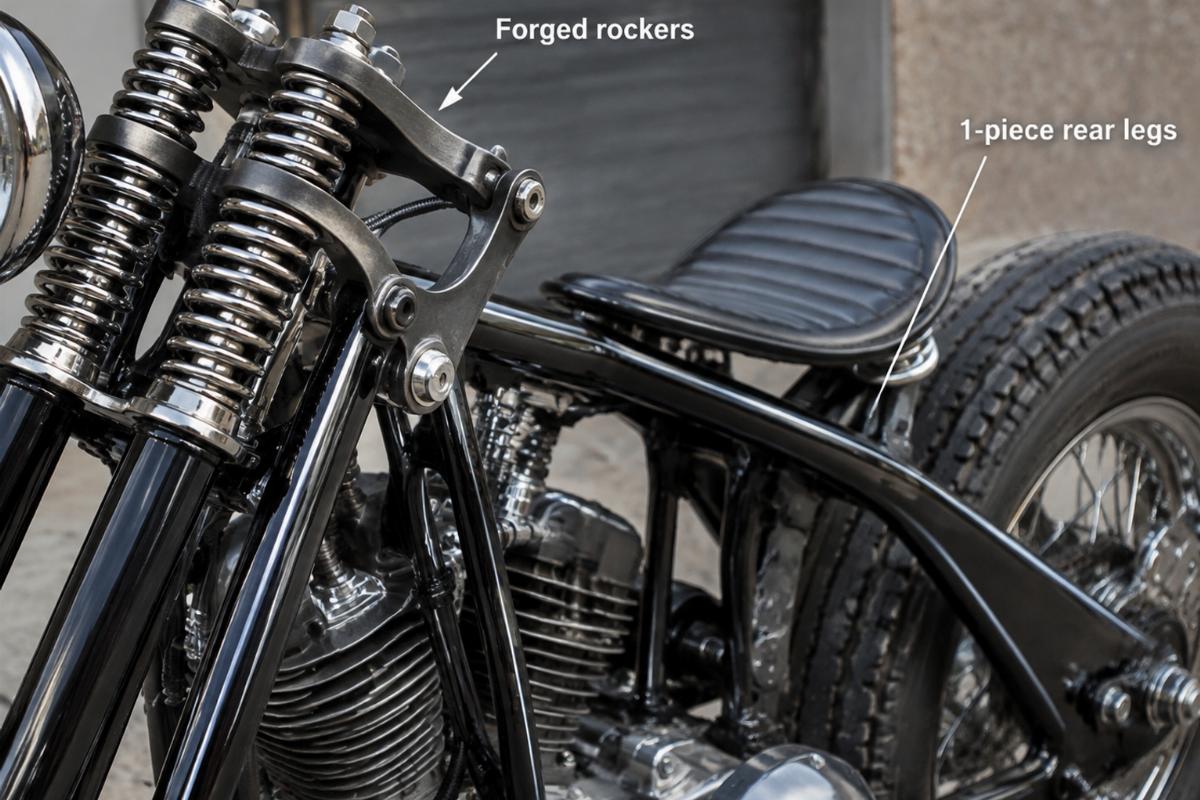

We manufacture the forged rockers and 1-piece rear legs in our own facility, ensuring structural continuity. Every custom springer front end for fxst softail is checked against the 1984-up platform family before quotation. We offer a single-piece minimum order, allowing shops to build one bike without meeting bulk quotas. Black powder coat finish options are applied in controlled batches for consistent appearance. Cross-reference support is provided to verify fitment against your specific frame year.

Documentation Supplied With Your Order

• Fitment sheet listing the 1984-up Softail (FXST) platform and year range
• Cross-reference sheet with OEM numbers marked reference only
• Key dimensions including 28″ overall length and 1″ steering stem O.D.

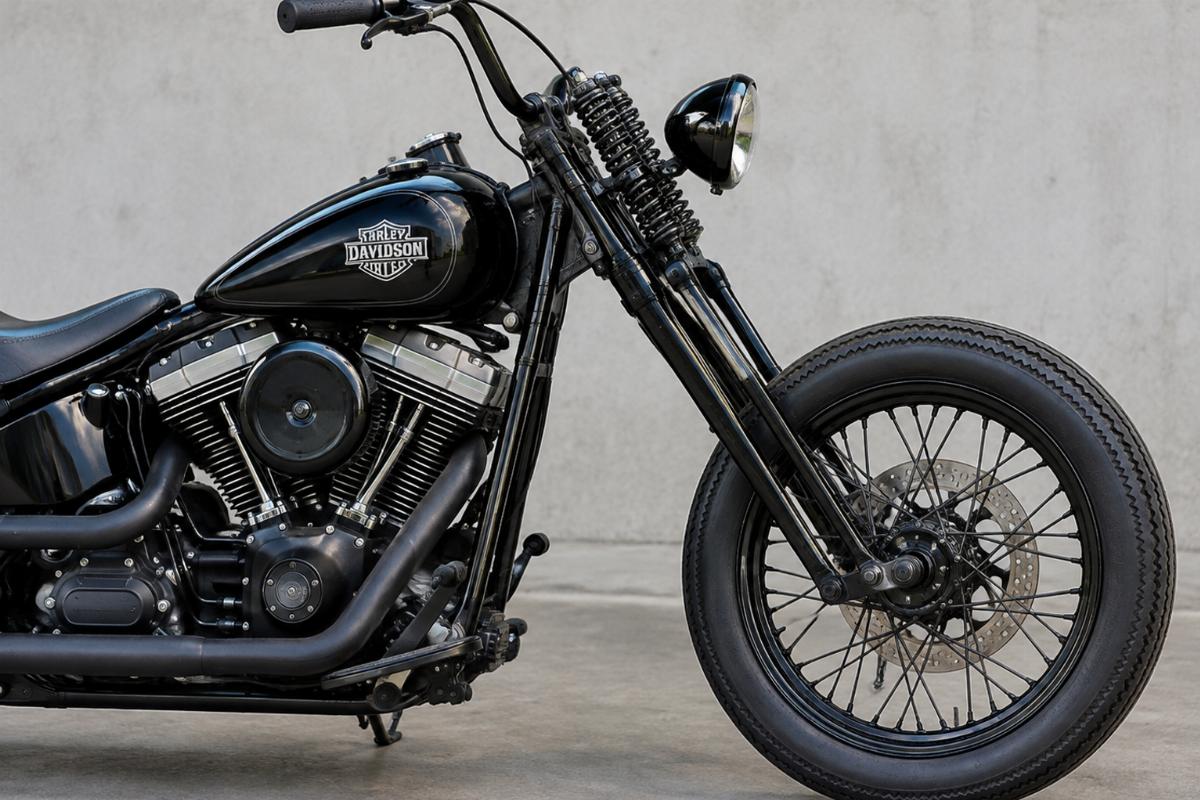

• Finish specification for the black powder coat application
• Quality inspection record for the forged components and axle kit
• Warranty terms covering the in-house manufactured front end parts

Pre-Installation Checks for the Assembled Springer

• Verify the 28″ overall length and 1-piece rear legs match your order sheet
• Confirm the 1″ steering stem O.D. matches your frame’s Timken type bearings
• Check the 4 3/4″ riser mount centers and 1/2-20 thread for handlebar compatibility
• Inspect the black powder coat finish for any transit damage before assembly
• Ensure the 3/4″ axle kit and hub spacers are present for your specific wheel
• Have a qualified technician verify frame clearances before final tightening

Requesting a Fitment Check for Your Build

Send your Softail (FXST) model and year range so we can verify the 28″ length against your frame geometry. Provide a photo of your current neck bearings or the OEM number if you need cross-reference support. Let us know if you require a sample unit to test the 1″ steering stem and 4 3/4″ riser spacing before placing a bulk order for your shop.

Frequently Asked Questions

Q: How does a +4″ over-stock 28″ springer affect my FXST frame geometry and ride height?

A: The 28″ overall dimension pushes the front wheel forward, which changes the trail and lowers the ride height. Because this unit has no built-in rake, you must calculate the exact steering geometry impact based on your specific frame. Always measure the stock length and compare it to this 28″ dimension to ensure the bike remains rideable and clears the frame on full compression.

Q: What steering stem diameter and bearing type do I need to match this springer?

A: This front end uses a 1″ O.D. steering stem designed for Timken type bearings. You must verify that your frame’s neck is machined for a 1″ stem and the correct Timken bearing race. If your frame uses a different diameter, the stem will not seat properly, requiring frame modification or a different springer assembly.

Q: Are custom wheel spacers included, or do I need to source them for my specific wheel?

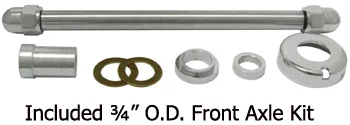

A: The kit includes an axle kit with a brake mount pivot, thrust washer, and hub spacers. However, custom wheel spacers are not included, as wheel widths and hub configurations vary heavily in custom builds. You will need to measure your specific wheel hub and source or machine the exact spacers required to center the wheel within the 9 1/4″ rocker spacing.

Q: Can I order a single springer front end for a custom build without a minimum quantity?

A: Yes, we support single-bike custom builds with a minimum order of one piece. You can order a single 28″ black powder coat unit for your shop project without meeting bulk quotas. We also offer sample supply for fitment confirmation before you commit to larger orders for your inventory.
