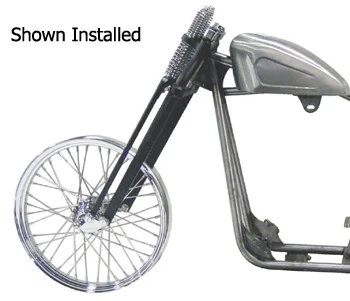

26″ Wide Style Springer Front End for Custom Big Twin

Front-end depth across multiple lengths — Our in-house production covers complete springer assemblies in various over-stock dimensions, ensuring the 26″ wide style springer front end matches your custom geometry requirements without guessing.

Product Specification

Fitment

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Why Over-Stock Springer Lengths Cause Geometry Issues

A +2″ over-stock length changes frame rake and trail, requiring precise frame verification before dispatch.

I still remember a FXSTS owner who ordered a 26-inch springer without checking the rake. He assumed the +2″ over-stock length would just look longer, but it completely ruined the steering geometry and ride height. When a 26″ wide style springer front end is installed without calculating the trail impact, the front end pushes wide in corners and the fender clears the tire unevenly. You must verify the exact platform and year range to ensure the 1-inch steering stem and 4-3/4-inch riser centers match the frame before ordering.

Verifying Steering Stem and Riser Spacing

Before ordering a 26″ wide style springer front end, you must confirm the 1″ O.D. steering stem matches your custom triple trees. The 4 3/4″ riser mount centers dictate your handlebar and headlight placement. If your neck bearings are sized for a different stem diameter, the assembly will not seat correctly. Always cross-reference these dimensions against your specific frame neck specifications.

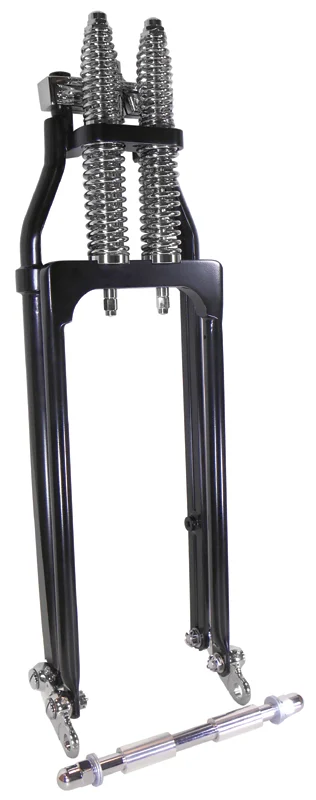

Understanding the 1-Piece Rear Leg Design

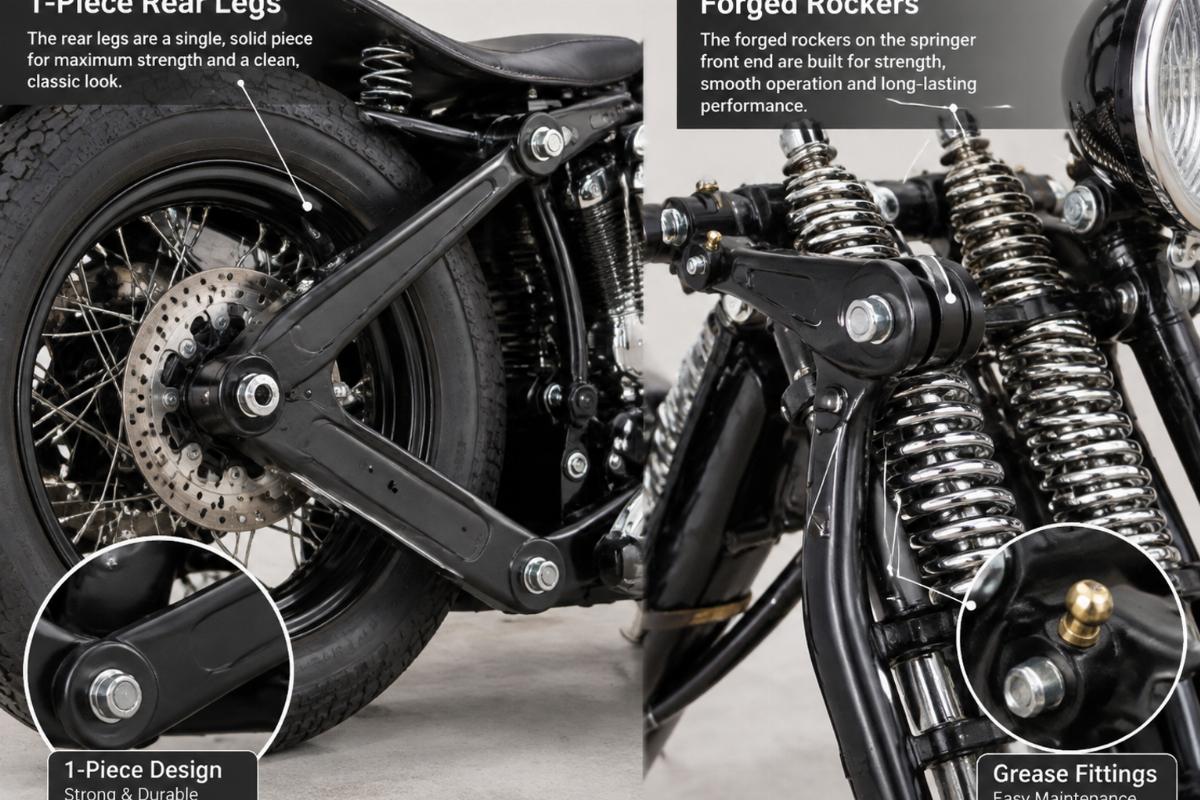

The rear legs on this 26″ wide style springer front end are manufactured as a single piece from the rocker to the top tree. This design provides structural rigidity but requires you to specify brake threading. The legs are threaded for either right or left brakes, meaning you must confirm your wheel and caliper setup before dispatch. Custom spacers may be required depending on the wheel used to align the 3/4″ axle kit properly.

Decoding the 26″ Overall and Standard Measurements

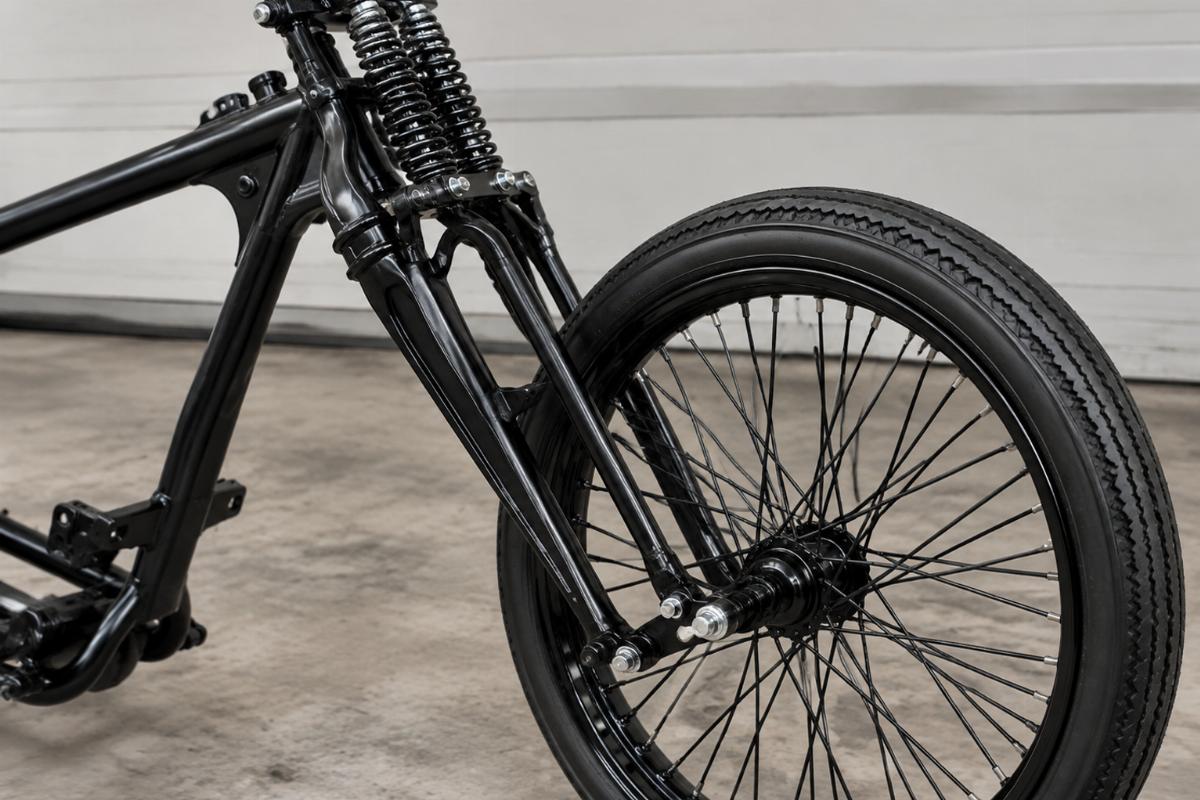

This 26″ wide style springer front end features a 26″ overall length, which is measured as a 24″ standard length from the bottom bearing to the axle center, plus the additional over-stock extension. The forged in-line top bracket is built without any built-in rake, meaning all geometry adjustments rely entirely on the frame neck angle and the +2″ extension. You must measure your current setup to understand how this extra length will alter your ride height and steering response.

The Hidden Cost of Unverified Over-Stock Dimensions

Ordering a springer without confirming the over-stock length impact often leads to the bike sitting on the lift waiting for steering correction. I have seen builds where the +2″ extension caused the front fender to strike the tire under compression because the trail was miscalculated. When the 9 1/4″ rocker spacing does not align with the intended headlight mount, custom fabrication is required, delaying the build. Verifying the 26″ overall dimensions against your specific frame prevents costly rework and ensures the 1″ steering stem drops into the neck without binding.

Sourcing from a Front-End Specialist

We manufacture our springer front ends in-house, allowing us to offer this 26″ wide style springer front end with verified dimensions rather than relying on unconfirmed catalog data. Our front-end depth means we stock multiple over-stock lengths, ensuring you get the exact geometry your custom build requires. We provide black powder coat and chrome finish options on our main lines, checked for batch consistency. You can order a single piece for a one-off custom build without meeting high minimums. Every fitment is confirmed against the platform family before quotation.

Documentation and Verification Sheets

• Fitment sheet stating applicable platforms and year ranges for this specific 26″ length.
• Key dimensions sheet detailing the 24″ standard measurement and 26″ overall length.
• Cross-reference sheet with any applicable numbers marked reference only.
• Finish specification document for the black powder coat application.

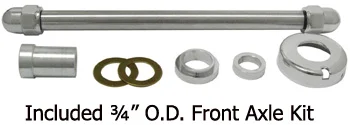

• Quality inspection record verifying the 1″ steering stem and 3/4″ axle dimensions.

Receiving and Pre-Installation Checks

• Verify the 26″ overall length and 24″ standard measurement match your order confirmation.
• Check the 1″ O.D. steering stem for any shipping damage before pressing into bearings.
• Inspect the black powder coat finish on the 1-piece rear legs and forged rockers.
• Confirm the 4 3/4″ riser mount centers and 9 1/4″ rocker spacing with your handlebars.
• Ensure the 3/4″ axle kit includes the brake mount pivot and hub spacers.
• Store the assembly in a dry environment to protect the black powder coat finish.

Requesting a Fitment Check

Send your model and year for a fitment check to ensure this 26″ wide style springer front end matches your custom Big Twin build. Provide your triple tree stem diameter and riser center spacing so we can verify the 1″ stem and 4 3/4″ mounts. If you are unsure about the +2″ over-stock impact on your rake, share your current fork measurements or a photograph of the frame neck. We can supply a sample for fitment confirmation before you commit to bulk orders for your shop.

Frequently Asked Questions

Q: How does a +2″ over-stock springer length affect frame rake and trail?

A: A +2″ over-stock length increases the distance from the steering head to the axle, which typically decreases the rake angle and reduces trail. This alters the steering geometry, making the front end feel heavier and potentially affecting ride height. You must calculate these changes against your specific frame neck angle to ensure the 26″ overall length works with your custom build without causing steering issues or fender clearance problems.

Q: What are the key measurements to check before ordering a wide style springer?

A: Before ordering, verify the 1″ O.D. steering stem matches your triple trees and neck bearings. Check the 4 3/4″ riser mount centers to ensure your handlebars will fit correctly. Confirm the 9 1/4″ rocker spacing aligns with your headlight setup. Finally, measure your frame to ensure the 26″ overall length and +2″ over-stock extension will not negatively impact your ride height or steering geometry.

Q: Does the 3/4″ axle kit include all necessary spacers for my specific wheel?

A: The 3/4″ axle kit includes the brake mount pivot with a thrust washer and standard hub spacers designed for typical custom wheels. However, custom spacers may be required depending on the specific wheel hub width and brake rotor setup you are using. We recommend measuring your wheel hub and comparing it to the included spacers during dry assembly to determine if additional custom spacers are needed for proper alignment.

Q: Can I order a single springer front end for a one-off custom build?

A: Yes, we support custom builders and independent shops by offering a minimum order of just one piece. You do not need to meet high volume requirements to purchase this 26″ wide style springer front end for a single custom build. We provide the same fitment verification, dimension sheets, and finish inspection for a single unit as we do for large distributor orders, ensuring your one-off project gets the correct geometry.
