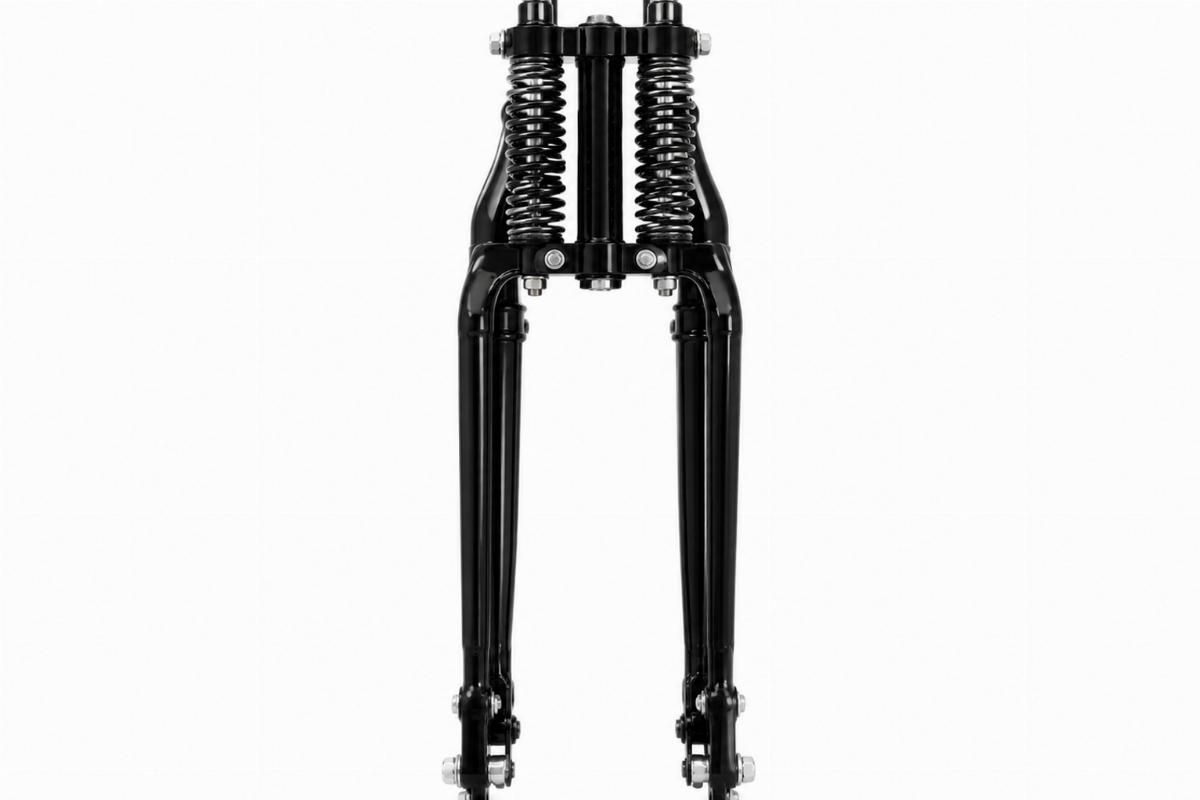

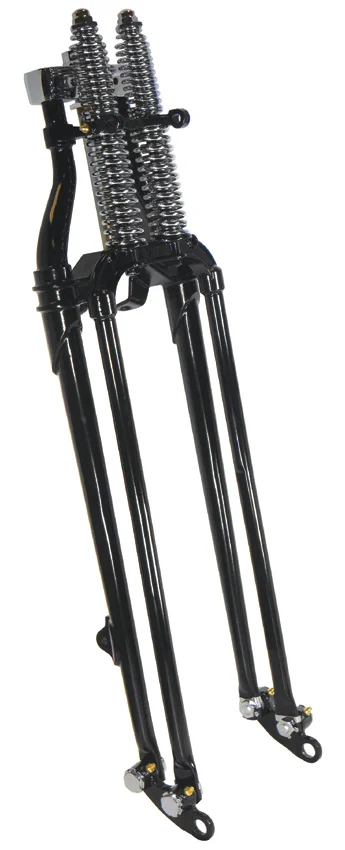

Custom Springer Fork 26″ Gloss Black for Vintage FL & Sportster

Complete front-end depth — This 26-inch gloss black assembly provides exact over-stock measurements and 0-degree rake data to verify ride height before installation.

Product Specification

Fitment

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Calculating Trail Impact for a Custom Springer Fork for Vintage FL and Sportster

A 26-inch over-stock length with a 0-degree rake fundamentally alters the front-end profile and requires precise frame geometry checks.

When sourcing a custom springer fork for vintage FL and Sportster platforms, buyers often face listings that omit the exact rake angle and overall length. I have seen shops bolt on an in-line top bracket without checking the trail impact, resulting in a completely wrong ride height and compromised steering geometry. Verifying the 26-inch overall length against your specific neck angle is the only way to ensure the front end sits correctly.

Checking the 1-Inch Steering Stem and Timken Bearing Fitment

Installing a custom springer fork for vintage FL and Sportster machines requires matching the 1-inch steering stem O.D. to your specific neck cups. The Timken type bearing setup demands exact alignment to prevent binding when the 0-degree in-line top bracket is torqued into place. Always confirm that your frame’s neck dimensions accept a 1-inch stem before finalizing the order.

Confirming the Neck Cup Conversion Kit Requirement

The K Model and Sportster platforms from 1952 to 1981 utilize a different steering head configuration than the Vintage FL. To mount this custom springer fork for vintage FL and Sportster builds on a K Model or Sportster, a specific neck cup conversion kit is mandatory. Skipping this verification step will leave the front end unmountable upon arrival.

Interpreting the 26-Inch Length and 8 3/4-Inch Rocker Spacing

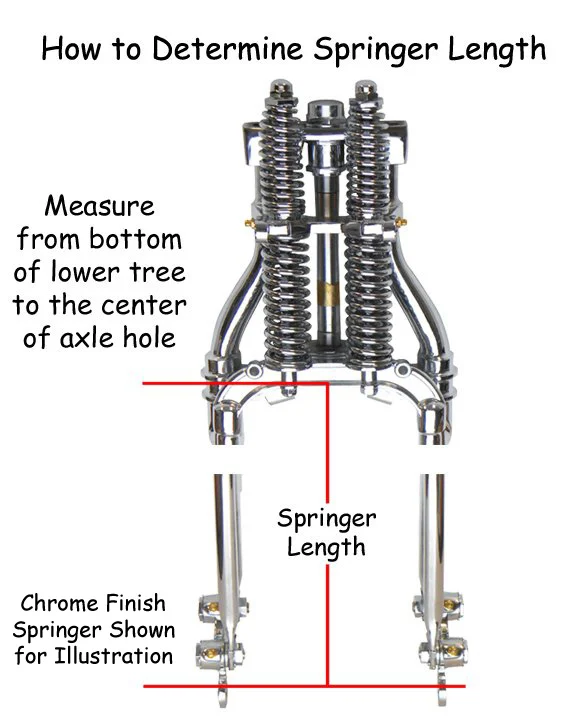

The 26-inch overall length, measured from the bottom of the lower tree to the axle center, dictates the final ride height and visual stance of the motorcycle. The 8 3/4-inch axle rocker spacing on the cast rockers must align perfectly with your front wheel hub width and brake setup. Additionally, the 4 3/4-inch rise mount centers and 1/2-20 thread determine which handlebars and risers can be safely attached to the top bracket.

The Hidden Cost of Ignoring Rake and Stem Dimensions

Ordering a front end without verifying the 0-degree rake and 1-inch steering stem often leads to severe installation failures. I have watched custom builds sit on the shop floor for weeks because the fork tubes were the wrong width for the triple trees, or the ride height was ruined by an uncalculated trail change. When a 26-inch over-stock length is paired with an in-line bracket, the geometry shifts dramatically, and correcting it requires buying entirely new mounting hardware or modifying the frame.

Sourcing Front-End Depth with Exact Dimensional Data

We supply this custom springer fork for vintage FL and Sportster applications with a complete fitment sheet detailing every critical measurement before you commit. Our catalog provides multiple over-stock lengths and finish options, ensuring you can match the exact 26-inch profile and gloss black aesthetic your build requires. Every assembly is checked against platform families and year ranges, and we support single-piece orders for one-off custom builds without forcing bulk purchases.

Documentation Provided

• Fitment sheet stating applicable platforms and year ranges for Vintage FL, K Model, and Sportster
• Key dimensions document listing the 26-inch overall length and 0-degree rake specifications
• Cross-reference sheet with OEM numbers marked reference only for steering stem and axle sizes
• Finish specification confirming the gloss black application and batch consistency
• Quality inspection record verifying the 8 3/4-inch axle rocker spacing and 1/2-20 rise mount threads

Receiving and Verifying the Assembly

• Measure the 26-inch overall length from the lower tree to the axle center upon delivery
• Verify the 1-inch steering stem O.D. matches your frame’s neck cup requirements
• Check the 8 3/4-inch axle rocker spacing against your front wheel hub width
• Inspect the gloss black finish for consistency across the cast rockers and fork tubes
• Confirm the 3/4-inch O.D. axle and in-line top bracket are fully assembled in the kit
• Store the assembly in a dry environment to protect the gloss black finish before installation

Requesting a Fitment Check for Your Build

Send your exact model, year range, and a photograph of your current steering head to verify compatibility with this custom springer fork for vintage FL and Sportster platforms. Include your required finish and quantity, and let us know if you need the neck cup conversion kit for your K Model or Sportster. We can also arrange a sample supply for fitment confirmation before you commit to a bulk order for your shop.

Frequently Asked Questions

Q: How does a 26-inch over-stock springer with a 0-degree rake affect ride height?

A: A 26-inch length combined with a 0-degree in-line top bracket significantly raises the front end and alters the trail. You must calculate the exact frame geometry and neck angle to ensure the steering remains functional and the ride height matches your custom build expectations.

Q: What is required to install this fork on a K Model or Sportster?

A: The K Model and Sportster platforms from 1952 to 1981 require a specific neck cup conversion kit to adapt the 1-inch steering stem to the frame’s steering head. This kit is not included in the fork assembly and must be sourced separately for proper installation.

Q: How do I verify the axle rocker spacing fits my front wheel?

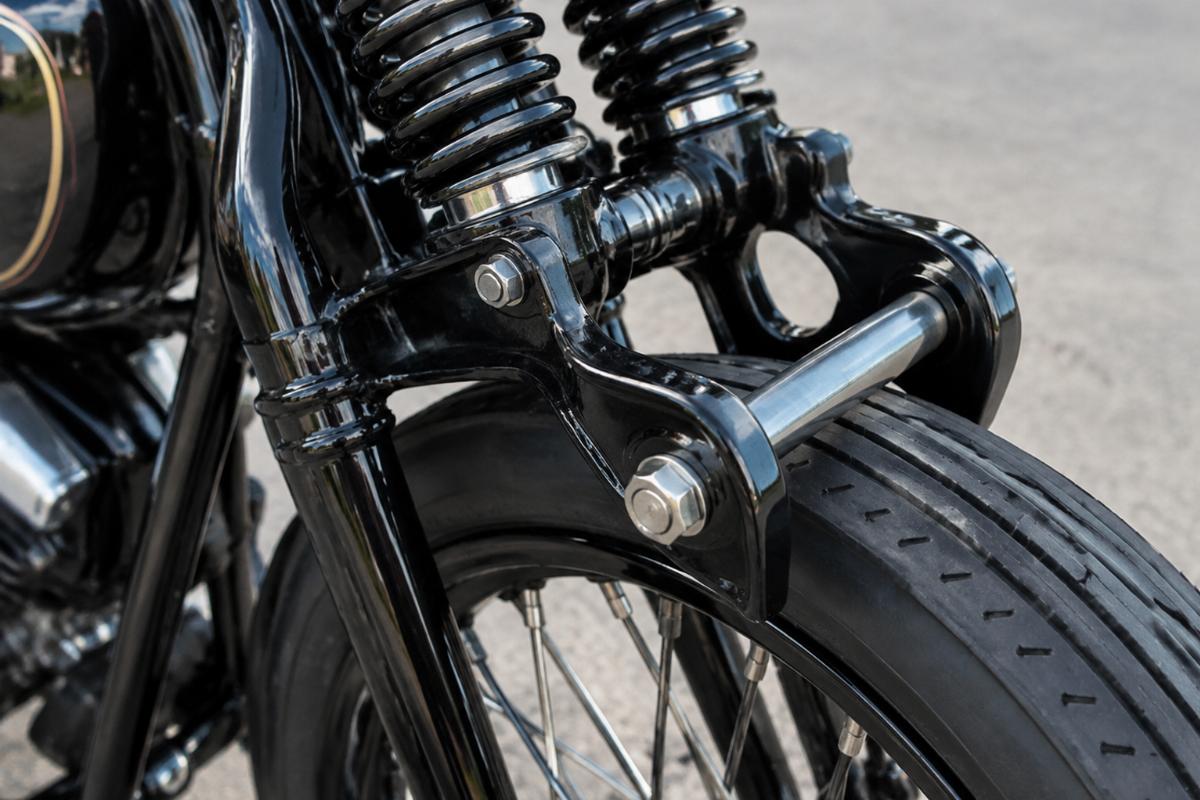

A: Measure the width of your front wheel hub and brake setup to ensure it matches the 8 3/4-inch axle rocker spacing on the cast rockers. The 3/4-inch O.D. axle must also align perfectly with your wheel bearings and spacers.

Q: Can I order a single assembly for a one-off chopper build?

A: Yes, we support a minimum order of one piece to accommodate custom builders and restoration shops working on individual projects. You will receive the same fitment verification and dimensional documentation as our bulk distribution orders.

Q: What finish consistency checks are performed on the gloss black coating?

A: The gloss black finish is inspected for batch consistency to ensure uniform coverage across the fork tubes, cast rockers, and top bracket. This prevents visible color or texture mismatches when the front end is fully assembled and mounted on the motorcycle.
