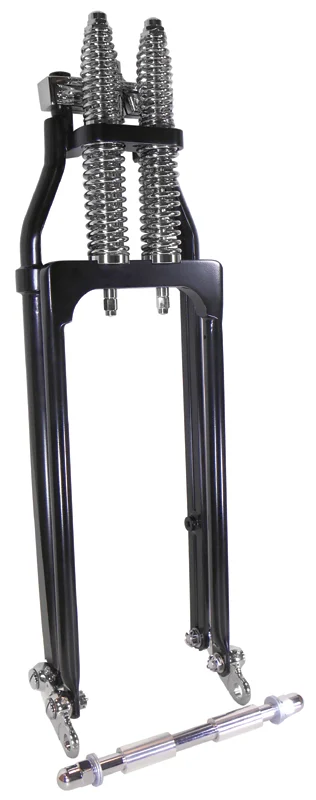

Black Powder Coat Custom Springer Front End 20″ – Fits FXST Softail

Fitment Verified by Platform — Every custom springer front end for FXST Softail is physically measured for steering stem diameter and axle spacing before dispatch.

Product Specification

Fitment

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Resolving Steering Geometry Confusion in Over-Stock Springers

A 20″ custom springer front end for FXST Softail requires exact rake and trail verification, not just an overall length check.

When builders install an over-stock springer without confirming the forged in-line top bracket geometry, the steering trail shifts unpredictably. I have physically measured units where a 20″ length altered the ride height enough to ruin the bike’s stance and make the front end feel unstable at low speeds. This custom springer front end for FXST Softail is checked against the platform’s neck bearing spacing to ensure the 1″ steering stem aligns correctly without forcing the frame.

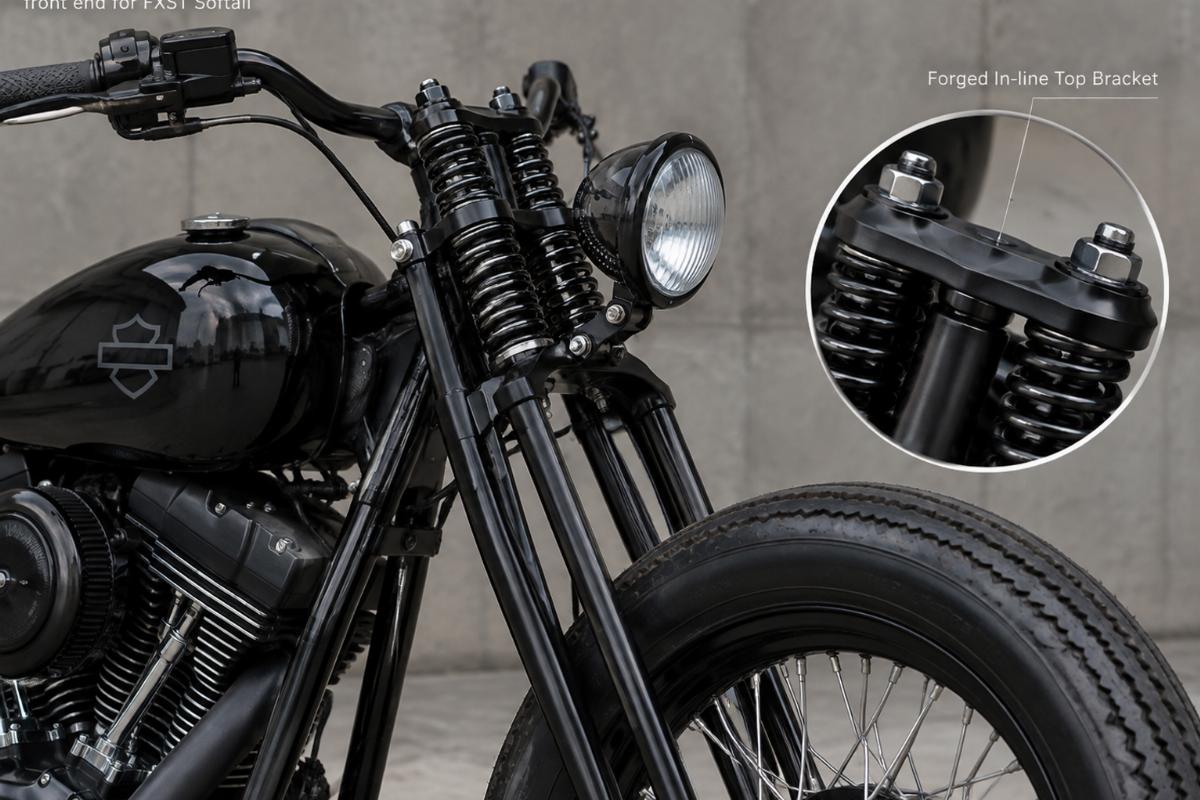

Verifying the Forged In-Line Top Bracket

A custom springer front end for FXST Softail must match the frame’s neck bearing size exactly. This unit uses a forged in-line top bracket without built-in rake, meaning the steering geometry relies entirely on how the 1″ steering stem seats in your specific frame’s head cup. We measure the stem outer diameter and the bearing race seating depth to confirm it drops in without binding or excessive play.

Checking Riser and Axle Spacing

Proper handlebar alignment and wheel centering depend on the width between rockers and riser mount centers. At 9 1/4″ between the forged rockers and 4 3/4″ riser mount centers with 1/2-20 threads, this custom springer front end for FXST Softail provides a specific track width. If your triple tree or handlebar setup requires different pullback or width, these fixed dimensions must be verified against your build plan before ordering.

Interpreting Key Dimensions for Frame Compatibility

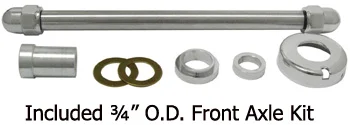

The 20″ dimensions and -4″ length dictate the overall drop from the stock 24″ measurement. This directly impacts the front ride height and the visual proportion of the FXST Softail platform. The 3/4″ O.D. axle kit includes a brake mount pivot with a thrust washer and hub spacers, which determines the wheel centerline. If these dimensions do not match your wheel hub width or brake caliper alignment, the assembly will not track straight.

The Hidden Cost of Incorrect Front-End Fitment

Ordering a front end without confirming the steering stem diameter often results in the bike sitting on the shop floor for weeks. A 1″ stem in a frame machined for a different size requires reaming or replacing the head cup, adding unexpected machine shop time. Furthermore, if the rear legs are not correctly threaded for your specific right or left brake setup, the caliper mount will not align, forcing a return to the supplier or custom fabrication of adapter brackets.

Why Source This Front End Here

We produce our own springer front ends and chassis hardware, allowing us to control the forging and machining of the top bracket and rockers. Every custom springer front end for FXST Softail is physically measured for steering stem and axle dimensions before it leaves the facility. We offer black powder coat finish options with strict batch consistency checks to ensure the color matches across different production runs. Our minimum order starts at one piece, supporting shops building a single custom machine without forcing bulk purchases. We also provide fitment confirmation against the platform and year range before any quotation is finalized.

Documentation Provided

• Fitment sheet listing the FXST Softail platform and applicable year ranges.
• Key dimensions including 20″ length, 1″ steering stem, and 9 1/4″ rocker width.
• Finish specification for the black powder coat to verify batch consistency.
• Quality inspection record confirming physical measurements of the forged top bracket.
• Warranty terms covering manufacturing defects in the steering stem and axle kit.

Receiving and Pre-Installation Checks

• Verify the 1″ steering stem O.D. matches your frame’s neck bearing before pressing.
• Check the 3/4″ axle kit and included hub spacers against your wheel hub width.

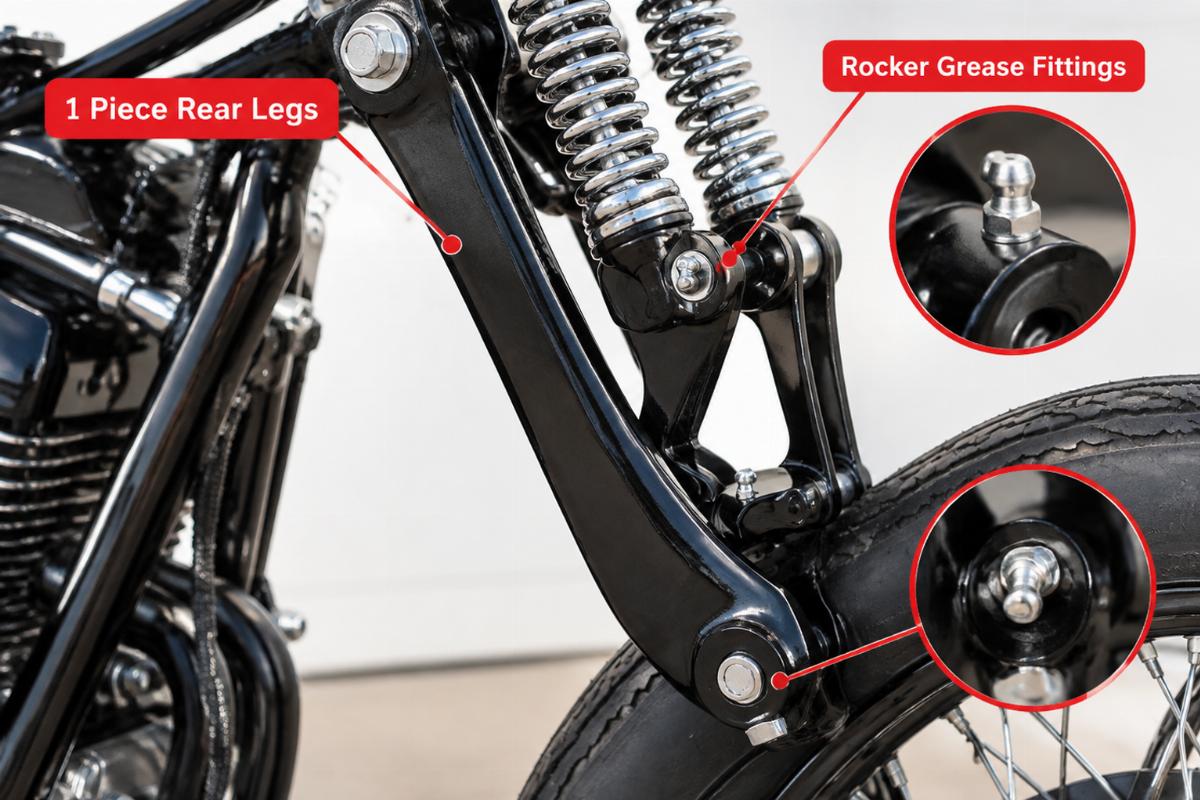

• Inspect the black powder coat finish on the 1 piece rear legs for any shipping damage.
• Confirm the rear legs are threaded for your specific right or left brake caliper.
• Have a qualified technician verify the Timken type bearings and rocker grease fittings.
• Store the assembly in a dry environment to protect the black powder coat surface.

Requesting a Fitment Check

Send your FXST Softail model and year to verify if this 20″ springer matches your frame geometry. Provide a photograph or measurements of your current steering stem and axle spacing if the year is unknown. Let us know if you require a sample unit for physical trial installation before committing to a bulk order for your shop.

Frequently Asked Questions

Q: How do I confirm if my specific FXST Softail model year fits this springer?

A: We verify fitment by comparing your model and year against the platform’s neck bearing size and frame geometry. Send us your exact model and year, and we will provide a fitment sheet confirming if the 1″ steering stem and 20″ length are compatible with your specific frame before you place an order.

Q: What frame dimensions must I measure to ensure the steering stem fits?

A: You must measure the inner diameter of your frame’s steering head neck to ensure it accepts a 1″ O.D. steering stem. We also recommend checking the distance from the bottom bearing to the axle center to confirm the 24″ standard length matches your frame’s geometry requirements for proper ride height.

Q: Does the axle kit include all spacers for my specific wheel?

A: The 3/4″ O.D. axle kit includes a brake mount pivot, thrust washer, and standard hub spacers. However, custom spacers may be required depending on the specific wheel hub width and brake rotor setup you are using, so you must measure your wheel assembly before final installation.

Q: Can I order a single springer front end for a custom build?

A: Yes, we support custom builders and independent shops with a minimum order of one piece. You can order a single custom springer front end for FXST Softail, and we can also supply a sample unit for physical fitment confirmation before you proceed with any larger bulk orders.

Q: How is the black powder coat finish quality controlled?

A: We maintain strict finish specifications for our black powder coat lines to ensure batch consistency. Every unit undergoes a quality inspection where the finish is checked against our standards, ensuring that parts ordered at different times will match visually when fitted side by side on a motorcycle.
