Chrome Custom Springer Front End 20″ – Fits Softail FXST

Single-piece minimum order — Every custom springer front end for softail fxst build can be ordered individually, allowing shops to source exactly what they need for one-off projects without bulk commitments.

Product Specification

Fitment

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Clarifying Overall Length and Rake Impact for Your Build

Exact dimensions from the bottom bearing to the axle center determine your final ride height and steering geometry.

Springer forks offered “over stock” often lack clear overall length statements, making it hard to judge ride height and steering geometry. I once measured a 20-inch over-stock springer that looked right but had the wrong trail impact, completely ruining the steering geometry and ride height once bolted on.

Verifying Frame Neck Bearing Compatibility

Before ordering a custom springer front end for softail fxst platforms, you must verify frame neck bearing compatibility with the 1″ O.D. steering stem. Mismatched stem diameters will prevent proper seating in the triple tree, leading to dangerous steering play. Always measure your existing stem or check the frame specifications to ensure a direct match with the Timken type bearing setup.

Confirming Wheel Hub Width and Spacer Requirements

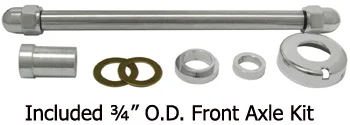

The included 3/4″ axle kit comes with specific hub spacers, but wheel hub widths vary significantly across custom builds. You need to confirm wheel hub width to determine if the included hub spacers are sufficient or if custom spacers are required for proper alignment.

Interpreting Key Dimensions for Steering Geometry

The 20″ overall length and -4″ over stock measurement directly lower the front end compared to standard configurations. The forged in-line top bracket is built without a built-in rake, meaning the steering angle relies entirely on your frame’s neck angle. Additionally, the 9 1/4″ rocker spacing and 4 3/4″ riser mount centers dictate your handlebar positioning and front fender clearance.

Hidden Costs of Incorrect Front End Sourcing

Ordering a front end without confirming the exact over-stock length can leave a bike stuck on the lift with ruined geometry. When part numbers are superseded across model years, buying based on an old manual often results in a part that physically bolts on but binds the steering. Furthermore, missing kit contents like thrust washers or hub spacers force shops to halt assembly and source hardware locally, delaying the build and increasing costs.

Sourcing Front Ends with Fitment Certainty

We produce this custom springer front end for softail fxst applications in our own facility, ensuring strict control over the forged rockers and 1-piece rear leg design. Fitment is confirmed against the platform family and model year range before quotation, preventing mismatched steering stems. We offer chrome and black finish options on our main front-end lines, maintaining consistency between batches. Cross-reference against Harley-Davidson OEM numbers is provided for identification, marked reference only. Finally, a minimum order of one piece supports shops building a single custom machine without forcing bulk purchases.

Documentation Provided with Your Shipment

• Fitment sheet stating applicable platforms and year ranges for this specific assembly
• Key dimensions document listing fork length over stock and steering stem diameter
• Cross-reference sheet with OEM numbers marked reference only for identification
• Quality inspection record verifying chrome finish and forged component integrity

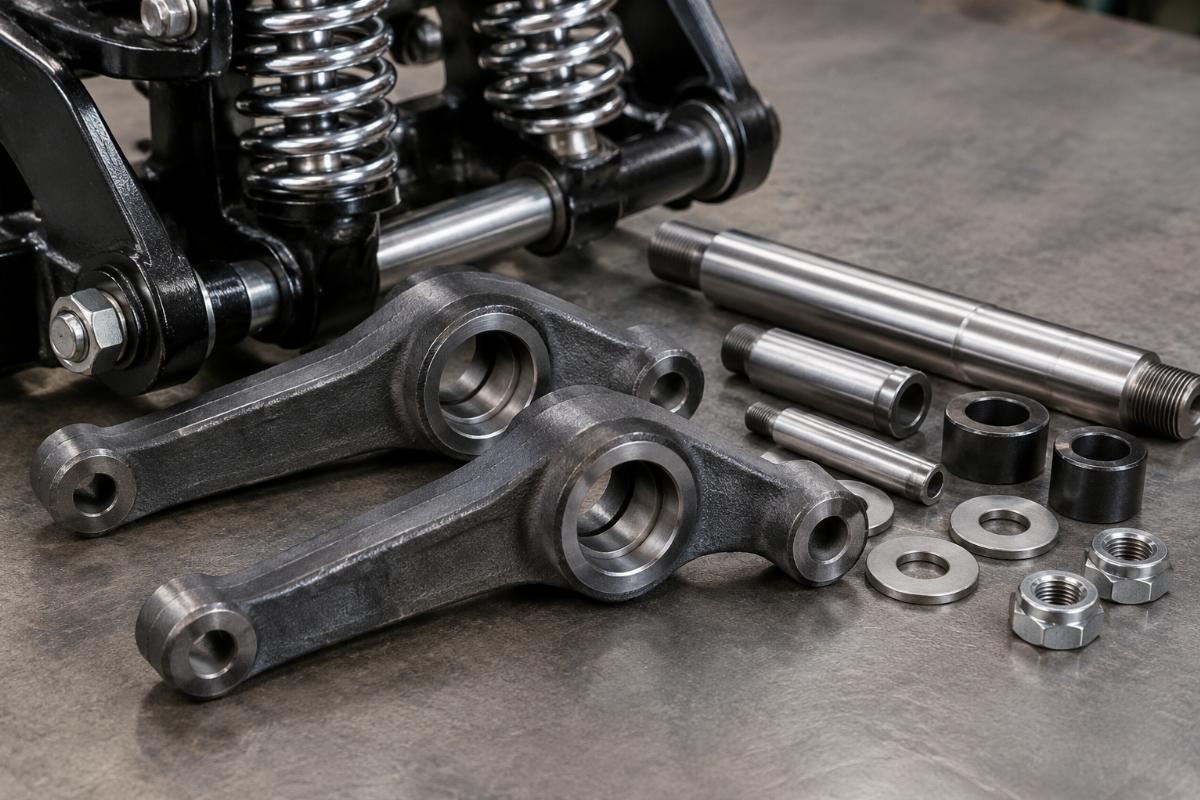

• Packing photographs showing the axle kit and rocker grease fittings included

Pre-Installation Checks for Your Workshop

• Verify the 1″ O.D. steering stem matches your frame’s steering head cups before pressing bearings
• Measure the wheel hub width to confirm if the included 3/4″ axle spacers are adequate
• Check riser clamp compatibility with the 4 3/4″ mount centers and 1/2-20 threading
• Inspect the chrome finish on the 1-piece rear legs for any transit damage before assembly
• Ensure both rear legs are threaded correctly for your chosen right or left brake setup

Requesting a Fitment Check for Your Project

Send your model and year for a fitment check to ensure this 20″ assembly matches your specific Softail frame. Provide your existing steering stem diameter or a photograph of the neck bearings if the year is unknown. Let us know if you require a sample for fitment confirmation before placing a bulk order for your shop.

Frequently Asked Questions

Q: How does a -4″ over stock springer affect the ride height and steering geometry of my FXST?

A: A -4″ over stock length significantly lowers the front end, which changes the rake and trail. This alters the steering geometry, making the bike turn quicker but potentially reducing high-speed stability. You must calculate the impact on your specific frame neck angle to ensure the ride height and handling match your build goals.

Q: What wheel sizes and hub widths are compatible with the included 3/4″ axle kit and spacers?

A: The 3/4″ axle kit is designed for standard custom wheels with a 3/4″ axle bore. Hub widths vary by manufacturer, so you must measure your specific wheel hub. The included spacers work for many standard setups, but custom spacers may be required depending on the exact wheel width and brake rotor alignment.

Q: Can I order a single custom springer front end for a one-off build, or is there a minimum order quantity?

A: You can order a single custom springer front end for a one-off build. We support independent repair shops and custom builders with a minimum order of one piece. This allows you to source the exact front end needed for a specific project without being forced into bulk purchasing requirements.

Q: How do I verify if my frame’s steering head cups and neck bearings match the 1″ steering stem?

A: Measure the outer diameter of your existing steering stem or the inner diameter of your frame’s steering head cups. The stem must be exactly 1″ to properly seat the Timken type bearings. If your frame uses a different diameter, this assembly will not fit without modifying the frame or changing the stem.
