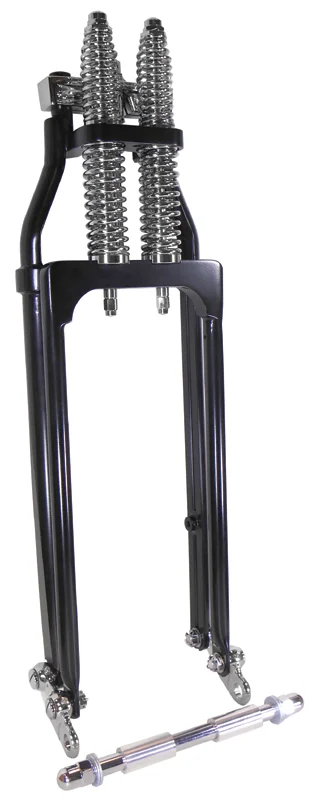

Custom Springer Front End 34″ Black Powder Coat – Fitment Checked

[Front-End Depth and Over-Stock Lengths] — We supply complete springer assemblies with multiple over-stock lengths and confirmed fitment across platform families, ensuring your custom build matches the exact geometry required.

Product Specification

Part Type | Custom Springer Front End

Fitment

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Why Over-Stock Springer Lengths Cause Geometry Guesswork

Exact overall length and rake impacts must be stated before ordering a custom springer front end.

Springer forks offered over stock often lack clear statements on overall length, making it hard to judge ride height and steering changes before ordering. I have seen custom builders struggle when a shop orders a setup without specifying the exact dimensions needed for their specific chopper build. The bike ends up sitting too high, and the steering trail is completely off, ruining the intended stance.

Verifying Frame Geometry for a +10″ Setup

When fitting a custom springer front end with a +10″ over stock length, you must verify frame geometry and triple tree spacing to accommodate the 34″ overall dimensions. Longer forks change rake and trail, which directly alters how the steering responds. Checking these dimensions ensures the front end sits correctly in the neck without binding the steering stem or altering the intended ride height of the chassis.

Matching Riser Mounts and Brake Threading

The riser mount centers on this unit are set at 4 3/4″ with a 1/2-20 thread, requiring you to check riser compatibility before finalizing handlebar choices. Additionally, the 1-piece rear legs are threaded for right or left brakes, meaning you must confirm your brake caliper mounting side matches the leg threading. Overlooking these details can lead to mismatched controls or the need for custom adapters.

Interpreting the 34″ Overall Dimensions

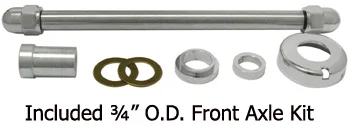

The 34″ overall dimensions, measured from the bottom bearing to the axle center with a standard 24″ baseline, dictate the visual stance and physical clearance of the front end. The 1″ O.D. steering stem designed for Timken® type bearings ensures the neck assembly can handle the increased leverage of a longer fork. The 3/4″ O.D. axle kit includes a brake mount pivot, thrust washer, and hub spacers, but the exact hub width of your wheel determines if the included spacers are sufficient.

The Hidden Cost of Unchecked Springer Dimensions

Ordering a front end without confirming the +10″ over stock length against your specific frame can leave the bike sitting too high, completely throwing off the steering trail. If the riser mount thread or center spacing is ignored, handlebars may not align properly, requiring expensive custom modifications to fix. Furthermore, if the included hub spacers do not match your wheel width, the build halts while waiting for custom spacers, delaying the entire project timeline.

Sourcing from a Front-End Specialist

We produce complete springer assemblies and offer multiple over-stock lengths in one catalogue, ensuring your custom springer front end matches your exact length requirements. Our fitment is confirmed against platform family and model year range before quotation, preventing geometry mismatches. We provide cross-reference identification against OEM numbers marked reference only, and we support a minimum order from one piece for shops building a single custom bike.

Documentation Provided with Your Order

• Fitment sheet stating applicable platforms and year ranges for this custom springer front end
• Cross-reference sheet with OEM numbers marked reference only for identification
• Key dimensions including 34″ overall length, steering stem O.D., and riser mount thread
• Finish specification for the black powder coat application
• Packing photographs showing the forged rockers and included axle kit

Receiving and Verifying Your Springer Assembly

• Verify the 34″ overall dimensions and +10″ over stock length against your frame measurements before installation.
• Check the 1″ O.D. steering stem and Timken® type bearings for any transit damage or surface defects.
• Confirm the 4 3/4″ riser mount centers and 1/2-20 thread match your chosen handlebars and risers.
• Inspect the black powder coat finish on the 1-piece rear legs and forged top bracket for consistency.
• Test fit the 3/4″ O.D. axle kit and included hub spacers with your specific wheel to check for custom spacer needs.

Requesting a Fitment Check

Send your model and year along with a photograph or measurements of your current triple tree spacing to verify if this custom springer front end fits your build. Include the exact wheel hub width so we can confirm if the included spacers are sufficient or if custom spacers are required. Let us know if you need a sample for fitment confirmation before placing a bulk order for your shop.

Frequently Asked Questions

Q: How do I confirm my model and year range fits this custom springer front end?

A: Send us your model and year along with a photograph or measurements of your current triple tree spacing. We verify fitment against the platform family and year range before quotation, ensuring the 34″ overall dimensions and 1″ steering stem match your frame neck specifications.

Q: What key dimensions do I need to measure on my frame and wheel to ensure proper fitment?

A: Measure your frame’s triple tree spacing and neck diameter to accommodate the 1″ steering stem. You must also measure your wheel hub width to determine if the included hub spacers on the 3/4″ axle kit are sufficient or if custom spacers are required for your specific wheel.

Q: How does a +10″ over stock springer affect rake and trail compared to the standard 24″ length?

A: A +10″ over stock length with 34″ overall dimensions changes the rake and trail, which alters the steering response and ride height. You must verify your frame geometry to ensure the longer fork does not cause the front end to sit too high or negatively impact the steering geometry.

Q: Are custom hub spacers included, or do I need to source them separately for my specific wheel?

A: The kit includes an axle kit with standard hub spacers. However, custom spacers may be required depending on the specific wheel hub width you are using. You must confirm your wheel dimensions to determine if the included spacers are sufficient for your build.

Q: Can I order a single piece for a custom build instead of a bulk minimum order?

A: Yes, we support a minimum order from one piece. This allows custom builders and independent repair shops to order a single custom springer front end for a specific bike build without being blocked by high minimum order quantities.
