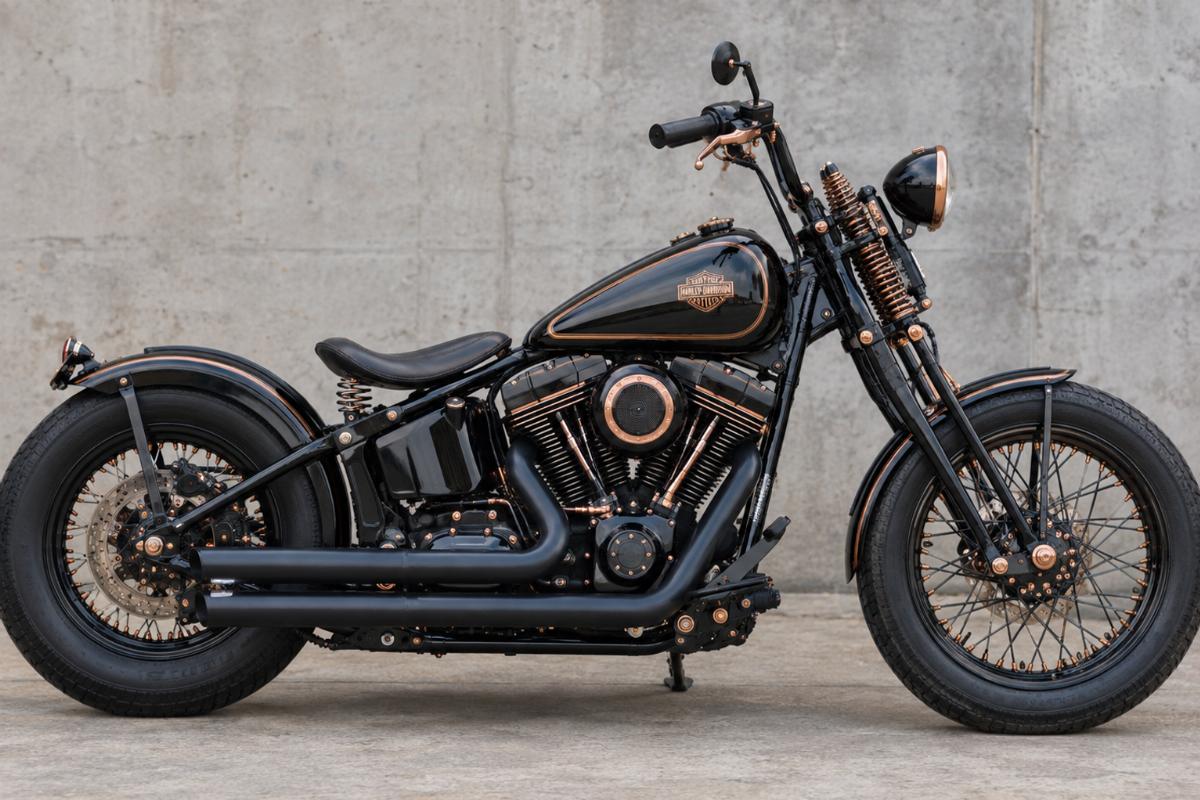

Aftermarket Replacement 20″ Black and Copper Custom Springer Front End for FXSTS Springer Softail
Fitment-Verified Front Ends — Every custom springer fork kit for FXSTS Springer Softail is checked against platform dimensions before quotation to ensure exact geometry and finish consistency.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Custom Springer Front End |
| Finish | Black and Copper |
| Length | 20″ |
| Front Rail Diameter | 1″ |
| Steering Stem O.D. | 1″ |
| Bearing Type | Timken® type |
| Axle Kit O.D. | 3/4″ |
| Rocker Spacing | 9 1/4″ |
| Riser Mount Centers | 4 3/4″ |
| Riser Mount Thread | 1/2-20 |
| Kit Contents | Fully assembled in-line top bracket, forged rockers, 1-piece rear legs, 3/4″ O.D. axle kit with brake mount pivot, thrust washer and hub spacers |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| FXSTS Springer Softail | Confirm with model and year | 20″ length differs from standard 24″ FXST length; verify frame rake and trail requirements. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why 20″ Length Changes Your FXSTS Springer Softail Geometry
A 20″ custom springer fork kit for FXSTS Springer Softail significantly alters ride height and steering geometry compared to standard setups.
When sourcing a custom springer fork kit for FXSTS Springer Softail, buyers often overlook how a shortened length impacts the overall rake and trail. A 20″ front end drops the front end substantially compared to the standard 24″ measurement. This shift changes the steering head angle, which directly affects how the motorcycle handles at speed and how the custom stance looks when parked. Without verifying these geometry changes against your specific frame, the front end may sit too low or steer too nervously. [NEED_CITE: frame geometry specifications by model year]
Verifying Rocker Spacing and Riser Mounts
A custom springer fork kit for FXSTS Springer Softail must match your handlebar and headlight setup precisely. The 9 1/4″ rocker spacing and 4 3/4″ riser mount centers dictate which triple trees and bars will bolt on without modification. If your custom build requires wider pullback bars or a specific headlight bucket, these exact measurements determine whether the front end accepts your components straight out of the crate.
Checking the Steering Stem and Bearing Interface
The 1″ O.D. steering stem and Timken® type bearing interface are critical for the head cup connection. This custom springer fork kit for FXSTS Springer Softail relies on these exact diameters to maintain proper steering tension and prevent frame neck wear. Matching the 1″ front rail diameter to your specific triple tree ensures the assembly stays aligned under braking and cornering loads. [NEED_CITE: steering stem diameter variations across springer platforms]
The Hidden Cost of Unverified Springer Dimensions
Ordering a front end without confirming the 20″ length against your frame’s rake requirements often leads to disastrous results. Shops frequently receive parts that sit too low, forcing them to tear down the entire front end, source different springs, or even modify the frame neck. When the 4 3/4″ riser mount centers do not match the intended handlebars, builders waste days fabricating custom adapters instead of assembling the bike. These fitment errors stall production schedules and inflate labor costs far beyond the initial part price. [NEED_CITE: common fitment errors in custom springer installations]
Sourcing Directly from the Front End Specialist

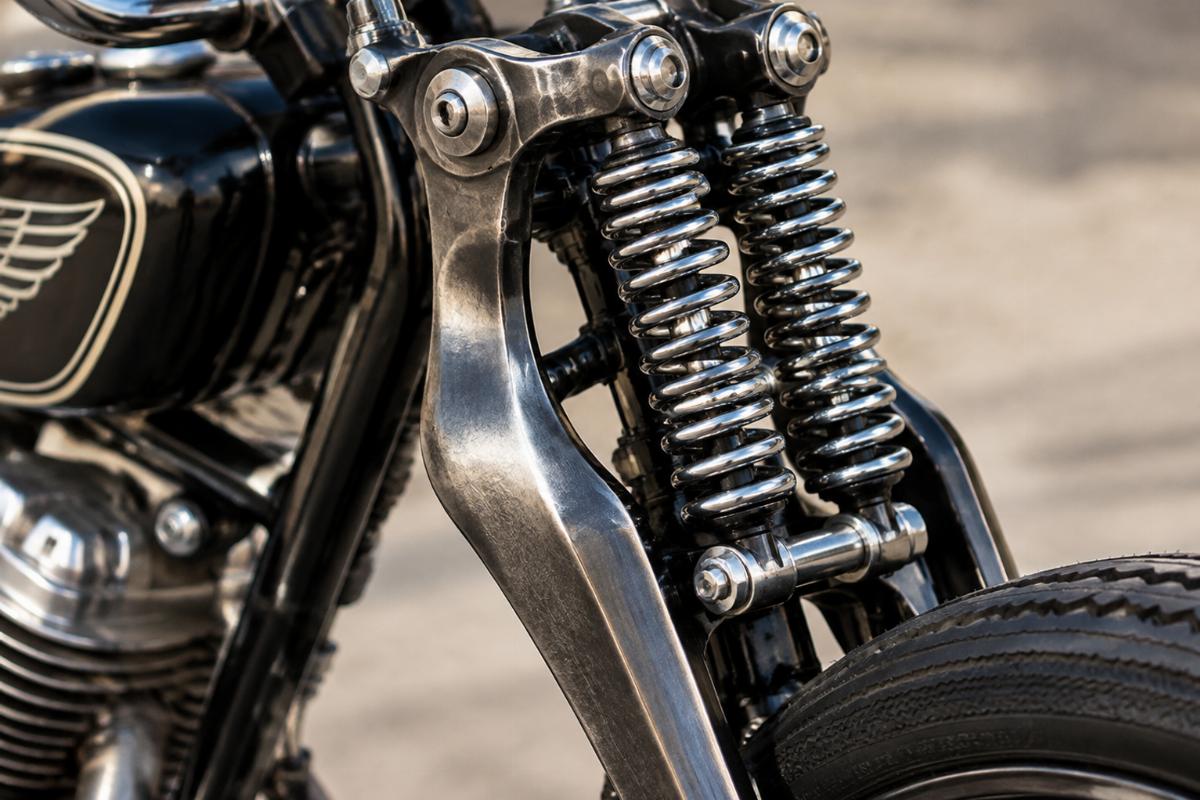

We manufacture this custom springer fork kit for FXSTS Springer Softail in our own facility, ensuring complete control over the forged rockers and 1-piece rear legs. Our catalogue consolidates complete springer assemblies, early springer parts, and hydraulic fork components under one account. You can select between black and copper finishes with strict batch consistency, and we cross-reference Harley-Davidson OEM numbers for identification purposes only. Most importantly, we support custom builders with a minimum order of just one piece, allowing you to order a single sample for fitment confirmation before committing to bulk production.
Documentation Provided with Your Shipment
- Fitment sheet stating applicable platforms and year ranges for this specific front end
- Cross-reference sheet with Harley-Davidson OEM numbers marked reference only
- Key dimensions including 20″ length, 1″ steering stem O.D., and 9 1/4″ rocker spacing
- Finish specification detailing the black and copper coating process
- Quality inspection record verifying axle kit O.D. and hub spacer tolerances
- Packing photographs showing the fully assembled in-line top bracket and hardware
Receiving and Pre-Installation Checks
- Verify the 20″ overall length and 1″ front rail diameter against your frame measurements
- Confirm the 3/4″ O.D. axle kit and included hub spacers match your wheel hub width
- Inspect the black and copper finish on the forged rockers and 1-piece rear legs for consistency
- Check the 1/2-20 riser mount threads and 4 3/4″ centers for your specific handlebar setup
- Ensure the Timken® type bearing surfaces are free from debris before head cup installation
- Have a qualified technician verify all structural dimensions before final assembly
Requesting a Fitment Check and Quote
Send your exact FXSTS Springer Softail model and year to verify the 20″ length against your frame geometry. Provide a photograph or measurements of your current steering neck and wheel hub to confirm the 1″ steering stem and 3/4″ axle compatibility. Let us know if you require a single sample unit to test the black and copper finish and rocker spacing before placing a larger order for your shop.
Frequently Asked Questions
Q: How does the 20″ length affect the rake and trail on an FXSTS Springer Softail?
A: The 20″ length is shorter than the standard 24″ FXST measurement, which lowers the front end and steepens the steering head angle. This changes the rake and trail, affecting both the visual stance and steering geometry. You must verify these changes against your specific frame requirements before ordering to ensure the motorcycle handles correctly and maintains the desired custom look.
Q: What wheel measurements determine if custom hub spacers are needed?
A: You need to measure the overall width of your wheel hub and the distance between the fork legs. The kit includes a 3/4″ O.D. axle kit with standard hub spacers and a brake mount pivot. If your custom wheel hub is wider or narrower than the standard specification, custom spacers will be required to center the wheel properly between the 9 1/4″ rocker spacing.
Q: Are the rear legs pre-threaded for different brake caliper mounts?
A: The 1-piece rear legs include a brake mount pivot as part of the 3/4″ O.D. axle kit. The specific threading and mounting orientation depend on your caliper setup and wheel configuration. Custom spacers may be required depending on the wheel used to ensure the caliper aligns perfectly with the brake rotor. We recommend confirming your exact caliper mount requirements during the fitment check.
Q: Can I order a single sample to verify the finish and fitment?
A: Yes, we support custom builders and shops with a minimum order of one piece. You can order a single sample unit to verify the black and copper finish quality, check the 20″ length against your frame, and test the 4 3/4″ riser mount centers with your handlebars. This sample supply allows for physical fitment confirmation before you place a bulk order for multiple builds.
