Chrome Narrow Springer Fork Assembly 31″ – Fitment Checked

Narrow Springer Fork Assembly for Custom Builds, Chrome 31″ and 3/4″ Axle Hole

Verifying the 31″ stock length against frame geometry ensures correct ride height, preventing mismatched rake and trail.

  • Fitment confirmed before quotation
  • Single-piece minimum orders
  • Consistent chrome finish across batches
Fitment Confirmed
Before Quote
Factory Direct Since 2003
Finish 4 Surface
Options
OEM/ODM Custom
Available

Surface Finish

Triple chrome plating -- maximum shine and corrosion resistance.

Technical Data

Specifications

Category custom springers
Fits Big Twin 1984-Up
Finish Options Chrome · Black · Copper · Raw
OEM / ODM Available -- contact factory
MOQ Flexible -- single pieces welcome
Packaging Individual carton, foam-protected
Lead Time Stock: 3-7 days · Custom: 15-30 days

Compatibility

Fitment Chart

Model / Series Years Fit
Big Twin 1984-Up See description

Not sure it fits your bike?

Ask for fitment check

Full Details

Product Description

Own-Produced Front Ends — This narrow springer fork assembly is manufactured in our own facility, ensuring consistent chrome finish and direct warranty support under a single account.

Product Specification

Part Type | Narrow Springer Fork Assembly

Parameter Value
Finish Chrome
Length 31″ (stock length)
Axle Hole 3/4″
Top Tree Without ears
Thread Drilled and tapped 1/2″-20

Fitment

Platform Year Range Notes
Not stated Confirm with model and year Narrow spring fork

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Confirming Axle Hole and Top Tree Details Before Ordering

Always verify the 3/4″ axle hole and top tree style against your specific wheel hub and handlebar mounting setup.

I remember a builder ordering a springer front end without specifying the exact model year. We shipped a 31-inch assembly, but the rockers had a 3/4-inch axle hole while his hub required a different size, and the top tree came without ears when his setup needed them. The whole front end sat on the bench for weeks because the critical mounting dimensions were not cross-checked against the specific build requirements.

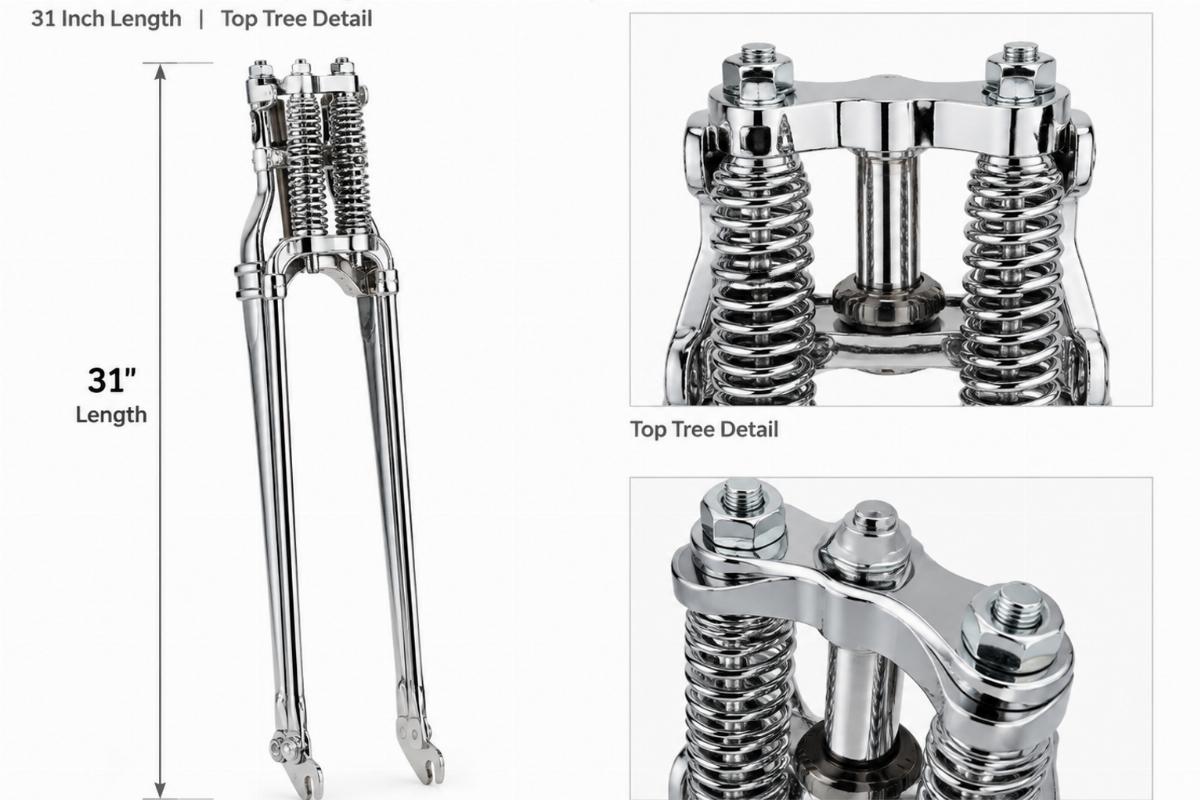

Chrome narrow springer fork assembly showing 31 inch length and top tree detail

Checking the 31-Inch Stock Length Against Frame Geometry

When selecting a narrow springer fork assembly, the 31″ stock length directly dictates your ride height and steering geometry. If the overall length does not match your frame’s designed rake and trail, the front end will sit too high or too low, altering the handling characteristics of the custom build. You must measure your existing setup or consult frame specifications to ensure this exact length aligns with your intended geometry.

Evaluating the Top Tree Without Ears for Handlebar Mounting

The top tree on this narrow springer fork assembly is designed without ears, which means it relies on a specific handlebar mounting configuration or riser setup. If your custom build requires a top tree with ears for direct handlebar clamping or specific riser alignment, this component will not fit your application without modification. Confirming the top tree style against your chosen handlebars and risers prevents unnecessary fabrication work later in the assembly process.

Interpreting the 3/4-Inch Axle Hole and 1/2″-20 Thread

The 3/4″ axle hole in the rockers must perfectly match the diameter of your front wheel hub and axle hardware; a mismatch will prevent the wheel from seating correctly or require unsafe machining. Additionally, the legs are drilled and tapped 1/2″-20, which is the standard thread pitch for mounting risers or fender struts on this style of front end. Ensuring your axle hardware and riser mounts align with these exact dimensions is critical for a secure and properly aligned front-end assembly.

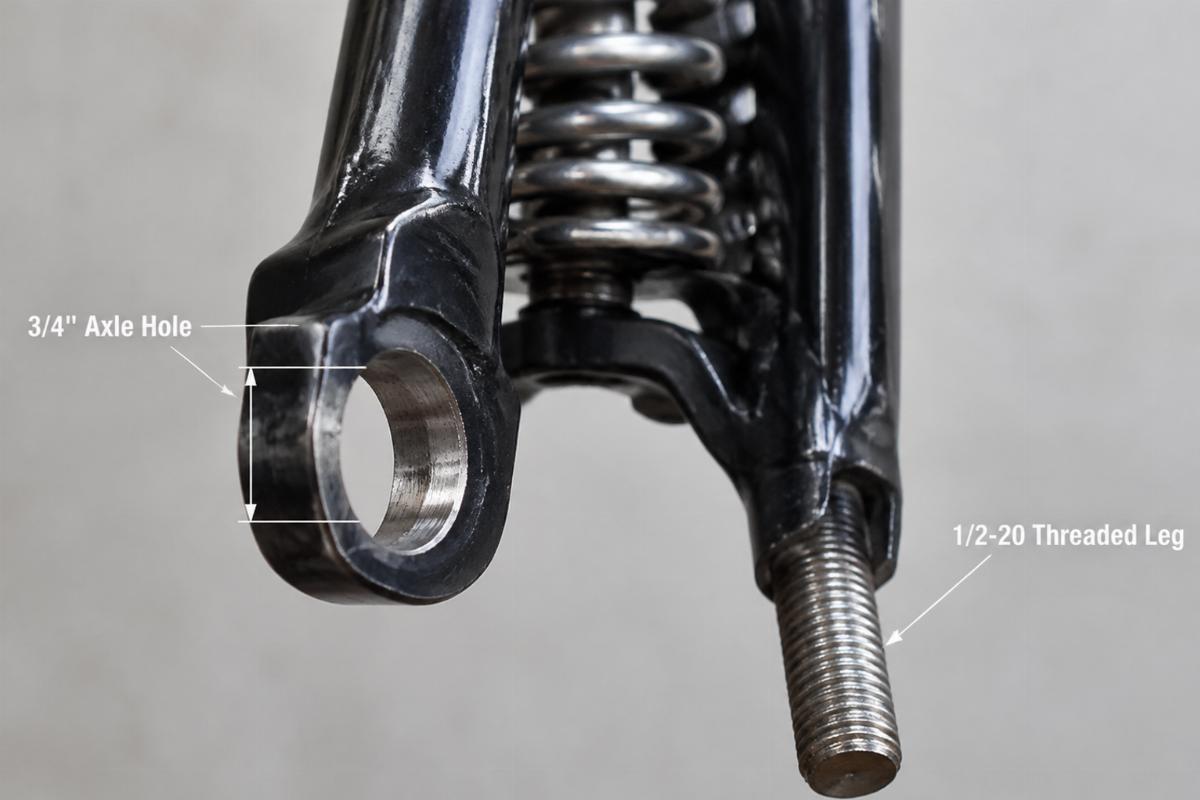

Close up of 3/4 inch axle hole and 1/2-20 threaded leg on narrow springer fork

The Hidden Cost of Unverified Mounting Dimensions

Ordering a front end without confirming the axle hole size or top tree style often leads to the bike sitting on the bench for weeks while waiting for the correct parts or custom fabrication. A 3/4″ axle hole might seem standard, but if your specific wheel hub requires a different diameter, the entire assembly becomes unusable until the rockers are machined or replaced. Similarly, receiving a top tree without ears when your riser setup demands them forces you to source alternative mounting solutions, delaying the build and increasing overall costs.

Sourcing Directly from the Front-End Manufacturer

By sourcing this narrow springer fork assembly directly from our facility, you bypass middlemen and deal with the actual manufacturer of the front-end components. We produce the springer assemblies and chassis hardware in-house, meaning every chrome finish is applied under our direct quality control to maintain consistency across batches. This direct relationship allows us to confirm fitment against your specific platform and year range before quotation, and we support minimum orders starting from a single piece for custom builders working on one-off projects.

Included Documentation and Quality Records

  • Commercial invoice and packing list detailing the chrome narrow springer fork assembly
  • Fitment sheet confirming the 31″ length and 3/4″ axle hole application
  • Quality inspection record verifying the 1/2″-20 thread and top tree style
  • Finish specification document outlining the chrome plating standards
  • Warranty terms covering manufacturing defects under our single account policy

Pre-Installation Inspection and Verification Steps

  • Verify the 31″ overall length matches your frame geometry requirements before mounting
  • Confirm the 3/4″ axle hole aligns perfectly with your front wheel hub and axle hardware
  • Check that the top tree without ears matches your specific handlebar and riser setup
  • Inspect the chrome finish for consistency and ensure no plating defects are present
  • Ensure the 1/2″-20 drilled and tapped threads on the legs are clean and undamaged
  • Store the assembly in a dry environment to protect the chrome finish prior to installation

Requesting a Fitment Check for Your Custom Build

Send us your specific model, year range, and a photograph of your current front end or wheel hub to verify if this 31″ narrow springer fork assembly is the correct fit for your project. If you are unsure about the axle hole size or top tree requirements, providing your key measurements allows us to cross-reference the dimensions before you commit to an order. We also offer sample supply for fitment confirmation if you are preparing for a larger bulk order of front-end components.

Frequently Asked Questions

Q: How do I confirm if this 31″ narrow springer fork assembly fits my specific custom build?

A: You need to verify the 31″ stock length against your frame geometry and check that the 3/4″ axle hole matches your front wheel hub. Send us your model, year, and hub measurements, and we will confirm the fitment against our platform data before you place an order.

Q: What key dimensions must I measure when replacing a springer front end?

A: You must measure the overall fork length to ensure it matches the 31″ stock length for your desired ride height. Additionally, verify the axle hole diameter is exactly 3/4″ to match your hub, and confirm the top tree style matches your handlebar mounting requirements.

Q: Does the 3/4″ axle hole require specific axle hardware or spacers?

A: The 3/4″ axle hole requires an axle and hub designed for that exact diameter. If your current wheel hub uses a different axle size, you will need to source a compatible hub or custom axle hardware to ensure the wheel seats securely in the rockers without modification.

Q: Can I order a single narrow springer fork assembly for a one-off custom bike build?

A: Yes, we support custom builders and independent shops by offering a minimum order of just one piece. You can order a single narrow springer fork assembly for your specific project, and we will still provide the full fitment verification and quality inspection documentation.

Q: How is the chrome finish consistency maintained on these front ends?

A: Because we manufacture the springer front ends in our own facility, we control the entire chrome plating process in-house. This allows us to maintain strict finish specifications and ensure the chrome appearance remains consistent across different production batches for your custom builds.
