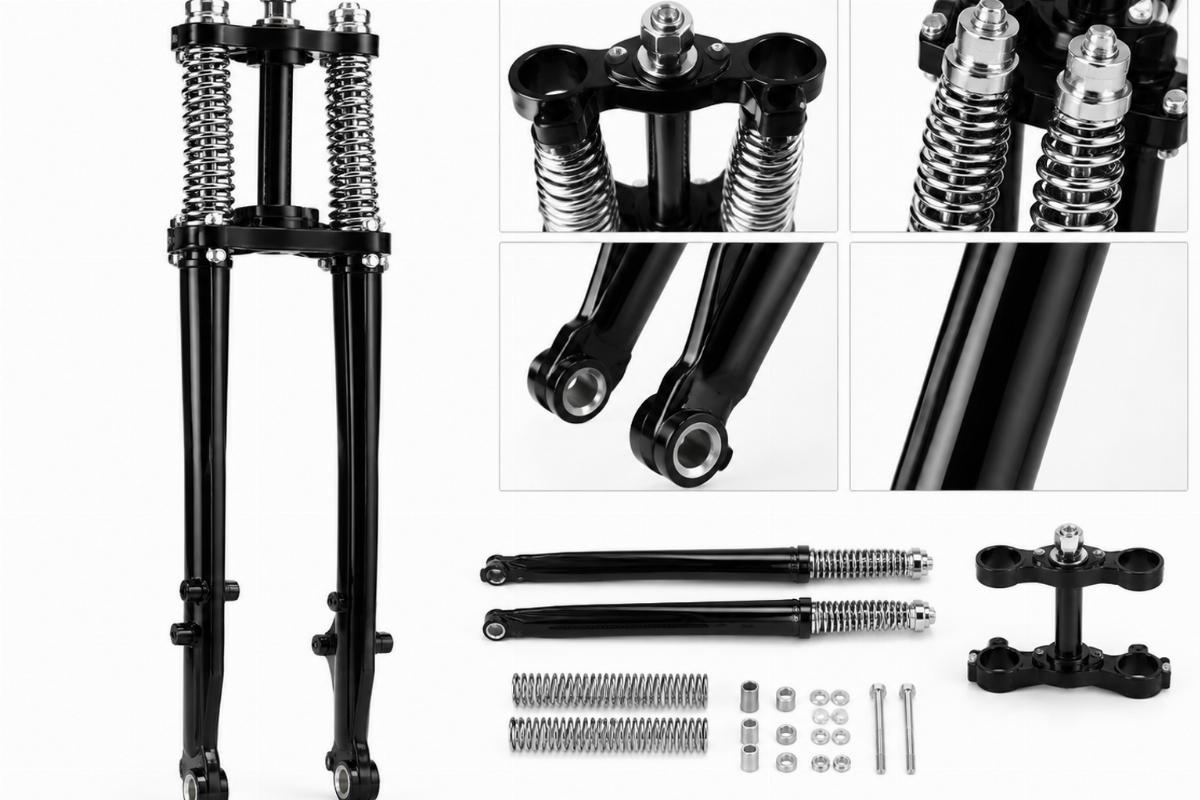

Black Inline Spring Fork Kit 20″ – Fitment Checked
Consistent Finish Pairing — Matching black fork bodies with chrome springs and triple trees ensures visual continuity across custom builds while maintaining strict dimensional accuracy for spool wheel setups.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Inline Spring Fork Kit |
| Finish | Black fork with chrome springs and machined chrome top triple tree |
| Length | 20″ |
| Thread | 1/2″ x 20 (legs) |
| Axle | 3/4″ axle assembly (included) |
| Rocker Design | Right rocker is not offset |
| Brake Tab Location | Right side |
| Bearing Kit | 1″ taper bearing kit available separately |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom builds | Confirm with model and year | For custom brake and spool wheel installation |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Resolving Geometry Mismatches in Custom Springer Setups

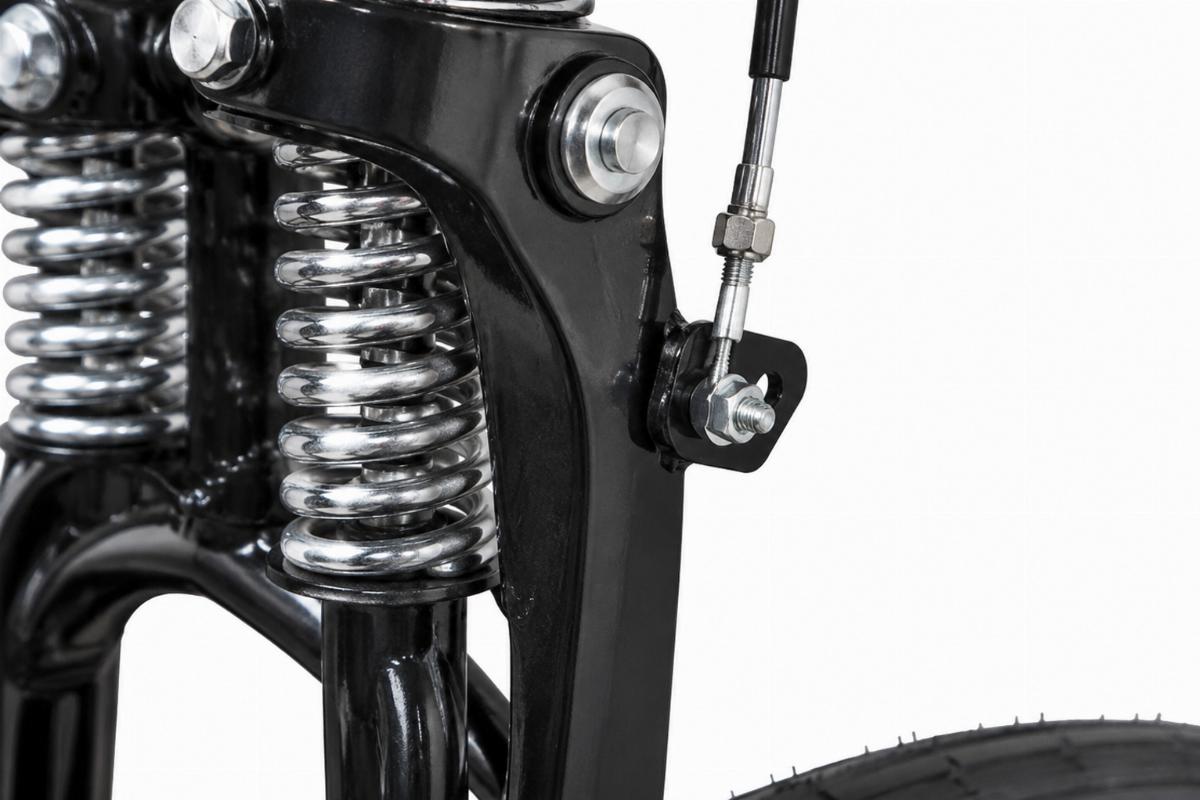

A non-offset right rocker and precise axle spacing prevent custom brake interference.
Builders often face delays when a 20 inch inline spring fork kit arrives with an offset rocker that blocks the brake caliper or misaligns the spool wheel axle. When the brake tab sits completely wrong, the axle fails to center, forcing days of re-machining. Verifying the rocker design and brake tab placement against the specific wheel setup eliminates these geometry conflicts before assembly begins [NEED_CITE: frame geometry and triple tree spacing variations across custom builds].
Verifying Steering Neck and Triple Tree Spacing
Before ordering this 20 inch inline spring fork kit, the frame steering neck must accommodate the 1/2″ x 20 leg threads and the specific width of the machined chrome top triple tree. If the spacing is off, the fork will not seat correctly, altering the intended rake and trail. Always measure the existing neck dimensions to ensure the 20″ length aligns with your target ride height.
Confirming Axle and Brake Tab Alignment
The included 3/4″ axle assembly and right-side brake tab dictate the wheel and brake compatibility. Custom spool wheel setups require exact axle spacing to center the wheel within the fender or frame legs. Using spacers for the axle is often required to achieve this centerline, and the right-side tab must clear the custom rotor without modification [NEED_CITE: axle spacer requirements for custom spool wheels].
Interpreting Critical Front End Dimensions
The 20″ overall length directly influences the front end profile and steering geometry of the custom motorcycle. The 1/2″ x 20 thread on the legs determines how the fork connects to the steering stem and lower triple tree; mismatched threads will prevent assembly. The 3/4″ axle size must match the custom wheel hub bearings, while the non-offset right rocker is specifically engineered to provide the necessary clearance for right-side mounted brake calipers.
The Hidden Cost of Incorrect Rocker Offsets
Shipping a springer fork with the wrong rocker offset means the brake tab will not align with the rotor, halting the build entirely. If the 20 inch inline spring fork kit lacks the correct non-offset design for a custom brake, the builder must machine a new tab or wait for a replacement. This mismatch wastes workshop time and delays the project, proving that checking rocker design against the brake setup is just as critical as verifying the overall length.
Sourcing Verified Front End Components
We verify the 20″ length and rocker design against your specific custom brake and spool wheel requirements before quotation. Our catalogue offers this 20 inch inline spring fork kit in a black finish paired with chrome springs to match your build theme. We support single-piece orders, allowing custom shops to procure exactly what they need for a one-off build without meeting high minimums.
Documentation Provided
- Fitment sheet confirming compatibility with your custom frame geometry
- Cross-reference sheet for dimensional verification
- Key dimensions including 20″ length and 3/4″ axle size
- Finish specification for black fork and chrome components
- Quality inspection record for rocker offset and thread accuracy
Pre-Installation Checks
- Verify the 1/2″ x 20 leg threads match your steering neck before assembly.
- Confirm the non-offset right rocker clears your specific custom brake caliper.
- Check that the 3/4″ axle assembly centers the spool wheel using required spacers.
- Inspect the black fork and chrome springs for any transit damage before mounting.
- Ensure the 1″ taper bearing kit is sourced separately if not already on hand.
Requesting a Fitment Check
Send your custom frame details, wheel specifications, and brake setup to verify if this 20 inch inline spring fork kit matches your geometry. Provide photos of your current steering neck or measurements of the required axle spacing to ensure the right-side brake tab aligns perfectly. We can supply a sample for fitment confirmation before you commit to a bulk order for your shop.
Frequently Asked Questions
Q: How do I confirm this 20 inch inline spring fork kit fits my custom frame geometry?
A: Measure your steering neck to ensure it accepts the 1/2″ x 20 leg threads. Verify the 20″ length matches your target ride height and check the top triple tree width against your frame spacing. We provide a fitment sheet confirming these dimensions against your specific build before you finalize the order.
Q: What are the key dimensions to measure for a custom springer front end?
A: You must measure the steering neck thread size, the required overall fork length for your desired geometry, and the axle spacing needed to center your custom wheel. The 3/4″ axle and right-side brake tab on this kit must align with your hub and rotor setup to avoid interference.
Q: Does the kit include the steering head bearings or do I need to buy them separately?
A: The 1″ taper bearing kit is available separately and is not included in the fork kit. You must source the correct bearing kit for your specific steering neck to ensure smooth operation and proper fitment of the front end assembly.
Q: Can I order a single spring fork kit for a one-off custom build?
A: Yes, we support single-piece orders with no high minimums blocking your shop. You can order one 20 inch inline spring fork kit for a specific custom build, and we will verify the rocker offset and brake tab placement against your exact requirements before dispatch.
Q: How do I ensure the brake tab and axle spacing match my custom wheel?
A: Confirm that your custom brake caliper mounts on the right side and clears the non-offset right rocker. Use axle spacers as required to center the spool wheel on the 3/4″ axle assembly, ensuring the wheel sits perfectly between the fork legs without rubbing.
