Ape Hanger Handlebars 12″ Rise for 1982 and Later Models – Fitment Checked
Fitment verified by platform and year — Every set of ape hanger handlebars for 1982 and later models is checked against frame geometry and riser clamp requirements before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Ape Hanger Handlebars |
| Diameter | 1 1/2″ |
| Riser Area O.D. | 1 1/4″ |

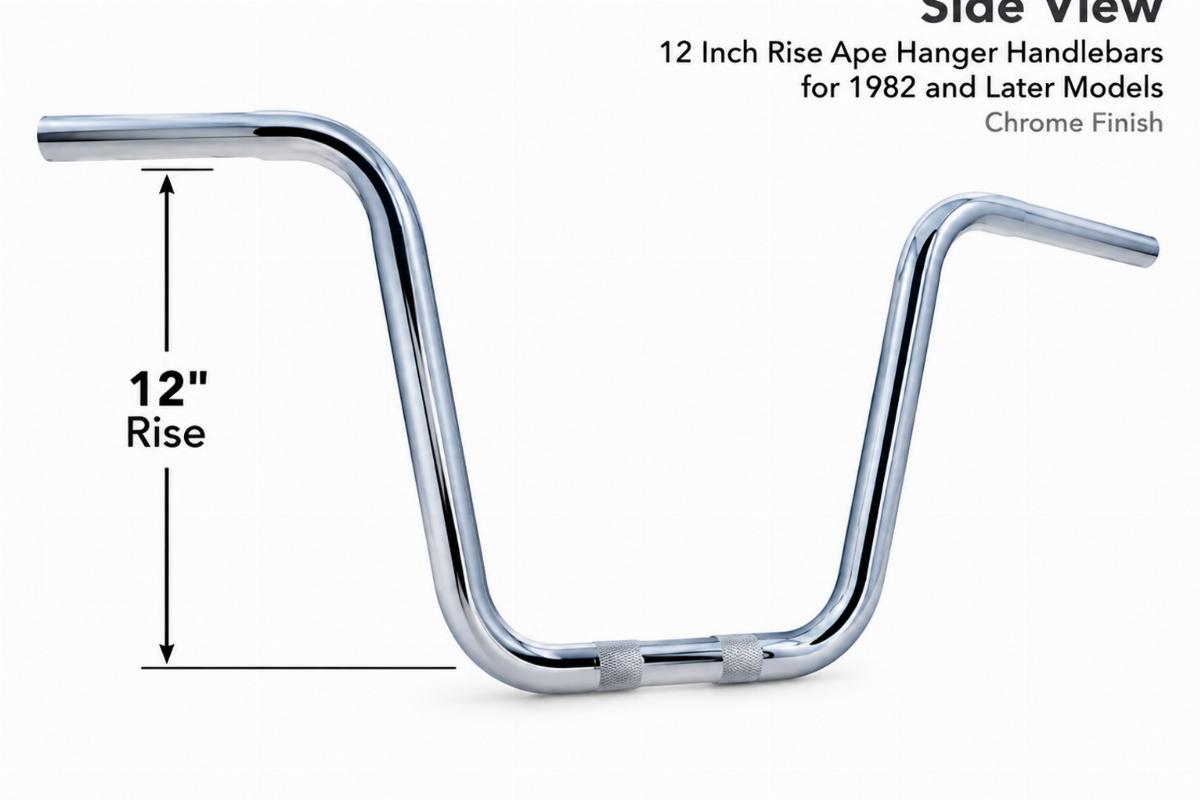

| Rise | 12″ |
| Pullback | 5″ |
| Finish | Available in chrome or black |
| Wiring | Drilled for internal wiring |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| 1982 and later models | 1982 and later | Including fly-by-wire systems |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Missing Riser Area and Wiring Details Cause Fitment Failures
Exact riser O.D. and drill points decide if the bars seat and route correctly.
Handlebar listings often omit the riser area outer diameter or the exact wiring drill points, leaving shops with bars that refuse to seat in standard risers or block throttle housing routing. I still remember a custom shop ordering these 12-inch ape hangers for a fly-by-wire Softail. They assumed the 1 1/2-inch diameter meant the whole clamp zone was 1 1/2-inch, but the riser area is strictly 1 1/4-inch. Their 1 1/2-inch risers would not seat. Worse, the internal wiring holes missed the fly-by-wire throttle housing routing, leaving the bike stranded [NEED_CITE: wiring drill point variations across fly-by-wire model years]. Now I always verify the riser O.D. and wiring drill points before shipping ape hanger handlebars for 1982 and later models.
Verifying Riser Clamp and Control Compatibility
Before ordering ape hanger handlebars for 1982 and later models, you must confirm the 1 1/4-inch riser area O.D. matches your specific riser clamp size. A mismatch here prevents the bars from seating properly in the triple tree. The 1 1/2-inch overall diameter affects how your controls and grips mount along the bar. Checking these dimensions against your existing setup prevents installation delays and ensures the controls align correctly with the bar geometry [NEED_CITE: control mounting dimensions for 1 1/2 inch handlebars].

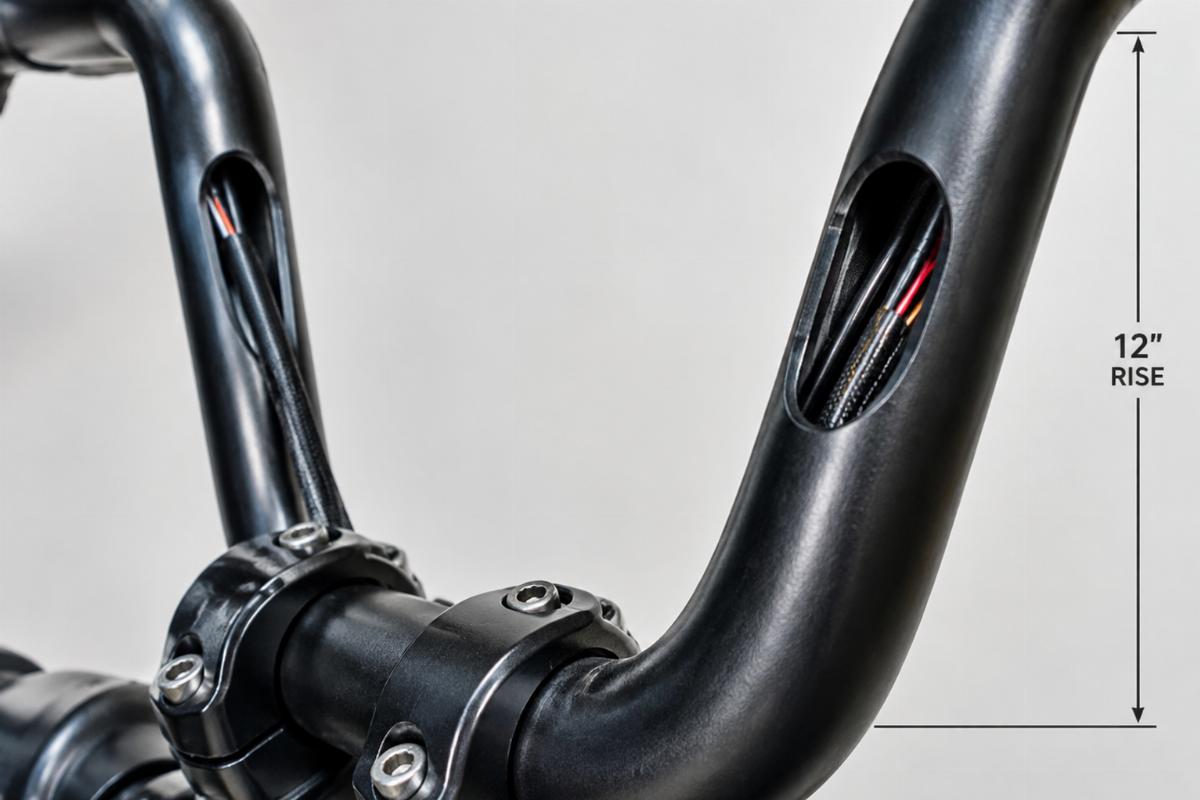

Routing Internal Wiring for Fly-by-Wire Systems
The internal wiring drill points on these bars are positioned to accommodate specific throttle and switch housings. When building a fly-by-wire setup, the routing path must clear the steering stem without pinching the harness. Verifying the drill hole placement against your specific handlebar control setup ensures the wires run cleanly inside the 1 1/2-inch tube. This prevents harness damage and keeps the front end looking clean without external zip-ties [NEED_CITE: internal wiring routing paths for fly-by-wire systems].
Understanding Rise and Pullback Dimensions
A 12-inch rise combined with a 5-inch pullback significantly alters the rider’s reach and stance. These dimensions dictate whether your stock clutch, brake, and throttle cables will reach, or if extended lines are required. Failing to account for the 12-inch rise often results in cables that are too short, stretching the housing and affecting lever feel. Always measure your current cable lengths against the new rise and pullback to confirm compatibility before final assembly.
The Hidden Cost of Incorrect Handlebar Dimensions
Ordering bars without confirming the riser area O.D. or wiring drill points leads to immediate work stoppage. If the 1 1/4-inch riser area is actually machined to a different tolerance, your risers will not clamp down, forcing you to return the part and wait for a replacement. If the wiring holes are drilled too high or too low, the fly-by-wire harness will not route, requiring you to drill new holes or run external wiring. These fitment errors waste shop hours, delay build schedules, and leave the motorcycle stranded on the lift until the correct ape hanger handlebars for 1982 and later models arrive.
Sourcing with Fitment Certainty
We confirm the 1 1/4-inch riser area O.D. and 12-inch rise against the 1982 and later platform family before quoting. Our catalogue offers these ape hanger handlebars for 1982 and later models in both chrome and black finishes to match your build theme. We cross-reference your requirements against platform dimensions, marked reference only, to ensure the 1 1/2-inch diameter and 5-inch pullback match your needs. You can order a single piece to check fitment and wiring alignment before committing to a bulk purchase for your shop or distribution line.
Documentation Provided with Your Shipment
- Fitment sheet stating applicable platforms and year ranges for 1982 and later models.
- Key dimensions including 12-inch rise, 5-inch pullback, and 1 1/4-inch riser area O.D.
- Finish specification detailing the chrome or black coating options.
- Quality inspection record verifying the internal wiring drill points.
- Packing photographs showing the bar finish and drill hole placement.
Checks to Perform Before Installation
- Verify the 1 1/4-inch riser area O.D. matches your riser clamp inner diameter.
- Confirm the 12-inch rise and 5-inch pullback suit your cable and wire lengths.
- Check that the internal wiring drill holes align with your fly-by-wire throttle housing.
- Inspect the chrome or black finish for any shipping damage before mounting.
- Ensure the 1 1/2-inch diameter accommodates your specific control housings and grips.
Request a Fitment Check
Send us your exact model and year to verify if these ape hanger handlebars for 1982 and later models fit your specific build. Provide your required finish, quantity, and whether you need a single sample to test the 1 1/4-inch riser area and wiring drill points. We will confirm the dimensions and return a fitment sheet before you place your order.
Frequently Asked Questions
Q: How do I confirm these 12-inch ape hangers fit my 1982 or later model?
A: Send us your exact model and year. We verify the 1 1/4-inch riser area O.D. and 12-inch rise against the platform family to ensure the bars seat correctly and the internal wiring drill points align with your specific fly-by-wire throttle housing routing requirements.
Q: What is the difference between the 1 1/2-inch diameter and 1 1/4-inch riser area?
A: The overall bar diameter is 1 1/2-inch where the grips and controls mount. The center clamp zone, or riser area, is strictly machined to a 1 1/4-inch O.D. to seat properly in standard riser clamps without slipping or requiring oversized adapters.
Q: Are these handlebars drilled for internal wiring on both sides?
A: Yes, the bars are drilled for internal wiring to route harnesses cleanly through the 1 1/2-inch tube. The drill points are positioned to accommodate fly-by-wire systems, but you must verify the exact hole placement against your specific switch and throttle housing setup.
Q: Can I order a single piece to check fitment before a bulk purchase?
A: Yes, we support a one-piece minimum order. You can purchase a single set in your preferred chrome or black finish to verify the 1 1/4-inch riser area, rise, pullback, and wiring drill points before committing to a larger bulk order for your shop.
Q: Do you have cross-reference sheets for handlebar part numbers?
A: We provide a cross-reference sheet with Harley-Davidson numbers marked reference only. This helps you match the 12-inch rise and 5-inch pullback to your existing catalogue requirements, ensuring the ape hanger handlebars for 1982 and later models meet your exact dimensional needs.
