Fitment Checked Custom Springer Fork Assembly 25″ Chrome
Front-End Depth Verified — Complete 25″ narrow spring fork assembly produced in-house with exact over-stock length and rocker symmetry checked before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Custom Springer Fork Assembly |
| Finish | Chrome |
| Overall Length | 25″ (2″ over stock length) |
| Rocker Axle Hole | 3/4″ |
| Leg Thread | 1/2″-20″ |
| Top Tree | Without ears |
| Rocker Configuration | Same on each side, not offset on right side |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Not stated in source | Not stated in source | Confirm with model and year |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Over-Stock Length Clarity for Custom Builds
Ride height and steering geometry shift when overall fork length is not explicitly stated.
When sourcing a narrow spring fork assembly for a custom build, buyers often face listings that mention “over stock” without providing the exact overall length. This missing dimension makes it nearly impossible to judge how the front end will alter the bike’s stance or handling characteristics before the order is placed. A 2″ increase changes the physical envelope significantly, affecting frame clearance and fork stop travel [NEED_CITE: frame geometry changes with fork length variations]. Without a confirmed 25″ measurement, a builder risks ordering a unit that either bottoms out prematurely or ruins the intended rake of the chassis.
Verifying Frame Neck and Top Tree Compatibility
Fitment certainty begins with matching the top tree to the frame’s steering stem requirements. This narrow spring fork assembly is supplied with a top tree without ears, meaning it is designed for specific triple tree setups or custom riser configurations that do not rely on ear-mounted stops. Before finalizing the order, verify the frame neck width and ensure the steering stem diameter aligns with the supplied tree. Overlooking this dimension often results in the assembly arriving perfectly finished but physically incompatible with the frame’s neck cup.
Riser Mounting and Leg Thread Confirmation
The legs of this custom springer are drilled and tapped 1/2″-20″ specifically to mount risers. This thread specification dictates which riser hardware can be directly bolted to the fork legs. If your custom build requires a different riser clamp style or a larger mounting hole, the 1/2″-20″ thread will not accommodate it without modification. Always confirm that your chosen risers match this exact thread pitch and diameter to ensure a direct bolt-on fitment for the handlebars [NEED_CITE: riser thread standards across custom front ends].
Interpreting the 25″ Overall Length and Axle Specs

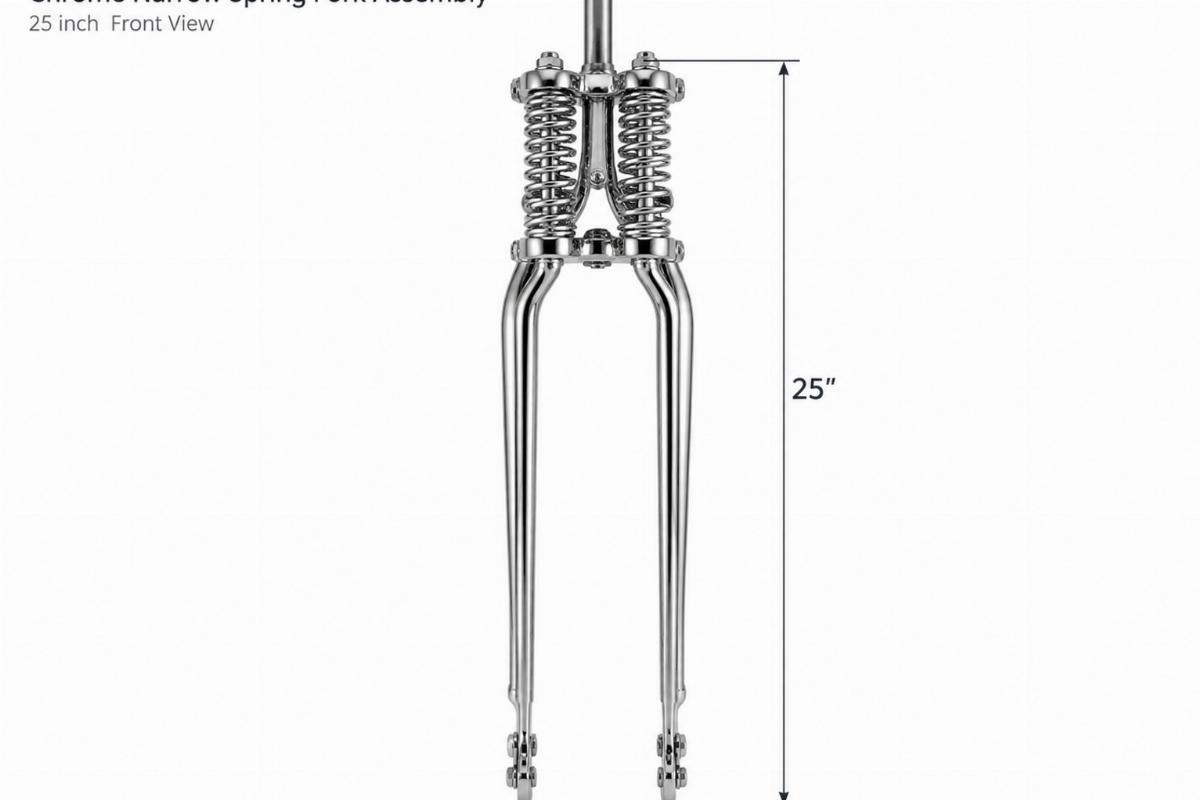

The 25″ overall length, which measures 2″ over stock, directly influences the visual proportion and physical travel of the front end. This specific length is engineered to provide a stretched look while maintaining a manageable ride height for street or show applications. The 3/4″ axle hole on the rockers is a critical hardware dimension; it dictates the exact wheel hub and axle spacer requirements needed to center the wheel between the legs. Using a 1/2″ or 7/8″ axle hardware setup will result in improper wheel alignment and unsafe mounting conditions.
The Hidden Cost of Ignoring Rocker Symmetry
I once shipped a springer front end for a Softail build without checking the rocker details. The customer couldn’t mount their hub because the 3/4″ axle hole alignment was off. I had ignored that the rockers are identical on each side with no right-side offset. We had to swap the whole assembly. When a narrow spring fork assembly features rockers that are not offset on the right side, installing them backwards or assuming a side-specific design will cause the wheel to sit off-center in the fork legs. This mistake halts the build on the lift and requires a full teardown to correct the alignment [NEED_CITE: rocker alignment issues in symmetric springer designs].
Sourcing from a Dedicated Front-End Specialist
We manufacture this complete 25″ unit in our own facility, ensuring the chrome finish and over-stock length are controlled from raw material to final assembly. Our catalogue maintains deep front-end coverage, meaning you can source the complete narrow spring fork assembly alongside early springer parts and hydraulic components under one account. We offer chrome and black finish options across our main lines, allowing you to match the front end to your build’s aesthetic consistently. Every order is checked against platform families and year ranges before quotation to guarantee fitment certainty. We support single-bike custom builds with a minimum order of just one piece, removing the barrier for independent shops.
Documentation and Fitment Records
- Fitment sheet stating applicable platforms and year ranges for this 25″ assembly.
- Cross-reference sheet with OEM numbers marked reference only for identification.
- Key dimensions including 25″ overall length and 3/4″ axle hole specifications.
- Chrome finish specification and quality inspection record for the batch.
- Warranty terms and packing photographs confirming the earless top tree and rockers.
Receiving and Pre-Installation Checks
- Verify the 25″ overall length and 2″ over-stock measurement against your frame clearance requirements.
- Check the 3/4″ axle hole on both rockers to confirm they are identical and not offset.
- Inspect the 1/2″-20″ threads on the legs to ensure they are clean and undamaged for riser mounting.
- Confirm the top tree arrives without ears to match your specific steering stem setup.
- Examine the chrome finish for consistency across the legs, rockers, and top tree before assembly.
- Store the assembly in a dry environment to prevent surface oxidation prior to installation.
Requesting a Fitment Check
Send your model and year for a fitment check to confirm this 25″ narrow spring fork assembly matches your specific frame geometry. Provide your old part photographs or key measurements if the exact model year is unknown, along with your required finish and quantity. Let us know if you need a sample supplied for fitment confirmation before placing a bulk order for your shop.
Frequently Asked Questions
Q: How does a 2″ over stock length affect rake and trail on my frame?
A: A 2″ over stock length changes the physical envelope of the front end, which directly alters the ride height and steering geometry. It will increase the visual stretch of the bike but may affect fork stop travel and frame clearance. You must check your specific frame geometry to understand the exact impact on rake and trail before ordering.
Q: What is the difference between narrow and wide glide springer assemblies?
A: The primary difference lies in the tube diameter, tree width, and slider spacing. A narrow spring fork assembly is designed for narrower frame necks and specific wheel hub spacings. Installing a wide glide unit on a narrow frame will result in physical interference, while a narrow unit on a wide frame will leave excessive gaps. Always verify your frame’s neck width.
Q: Are the rockers offset for the right side on this assembly?
A: No, the rockers on this narrow spring fork assembly are exactly the same on each side and are not offset on the right side. This symmetric design means there is no designated left or right rocker. However, you must ensure the 3/4″ axle holes align perfectly when mounting the wheel hub to maintain proper centering.
Q: Can I order a single springer fork assembly for a custom build?
A: Yes, we support independent repair shops and custom builders by offering a minimum order of one piece. You do not need to meet a high volume threshold to purchase this 25″ chrome assembly. This allows shops building a single custom bike to source a complete, fitment-checked front end without being blocked by bulk order requirements.
Q: How do I confirm if this 25″ fork fits my specific model year?
A: Since platform and year ranges can vary based on previous modifications, the best approach is to send us your model and year for a direct fitment check. If the bike has been altered, provide photographs of the current steering stem, frame neck, and axle spacing. We will verify the 25″ length and 3/4″ axle compatibility against your specific setup before quotation.
