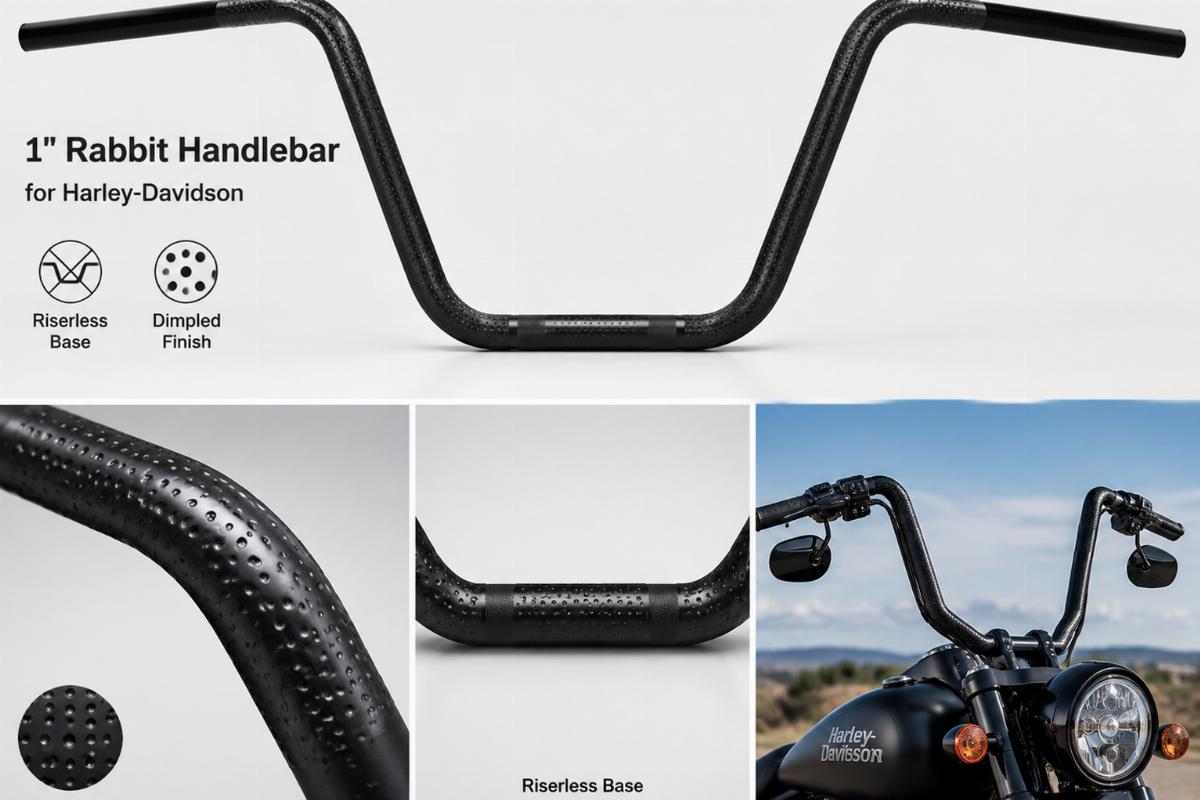

Fitment Checked 1″ Rabbit Handlebar for Harley-Davidson
One-Piece Minimum Order — Custom builders can order a single 1″ rabbit handlebar for Harley-Davidson projects without meeting bulk thresholds, while fitment is verified against your specific triple tree spacing before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebar |
| Diameter | 1″ |
| Height | 10″ |
| Pullback | 10″ |
| Overall Width | 18″ |
| On-Centers | 3.5″ |
| Wall Thickness | .109″ |
| Material | Premium steel tubing |
| Thread | 1/2″-13 (internally threaded uprights) |
| Design | Riserless, TIG welded by hand, CNC-mandrel bent |
| Finish / Dimpling | Choice of finish and dimpling options |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson (stock or aftermarket triple trees) | Confirm with model and year | Verify 3.5″ on-center spacing matches your specific triple tree width. |
| Custom chopper applications | Confirm with model and year | Riserless design requires direct triple tree mounting; check cable and brake line lengths for 10″ pullback. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Verifying Triple Tree Spacing for Riserless Mounting
A 3.5″ on-center spacing dictates whether the 1/2″-13 mounting holes align with your triple tree.
Handlebar listings often omit critical dimensions like on-center spacing and pullback, leading to severe fitment issues and cable mismatches. I once worked with a builder who ordered these riserless bars assuming the spacing would match his setup. When the bars arrived, the internally threaded uprights completely missed the holes on his specific aftermarket triple tree, forcing him to drill new holes just to make it work [NEED_CITE: triple tree width variations across aftermarket manufacturers]. That experience reinforced the need to double-check exact triple tree dimensions before shipping out any riserless configuration.
Checking On-Center Alignment Before Fabrication
When selecting a 1″ rabbit handlebar for Harley-Davidson applications, the 3.5″ on-center measurement is the primary factor for direct triple tree mounting. Unlike riser-clamp setups, a riserless design leaves no room for adjustment. If the internal threads do not align perfectly with your triple tree, the handlebar cannot be secured safely without modifying the tree. Always measure the distance between the mounting holes on your specific stock or aftermarket triple tree to confirm compatibility.
Assessing Cable and Brake Line Lengths
The 10″ height and 10″ pullback of this handlebar significantly alter the routing path for your controls. While this geometry is designed to often make use of stock cables and brake lines on most Harley models, variations in frame geometry and triple tree offset can change the required lengths [NEED_CITE: cable length requirements for different pullback measurements]. Before finalizing your order, route a tape measure from the control housings to the mounting points to ensure your existing lines will reach without stretching or kinking.
Understanding Wall Thickness and Construction

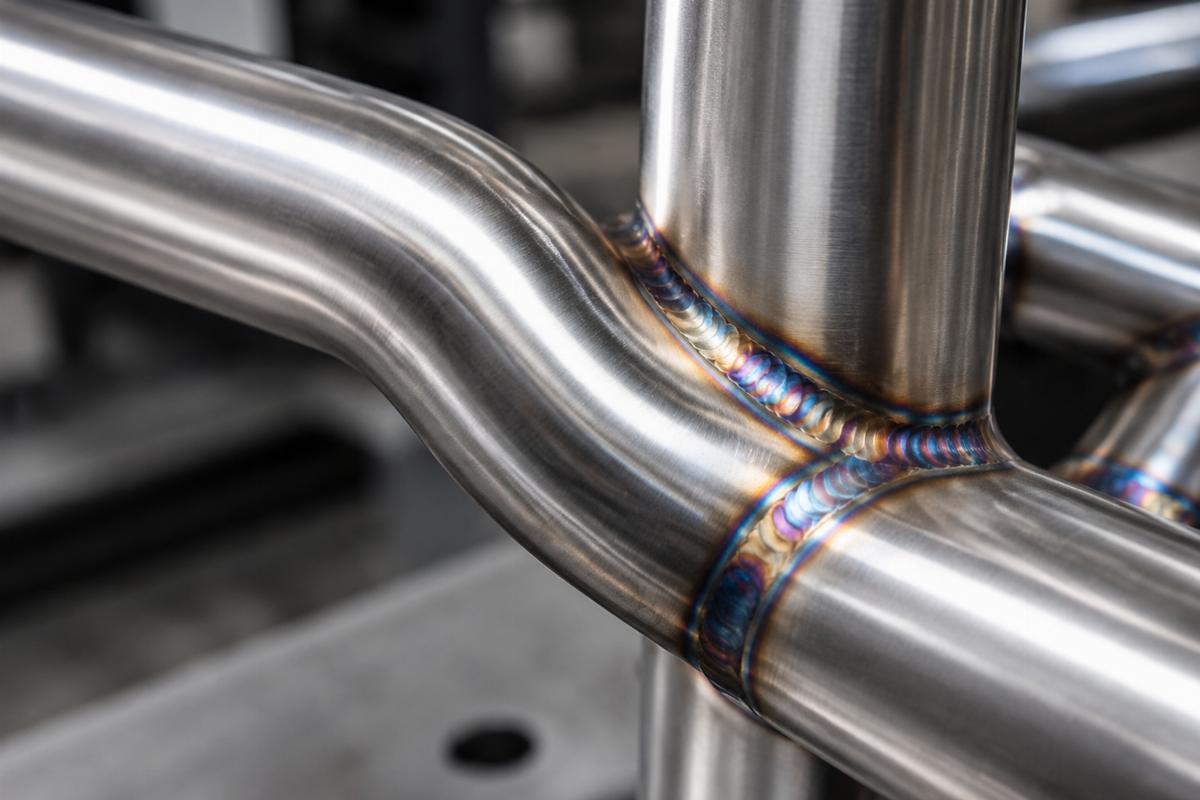

Constructed from .109″ wall premium steel tubing, this handlebar balances weight with structural integrity for street and custom applications. The tubing is CNC-mandrel bent to prevent kinking at the curves, and the uprights are TIG welded by hand to the cross-section. This manufacturing process ensures a clean, continuous weld at the joint, which is critical for handling the leverage forces applied to a 1″ diameter riserless bar during steering inputs.
The Hidden Cost of Unchecked Dimensions
Ordering a handlebar without verifying the on-center spacing or thread size often results in the bike sitting on the shop floor. If the 1/2″-13 internal threads do not match your mounting bolts, or if the 3.5″ spacing is off by even a fraction of an inch, the part becomes unusable without extensive fabrication. Relying on copied fitment charts that fail to account for specific aftermarket triple tree variations only passes the error down the supply chain, resulting in delayed builds and wasted freight costs [NEED_CITE: fitment errors caused by unverified aftermarket triple tree dimensions].
Sourcing from a Fitment-Focused Catalogue
We verify fitment against the platform family and triple tree type before providing a quotation for your build. Our catalogue offers this 1″ rabbit handlebar for Harley-Davidson in a choice of finishes and dimpling options, ensuring batch consistency for your custom shop. You can order a single piece to confirm the fitment on your specific triple tree before committing to a larger batch for multiple builds. We also cross-reference against Harley-Davidson OEM numbers, marked reference only, to help identify superseded parts from older manuals.
Documentation Provided
- Fitment sheet stating applicable platforms and triple tree requirements
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions including on-center spacing, pullback, and thread size
- Finish specification and dimpling options for batch consistency
- Quality inspection record covering weld and bend checks
Receiving and Pre-Installation Checks
- Verify the 3.5″ on-center spacing matches your triple tree before removing old bars.
- Check the 1/2″-13 internal threads on the uprights for debris or damage.
- Confirm the 10″ pullback and 18″ width against your stock cable lengths.
- Inspect the TIG welded joints and CNC-mandrel bends for shipping damage.
- Store the handlebar in a dry environment to protect the chosen finish.
Requesting a Fitment Check
Send your specific Harley-Davidson model year, triple tree type, and a photo of your current mounting setup to confirm the 3.5″ on-center spacing. Let us know your required finish, dimpling preference, and whether you need a single piece for a custom build. We will verify the fitment and provide a quotation based on your exact dimensions.
Frequently Asked Questions
Q: How do I confirm my triple tree will fit the 3.5″ on-center spacing?
A: Measure the exact distance between the center of the two mounting holes on your stock or aftermarket triple tree. The 1″ rabbit handlebar for Harley-Davidson requires a precise 3.5″ match for the riserless design to mount directly without drilling new holes.
Q: Will my stock cables and brake lines work with this 10″ pullback?
A: This handlebar is designed to often use stock cables and brake lines on most Harley models. However, you must measure the routing path from your controls to the mounting points, as specific frame geometries or triple tree offsets can alter the required line lengths.
Q: What does the 1/2″-13 internally threaded upright mean for installation?
A: The uprights feature internal threads sized at 1/2″-13 to accept standard mounting bolts directly into the bar. This riserless design eliminates the need for separate clamp risers, requiring your triple tree to have matching threaded holes or through-holes with nuts.
Q: Can I order a single handlebar for a custom chopper build?
A: Yes, we support a minimum order from one piece. This allows custom builders and repair shops to order a single 1″ rabbit handlebar for Harley-Davidson projects to test fitment on a specific triple tree before placing larger orders.
