Aftermarket Replacement 1″ Slant Z Handlebar for Harley
Single Piece Order — Dispatching one 1″ Slant Z handlebar for a custom build without forcing bulk minimums, verified for your specific riser and control housing requirements.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebar |
| Diameter | 1″ |
| Rise | 6″ |
| Width | 24″ |
| Wall Thickness | .109″ |
| Material | premium steel tubing |
| Welding | TIG welded by hand |
| Design | uprights angle inward |
| Finish | choice of finish |
| Dimpling | choice of dimpling |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley models | Confirm with model and year | Allows use of stock cables and brake lines on most models |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Handlebar Listings Miss Critical Dimpling Details
Missing dimpling specifications cause stock switch housings to slip on a 1″ bar.
When sourcing a handlebar for harley, buyers often see listings that omit whether the control area is dimpled or drilled for wiring. I once shipped a 1″ Slant Z to a customer building a Harley without confirming if they needed dimpling on the control area. We sent a smooth tube, and the stock switch housings couldn’t grip the bar, slipping right off during assembly. That mistake taught me to always verify dimpling and wiring-hole details before dispatching any 1″ bars. [NEED_CITE: control housing clamping requirements for 1″ diameter bars]
Verifying Control Housing Grip on a 1″ Diameter

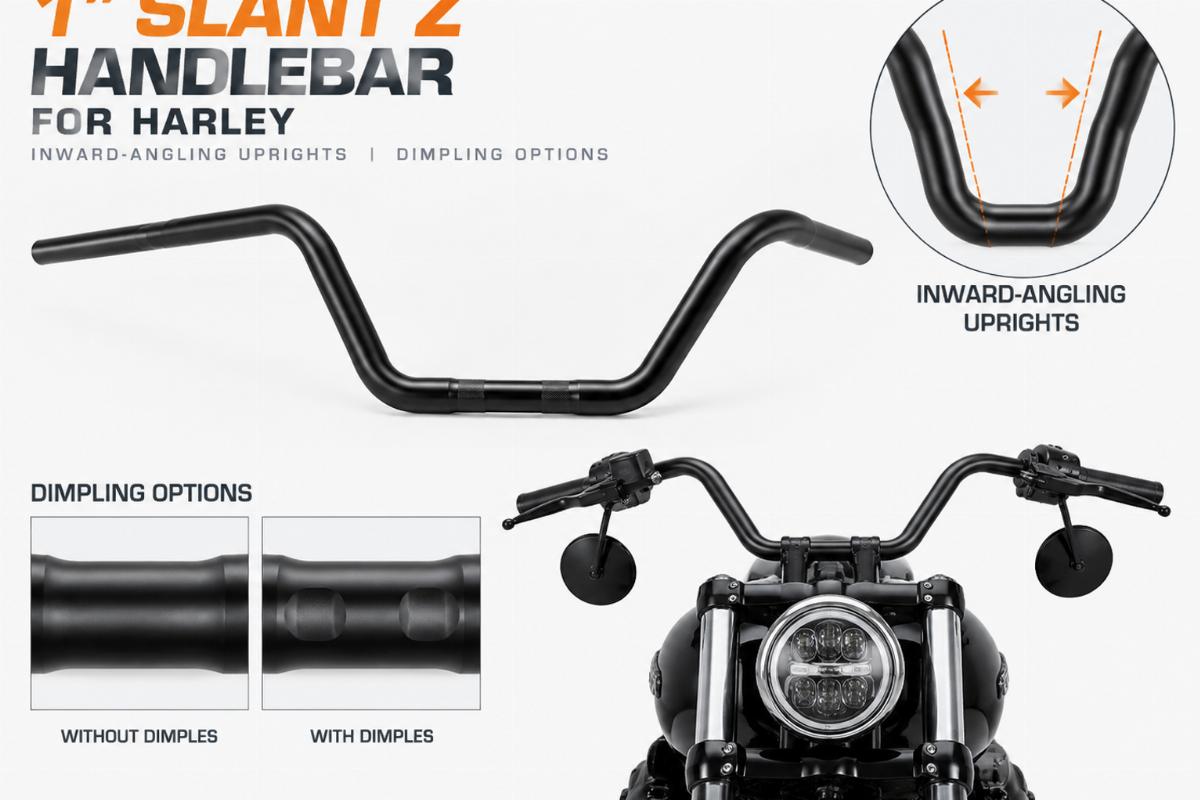

When selecting this handlebar for harley, the 1″ diameter must perfectly match your riser clamps and switch housings. The inward-angling uprights of the Slant Z design change the pullback feel, meaning the control area sits differently than a standard drag bar. If the dimpling is missing or placed incorrectly, the housing rotates under throttle load. [NEED_CITE: switch housing clamp pressure specifications]
Checking Rise and Width for Frame Geometry
A 6″ rise combined with a 24″ width alters your riding position and cable routing. While this handlebar for harley allows the use of stock cables and brake lines on most models, the exact geometry depends on your specific frame and tank clearance. Measuring your current setup ensures the 6″ rise doesn’t cause the bars to hit the tank at full lock.
Interpreting Wall Thickness and Welding Quality

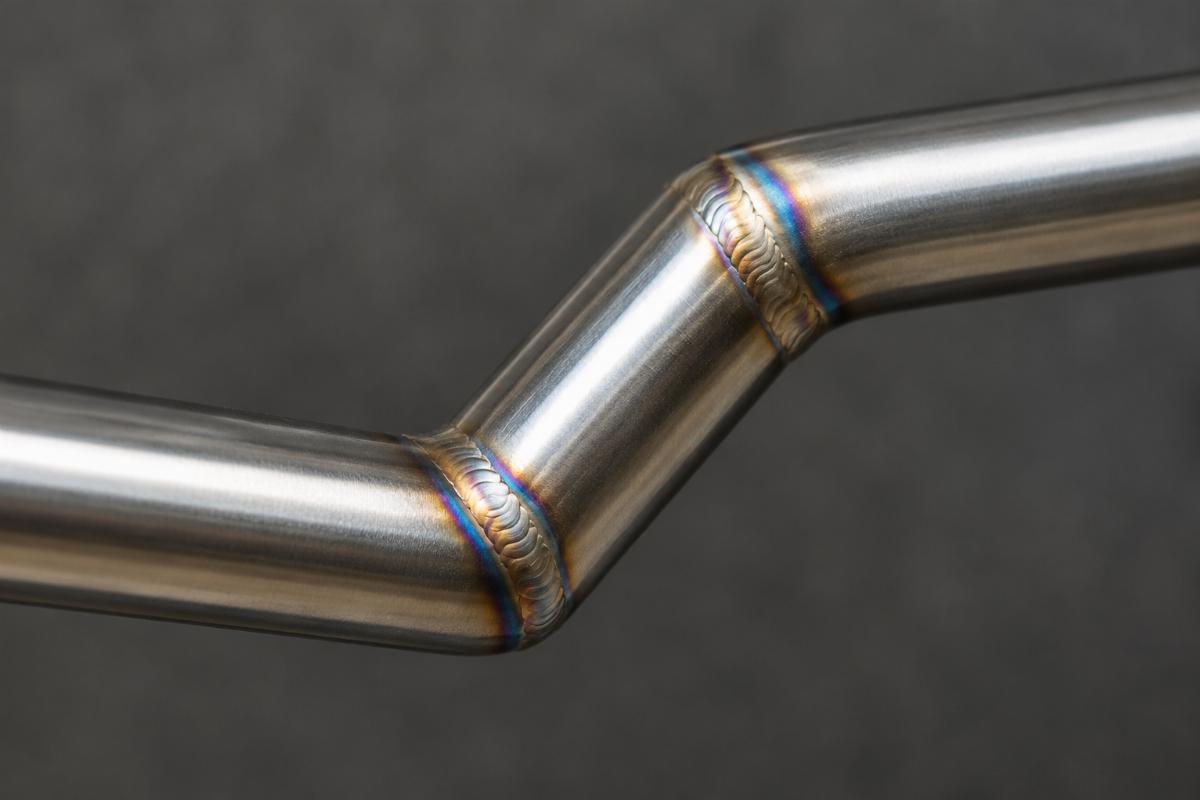

The .109″ wall thickness on the premium steel tubing provides the necessary rigidity for the 24″ span without adding excessive weight. Because the uprights angle inward, the miter cuts where the tubing meets the center section are critical. TIG welded by hand, these joints must be flawless to prevent stress fractures where the vertical and horizontal tubes intersect. [NEED_CITE: tubing wall thickness standards for 1″ handlebars]
The Hidden Cost of Unspecified Dimpling
Sending a smooth 1″ bar to a shop expecting dimples means the bike stays on the lift while they wait for a replacement. If the finish batch varies between the riser area and the center section, the visual inconsistency is obvious once assembled. Copying fitment tables from older manuals without checking year-specific control changes leads to parts that physically mount but fail to secure the switches.
Sourcing Fitment-Checked Controls Here
We confirm the 1″ diameter and 6″ rise against your stated platform before quoting. You can choose the exact finish and dimpling option your build requires, rather than accepting a random warehouse pull. Cross-referencing against old part numbers is handled on our end, marked reference only. We support single piece orders for custom builders working on one bike at a time.
Documentation Provided
- Fitment sheet stating applicable platforms and year ranges for this handlebar
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions including 1″ diameter, 6″ rise, and 24″ width
- Finish specification and dimpling options clarified for batch consistency
- Quality inspection record covering TIG welds and tubing walls
Receiving and Pre-Installation Checks
- Verify the 1″ diameter matches your riser and switch housing specifications
- Confirm the chosen dimpling option aligns with your stock control mounts
- Inspect the TIG welded miter cuts for flawless penetration and no porosity
- Check the .109″ wall thickness and 6″ rise against your build measurements
- Ensure the finish is consistent across the uprights and center section
- Store the handlebar in a dry environment to prevent surface oxidation
Requesting a Fitment Check
Send your model and year for a fitment check before ordering. Provide your old part number, a photograph of your current controls, or the exact dimpling requirement you need. Let us know your preferred finish and if you require a sample for fitment confirmation before committing to a larger batch.
Frequently Asked Questions
Q: How do I confirm my Harley model and year will fit this 1″ Slant Z handlebar?
A: Send us your exact model designation and year range. We verify the 1″ diameter and 6″ rise against your platform to ensure the riser clamps and cable routing align. We also check if your specific year requires dimpled or drilled controls for the switch housings.
Q: What key dimensions should I measure to ensure the 6″ rise and 24″ width match my build?
A: Measure the distance from the riser clamp center to the top of your current bar to verify the 6″ rise. Check the overall width from grip to grip to confirm the 24″ span clears your tank and mirrors. Ensure your risers are specifically sized for a 1″ diameter mounting point.
Q: Does this handlebar include dimpling, and how do I specify my requirement?
A: Dimpling is offered as a choice of dimpling based on your control housings. Specify whether you need standard factory-style dimples for stock switches, no dimpling for aftermarket controls, or specific drill holes for internal wiring before we finalize your quotation.
Q: Can I order a single piece for a custom build instead of a bulk quantity?
A: Yes, we support a single piece minimum order for custom builders and repair shops. You can order exactly one 1″ Slant Z handlebar with your specified finish and dimpling requirements without being forced into bulk purchasing tiers.
Q: How do you ensure finish consistency between chrome and black batches?
A: We clarify your finish specification before production and provide a quality inspection record with your shipment. This ensures the surface treatment on the uprights matches the center section, preventing visible differences once the handlebar is fully assembled and mounted.
