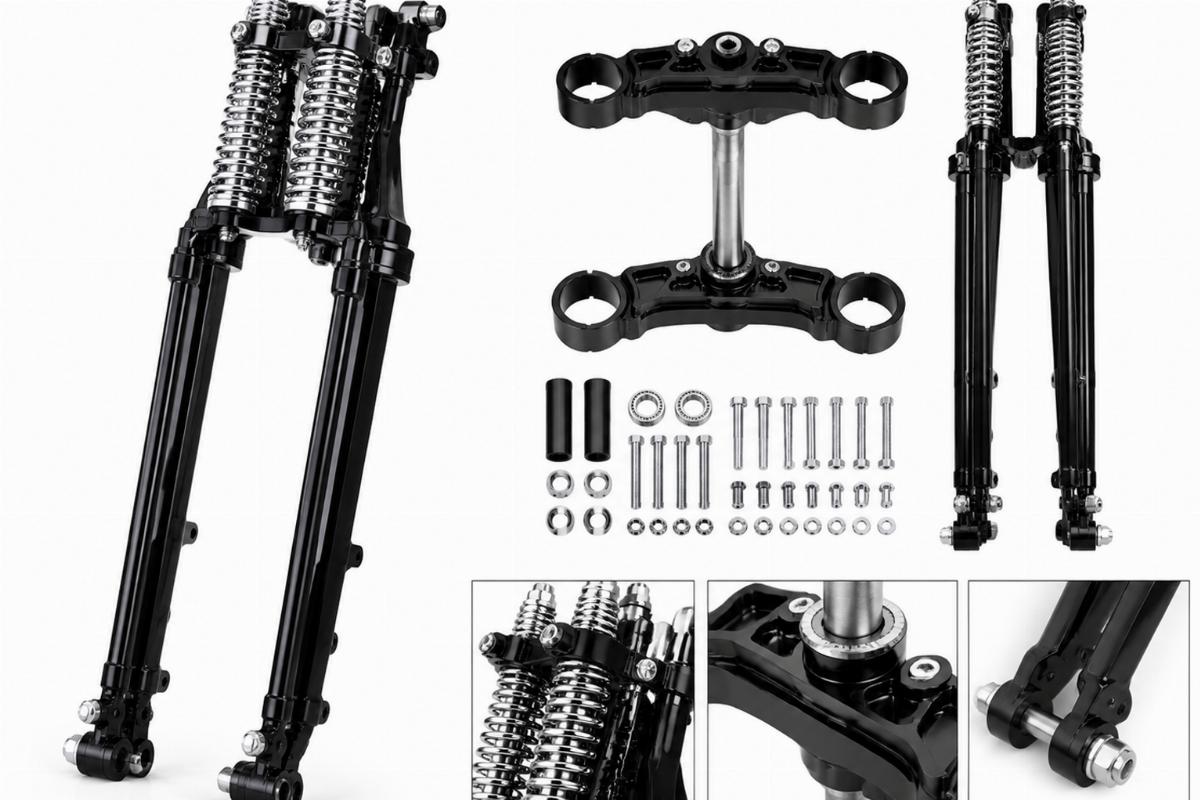

Black Springer Fork Kit 18 Inch – Fits Custom V-Twin Softail
Complete front-end depth — We produce this 18 inch springer fork kit in-house to ensure exact stem and axle dimensions match your custom frame specs before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Kit |
| Finish | Black (fork legs/body) with chrome springs |
| Top Triple Tree Finish | Machined chrome design without ears |
| Fork Stem Diameter | 1″ |
| Axle Assembly Diameter | 3/4″ |
| Fork Leg Thread | 1/2″ x 20 |
| Rocker Design | Non-offset right rocker |
| Bearing Kit | 1″ taper bearing kit (available separately) |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom V-Twin / Softail | Confirm with model and year | Use spacers for axle as required to center wheel |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Clarifying Geometry and Thread Specs for Your 18 Inch Springer Fork Kit
Exact thread and axle dimensions prevent steering geometry failures.
I still remember a buyer who ordered an 18-inch spring fork kit for a Springer Softail build and only checked the look, ignoring the 1/2″ x 20 leg threads and 3/4″ axle assembly spacing. When the kit arrived, the wheel would not center without spacers, and the steering geometry was ruined because the overall length and rake did not match the frame. Now, I always verify the 1″ fork stem and rocker offsets against the exact frame specs before any sample goes out [NEED_CITE: frame neck dimension variations across custom Softail builds].
Verifying Stem and Axle Clearances
When evaluating an 18 inch springer fork kit, the 1″ fork stem diameter must align perfectly with your frame’s steering neck cups to avoid binding. The 3/4″ axle assembly spacing dictates whether your front wheel will sit centered between the fork legs. Failing to cross-check these two measurements against your specific triple tree width often results in a front end that cannot be safely assembled.

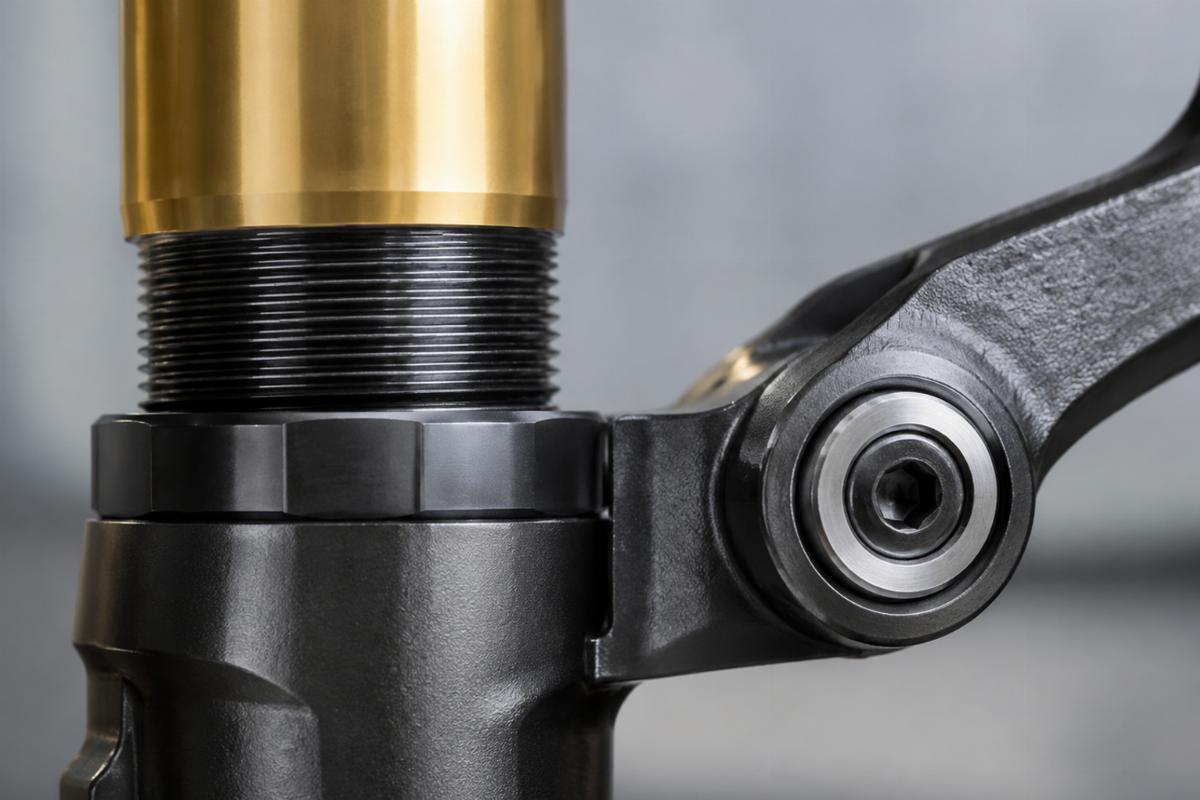

Matching Fork Leg Threads to Brake Hardware
The 1/2″ x 20 fork leg thread specification is critical for mounting your brake caliper and axle hardware. If your existing brake mounts or axle spacers use a different thread pitch, the caliper will not align with the rotor. We provide a fitment sheet detailing these thread specs so your shop can confirm brake compatibility before the 18 inch springer fork kit leaves our facility [NEED_CITE: brake mount thread pitch variations in custom front ends].
Interpreting Rocker Offsets and Triple Tree Designs
This kit features a non-offset right rocker, which maintains the original equipment shape and keeps the wheel centered when paired with the correct axle spacers. The top triple tree uses a machined chrome design without ears, requiring post risers with a stud that mounts directly to the top of the rear fork legs. Understanding how the rocker offset interacts with your specific axle width is essential for achieving the correct track width.
The Hidden Cost of Unverified Front-End Dimensions
Ordering a front end without confirming the 1″ stem and 3/4″ axle dimensions usually means the bike sits unfinished on the lift while the shop waits for replacement spacers or a different kit. Steering geometry changes drastically when the overall fork length and rake do not match the frame’s intended design, leading to heavy steering and poor handling. A missing 1″ taper bearing kit or incorrect thread pitch forces a complete teardown of the front end, wasting labor hours and delaying the build [NEED_CITE: labor impact of front-end disassembly due to fitment errors].
Sourcing Directly from the Front-End Facility
We manufacture this 18 inch springer fork kit in our own facility, ensuring the black finish and chrome springs meet consistent quality standards. Our front-end depth allows us to supply complete assemblies and verify the 1/2″ x 20 thread specs against your platform before quotation. We support a one-piece minimum order, making it easy for custom builders to request a sample for trial fitting. Every kit is cross-referenced against OEM numbers for identification, marked reference only, to guarantee you receive the exact dimensions your build requires.
Documentation Included with Your Shipment
- Fitment sheet stating applicable platforms and year ranges
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions including fork length over stock and thread specs
- Finish specification for black legs and chrome springs
- Quality inspection record verifying stem and axle diameters
Pre-Installation Checks for Your Kit
- Verify the 1″ fork stem slides smoothly into your frame neck cups
- Confirm the 3/4″ axle assembly spacing matches your wheel hub width
- Check that the 1/2″ x 20 fork leg threads engage your brake mounts cleanly
- Inspect the black finish and chrome springs for any transit damage
- Ensure the 1″ taper bearing kit is ordered separately if not already on hand
- Have a qualified technician inspect all steering head components before assembly
Requesting a Fitment Check for Your Build
Send your model and year, along with a photograph or measurements of your current steering neck and axle spacing, so we can verify compatibility. Let us know if you need the 1″ taper bearing kit included or if you require a single sample kit for trial fitting before a bulk order. We will reply with a fitment sheet and quotation tailored to your custom V-twin project.
Frequently Asked Questions
Q: How do I confirm my custom frame fits this 18 inch springer fork kit?
A: Measure your frame’s steering neck to ensure it accepts a 1″ fork stem, and check the wheel hub width to confirm it matches the 3/4″ axle assembly spacing. We provide a fitment sheet detailing these dimensions before dispatch, but sending us your frame specs or a photo allows us to verify compatibility against your specific build requirements.
Q: Does this kit include the 1″ taper bearing kit?
A: The 1″ taper bearing kit is available separately and is not included in the standard 18 inch springer fork kit package. If your steering neck requires new bearings, you must add them to your inquiry so we can include them in your quotation and shipment. This ensures you receive the exact bearing type needed for your specific frame year.
Q: How do I center the wheel with the non-offset right rocker?
A: The non-offset right rocker maintains the original equipment shape, meaning you must use axle spacers to center the wheel between the fork legs. Measure the distance from the hub to each fork leg and install the appropriate spacers on the axle assembly. This adjustment is critical for maintaining correct steering geometry and ensuring the front brake aligns properly.
Q: Can I order a single sample kit for fitment confirmation?
A: Yes, we support a one-piece minimum order for custom builders and shops. Ordering a single sample allows you to physically test the 1″ stem, 3/4″ axle, and 1/2″ x 20 threads on your frame before committing to a bulk purchase. We will provide a fitment sheet and cross-reference details with the sample to ensure it matches your project requirements.
