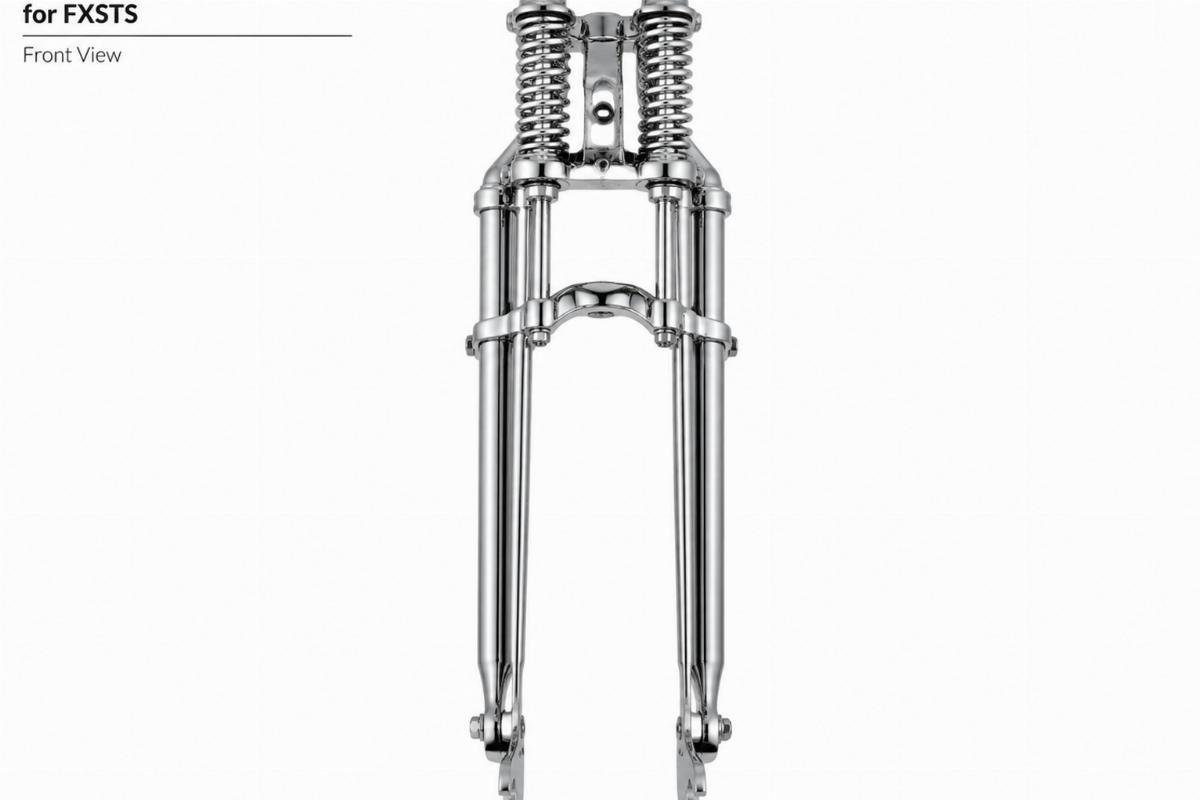

Chrome Inline Spring Fork Assembly 21″ – Fits FXSTS Springer Softail
Single-Piece Fitment Verification — We supply this inline spring fork assembly for FXSTS with a one-piece minimum order, allowing shops to confirm exact 27-inch rocker stud measurements before committing to bulk builds.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Inline Spring Fork Assembly |
| Finish | All chrome |
| Length | Stock length |
| Wheel Compatibility | 21″ |
| Rocker Stud to Top Tree Bottom | 27″ |
| Axle to Top Tree Bottom | 30″ |
| Kit Contents | Shocks, axle riser, top tree, brake arm, rockers and bearings (all assembled) |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| FXSTS Springer Softail | Confirm with model and year | For use with 21″ wheel assemblies |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Judging Steering Geometry Without Clear Length Statements
This inline spring fork assembly for FXSTS provides exact 27-inch and 30-inch measurements to verify frame geometry before installation.
Springer forks offered without clear overall length statements make it impossible to judge ride height or steering geometry. I still remember an FXSTS springer fork order where the buyer only gave the model name. We sent a stock-length assembly, but they were running a custom 21-inch wheel setup. The 27-inch distance from the rocker stud to the bottom of the top tree threw off their entire steering geometry and rake. The bike looked right in the photos, but the handling was completely ruined on the road [NEED_CITE: factory service manual specifications by model year]. That mistake pushed me to physically map every dimension and verify fitment before shipping.
Verifying Platform Compatibility for FXSTS Models
Confirming the exact platform is the first step when ordering an inline spring fork assembly for FXSTS. The FXSTS Springer Softail requires specific clearances that differ from other Softail variants. We check the frame compatibility specifically for FXSTS Springer Softail models to ensure the stock length design maintains the original ride height. This prevents the steering geometry issues that occur when a fork is too long or too short for the specific frame neck.
Confirming Wheel Setup and Clearance Dimensions
This assembly is designed specifically for 21-inch wheel assemblies. You must confirm your wheel setup matches this requirement before installation. Check frame clearance against the 27-inch rocker stud to top tree and 30-inch axle to top tree dimensions. These specific measurements dictate how the front end sits in the frame and how the wheel aligns with the fender and brake components [NEED_CITE: frame clearance dimensions for 21-inch wheel setups].
Understanding Key Fork Dimensions and Assembly Contents

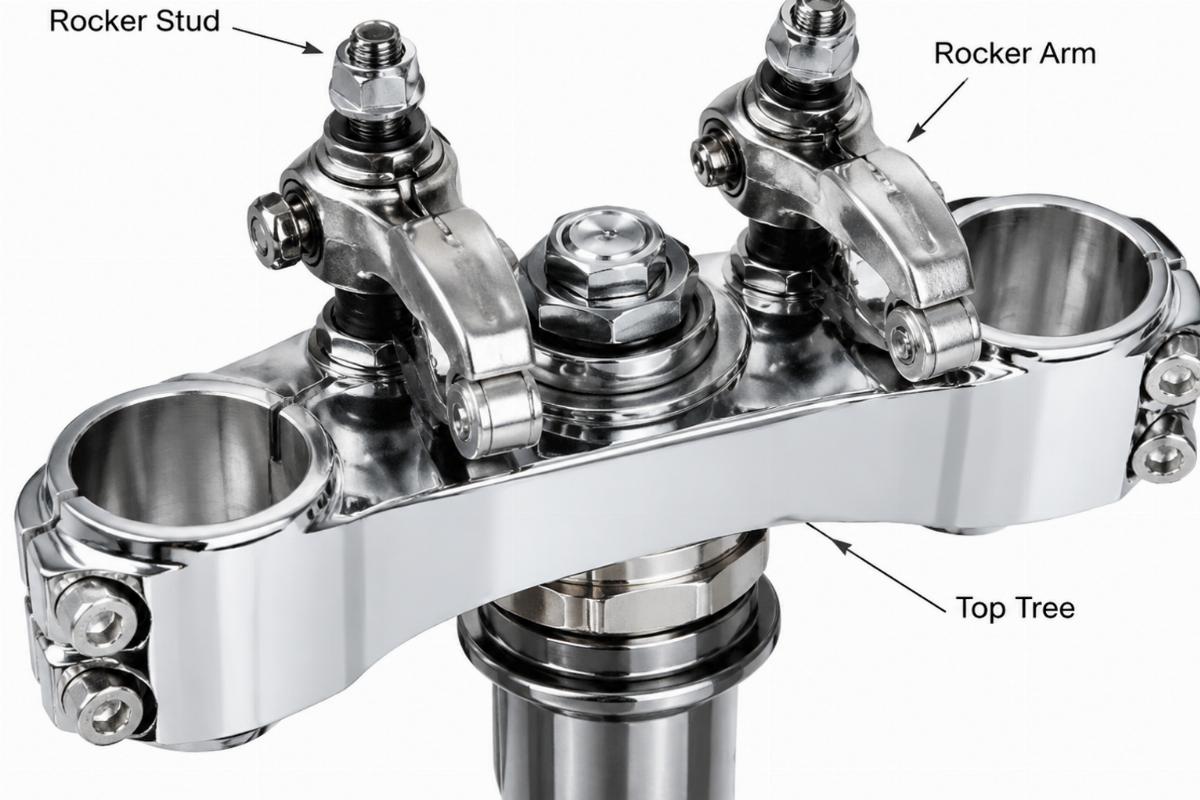

The 27-inch distance from the rocker stud to the bottom of the top tree determines the steering head angle and trail. The 30-inch axle to top tree bottom measurement ensures the wheel sits at the correct height within the frame. This pre-assembled kit includes shocks, axle riser, top tree, brake arm, rockers, and bearings. Having all these components assembled and verified together eliminates the guesswork of sourcing individual parts that might not align correctly.
The Hidden Cost of Incorrect Front End Fitment
When a fork assembly arrives with the wrong dimensions, the bike often cannot be ridden safely. A mismatch in the rocker stud distance alters the rake, making the steering sluggish or dangerously twitchy. If the axle height is incorrect, the front fender will not clear the tire, requiring custom fabrication to fix. Shops end up with a bike stuck on the lift while waiting for a replacement, losing days of labor and delaying the customer delivery [NEED_CITE: labor costs associated with front end rework].
Why Source This Assembly From Our Catalogue
We produce our own front-end depth, offering complete springer assemblies and multiple over-stock lengths in one catalogue. This inline spring fork assembly for FXSTS is available with an all-chrome finish applied across the entire unit. We provide a fitment sheet stating applicable platforms and year ranges before quotation. You can order a single sample piece for fitment confirmation before placing bulk orders, ensuring the 27-inch and 30-inch dimensions match your specific build.
Documentation Provided With Your Order
- Fitment sheet listing the FXSTS Springer Softail platform and applicable year ranges
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions documenting the 27-inch rocker stud and 30-inch axle measurements
- Finish specification confirming the all-chrome application
- Quality inspection record for the pre-assembled shocks, top tree, and hardware
Checks Before Receiving and Installing
- Verify the kit contents include shocks, axle riser, top tree, brake arm, rockers, and bearings upon arrival.
- Confirm the 21-inch wheel compatibility matches your specific front wheel setup.
- Measure the 27-inch rocker stud to top tree bottom distance against your frame specifications.
- Inspect the all-chrome finish for consistency across the assembled components before mounting.
- Have a qualified technician verify the frame clearance against the 30-inch axle measurement.
Requesting a Fitment Check and Quote
Send your FXSTS model code and year to verify this stock length fork assembly fits your specific frame. Provide your current rocker stud to top tree measurements if you are modifying an existing setup. Let us know if you need a single sample piece to confirm the 21-inch wheel compatibility before ordering multiple units for your shop.
Frequently Asked Questions
Q: How do I confirm my FXSTS model year is compatible with this stock length fork assembly?
A: Send your specific FXSTS model code and year for a fitment check. We verify the 27-inch rocker stud to top tree bottom distance against your frame specifications to ensure the stock length design maintains the correct ride height and steering geometry for your specific build.
Q: What exact measurements are provided to verify frame geometry and ride height?
A: This assembly provides a 27-inch measurement from the rocker stud to the bottom of the top tree, and a 30-inch measurement from the axle to the bottom of the top tree. These dimensions are critical for determining the steering head angle, trail, and overall front end positioning within the frame.
Q: Which specific components are included in the pre-assembled kit?
A: The kit includes shocks, axle riser, top tree, brake arm, rockers, and bearings. All components are pre-assembled and verified together to ensure proper alignment and fitment, eliminating the need to source individual parts that might not match the assembly dimensions.
Q: Can I order a single sample piece to verify fitment before bulk purchasing?
A: Yes, we offer a one-piece minimum order. You can order a single sample to confirm the 21-inch wheel compatibility and verify the 27-inch and 30-inch dimensions against your frame before committing to a larger bulk order for your shop or custom builds.
Q: Is this assembly compatible with wheel sizes other than 21″?
A: This inline spring fork assembly for FXSTS is specifically designed and confirmed for use with 21-inch wheel assemblies. If your build requires a different wheel size, the axle height and fender clearance will be affected, and you should request a fitment check for an alternative over-stock length option.
