Aftermarket Replacement 1″ Narrow Apes Handlebar for Harley-Davidson
Single Piece Fitment Checked — We verify bar bottom width against triple tree spacing for Narrow Glide setups before dispatching your 1″ narrow apes handlebar for Harley-Davidson.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebar |
| Diameter | 1″ |
| Wall Thickness | .109″ |
| Material | Premium steel tubing |
| Riser Clamp Area | Knurled, 3.5″ on-centers |
| Wiring Preparation | Dimpled and drilled for internal wiring |
| Finish | Choice of finish available |
| Rise | Choice of rise available |
| Dimpling | Choice of dimpling available |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson | Confirm with model and year | Fits most models; bottom width specifically sized for Narrow Glide front ends. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Missing Width Details Ruin Narrow Glide Builds
Bar bottom width must not exceed triple tree spacing.
Many listings omit the bottom width, causing the bar to overhang the triple tree on Narrow Glide front ends. This ruins steering geometry and ruins the visual stance of the build. When sourcing a 1″ narrow apes handlebar for Harley-Davidson, verifying this specific dimension is critical to avoid returning parts that simply do not clear the forks. [NEED_CITE: triple tree width specifications for Narrow Glide front ends]
Verifying Riser Clamp Compatibility

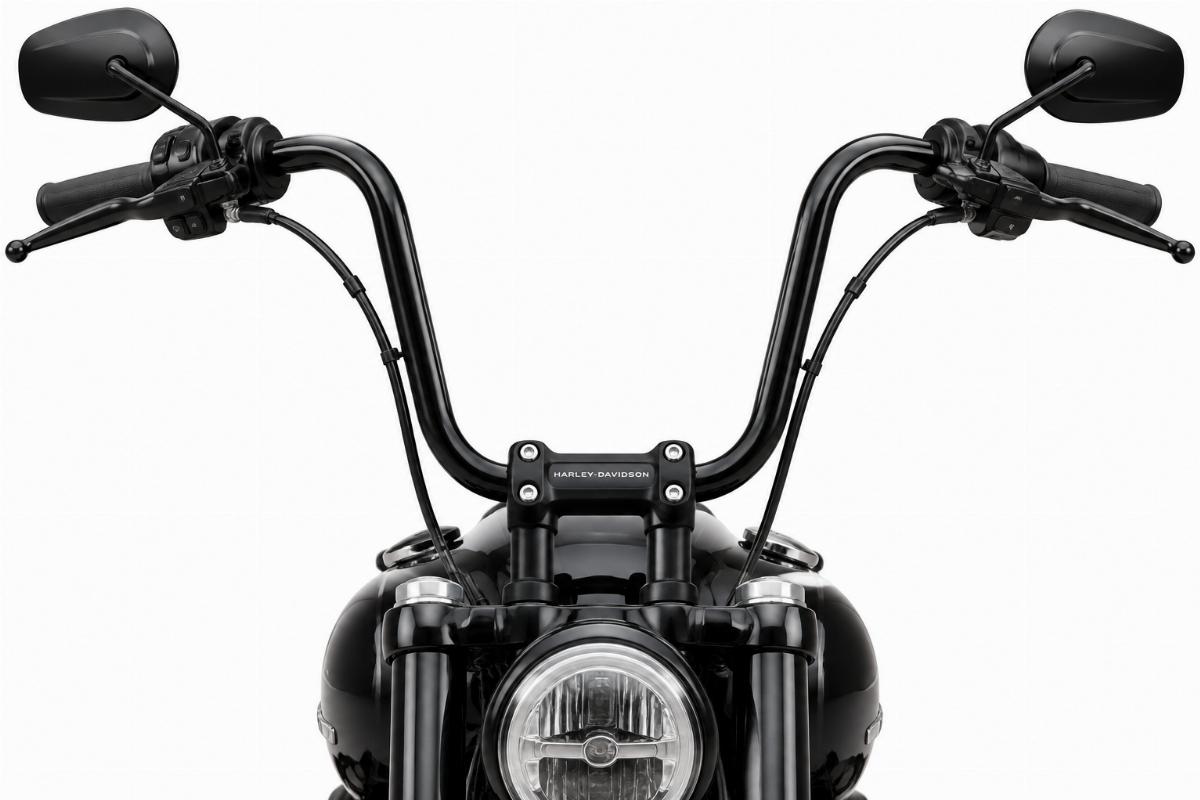

A 1″ narrow apes handlebar for Harley-Davidson must align perfectly with your existing risers. The knurled 3.5″ on-center clamp area prevents slipping once tightened, but only if your riser spacing matches exactly. We check this spacing against your requested model to ensure the clamps seat flush without binding the controls.
Confirming Internal Wiring Clearances

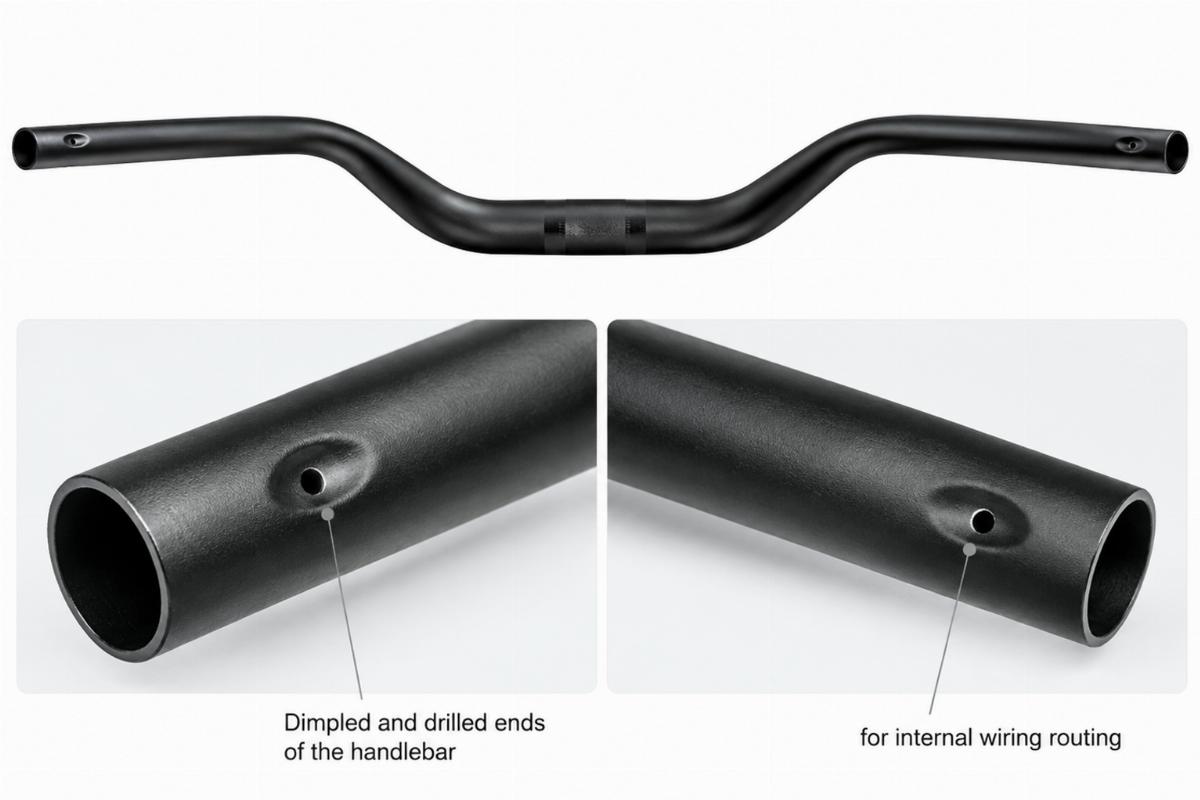

Routing wires through the bars requires precise dimpling and drilling. This 1″ narrow apes handlebar for Harley-Davidson is prepared with dimpled and drilled holes to accommodate internal wiring. We verify the dimple placement matches your switch housing and control mounting points to prevent pinched wires during assembly. [NEED_CITE: switch housing mounting depths for internal wiring setups]
Interpreting Wall Thickness and Material
The .109″ wall premium steel tubing provides the structural basis for the bar. This thickness balances weight with the rigidity needed to support the leverage of apehanger styles. When selecting your rise, remember that taller bars increase leverage on the steering stem, making the 1″ diameter and solid wall construction essential for maintaining front-end stability.
The Hidden Cost of Incorrect Triple Tree Spacing
Shipping a standard width bar for a Narrow Glide build often results in the bar ends extending past the triple trees. This not only looks incorrect but forces the rider to reach further, altering the intended ergonomics. If the bottom width is not checked against the triple tree, the bike sits in the shop bay waiting for a replacement, delaying the entire build schedule. [NEED_CITE: ergonomic reach changes when bar width exceeds triple tree spacing]
Why Source Your Controls From Us
We confirm fitment against the platform family and model year range before quoting any handlebar. Our catalogue offers a 1″ narrow apes handlebar for Harley-Davidson with choices in rise and finish to match your specific build requirements. We support single piece orders, meaning you do not need to meet high minimums for a custom shop project. Every bar is checked for knurling placement and dimpling accuracy to ensure your controls mount correctly. We also provide cross-reference sheets against OEM numbers, marked reference only, to help you match discontinued part numbers.
Included Documentation and Records
- Fitment sheet listing each platform and year range this bar was checked against
- Key dimensions sheet detailing bar diameter, rise, and 3.5″ clamp spacing
- Finish specification document for your selected coating option
- Quality inspection record confirming dimpling and drilling placement
- Cross-reference sheet with OEM numbers marked reference only
- Packing photographs showing the bar and protective packaging
Pre-Installation Inspection Checklist
- Verify the 1″ diameter matches your riser clamp size before mounting
- Measure the 3.5″ on-center distance to confirm riser compatibility
- Check that the bottom width clears your specific triple tree setup
- Inspect the dimpled and drilled holes for clean edges to protect wiring
- Confirm the knurled clamp area is free of debris for a secure grip
- Store the bar in a dry environment to prevent surface corrosion before install
Requesting a Fitment Check
Send your model and year for a fitment check to confirm this bar matches your triple tree spacing. Provide a photograph or measurements of your current risers if the exact year range is unknown. Let us know your required rise and finish options, and whether you need a sample for trial fitting before placing a bulk order.
Frequently Asked Questions
Q: How do I confirm my model year can use stock cables with this handlebar?
A: Cable length depends on the rise and pullback you select. We recommend measuring your current cables and comparing them to the rise dimension you choose. If you are unsure, provide your model and year, and we will verify if stock cables are typically sufficient for that specific rise height on your platform.
Q: What are the key dimensions to measure for riser clamp compatibility?
A: You must measure the diameter of your riser clamps to ensure they accept a 1″ bar. Additionally, measure the distance between the center of your left and right riser clamps. This 1″ narrow apes handlebar for Harley-Davidson features a 3.5″ on-center knurled clamp area, so your risers must match this spacing.
Q: How does the bottom width affect fitment on Narrow Glide triple trees?
A: The bottom width of the bar must not exceed the width of the triple trees. If it is too wide, the bar ends will overhang the trees, ruining the visual stance and altering steering geometry. This bar is specifically sized so the bottom width stays within the Narrow Glide triple tree limits.
Q: Can I order a single piece handlebar for a custom build?
A: Yes, we support single piece orders. You do not need to meet a high minimum order quantity to purchase one bar for a custom build or restoration project. We can supply a single unit, complete with fitment documentation and inspection records for your records.
