Aftermarket Replacement 1″ Window Handlebar for Harley-Davidson
Fitment Verified by Model Year — Exact rise, width, and pullback checked against your specific Harley-Davidson platform before quotation.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebar |
| Diameter | 1″ |
| Rise | 6″ |
| Width | 28″ |
| Wall Thickness | .109″ |
| Material | Premium steel tubing |
| Welding | TIG welded |

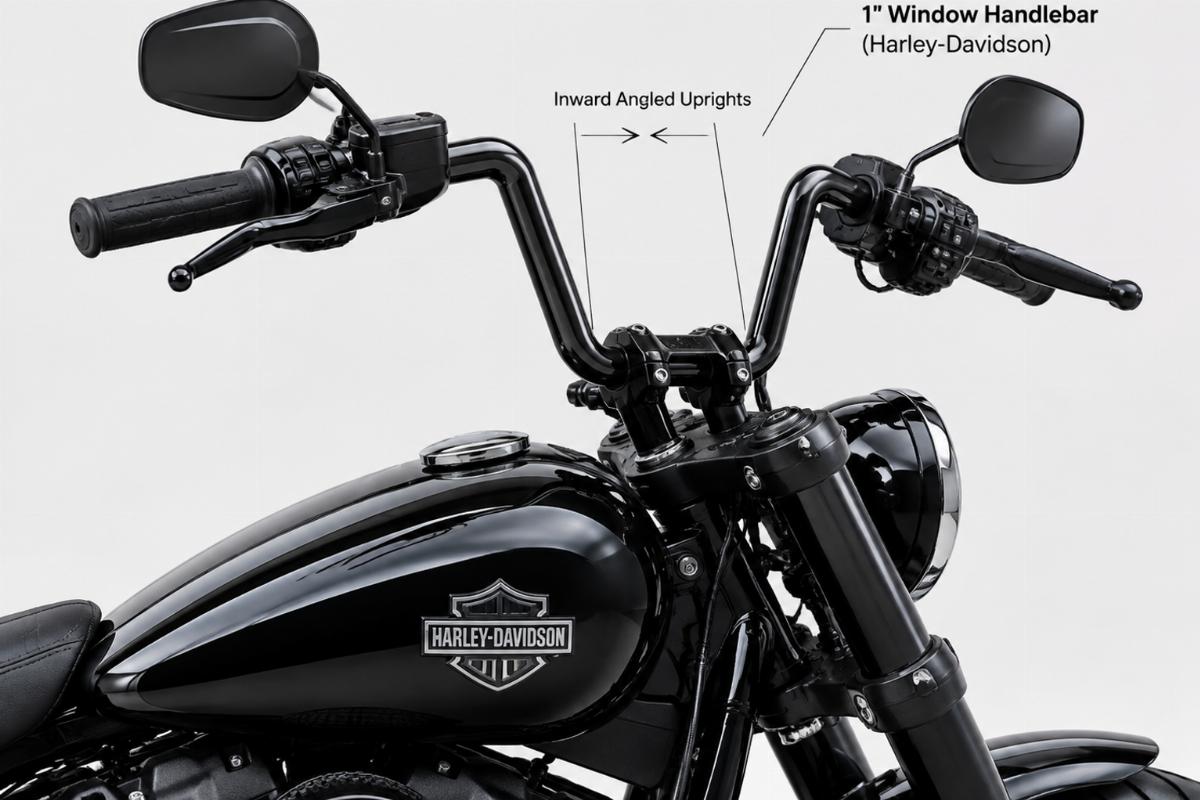

| Design | Uprights angle inward |
| Finish | Choice available |
| Dimpling | Choice available |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson | Confirm with model and year | Allows use of stock cables and brake lines on most models. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why a 1″ Window Handlebar for Harley-Davidson Requires Exact Pullback Checks
Stock cable length dictates your maximum pullback and rise limits.
Many handlebar listings omit the exact pullback and riser clamp spacing differences between various Harley-Davidson platforms. I still remember a custom builder who ordered a similar 1-inch window handlebar for a Harley-Davidson Softail. The listing looked perfect, but it ignored the riser clamp spacing differences between the Softail and early Dyna platforms. The bar ended up too close to the tank, and his stock cables were suddenly too short, costing him days of teardown [NEED_CITE: factory service manual specifications for cable routing by model year].
Riser Clamp Spacing and Cable Routing Limits
When selecting a 1″ window handlebar for Harley-Davidson builds, the 6″ rise and 28″ width must align perfectly with your specific model year. The inward-angled uprights change the pullback distance significantly compared to standard drag bars. If the riser clamp spacing does not match your triple tree, the bar will sit at an incorrect angle, forcing you to stretch or replace your throttle and front brake lines [NEED_CITE: cable length variations across model years for this platform].

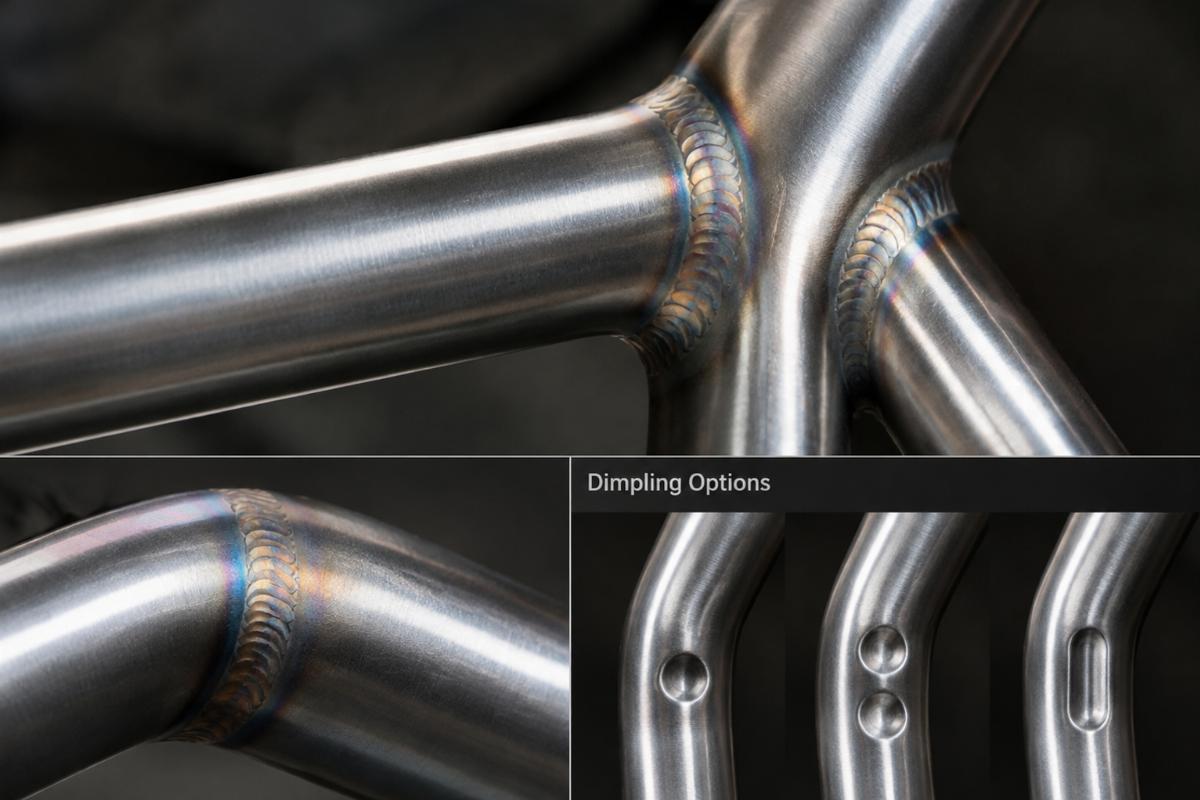

Dimpling and Control Housing Compatibility
The choice of dimpling is critical for your specific control housing setup. A 1″ diameter requires precise dimpling to allow the switch housings and levers to sit flush against the tubing. Without the correct dimpling option selected for your build, the controls will not mount securely, leading to unsafe lever pivot points and damaged housing mounts [NEED_CITE: handlebar diameter and dimpling standards for control housings].
Interpreting the 6-Inch Rise and 28-Inch Width
The 6″ rise combined with the 28″ overall width determines your riding position and cable compatibility. Because this 1″ window handlebar for Harley-Davidson is designed to allow the use of stock cables and brake lines on most models, the 28″ width ensures the controls remain within factory reach specifications. The .109″ wall premium steel tubing provides the necessary rigidity to prevent flex under braking loads while maintaining the aggressive inward angle of the uprights.
The Hidden Cost of Incorrect Handlebar Dimensions
Ordering a handlebar without verifying the exact rise and width against the frame year often leads to catastrophic fitment failures. A bar with incorrect pullback will push the controls into the fuel tank, requiring expensive custom cables or a complete teardown to swap the risers. Furthermore, if the finish quality varies between batches, side-by-side fitting on a custom build will show visible inconsistencies in the chrome or black coating, ruining the final aesthetic of the front end.
Sourcing Handlebars with Fitment Certainty
We verify the exact rise, width, and pullback against your specific model year before clearing any handlebar order. Our catalogue offers a choice of finish and dimpling options to match your exact build specs without forcing a minimum order quantity. Every 1″ window handlebar for Harley-Davidson is checked against platform families to ensure your stock cables and brake lines will reach the controls. We supply custom builders and shops with single-piece orders, ensuring you get the exact dimensions needed for your specific chassis.
Documentation Provided
- Fitment sheet listing each year range this part was checked against
- Key dimensions sheet stating bar diameter, rise, and width
- Finish specification detailing the available chrome or black options
- Quality inspection record for the TIG welded joints and tubing walls
- Cross-reference sheet with OEM numbers marked reference only
Pre-Installation Verification Checks
- Verify the 1″ diameter matches your riser or triple tree clamp specifications
- Measure the 6″ rise and 28″ width against your stock cable lengths
- Confirm the selected dimpling matches your specific control housings
- Inspect the TIG welded joints and inward-angled uprights for finish consistency
- Store the premium steel tubing in a dry environment to prevent surface oxidation
Request a Fitment Check for Your Build
Send your specific model and year for a fitment check before placing your order. Provide your current handlebar measurements or a photograph of your riser clamp spacing to ensure the 6″ rise and pullback will clear your tank. Let us know your required finish and dimpling choices so we can verify stock cable compatibility for your exact platform.
Frequently Asked Questions
Q: How to confirm if this 1″ window handlebar fits my specific Harley-Davidson model and year?
A: Send your exact model and year for a fitment check. We verify the 6″ rise, 28″ width, and pullback against your specific platform to ensure the inward-angled uprights will clear your fuel tank and allow your stock cables and brake lines to reach the controls without modification.
Q: What are the key dimensions to measure when replacing a handlebar?
A: You must measure the 1″ diameter to match your risers, the 6″ rise, and the 28″ overall width. Checking the pullback distance created by the inward-angled uprights is also critical to ensure your throttle and front brake cables have enough slack for your specific model year.
Q: Can I use my stock cables and brake lines with this 6″ rise handlebar?
A: This handlebar is designed to allow the use of stock cables and brake lines on most models. However, you must verify the exact pullback and riser clamp spacing for your specific year, as platform differences can alter cable routing requirements and necessitate longer lines.
Q: Do you offer a sample for fitment confirmation before placing a bulk order?
A: Yes, we support sample supply for fitment confirmation before bulk orders. This allows custom builders and shops to verify the 1″ diameter, dimpling options, and finish consistency against their specific chassis and control housings before committing to a larger purchase.
Q: Can I order a single handlebar for a custom build without minimum order quantities?
A: We offer a minimum order from one piece for custom builders and independent repair shops. You can order a single 1″ window handlebar for Harley-Davidson with your exact choice of finish and dimpling, ensuring you get the precise dimensions needed for your specific restoration or custom project.
