Single Piece Order 1″ Narrow Ape Handlebar for Harley Models
Single Piece Order — Minimum order from one piece allows custom builders to source a specific 1″ narrow ape handlebar for harley models without bulk quantity blocks.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebar |
| Diameter | 1″ |
| Wall Thickness | .109″ |
| Material | Premium steel tubing |
| Riser Clamp Area | Knurled, 3.5″ on-centers |
| Wiring Routing | Dimpled and drilled for internal wiring |
| Bending Process | CNC-mandrel bent |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley models | Confirm with model and year | Bottom width is not wider than the triple tree on narrowglide front ends. |
| Narrowglide front ends | Confirm with model and year | Normally utilizes factory cables, brake lines, and wiring on most Harley models. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

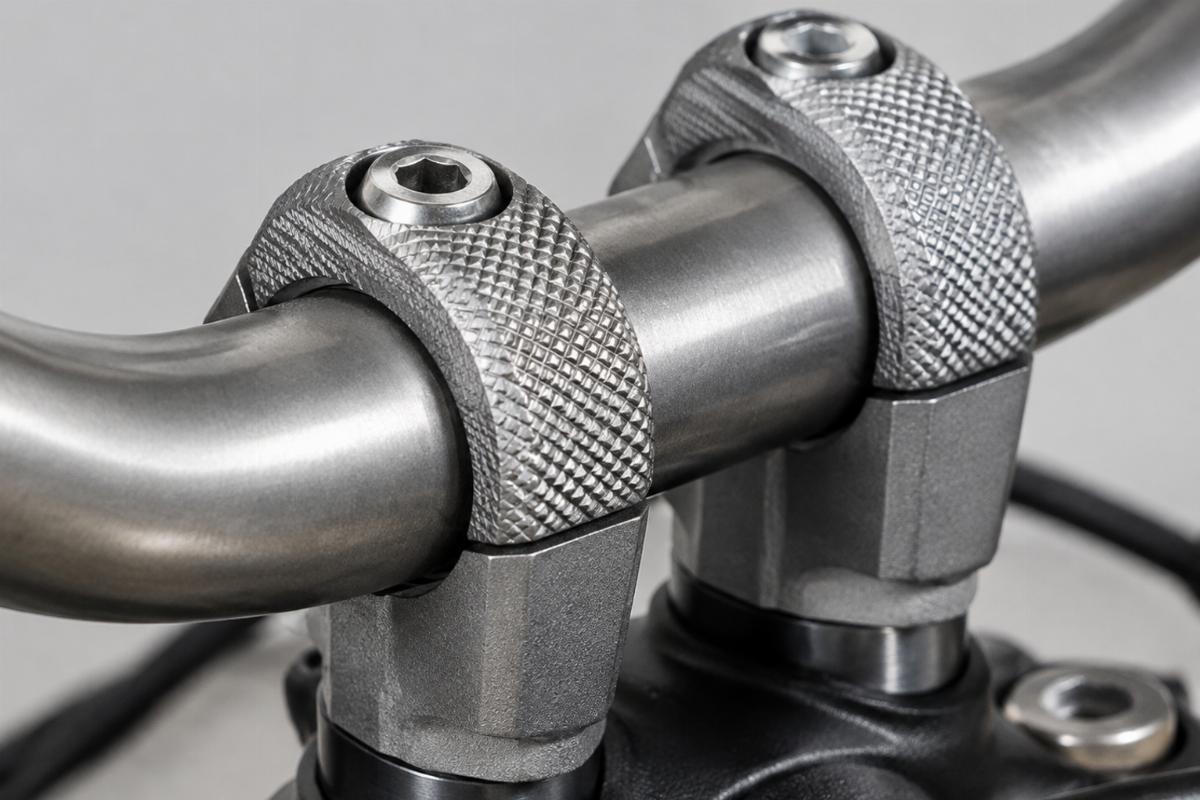

Missing Riser Clamp Spacing Details Cause Lift Delays
A 3.5″ on-center knurled riser clamp area prevents the bar from slipping once installed.
Handlebar listings often omit critical dimensions like rise, pullback, or knurling and wiring-hole details. When a custom shop receives a set without specified riser clamp spacing, the bars simply will not align with the triple tree risers. The bike ends up stuck on the lift while the builder waits for the correct replacement [NEED_CITE: handlebar dimension variations across aftermarket suppliers].
Verifying Narrowglide Triple Tree Clearance
When selecting a 1″ narrow ape handlebar for harley platforms, the bottom width of the bar must not exceed the triple tree width on narrowglide front ends. If the bar is too wide, it will interfere with the fork assembly and prevent proper installation. Always measure the triple tree width and compare it against the handlebar bottom width before finalizing the order.

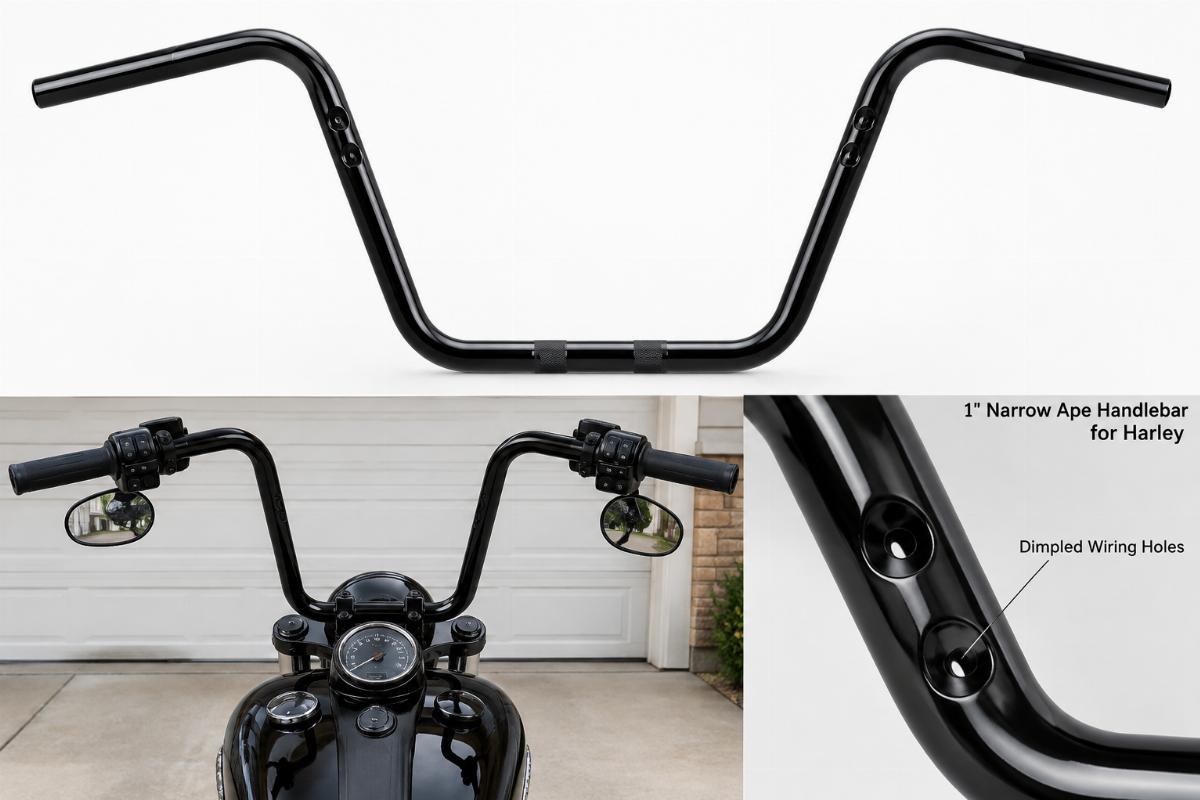

Internal Wiring Routing Alignment
This handlebar is dimpled and drilled specifically for internal wiring. The placement of these holes must align perfectly with your handlebar control switches. Misaligned wiring holes force builders to drill new ones, which can compromise the structural integrity of the 1″ narrow ape handlebar for harley builds and ruin the finish [NEED_CITE: control switch mounting patterns by model year].
Understanding Wall Thickness and Bending
Constructed from .109″ wall premium steel tubing, this handlebar provides the necessary rigidity for daily riding. The CNC-mandrel bending process ensures smooth bends without kinking or weakening the tube. A consistent wall thickness and precise bending are critical for maintaining the exact symmetry required for a balanced riding position and proper cable routing.
The Hidden Cost of Incorrect Handlebar Dimensions
Ordering a handlebar without verifying the exact diameter and clamp spacing leads to immediate fitment failures. If the riser clamp area does not match your risers, the bar will slip or fail to mount. Furthermore, if the internal wiring holes are placed incorrectly, you cannot route the wires without modifying the bar. These mistakes result in wasted shipping costs, delayed build timelines, and the frustration of returning parts that simply do not fit the intended narrowglide setup.
Sourcing Aftermarket Handlebars with Confidence
We verify the 1″ diameter and 3.5″ on-center riser clamp spacing against your specific riser requirements before quotation. Our fitment sheet details the applicable platforms and year ranges, ensuring the bottom width clears your narrowglide triple tree. You can order a single handlebar for a custom build without facing minimum quantity blocks. We also supply samples for fitment confirmation, allowing you to verify the width and wiring hole placement before committing to a bulk order.
Documentation Provided
- Fitment sheet listing each year range this part was checked against
- Key dimensions including bar diameter, rise, and clamp spacing
- Cross-reference sheet with OEM numbers marked reference only
- Finish specification for the premium steel tubing
- Quality inspection record confirming CNC-mandrel bending
###收货与装车前核对
- Verify the 1″ diameter matches your riser clamp size
- Measure the 3.5″ on-center knurled area against your risers
- Check dimpled and drilled holes against control switch placement
- Confirm bottom width clears the narrowglide triple tree
- Inspect premium steel tubing for shipping damage or finish defects
Send Your Model Details for a Fitment Check
Provide your specific model code and year range to verify compatibility with narrowglide front ends. Share your riser clamp spacing requirements and control switch wiring needs to ensure the dimpled holes align correctly. Let us know if you need a single piece order or a sample for physical fitment confirmation before bulk purchasing.
Frequently Asked Questions
Q: How to confirm my Harley model year fits this 1″ narrow ape handlebar for harley?
A: Provide your exact model code and year range so we can verify the bottom width against your narrowglide triple tree. We check the 1″ diameter and 3.5″ on-center riser clamp spacing against your specific risers to ensure proper alignment before quotation.
Q: What are the key dimensions to measure for riser clamp compatibility?
A: You must measure the diameter of your risers to match the 1″ bar diameter. Additionally, verify the distance between your riser mounting holes matches the 3.5″ on-center knurled clamp area to prevent slipping and ensure secure mounting.
Q: Can I order a single handlebar for a custom build without minimum quantity blocks?
A: Yes, we support custom builders and repair shops with a minimum order from one piece. You can order a single 1″ narrow ape handlebar for harley models without facing bulk quantity requirements, making it ideal for one-off custom builds or replacement needs.
Q: Are the dimpled holes pre-drilled for internal wiring routing?
A: Yes, the handlebar is dimpled and drilled specifically for internal wiring. The hole placement is designed to align with standard handlebar control switches, allowing you to route wires internally without modifying the premium steel tubing.
Q: Can I request a sample to verify the width against my narrowglide triple tree before bulk ordering?
A: We offer sample supply for fitment confirmation before bulk orders. Requesting a sample allows you to physically verify the bottom width clearance against your narrowglide triple tree and check the wiring hole alignment with your specific controls.
