Fitment Checked Springer Fork 1″ x 24 Stem Thread Chrome

Springer Fork for Custom Builds, 1″ x 24 Stem Thread, Chrome — Verify the 1″ x 24 stem thread matches your triple tree to prevent geometry errors, and confirm the 3/4″ axle fits your wheel hub. Order single pieces for custom builds, with fitment confirmed against your platform before quotation and sample supply available.

Fitment Confirmed
Before Quote
Factory Direct Since 2003
Finish 4 Surface
Options
OEM/ODM Custom
Available

Surface Finish

Triple chrome plating -- maximum shine and corrosion resistance.

Technical Data

Specifications

Category custom springers
Fits Big Twin 1984-Up
Finish Options Chrome · Black · Copper · Raw
OEM / ODM Available -- contact factory
MOQ Flexible -- single pieces welcome
Packaging Individual carton, foam-protected
Lead Time Stock: 3-7 days · Custom: 15-30 days

Compatibility

Fitment Chart

Model / Series Years Fit
Big Twin 1984-Up See description

Not sure it fits your bike?

Ask for fitment check

Full Details

Product Description

Consistent Chrome Finish Batches — Every standard chrome springer fork is inspected for plating uniformity to ensure side-by-side visual match on your custom build.

Product Specification

Part Type | Springer Fork

Parameter Value
Finish Chrome
Material Steel
Type Wide body
Stem Thread 1″ x 24
Axle Outer Diameter 3/4″
Kit Contents 3/4″ front axle assembly, top tree nut, top clamp
Height Measurement Method Measured from the top of the fork leg to the axle position

Fitment

Platform Year Range Notes
Confirm with model and year Confirm with model and year Verify 1″ x 24 stem thread and 3/4″ axle diameter against your specific triple tree and hub.

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Why Stem Thread and Axle Specs Dictate Your Build

A 1″ x 24 stem thread and 3/4″ axle must match your frame and hub exactly before assembly.

Sourcing a chrome springer fork motorcycle aftermarket unit without verifying these exact dimensions often leads to triple tree mismatches and return delays. When the stem thread pitch differs by even a fraction, the fork will not seat correctly in the neck, ruining the steering geometry before you even tighten the top nut. Similarly, a 3/4″ axle outer diameter requires a matching hub bore; forcing it damages the bearings and misaligns the wheel. We always verify the stem thread, axle diameter, and exact height from the fork leg top to the axle before shipping to prevent these geometry errors.

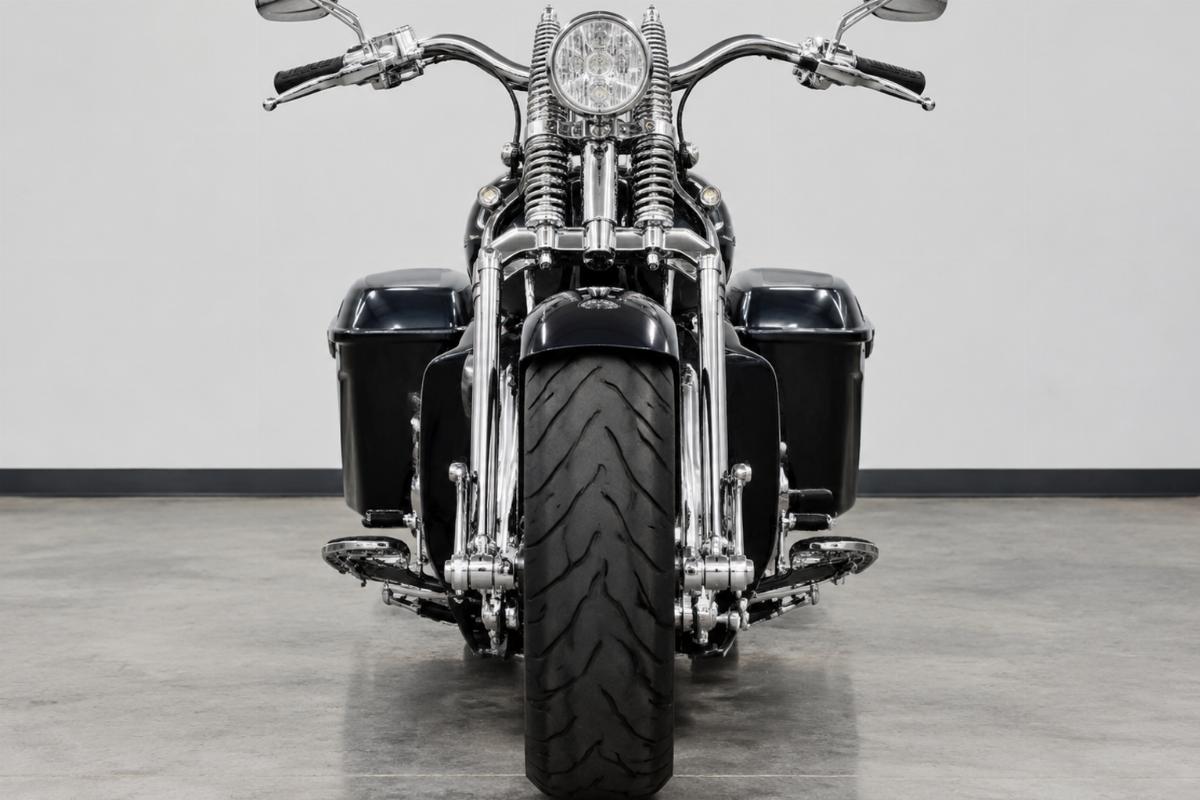

Standard chrome springer fork motorcycle aftermarket wide body front view

Verifying Triple Tree Compatibility

The 1″ x 24 stem thread on this wide body steel fork is a critical fitment dimension for your steering neck. If your custom triple tree was machined for a different thread pitch, this chrome springer fork motorcycle aftermarket assembly will not thread in, leaving your front end unsecured. Always measure your existing steering stem or consult your tree manufacturer to confirm the 1″ x 24 specification matches your setup.

Checking Hub and Brake Alignment

The included 3/4″ front axle assembly dictates how the wheel and brake caliper align with the fork legs. If your front wheel hub expects a different axle outer diameter, the wheel will sit off-center or bind against the sliders. Confirming the 3/4″ axle fits your specific front wheel hub and brake setup ensures the fork legs remain parallel and the brake components clear the spokes.

Interpreting Fork Height and Geometry

Height on this springer fork is measured from the top of the fork leg, where the triple tree fits, down to the axle position. This exact measurement determines your ride height and directly impacts the rake and trail of your motorcycle. Overlooking this dimension can result in a front end that sits too high or too low, altering the handling characteristics and potentially causing the fender to interfere with the tire.

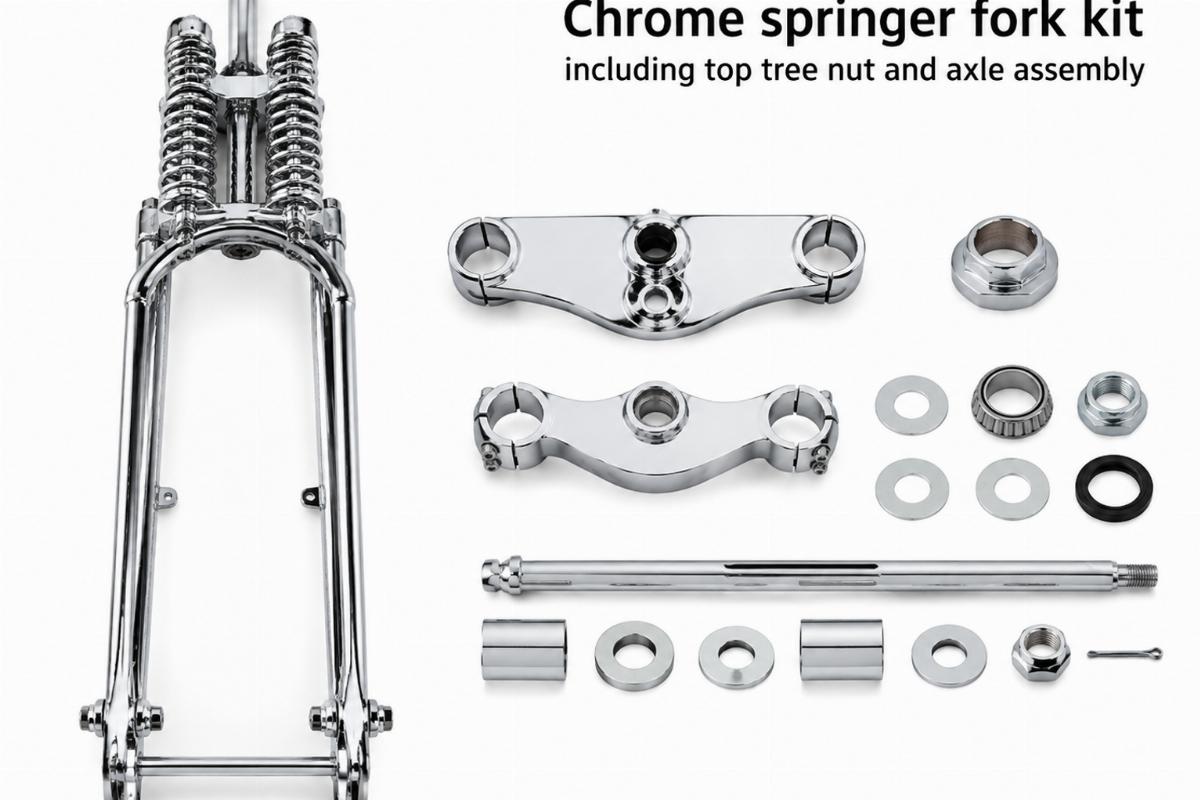

Chrome springer fork kit contents including top tree nut and axle assembly

The Hidden Cost of Incorrect Dimensions

Ordering a front end without confirming the stem thread and axle diameter often results in the bike sitting on the shop floor while you wait for a replacement. A mismatched 1″ x 24 thread means the fork cannot be installed, and a wrong 3/4″ axle means the wheel cannot be mounted. These fitment errors delay the build schedule, require返工 to source new hardware, and create frustration when the chrome finish on a replacement batch does not perfectly match the original order.

Sourcing from a Front End Specialist

We manufacture our own springer front ends and chassis hardware, allowing us to control the quality of the wide body steel construction and chrome plating. Every fork is checked for the 1″ x 24 stem thread and 3/4″ axle dimensions before it leaves our facility. We offer a one-piece minimum order, meaning you can source a single standard chrome springer fork for a custom build without meeting high volume requirements. Our fitment is confirmed against your platform and year range before quotation, and we provide cross-reference sheets against OEM numbers marked reference only to ensure you get the exact part you need.

Documentation Provided

  • Fitment sheet stating applicable platforms and year ranges for this springer fork.
  • Cross-reference sheet with OEM numbers marked reference only for identification.
  • Key dimensions including fork height from leg top to axle and stem thread specs.
  • Finish specification and quality inspection record for chrome batch consistency.
  • Warranty terms and packing photographs for your receiving records.

Receiving and Pre-Installation Checks

  • Verify the kit includes the 3/4″ front axle assembly, top tree nut, and top clamp.
  • Check the 1″ x 24 stem thread against your triple tree before attempting installation.
  • Measure the height from the fork leg top to the axle to confirm your ride height.
  • Inspect the chrome finish on the wide body steel for any plating defects or scratches.
  • Have a qualified technician verify the 3/4″ axle diameter matches your wheel hub.
  • Store the fork in a dry environment to protect the chrome finish before assembly.

Requesting a Fitment Check

Send your model and year, along with a photograph or measurements of your existing steering stem and hub, for a fitment check. Let us know the exact finish and quantity you need for your custom build, and whether you require a sample for fitment confirmation before placing a bulk order. Providing these details ensures we verify the 1″ x 24 stem thread and 3/4″ axle against your specific setup before dispatch.

Frequently Asked Questions

Q: How do I confirm if this standard springer fork fits my specific model and year?

A: Provide your model and year, along with a photograph or measurements of your steering stem and hub. We verify the 1″ x 24 stem thread and 3/4″ axle diameter against your specific setup and provide a fitment sheet stating the applicable platforms and year ranges before quotation.

Q: How should I measure the stem thread and axle diameter to match my existing front end?

A: Measure the outer diameter of your steering stem and count the threads per inch to confirm the 1″ x 24 specification. For the axle, measure the outer diameter of your front wheel hub bore to ensure it accepts the 3/4″ axle assembly included in this kit.

Q: What components are included in this springer fork kit?

A: The kit includes the wide body steel springer fork with a chrome finish, a 3/4″ front axle assembly, a top tree nut, and a top clamp. These components are inspected for finish consistency and dimensional accuracy before shipping.

Q: Can I order a single piece of this chrome springer fork for a custom build?

A: Yes, we support a one-piece minimum order for custom builders and shops working on a single bike. You can order a single standard chrome springer fork, and we will verify the fitment against your model and year before dispatch.

Q: How do you ensure chrome finish consistency between different batches?

A: We inspect every fork for plating uniformity and provide a finish specification and quality inspection record with your order. This ensures the chrome finish on your replacement or additional fork matches the original batch side-by-side.

Surface Options

Four Finishes. One Factory.

Consistent tone across fork, handlebar and sissy bar -- order as a coordinated set.
