1″ Riserless Handlebar for Harley-Davidson – Fitment Checked
One-Piece Fitment Verification — We supply single handlebars for custom builds and provide sample units to confirm triple tree spacing and thread alignment before bulk dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebar |
| Diameter | 1″ |
| Rise | 6″ |
| Width | 24″ |
| Wall Thickness | .109″ |
| Material | Premium steel tubing |

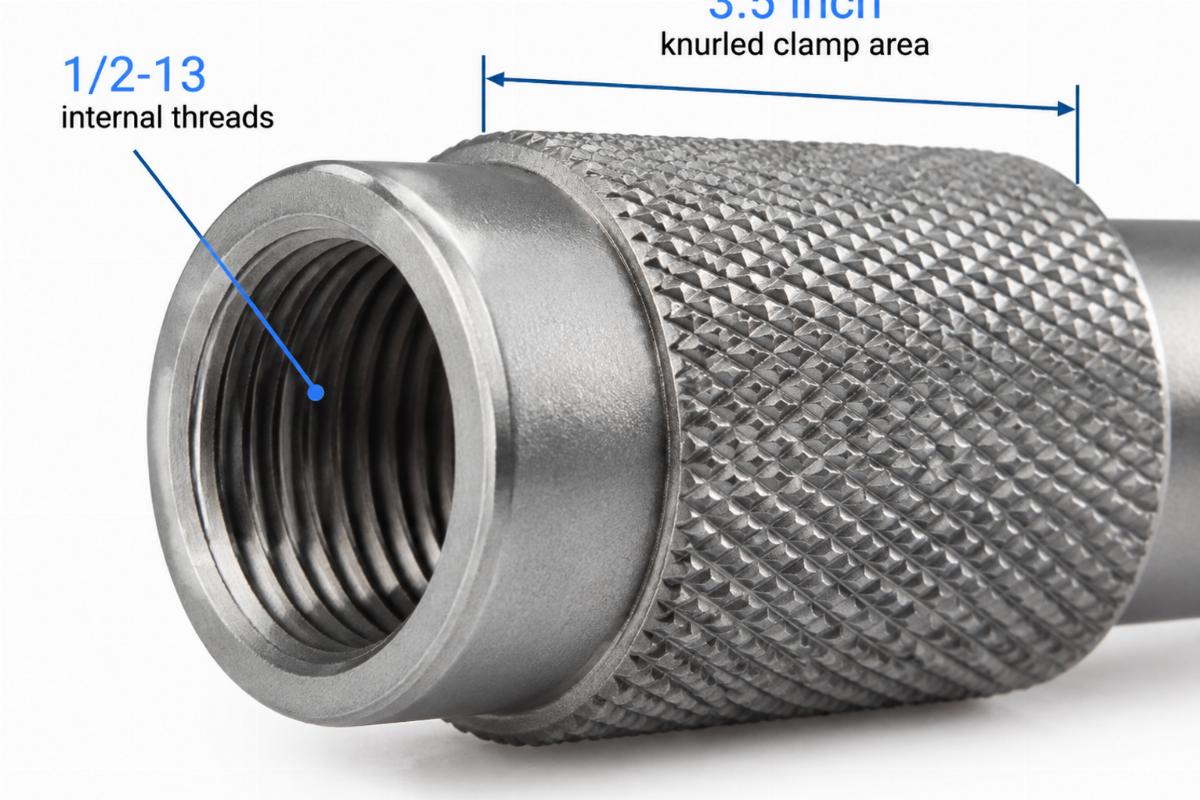

| Knurled Area Spacing | 3.5″ on-centers |
| Thread | 1/2″-13 (internally threaded uprights) |
| Bend Angle | 30° forward bend in the uprights |
| Finish | Choice of finish |
| Dimpling | Choice of dimpling |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson | Confirm with model and year | Fits most models with stock rake front ends; compatible with stock or aftermarket triple trees. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Riserless Handlebar Listings Cause Fitment Guesswork
Missing clamp spacing and thread specs force builders to guess if the part will seat correctly without risers.
Handlebar listings frequently omit bar diameter, rise, width, pullback, or knurling details. When a buyer orders a 1″ handlebar for harley-davidson without verifying the triple tree mounting requirements, the riserless design leaves zero adjustability. The 3.5″ on-center knurled clamp area and internal 1/2″-13 threads must align perfectly with the frame’s specific year geometry [NEED_CITE: factory service manual specifications by model year].
Verifying Triple Tree Spacing for Riserless Mounts
A riserless 1″ handlebar for harley-davidson mounts directly to the triple tree, meaning the internal 1/2″-13 threads must match the frame’s mounting holes exactly. Unlike setups with risers that offer slight positional forgiveness, this direct-mount design requires the 3.5″ on-center knurled area to align perfectly to prevent slipping. Always cross-check the triple tree spacing against the exact model year before clearing the part for dispatch.
Forward Bend and Stock Rake Geometry

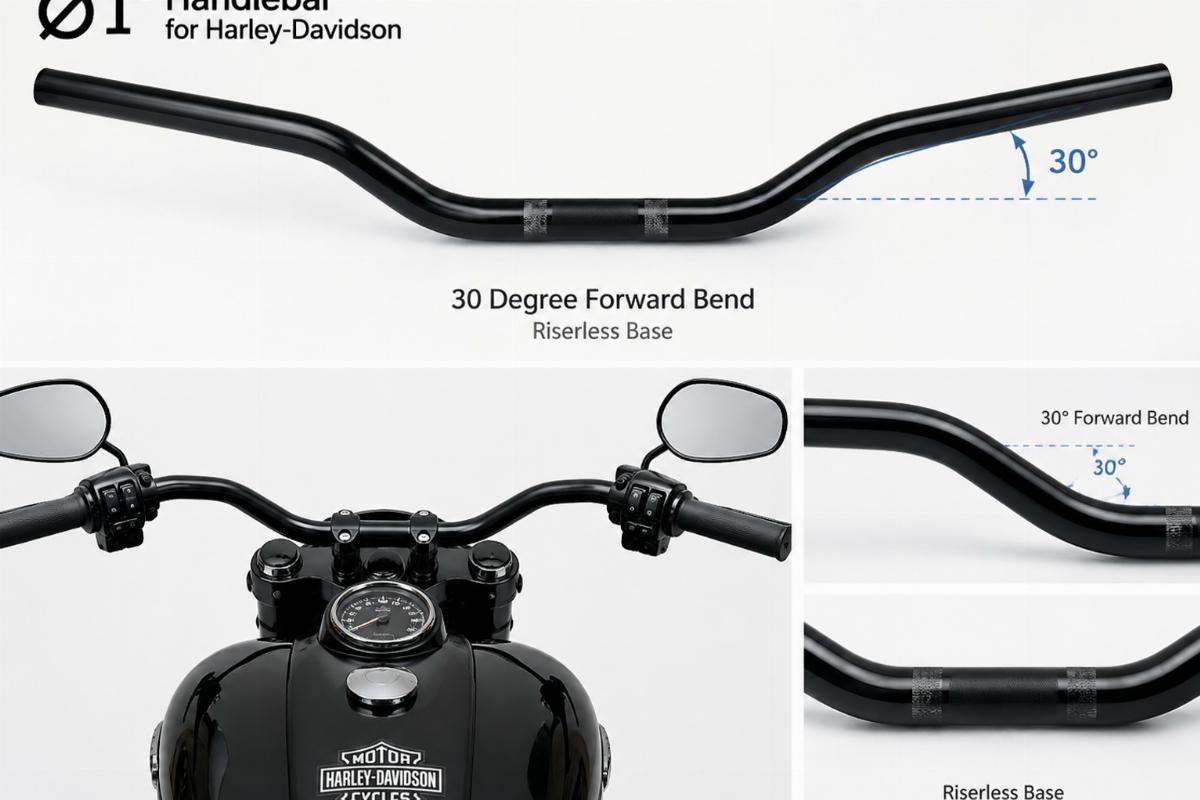

The 30° forward bend in the uprights is engineered to allow perpendicular seating on stock rake front ends. This specific bend angle ensures the 24″ width and 6″ rise place the rider’s hands in a neutral position without altering the steering geometry. Builders must confirm that their specific front end maintains a stock rake to utilize this bend correctly [NEED_CITE: frame geometry measurements for stock rake front ends].
Decoding the 1″ Handlebar Dimensions
The 1″ diameter and 6″ rise dictate cable and brake line routing; a 6″ rise can often utilize stock lines on most models, but verifying length is critical. The .109″ wall premium steel tubing provides the necessary rigidity for the 24″ overall width. The choice of finish and choice of dimpling must be confirmed for batch consistency, ensuring the selected 1″ handlebar for harley-davidson matches the visual requirements of the build.
The Hidden Cost of Misaligned Clamp Areas
When the 3.5″ on-center knurled area does not match the triple tree spacing, the handlebar cannot be forced into position. I have seen riserless bars returned because the internal threads simply did not align with the frame’s mounting holes for that specific year. This mistake halts the build, leaves the bike occupying a bay, and requires sourcing a replacement that matches the exact dimensional requirements.
Sourcing with Dimensional Certainty
We verify fitment against the platform family and model year range before quotation, ensuring the 30° forward bend suits your front end. Every 1″ handlebar for harley-davidson is checked for bar diameter, rise, width, and knurled spacing documentation. We offer a choice of finish and choice of dimpling to maintain visual consistency, and sample supply is available for fitment confirmation before bulk orders are placed.
Documentation Provided
- Fitment sheet stating applicable platforms and year ranges for the 1″ handlebar.
- Key dimensions sheet detailing bar diameter, rise, width, and 3.5″ knurled spacing.
- Finish specification and dimpling choice confirmation for batch consistency.
- Cross-reference sheet with OEM numbers marked reference only.
Receiving and Pre-Installation Checks
- Verify the 1″ diameter and 6″ rise match your cable and brake line routing requirements.
- Measure the 3.5″ on-center knurled area against your triple tree mounting holes.
- Confirm the internal 1/2″-13 threads align with the frame’s specific year geometry.
- Inspect the choice of finish and choice of dimpling for batch consistency and surface quality.
- Ensure the 30° forward bend in the uprights matches your stock rake front end setup.
Requesting a Fitment Check
Send your model and year for a fitment check to confirm the 30° forward bend and triple tree spacing. Provide your old part photos or key measured dimensions if the part number is unknown. Specify your required choice of finish and choice of dimpling, and let us know if you need a sample unit for physical verification before placing a bulk order.
Frequently Asked Questions
Q: How do I confirm my Harley-Davidson model year and front end rake can fit this 1″ handlebar?
A: Verify that your front end maintains a stock rake to accommodate the 30° forward bend. Cross-check your triple tree mounting hole spacing against the 3.5″ on-center knurled area. We provide a fitment sheet stating applicable platforms and year ranges before quotation to confirm compatibility.
Q: What are the key dimensions to measure when replacing a riserless handlebar?
A: Measure the triple tree mounting hole spacing to ensure it matches the 3.5″ on-center knurled area. Verify the internal thread requirement matches the 1/2″-13 uprights. Check your available space for the 24″ width and 6″ rise to ensure proper cable routing without altering the neutral hand position.
Q: Can I order a single handlebar for a custom build without meeting a high minimum order quantity?
A: Yes, we support a single-piece minimum order for custom builds and repair shops. We also offer sample supply for fitment confirmation, allowing you to physically verify the 1″ diameter, 6″ rise, and triple tree alignment before committing to larger quantities.
Q: How do I verify the finish and dimpling options match my previous batches?
A: We provide a finish specification and dimpling choice confirmation document with every quotation. This ensures the choice of finish and choice of dimpling on your 1″ handlebar matches your previous orders, maintaining visual consistency across your inventory or custom builds.
Q: Does this 6″ rise handlebar require longer cables, or can it use stock lines?
A: A 6″ rise can often utilize stock cables and brake lines on most models with stock rake front ends. However, you must verify your specific model year’s cable routing requirements. The 24″ width and 30° forward bend are designed to maintain a neutral position, but exact cable length depends on the individual bike setup.
