Chrome Narrow Springer Fork Assembly 29″ – Aftermarket Replacement
Comprehensive Front-End Depth — This narrow springer fork assembly includes the fork, rockers, and earless top tree for complete custom setups.
Product Specification
| Parameter | Value |
|---|---|

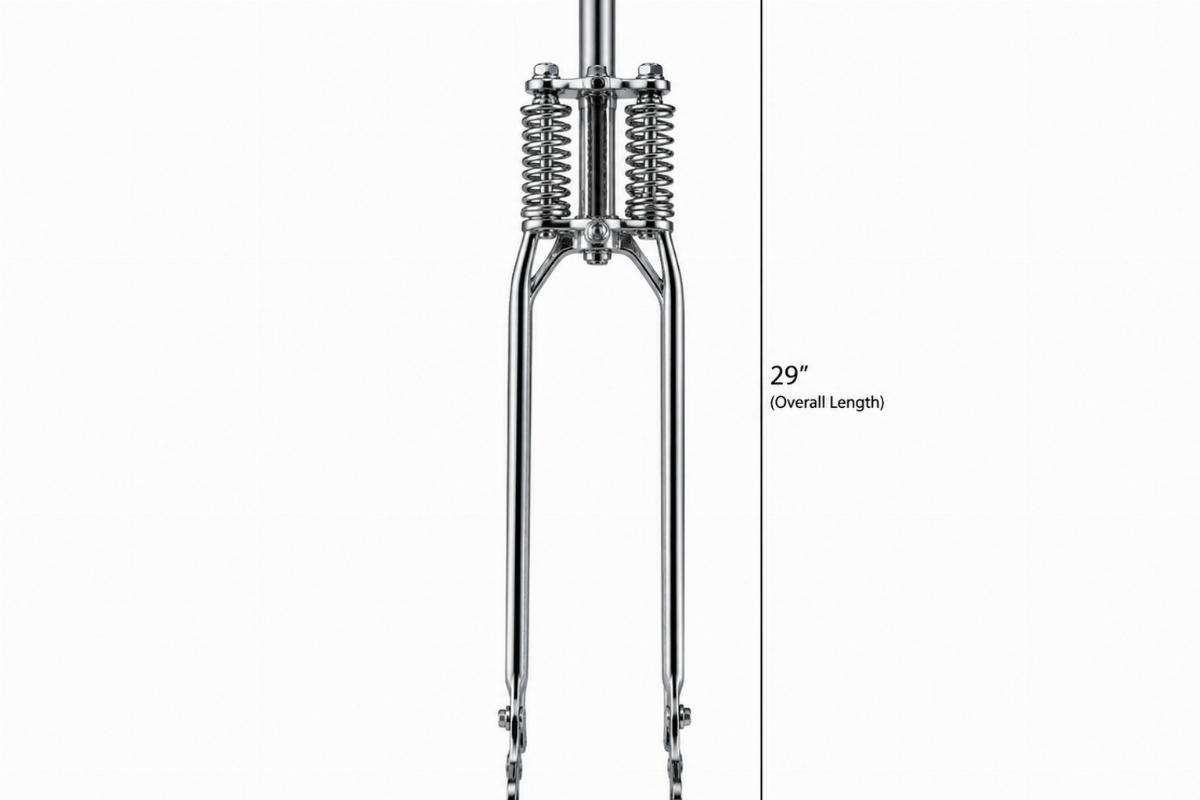

| Part Type | Narrow Springer Fork Assembly |
| Finish | Chrome |
| Length | 29″ overall (6″ over stock) |
| Axle Hole | 3/4″ (on rockers) |
| Top Tree | Without ears |
| Thread | 1/2″-20 (legs drilled and tapped) |
| Rocker Offset | Same on each side, not offset on right side |
| Kit Contents | Fork assembly, rockers, top tree |
Fitment Verification
| Platform | Year Range | Notes |
|---|---|---|
| Not stated in source | Confirm with model and year | Designed for narrow springer front end setups |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Evaluating Geometry Changes in a 29″ Narrow Springer Fork Assembly
Adding 6 inches over stock fundamentally alters steering geometry and ride height.
When a custom builder sees a narrow profile, they might assume the narrow springer fork assembly will bolt directly onto a standard frame without further calculations. However, extending the overall length to 29″ changes the rake and trail, which can ruin the steering geometry if the frame neck spacing and stem diameter are not verified first [NEED_CITE: frame geometry specifications for custom springer setups]. The ride height will also shift, affecting the entire stance of the motorcycle.
Measuring Frame Neck Spacing for the Earless Top Tree
The earless top tree on this narrow springer fork assembly requires precise measurement of your frame’s steering stem diameter and neck spacing. Without ears to rest on the triple tree, the stem must fit perfectly into the neck cups to maintain structural integrity. Failing to confirm these dimensions before ordering can lead to a front end that simply will not seat correctly in the frame [NEED_CITE: steering head cup and neck bearing dimension variations across frame families].
Confirming 3/4″ Axle Hardware and Wheel Hub Compatibility
The rockers on this narrow springer fork assembly feature 3/4″ axle holes, which dictates the front wheel hub spacing and axle hardware you must use. If your custom wheel build relies on a different axle diameter, the rockers will not align with the hub. Always verify that your front wheel hub matches the 3/4″ axle specification to ensure the wheel sits centered between the legs [NEED_CITE: axle diameter standards for custom springer front ends].
Understanding the 1/2″-20 Leg Thread for Riser Mounting

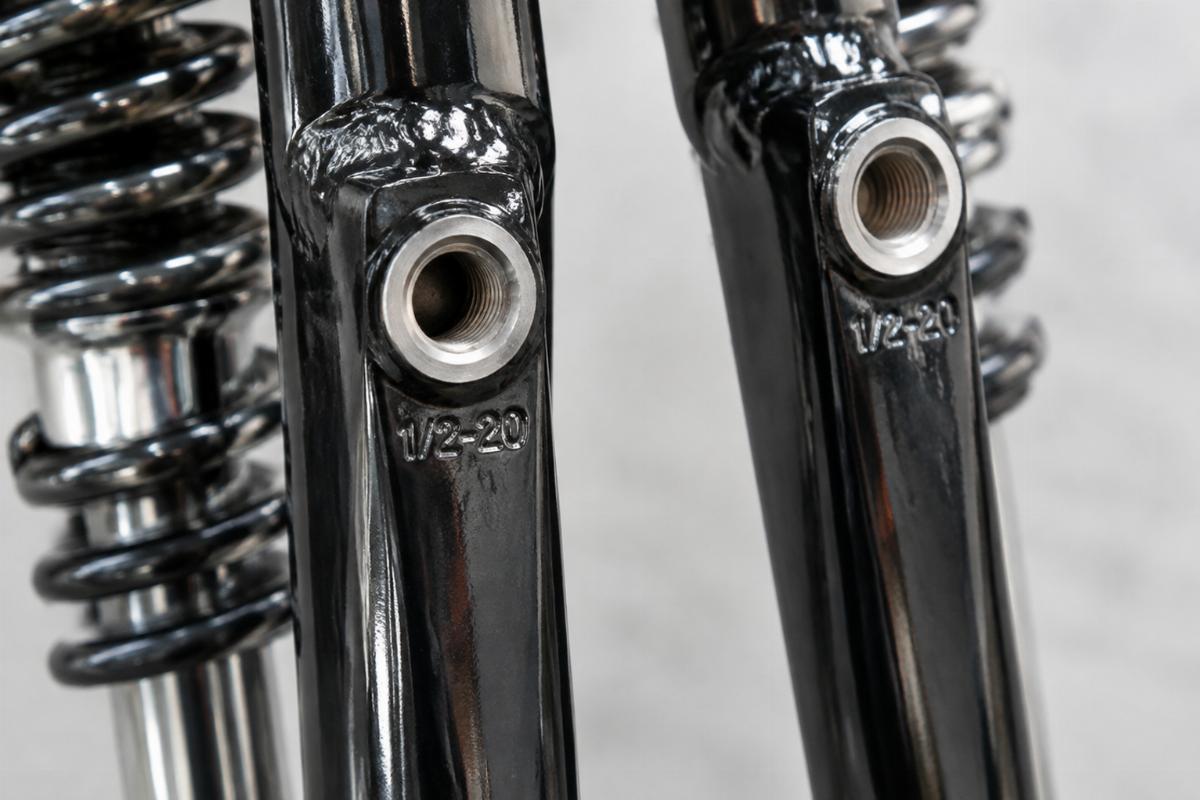

The legs of this narrow springer fork assembly are drilled and tapped with a 1/2″-20 thread specifically to mount risers directly. This threading standard determines which riser clamps or direct-mount handlebars will physically attach to the fork. Checking this thread compatibility with your chosen risers prevents the need for adapters or re-tapping the legs upon arrival.
The Hidden Cost of Ignoring Over-Stock Length Impacts
Ordering a narrow springer fork assembly without calculating the rake and trail impact of a 6-inch over-stock length often results in a motorcycle that handles poorly or cannot be ridden safely. The extra length pushes the front wheel forward, increasing trail and making the steering heavier, while simultaneously altering the rear suspension geometry if the frame is not compensated. Builders who skip this step frequently end up with a bike that sits too high in the front, ruining the intended custom proportions and requiring expensive frame modifications to correct [NEED_CITE: rake and trail calculation methods for over-stock springer forks].
Sourcing Fitment-Certified Front Ends with One-Piece Minimums
We verify the fitment of every narrow springer fork assembly against the platform and year range before quotation, ensuring you receive the correct geometry for your build. Our own production facility handles the complete springer assemblies, allowing us to offer chrome and black finish options with consistent batch quality. We support custom builders and shops with a one-piece minimum order, meaning you can order a single unit for a specific project without being blocked by bulk requirements.
Documentation and Verification Materials
- Fitment sheet listing each platform and year range this part was checked against
- Key dimensions including the 29″ overall length and 6″ over-stock measurement
- Finish specification detailing the chrome batch consistency
- Quality inspection record verifying the 1/2″-20 leg threads and 3/4″ axle holes
- Packing photographs showing the included fork assembly, rockers, and top tree
Pre-Installation Inspection Checklist
- Verify the kit includes the fork assembly, rockers, and earless top tree before starting
- Measure the 29″ overall length to confirm it matches your custom geometry plan
- Check the 3/4″ axle holes on the rockers against your front wheel hub spacing
- Inspect the chrome finish for any shipping damage or plating inconsistencies
- Ensure the 1/2″-20 threads on the legs are clean and free of debris before mounting risers
- Have a qualified technician verify the frame neck spacing for the earless top tree
Requesting a Fitment Check for Your Custom Build
Send your model and year, along with a photograph of your current frame neck or old parts, to initiate a fitment check. Provide the critical measurements for your steering stem and wheel hub to ensure this narrow springer fork assembly matches your setup. Let us know if you require a sample unit for physical confirmation before committing to your bulk order.
