Pre-Production Sample Narrow Springer Fork Assembly 31″ Chrome – Fits Custom Builds
In-house front-end production — Every narrow springer fork assembly is manufactured in our own facility, ensuring direct control over fork length, tree spacing, and chrome finish consistency before it reaches your custom build.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Narrow Springer Fork Assembly |
| Finish | Chrome |

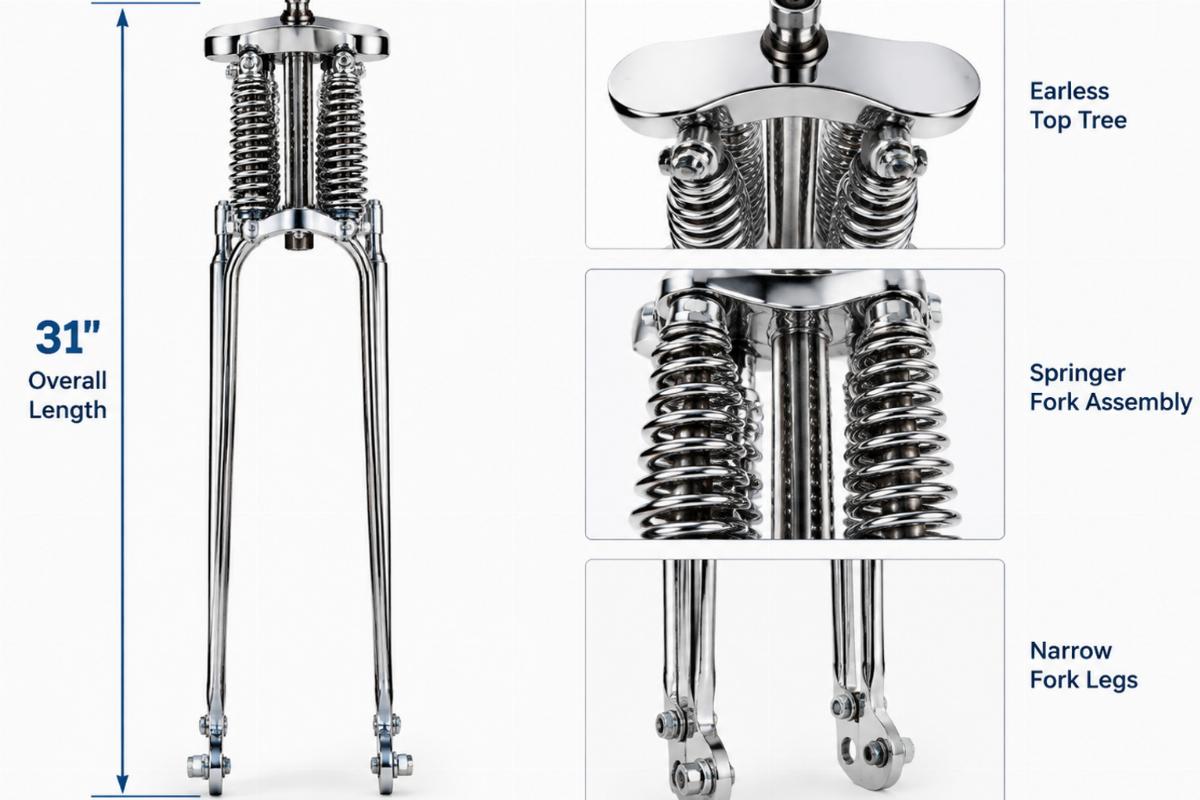

| Length | 31″ (stock length) |
| Axle Hole | 3/4″ |
| Top Tree | Without ears |

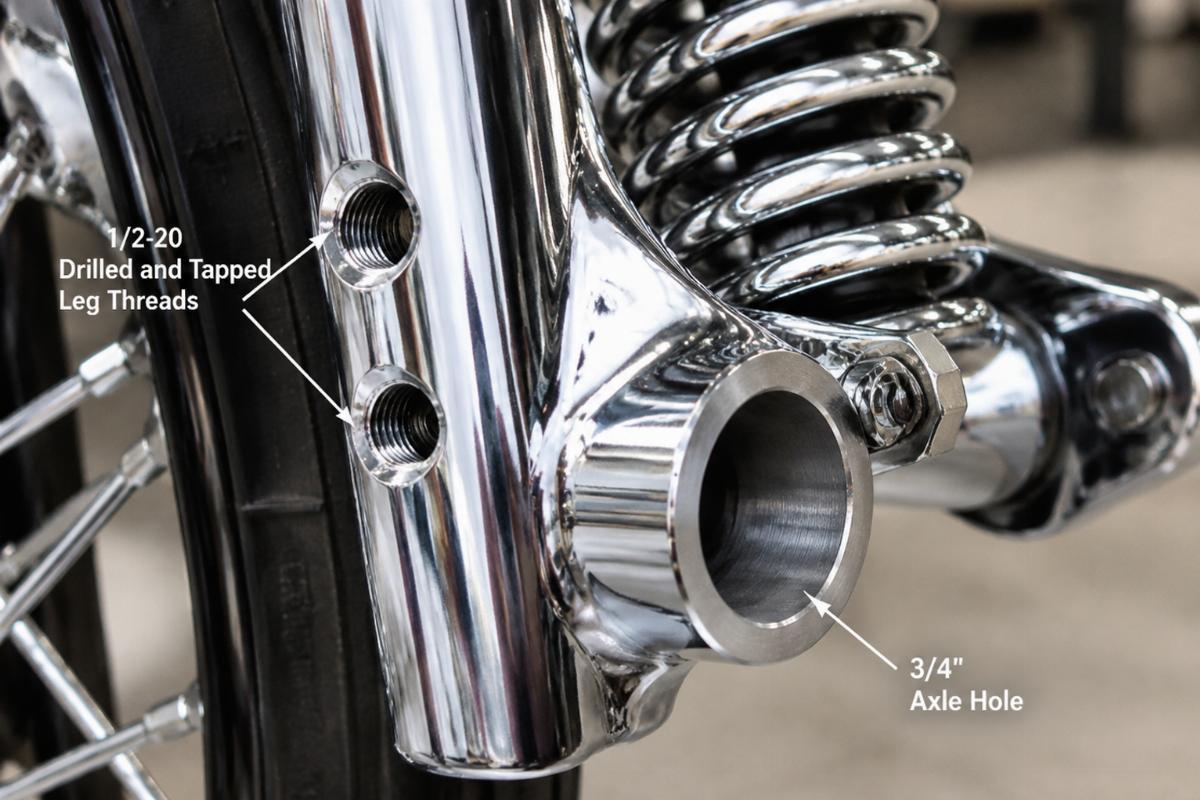

| Leg Thread | 1/2″-20″ (drilled and tapped for risers) |
| Condition | Pre-production sample; cosmetic surface imperfections and fitment test marks present; no physical defects |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom motorcycle builds | Confirm with model and year | Pre-production sample part; 31″ overall length matches stock geometry. Verify 3/4″ axle hole and earless top tree clearance. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Verifying Geometry Data Before Committing to a Bulk Order
A 31″ narrow springer fork assembly provides exact stock-length geometry, but custom builders must verify axle spacing and top tree profiles against their specific frame jig.
Custom builders often struggle with springer forks offered without clear overall length or geometry data, making it difficult to judge ride height and steering setup before committing to a bulk order. When a front end arrives without confirmed dimensions, the entire build schedule halts while the shop measures and re-sources components. We measure every sample before it ships to ensure the 3/4″ axle hole and 1/2″-20″ leg threads match your exact requirements [NEED_CITE: frame jig specifications for custom springer clearances].
Checking the 3/4″ Axle Hole and Rocker Spacing
This narrow springer fork assembly features rockers with a 3/4″ axle hole designed for standard custom wheel setups. The axle spacing directly dictates whether your front wheel spindle and bearing carriers will seat correctly without binding. If the rocker width is off by even a fraction of an inch, the wheel will not track straight, ruining the steering geometry of the custom build.
Evaluating the Earless Top Tree Profile
The earless top tree on this narrow springer fork assembly provides a clean, minimalist handlebar mounting profile. Without ears, the clamping surface relies entirely on the central stem and lower triple tree alignment. You must confirm the earless top tree clamp diameter against your handlebar or riser base requirement to ensure a secure grip without interference [NEED_CITE: steering stem dimensions across custom frame manufacturers].
Interpreting the 31″ Stock Length and Leg Threads
The 31″ overall length maintains stock front-end geometry, preserving the intended rake and trail for your custom motorcycle build. Additionally, the legs are drilled and tapped 1/2″-20″ to directly mount risers. This specific thread pitch is critical; mismatched threads will cross-thread during assembly, damaging the fork leg and requiring expensive re-tapping or replacement of the entire assembly.
The Hidden Cost of Mismatched Front-End Dimensions
I once worked with a shop that ordered a front end without confirming the exact tree width and slider spacing. The early and late top trees looked identical in photos, but the dimensions were totally different. The sample had a 3/4″ axle hole and a top tree without ears, which completely mismatched their late-model frame geometry. The bike sat torn apart on the lift for weeks until we remeasured and swapped the correct parts, costing the shop days of lost labor [NEED_CITE: top tree width variations across springer model years].
Sourcing Directly from the Front-End Manufacturer
We produce front-end and chassis parts in our own facility, meaning every narrow springer fork assembly is built under one account and one warranty. Our catalogue offers complete springer assemblies in multiple lengths, ensuring you get the exact 31″ stock length required for your geometry. We provide chrome and black finish options on main front-end lines, maintaining consistent plating quality across batches. You can order a minimum of one piece, supporting single-bike custom builds without bulk minimums.
Documentation Provided with Your Shipment
- Fitment sheet stating applicable platforms and year ranges for the 31″ assembly
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions including fork length over stock, tube diameter, and axle hole size
- Finish specification detailing the chrome plating standard
- Quality inspection record noting the pre-production sample cosmetic condition
- Packing photographs showing the earless top tree and leg threads before dispatch
Receiving and Inspecting the Pre-Production Sample
- Verify the 31″ overall length matches your custom frame geometry requirements upon arrival.
- Check the 3/4″ axle hole for smooth operation with your front wheel spindle.
- Inspect the 1/2″-20″ leg threads for excess chrome plating before mounting risers.
- Examine the earless top tree for the noted cosmetic surface imperfections and fitment test marks.
- Confirm no physical defects like cracks or holes are present on the chrome fork legs.
- Store the narrow springer fork assembly in a dry environment to prevent surface oxidation.
Requesting a Fitment Check for Your Build
Send your model and year, along with photographs or measurements of your current front end, to verify this 31″ assembly matches your frame. Provide the exact axle spacing and riser thread requirements to ensure the 3/4″ hole and 1/2″-20″ legs are correct. Let us know if you need a single pre-production sample to test fitment before placing a larger order for your custom builds.
Frequently Asked Questions
Q: How do I confirm this 31″ springer fork will fit my custom frame geometry?
A: You must verify the 31″ overall length against your frame’s designed ride height and rake. Check that the 3/4″ axle hole matches your front wheel spindle spacing and confirm the earless top tree clamp diameter fits your handlebar setup. We provide a fitment sheet detailing the exact dimensions to cross-check against your build jig.
Q: What are the exact dimensions of the rockers and top tree included in the assembly?
A: The rockers feature a 3/4″ axle hole designed for standard custom wheel setups. The top tree is an earless design, providing a minimalist mounting profile. You must measure your specific handlebar or riser base to confirm compatibility with the earless top tree clamp diameter before installation.
Q: Can I order a single pre-production sample to test fitment before placing a bulk order?
A: Yes, we support single-bike custom builds with a minimum order of one piece. Ordering a pre-production sample allows you to physically test the 31″ length, 3/4″ axle hole, and 1/2″-20″ leg threads on your frame jig before committing to a larger batch for your shop.
Q: What type of cosmetic imperfections should I expect on a pre-production sample part?
A: As a pre-production sample, this narrow springer fork assembly features cosmetic surface imperfections and fitment test marks from our quality checks. There are no physical defects such as cracks or holes. These marks are strictly cosmetic and do not affect the structural integrity or the 31″ stock geometry of the fork.
Q: How do I verify the 1/2″-20″ leg threads will match my specific risers?
A: You must check your chosen riser mounting hardware to ensure it uses a 1/2″-20″ thread pitch. Before installation, inspect the drilled and tapped holes on the fork legs for excess chrome plating that could interfere with the threads. Matching this exact pitch is critical to prevent cross-threading during assembly.
