Black Springer Fork Kit 20″ – Fitment Checked

Springer Fork Kit for Custom Builds, 20″ Over Stock with Black and Brass Finish — Custom over stock springers require exact frame neck dimensions and tree spacing to ensure the 20″ length fits your chassis correctly. Verify riser stud compatibility with the 3/4″-18 tapped holes on the rear fork legs before ordering. We supply front-end depth with complete assemblies, fitment sheets before quotation, and single piece minimum orders.

Fitment Confirmed
Before Quote
Factory Direct Since 2003
Finish 4 Surface
Options
OEM/ODM Custom
Available

Surface Finish

Triple chrome plating -- maximum shine and corrosion resistance.

Technical Data

Specifications

Category custom springers
Fits Big Twin 1984-Up
Finish Options Chrome · Black · Copper · Raw
OEM / ODM Available -- contact factory
MOQ Flexible -- single pieces welcome
Packaging Individual carton, foam-protected
Lead Time Stock: 3-7 days · Custom: 15-30 days

Compatibility

Fitment Chart

Model / Series Years Fit
Big Twin 1984-Up See description

Not sure it fits your bike?

Ask for fitment check

Full Details

Product Description

Verified Front-End Geometry — Every 20″ springer fork kit is checked against frame neck dimensions and tree spacing before quotation to prevent steering geometry conflicts.

Product Specification

Parameter Value
Part Type Springer Fork Kit
Finish Black with brass plated rockers, springs, top tree and axle nuts
Overall Length 20″ over stock
Riser Thread 3/4″-18
Kit Contents Rear fork legs, rockers, springs, top tree, axle nuts

Fitment

Platform Year Range Notes
Confirm with model and year Confirm with model and year 20″ over stock length; verify triple tree width and rake impact

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Why Over-Stock Springer Kits Fail Frame Geometry Checks

A 20″ springer fork kit changes ride height and rake, requiring exact tree spacing to match the frame neck.

I once processed a 20-inch over-stock springer kit for an FXSTS Springer Softail. The builder just wanted the extra length, but we didn’t clarify the triple tree width or rake impact. The black fork with brass accents looked perfect on the bench, but once mounted, the steering geometry was completely off and the tree spacing fought the frame neck. Now, I always verify the exact platform and year range before quoting any custom springer length, ensuring the overall dimensions actually match the bike’s steering head.

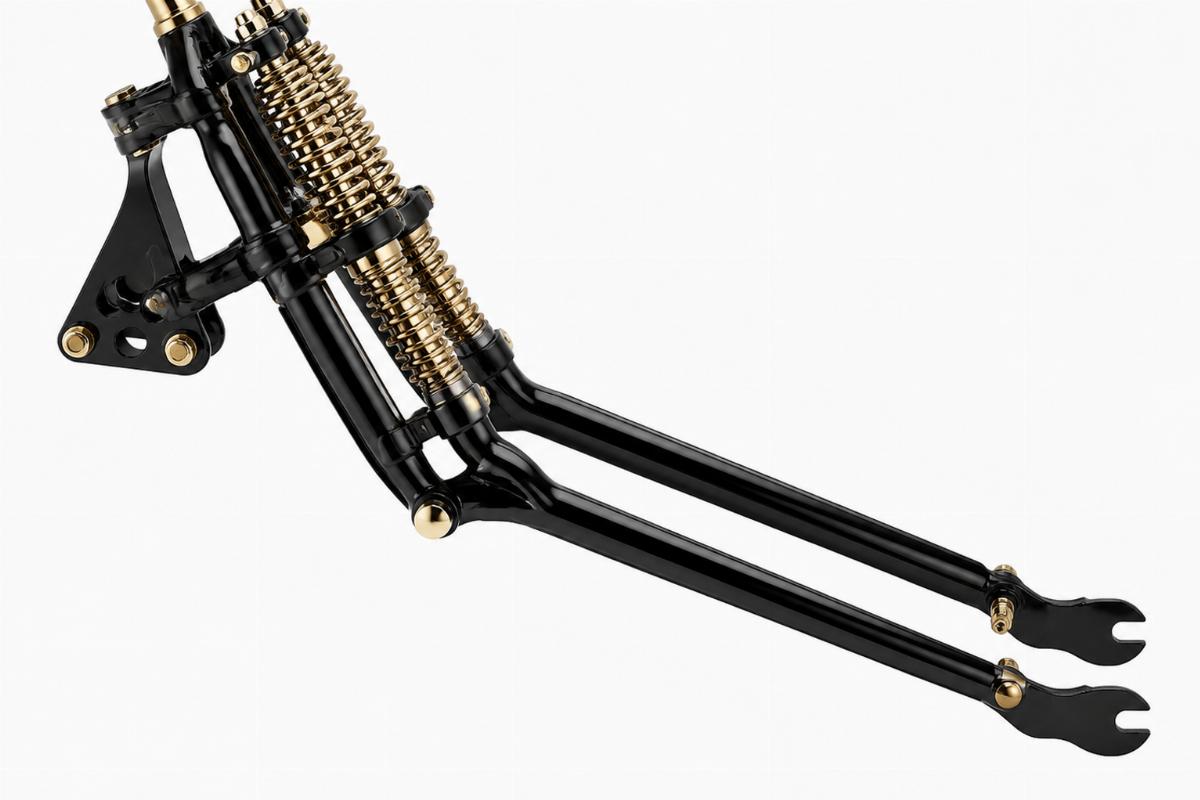

Black 20" springer fork kit with brass plated accents side view

Verifying Triple Tree Width and Rake Impact

When ordering a 20″ springer fork kit, the overall length directly alters the front-end stance and steering geometry. You must confirm the triple tree width matches your specific frame neck to avoid binding or misalignment. Checking the rake impact ensures the front fender and tire clear the chassis properly at full compression.

Confirming Riser Compatibility and Thread Pitch

The rear fork legs on this 20″ springer fork kit are drilled and tapped 3/4″-18 specifically for post riser mounting. You need to verify that your chosen risers feature a matching 3/4″-18 stud to thread directly into the top of the legs. Using the wrong thread pitch will strip the tapped holes and ruin the assembly.

Understanding the 20-Inch Over-Stock Dimensions

This 20″ springer fork kit extends the front end significantly beyond stock length, which dictates the ride height and visual profile of the custom build. The black finish with brass plated rockers, springs, top tree, and axle nuts provides a specific aesthetic that must be matched against other front-end components. The 3/4″-18 thread on the rear fork legs is a critical mounting dimension that determines which handlebar risers can be safely secured.

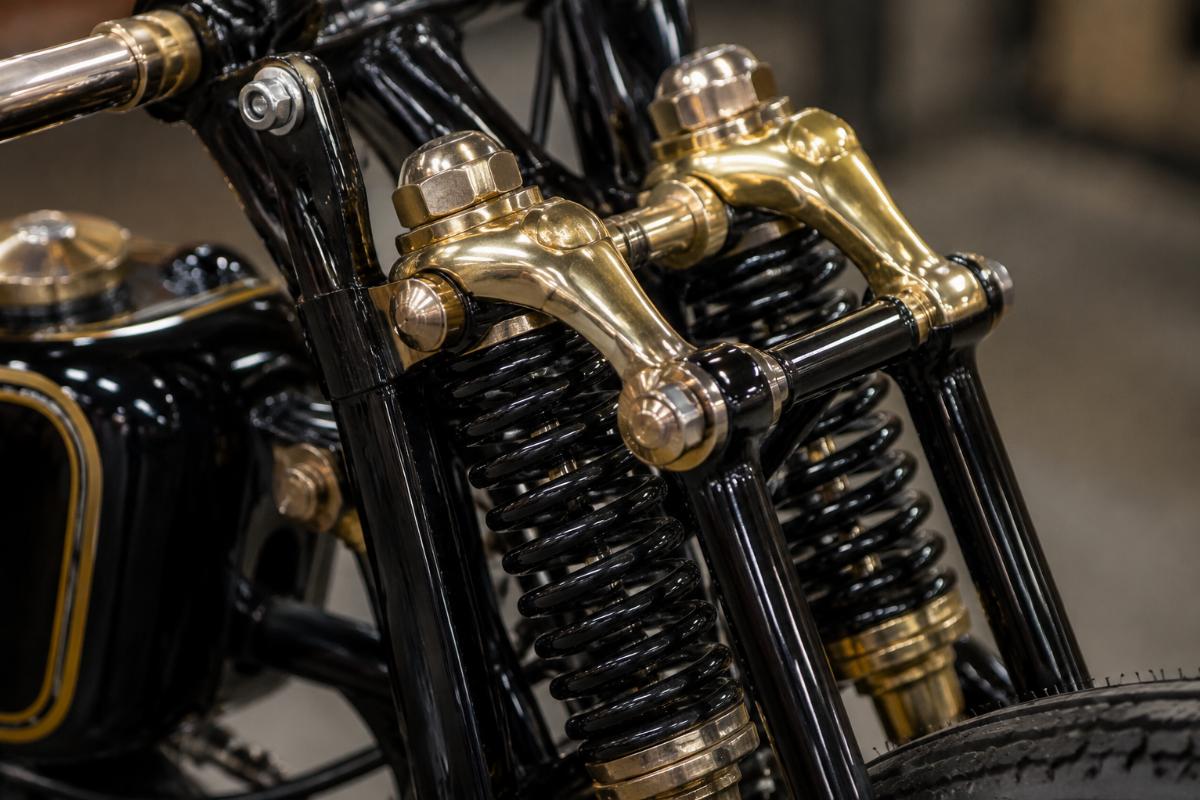

Close up of brass plated rockers and springs on black springer fork

The Hidden Cost of Ignoring Frame Neck Dimensions

Skipping the tree spacing verification often leads to the fork binding against the frame stops, leaving the bike stranded on the lift. If the 20″ over-stock length alters the rake too severely, the front tire will rub against the fender or chassis during turns. Furthermore, mismatched riser threads mean the handlebars cannot be mounted, forcing a complete teardown to re-tap or replace the legs.

Sourcing Custom Springers with Dimensional Certainty

We manufacture our own springer front ends, allowing us to control the 20″ over-stock length and verify tree spacing directly against your frame specs. Our front-end depth means you get complete assemblies with all necessary hardware in one catalogue, rather than sourcing pieces from multiple vendors. We offer this specific black finish with brass plated accents and can provide finish specifications to ensure batch consistency. You can order a single 20″ springer fork kit for a custom build without meeting high minimum order quantities.

Documentation Provided with Your Order

  • Fitment sheet stating applicable platforms and year ranges for the 20″ length
  • Key dimensions including fork length over stock and 3/4″-18 thread specs
  • Finish specification detailing the black and brass plated components
  • Quality inspection record confirming tree spacing and leg threading
  • Packing photographs showing the complete kit contents before dispatch

Receiving and Inspecting the Fork Kit

  • Verify the rear fork legs include the 3/4″-18 tapped holes for riser mounting
  • Check the black finish and brass plated rockers for any shipping damage
  • Confirm the top tree and axle nuts match the included hardware list
  • Measure the 20″ overall length to ensure it matches your frame requirements
  • Store the kit in a dry environment to protect the brass plated accents

Requesting a Fitment Check for Your Build

Send your exact model and year, along with a photograph of your frame neck, to confirm the 20″ springer fork kit will clear your chassis. Provide the handlebar riser stud size to verify the 3/4″-18 thread compatibility before we finalize the quotation. Let us know if you need a sample for fitment confirmation before committing to the full assembly.

Frequently Asked Questions

Q: How do I measure my frame to confirm a 20″ over stock springer kit will fit?

A: Measure the distance between your frame neck stops and the width of the steering stem to ensure the top tree on the 20″ springer fork kit will not bind. You must also calculate the rake impact to guarantee the front tire clears the fender at full compression.

Q: What components are included in the springer fork kit?

A: The kit includes the rear fork legs, rockers, springs, top tree, and axle nuts. The legs feature a black finish, while the rockers, springs, top tree, and axle nuts are brass plated for a contrasting custom look.

Q: How do I verify the 3/4″-18 thread will match my chosen post risers?

A: Check the specifications of your post risers to confirm they use a 3/4″-18 stud that threads directly into the top of the rear fork legs. If your risers use a different thread pitch or a through-bolt design, they will not fit these tapped holes.

Q: Can I order a single springer fork kit for a custom build?

A: Yes, we support a single piece minimum order, allowing custom builders and shops to purchase exactly one 20″ springer fork kit for a specific project without being blocked by bulk quantity requirements.

Q: How is finish consistency maintained between chrome and black batches?

A: We provide a detailed finish specification and a quality inspection record with your order, documenting the exact black and brass plated treatment applied to this batch so you can match it against other front-end components.

Surface Options

Four Finishes. One Factory.

Consistent tone across fork, handlebar and sissy bar -- order as a coordinated set.
