20″ Black Spring Fork Assembly for Sportster 1957-1978

Spring Fork Assembly for Sportster 1957-1978, 20″ Black

  • Verify the 1″ stem diameter and conversion neck cup kit requirement, as overlooking the stem size or frame neck mismatch will prevent proper installation on early Sportster frames.
  • Fitment is confirmed against platform and year range, with cross-reference sheets provided and single piece orders accepted.
Fitment Confirmed
Before Quote
Factory Direct Since 2003
Finish 4 Surface
Options
OEM/ODM Custom
Available

Surface Finish

Triple chrome plating -- maximum shine and corrosion resistance.

Technical Data

Specifications

Category custom springers
Fits Big Twin 1984-Up
Finish Options Chrome · Black · Copper · Raw
OEM / ODM Available -- contact factory
MOQ Flexible -- single pieces welcome
Packaging Individual carton, foam-protected
Lead Time Stock: 3-7 days · Custom: 15-30 days

Compatibility

Fitment Chart

Model / Series Years Fit
Big Twin 1984-Up 1957 - 1978

Not sure it fits your bike?

Ask for fitment check

Full Details

Product Description

Fitment-Verified Springer Assembly — Independent production of custom springer front ends ensures the 1″ stem and 3/4″ axle spacing are checked against your specific frame requirements before dispatch.

Product Specification

Parameter Value
Part Type Spring Fork Assembly
Finish Black
Length 20″
Stem Diameter 1″
Axle Acceptance 3/4″

Fitment

Platform Year Range Notes
Sportster 1957-1978 Requires conversion neck cup kit to allow 1″ stem fork installation on 1957-1978 Sportster models.

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Why Stem Diameter Dictates Your Springer Conversion

A 20″ spring fork assembly for sportster will not drop in if the 1″ stem mismatches your triple tree.

Over-stock springer forks often lack clear overall length or stem dimension statements, making it hard to judge if the 20″ length and 1″ stem will match your custom build geometry. When a shop orders a fork based solely on the model name without verifying the stem size, the part arrives but cannot be mounted. This 20″ spring fork assembly for sportster is built with a 1″ stem, which requires a specific conversion neck cup kit for these early frames.

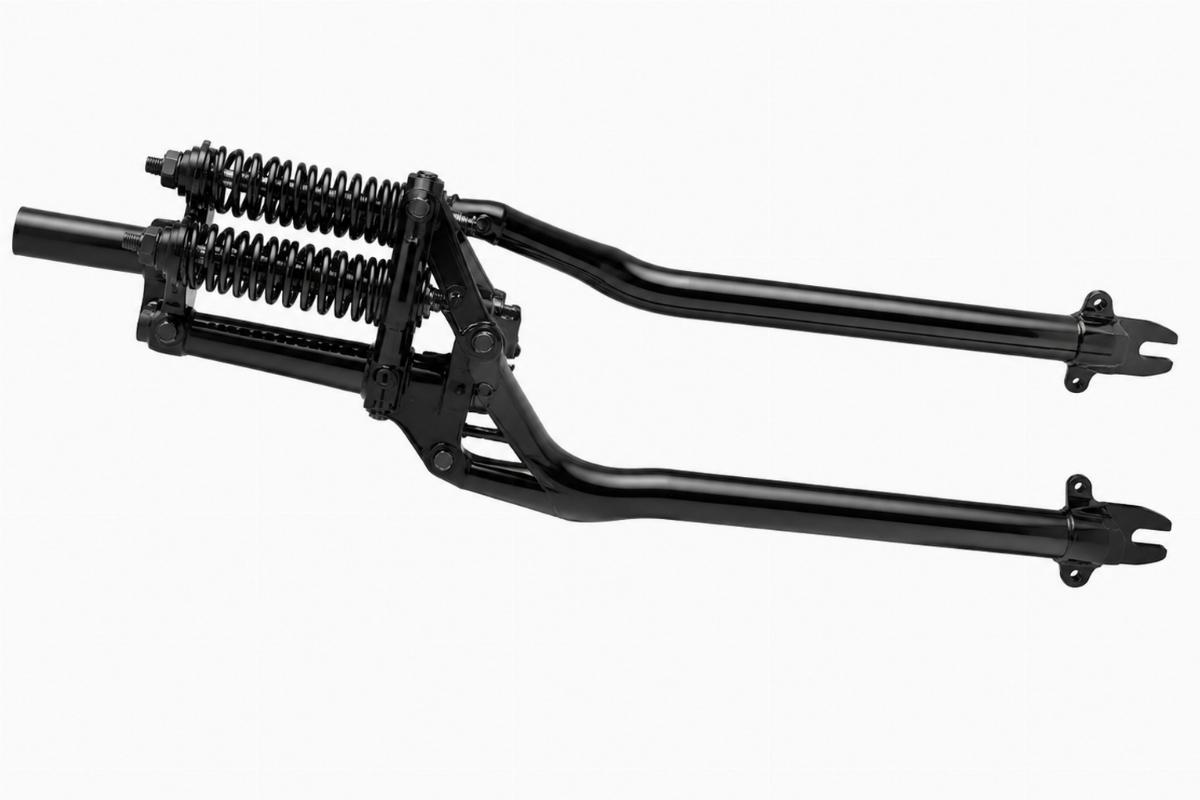

20" spring fork assembly for sportster in black finish side view

Verifying the 1″ Stem Requirement for Early Frames

When planning a custom build with a 20″ spring fork assembly for sportster, the neck setup is the first checkpoint. The 1957-1978 models originally utilized different stem dimensions compared to later generations. Confirming that your triple tree accepts a 1″ stem prevents the fork from sitting at an incorrect angle or failing to seat properly. If your current neck cup is sized differently, sourcing the matching conversion kit is mandatory before this 20″ spring fork assembly for sportster can be installed.

Checking Axle Spacing and Wheel Compatibility

The 3/4″ axle acceptance on this assembly directly impacts your front wheel choice. Measuring the spacing between your fork legs ensures the axle will pass through cleanly without binding. A mismatch here forces builders to swap wheels or modify hardware, delaying the build. Verifying the 3/4″ requirement against your hub width guarantees the 20″ spring fork assembly for sportster aligns perfectly with your rolling chassis.

Interpreting the 20″ Overall Length

The 20″ overall length alters the ride height and steering geometry of the motorcycle. Longer forks change the rake and trail, affecting how the bike handles at low and high speeds. Builders must calculate whether this 20″ dimension achieves the desired stance without compromising the steering head angle. Understanding how overall length interacts with frame geometry is essential before finalizing the 20″ spring fork assembly for sportster for your project.

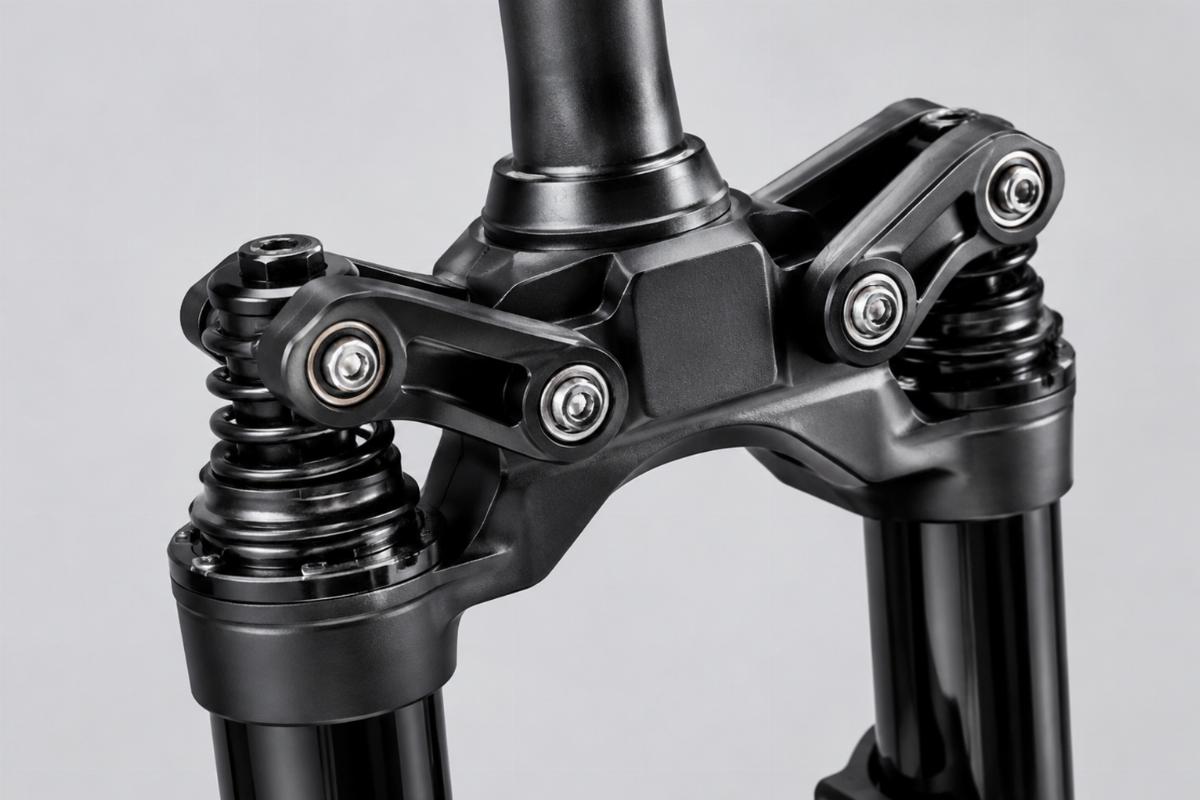

Black finish spring fork assembly detail showing rockers and stem

The Cost of Overlooking Frame Year Differences

Shipping a 1″ stem springer fork to a customer who only provided the model name without the year once resulted in a part that would not drop in. Later models required a completely different neck setup, leaving the bike stuck on the lift. When year ranges are ignored, shops face returned parts and idle bays. Confirming the exact frame generation ensures the 20″ spring fork assembly for sportster matches the physical constraints of the 1957-1978 chassis.

Sourcing Directly from the Front-End Specialist

We manufacture these springer front ends in our own facility, allowing us to control the black finish consistency across batches. This depth in front-end production means the 20″ length, 1″ stem, and rockers are fully assembled and verified before quotation. We cross-reference fitment against platform families and year ranges to eliminate guesswork. Whether you need a single unit for a custom build or multiple assemblies for inventory, we support a minimum order from one piece.

Documentation Provided with Your Shipment

  • Fitment sheet stating the 1957-1978 Sportster platform and conversion kit requirement.
  • Key dimensions sheet detailing the 20″ length, 1″ stem, and 3/4″ axle spacing.
  • Finish specification document for the black coating applied to this assembly.
  • Quality inspection record verifying the rockers and stem alignment.
  • Warranty terms covering the front-end assembly and hardware.

Pre-Installation Checks for Your Shop

  • Verify the 1″ stem diameter matches your triple tree before attempting installation.
  • Measure the 3/4″ axle spacing against your front wheel hub to ensure clearance.
  • Inspect the black finish on the 20″ fork tubes and rockers for any shipping damage.
  • Confirm the conversion neck cup kit is on hand, as it is required for 1957-1978 models.
  • Have a qualified technician inspect the steering head bearings before mounting the assembly.
  • Store the 20″ spring fork assembly in a dry environment to protect the black finish.

Requesting a Fitment Check and Quote

Send your model and year for a fitment check to confirm this 20″ spring fork assembly for sportster matches your build. Provide your current stem diameter, axle size, and a photo of your triple tree if the year is unknown. Let us know if you require a single sample for test fitting before placing a larger order for your shop.

Frequently Asked Questions

Q: How do I confirm if my 1957-1978 Sportster can fit this 1″ stem fork?

A: Measure your existing steering stem diameter or check your triple tree specifications. This 20″ spring fork assembly for sportster features a 1″ stem, which requires a conversion neck cup kit to install correctly on 1957-1978 models. Verifying this dimension ensures the fork will seat properly in your frame.

Q: What additional parts are needed to install this spring fork on a Sportster?

A: You will need a conversion neck cup kit specifically designed to accommodate a 1″ stem on 1957-1978 models. Additionally, ensure your front wheel hub is compatible with the 3/4″ axle spacing provided by this assembly. These parts are necessary to complete the installation.

Q: How do I measure stem diameter and axle size for compatibility?

A: Use calipers to measure the diameter of your current steering stem to confirm it requires a 1″ replacement. For the axle, measure the distance between the fork legs where the axle passes through, ensuring it matches the 3/4″ requirement of this 20″ spring fork assembly for sportster.

Q: Can I order a single sample to test fitment before bulk purchasing?

A: Yes, we support a minimum order from one piece. Ordering a single sample allows you to verify the 20″ length, 1″ stem, and black finish against your specific frame and triple tree setup before committing to a larger quantity for your inventory or multiple builds.

Surface Options

Four Finishes. One Factory.

Consistent tone across fork, handlebar and sissy bar -- order as a coordinated set.
