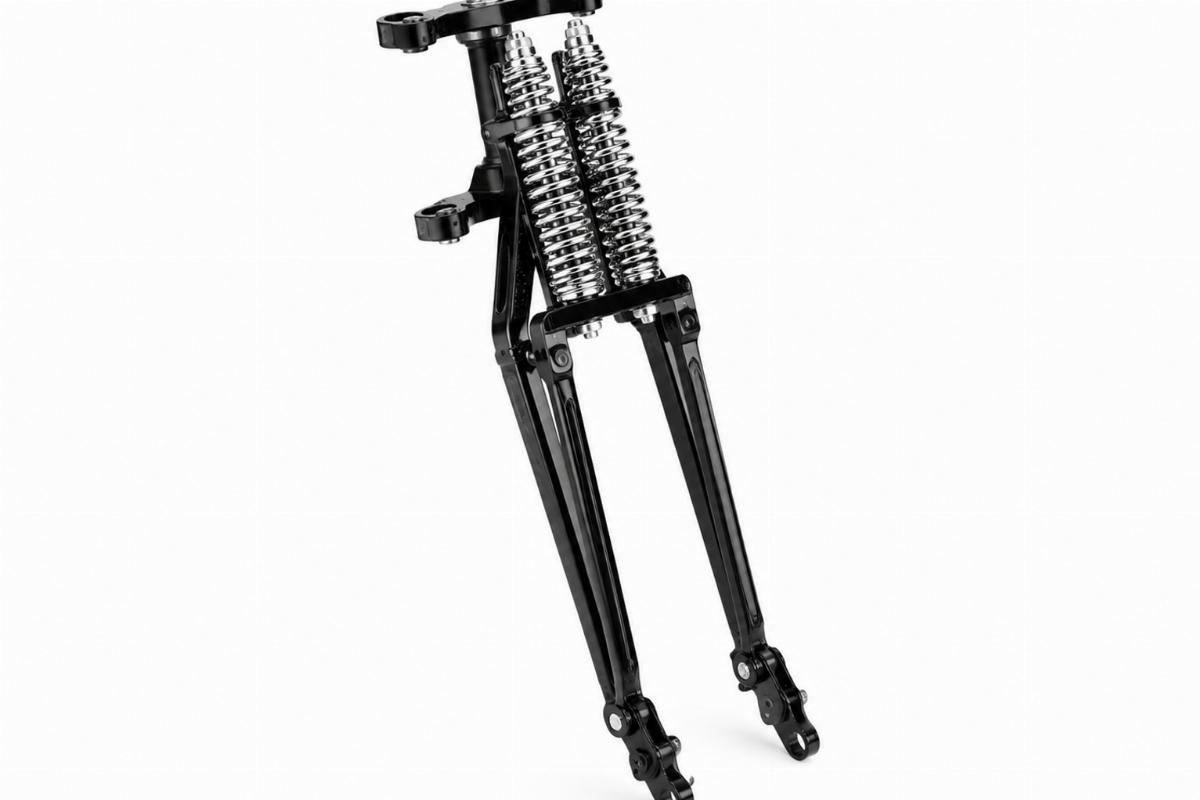

Black Custom Springer Fork Assembly 6″ Width – Fitment Checked
Consistent Finish Verification — Every custom narrow springer fork assembly undergoes batch matching to ensure the black body and chrome springs align visually before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Custom Springer Fork Assembly |
| Finish | Black with chrome springs |
| Stem diameter | 1″ |
| Axle outer diameter | 3/4″ |
| Width between rockers | 6″ |
| Leg thread | 3/4″-18 |
| Top triple tree | Inline with standard stem and tube locations |

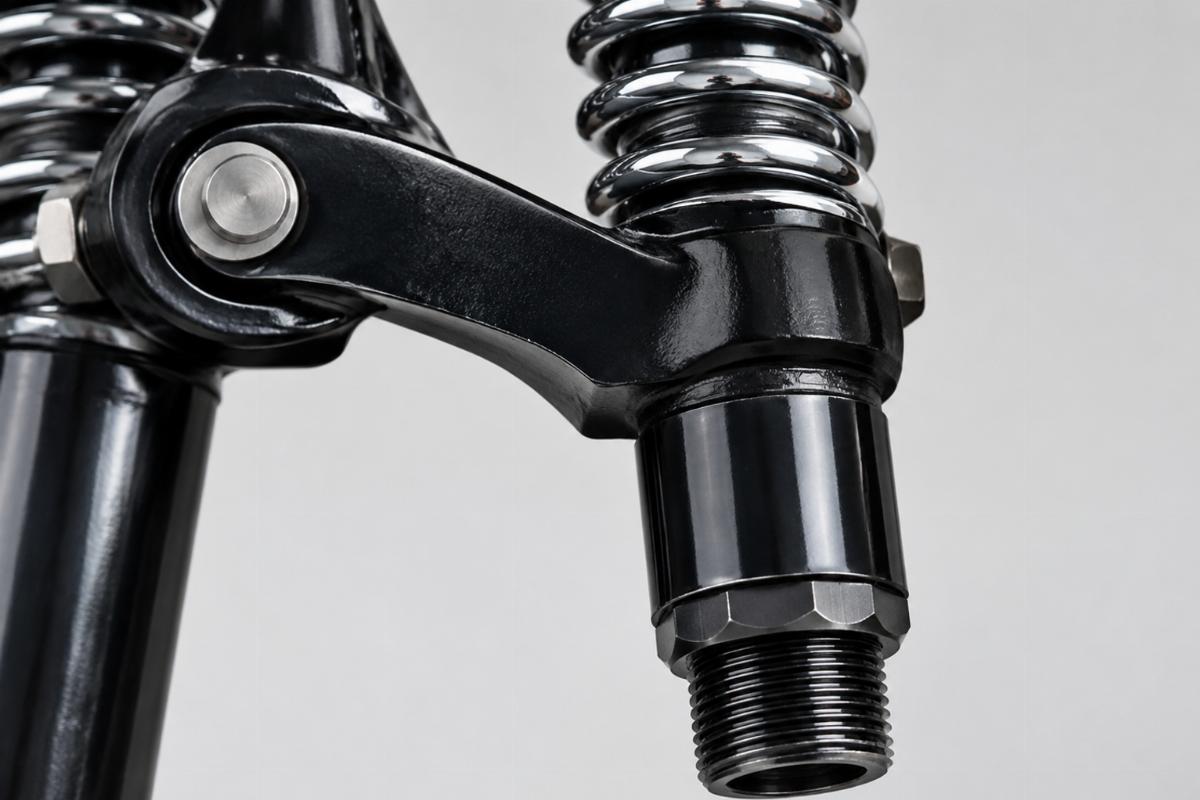

| Left side rocker | Offset |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Not stated in source | Confirm with model and year | Verify 6″ rocker width and 3/4″ axle for your specific frame and wheel setup. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Resolving Rocker Width Ambiguity in a Custom Narrow Springer Fork Assembly
A precise 6-inch width between rockers and an offset left rocker eliminate guesswork for brake caliper clearance.
Builders often order based on vague descriptions without checking actual rocker spacing. When the spacing is off, the brake caliper simply will not clear, leaving the bike stuck on the lift. Verifying the exact 6-inch measurement and 3/4-inch axle details prevents this costly stall [NEED_CITE: frame geometry and brake clearance specifications by build type].
Confirming Triple Tree Alignment for Inline Handlebars
When selecting a custom narrow springer fork assembly, the top triple tree must match your steering stem requirements. This unit features an inline layout with standard stem and tube locations, ensuring compatibility with typical dog bone or stock springer handlebars. Misalignment here forces builders to source custom trees, delaying the build timeline significantly.
Accommodating Brake Systems with an Offset Rocker
The left side rocker on this custom narrow springer fork assembly is specifically offset to provide necessary space for brake system applications. Standard straight rockers often interfere with caliper mounting on narrower setups. This offset design maintains structural integrity while solving the clearance issue that halts many front-end builds [NEED_CITE: brake caliper mounting clearances for custom springer setups].
Interpreting Stem and Axle Dimensions for Frame Matching
The 1-inch stem diameter dictates the steering head bearing and cup compatibility, while the 3/4-inch axle outer diameter determines wheel hub fitment. If the stem is too large, it will not seat in the neck; if the axle is mismatched, the wheel cannot mount. The legs are drilled and tapped 3/4″-18, providing direct mounting points for risers without requiring additional fabrication or welding.
The Hidden Cost of Unverified Front-End Dimensions
Ordering a front end without confirming the rocker width often results in the wheel and fender assembly failing to fit between the legs. A mismatched 3/4-inch axle means the wheel hub must be machined or replaced, adding days to the project. Furthermore, inconsistent finish batches between the black legs and chrome springs become glaringly obvious once assembled side by side, forcing a complete reorder [NEED_CITE: batch finish consistency standards in aftermarket chrome and black coatings].
Sourcing Front-End Depth with Single-Piece Flexibility
We manufacture this custom narrow springer fork assembly in-house, controlling the entire front-end production process from raw materials to final finishing. This direct control allows us to offer a one-piece minimum order, supporting custom builders working on a single project without imposing bulk purchasing barriers. Every unit is checked against platform dimensions before quotation to ensure the 6-inch rocker width matches your specific requirements.
Included Documentation for Build Verification
- Fitment sheet listing applicable platforms and confirming the 6-inch rocker width
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions detailing the 1-inch stem and 3/4-inch axle outer diameter
- Finish specification confirming black body and chrome spring batch matching
- Quality inspection record verifying the offset left rocker and 3/4″-18 leg threads
Pre-Installation Checks for Your Springer Build
- Verify the 6-inch width between rockers matches your planned fender and wheel setup.
- Confirm the 1-inch stem diameter aligns with your steering neck bearing specifications.
- Check that the inline triple tree layout accepts your chosen handlebar risers.
- Inspect the black finish and chrome springs for batch consistency upon arrival.
- Ensure the offset left rocker provides adequate clearance for your specific brake caliper.
Requesting a Fitment Check for Your Build
Send your model and year, along with photographs or measurements of your current frame neck and wheel hub, to verify compatibility. We will confirm if the 1-inch stem and 3/4-inch axle match your requirements before processing the order. If you are building a custom bike and need to test the 6-inch rocker width first, we can arrange a sample supply for fitment confirmation.
Frequently Asked Questions
Q: How do I confirm if this custom narrow springer fork assembly fits my specific motorcycle?
A: You must verify the 1-inch stem diameter and 3/4-inch axle outer diameter against your frame’s steering neck and wheel hub. Additionally, measure the space between your frame legs to ensure the 6-inch rocker width accommodates your planned wheel and fender setup without interference.
Q: What key dimensions should I measure to ensure the rocker width fits my wheel?
A: Measure the inner distance between your frame legs at the axle height and compare it to the 6-inch width between rockers. Also, check the wheel hub width to ensure it aligns with the 3/4-inch axle outer diameter and the offset left rocker for brake caliper clearance.
Q: Can I order a single assembly for a custom build without a high minimum order?
A: Yes, we support a one-piece minimum order specifically for custom builders and repair shops working on individual projects. You do not need to meet bulk purchasing thresholds to procure this custom narrow springer fork assembly for a single bike build.
Q: Does the assembly include fittings to accept standard springer components?
A: The inline top triple tree features standard stem and tube locations to accept typical springer components and headlamp brackets. The legs are pre-drilled and tapped 3/4″-18, providing ready-to-use mounting points for risers and other front-end hardware without additional machining.
