Aftermarket Replacement Spring Fork Assembly for Custom Springer

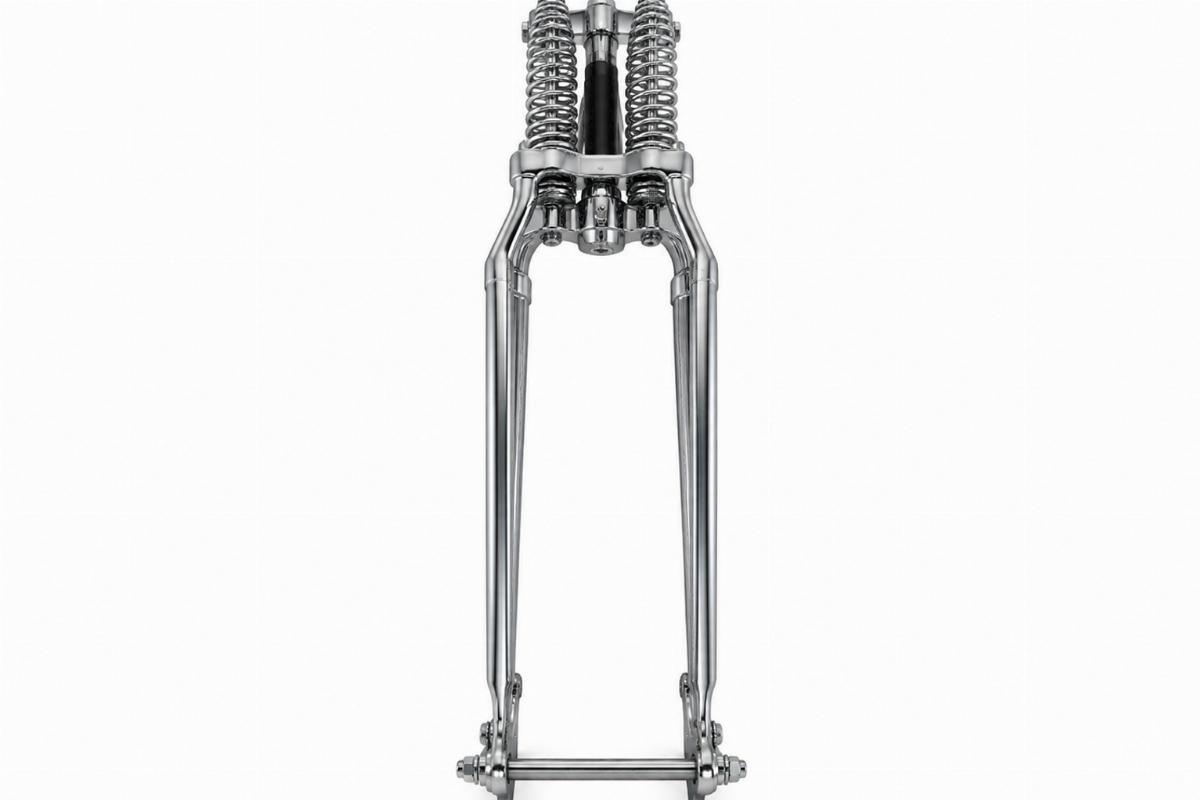

Front-End Depth Verified — Complete 18″ narrow spring fork assembly for custom springer builds includes triple tree and 3/4″ axle, checked against frame spacing before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Custom Springer Fork Assembly |
| Finish | Chrome |
| Length | 18″ |
| Stem Diameter | 1″ |
| Axle Outer Diameter | 3/4″ |
| Width Between Rockers | 6″ |
| Leg Thread | 3/4″-18 |
| Side | Left side rocker is offset |

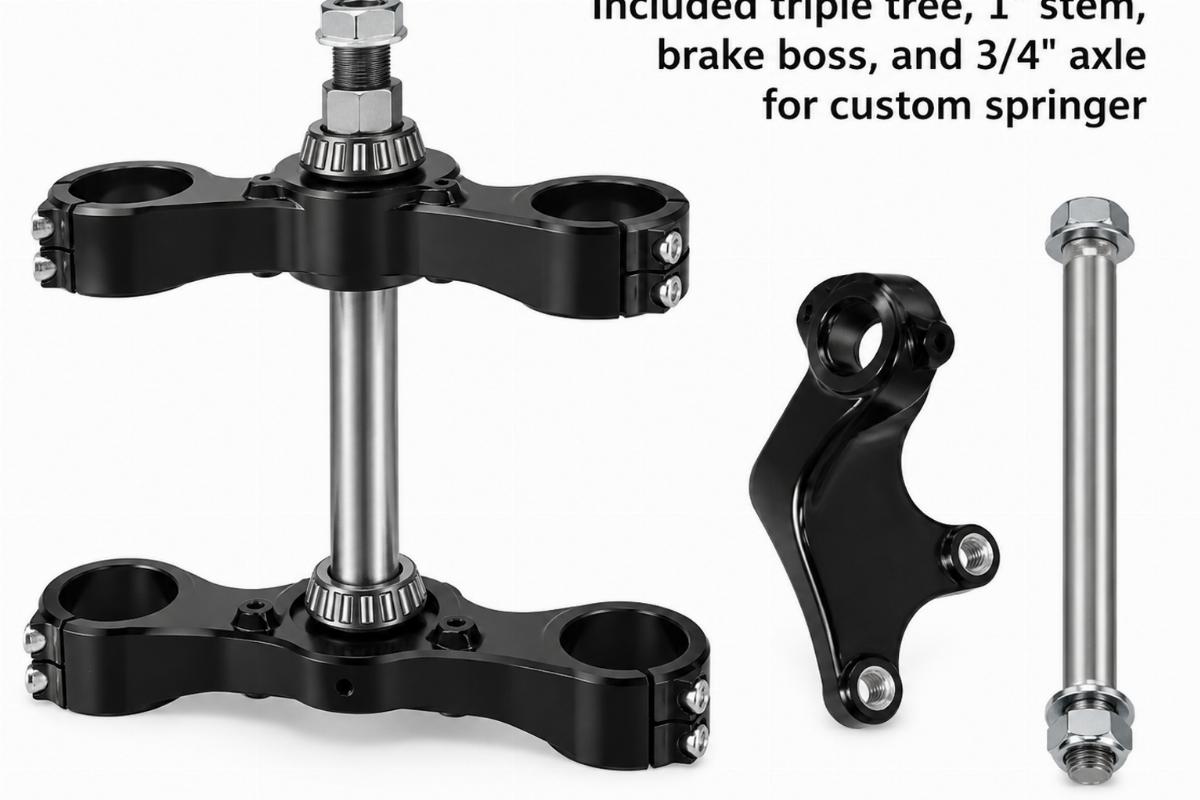

| Kit Contents | Triple tree, 1″ stem, brake boss, 3/4″ axle, standard fittings |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom Springer | Confirm with model and year | Accepts dog bone or stock Spring Fork handlebars; accepts standard Spring Fork components, headlamp bracket, shock assembly or ride control. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Width and Offset Dictate Your Build
When sourcing an 18″ narrow spring fork assembly for custom springer projects, the 6″ rocker width and left-side offset are the primary factors that determine physical clearance. A mismatch here means the fork will not align with your custom tank or brake rotor, forcing a return rather than a build. Builders often overlook the offset rocker, only to find the caliper clashes during final assembly [NEED_CITE: frame geometry and brake clearance specifications by builder].
Verifying Triple Tree and Stem Alignment
The 1″ stem diameter on this 18″ narrow spring fork assembly for custom springer applications must match your frame’s neck bearing and triple tree spacing exactly. If the stem is too large, it will not seat; if too small, steering becomes unsafe. Always measure your existing neck cup or consult your frame builder’s specifications to confirm the 1″ requirement before ordering.
Clearing the Brake Caliper with Offset Rockers
The left side rocker on this 18″ narrow spring fork assembly for custom springer setups is intentionally offset to provide space for brake systems. This specific design prevents the rocker from interfering with your chosen caliper and rotor combination. Failing to account for this offset can result in the rocker rubbing against the brake components during suspension compression [NEED_CITE: suspension travel and brake rotor clearance tolerances].
Decoding the Core Dimensions
The 18″ overall length sets the visual stance and affects the front-end geometry, altering rake and trail compared to stock setups. The 6″ width between rockers ensures a narrow profile, essential for fitting within custom fuel tanks. The 3/4″-18 leg threads allow for direct mounting of your preferred risers, while the 3/4″ axle outer diameter must perfectly match your front wheel hub spacing to ensure proper bearing alignment.
The Hidden Cost of Incorrect Fitment
Ordering a fork without confirming the 6″ rocker width can leave your custom tank unusable if the stance is too wide. Similarly, ignoring the left side offset might mean your brake caliper requires expensive custom brackets to clear the rocker leg. When parts arrive without a verified fitment sheet, shops spend hours measuring and modifying instead of assembling, delaying the entire project timeline [NEED_CITE: aftermarket part return rates due to dimension mismatches].
Sourcing from a Front-End Specialist
We manufacture our springer front ends in-house, ensuring the chrome finish on this 18″ narrow spring fork assembly for custom springer builds maintains batch consistency. Our catalog provides front-end depth, offering complete assemblies alongside individual early springer and hydraulic fork parts under one account. We verify fitment against your specific platform and year range before quotation, cross-referencing numbers for identification. You can order a single assembly for a custom build without minimum order quantities blocking your shop.
Documentation Included with Your Order
- Fitment sheet stating applicable platforms and year ranges for this 18″ fork
- Key dimensions including 6″ rocker width and 1″ stem diameter
- Finish specification detailing the chrome batch consistency
- Quality inspection record verifying the 3/4″ axle and offset rocker
- Warranty terms covering the triple tree and standard fittings
Checks to Perform Before Installation
- Verify the 1″ stem diameter matches your frame’s steering neck bearing.
- Measure the 6″ width between rockers against your custom fuel tank clearance.
- Confirm the left side offset clears your specific brake caliper and rotor.
- Check that the 3/4″ axle outer diameter matches your front wheel hub.
- Ensure the 3/4″-18 leg threads align with your chosen handlebar risers.
Requesting a Fitment Check
Send your model and year, along with a photograph or measurements of your current steering neck and front hub, to verify if this 18″ narrow spring fork assembly for custom springer applications is the correct match. Let us know your required finish and if you need a sample for physical fitment confirmation before placing a bulk order for your shop.
