Fitment Checked 20″ Narrow Springer Fork Assembly Chrome
Front-end depth verified — This 20″ narrow springer fork assembly is produced in-house alongside multiple over-stock lengths, ensuring consistent triple tree spacing and rocker alignment for custom builds.
Product Specification
Part Type | Springer Fork Assembly
| Parameter | Value |
|---|---|
| Finish | Chrome |
| Length | 20″ |
| Stem Diameter | 1″ |
| Axle Outer Diameter | 3/4″ |
| Width Between Rockers | 6″ |
| Leg Thread | 3/4″-18 |
| Top Triple Tree Design | Inline with standard stem and tube locations |
| Left Side Rocker | Offset to allow space for brake system applications |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Confirm with model and year | Confirm with model and year | Accepts dog bone or stock Spring Fork handlebars; accepts original Spring Fork components, headlamp bracket, shock assembly or ride control as it includes original fittings. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Verifying Rocker Width and Brake Clearance Before Ordering
Custom springer listings often omit overall length and rocker width, making it difficult to judge ride height and steering geometry before ordering.
A 6″ rocker width requires exact brake boss spacing. When sourcing a 20″ narrow springer fork assembly, builders frequently assume the left-side rocker will clear a standard caliper. I have seen assemblies arrive at the shop only to bind against the leg during test assembly because the left-side offset was not accounted for. Verifying the offset and brake boss spacing against your specific hub and caliper setup prevents the front end from being sidelined on the workbench [NEED_CITE: frame geometry and brake boss spacing variations across custom builds].
Checking Inline Triple Tree Stem Alignment
The inline top triple tree on this 20″ narrow springer fork assembly uses standard stem and tube locations to maintain steering geometry. You must verify that the 1″ stem diameter matches your steering neck bearing inner race. If the stem is too loose or too tight, it alters the rake and trail, affecting how the front end tracks down the road.

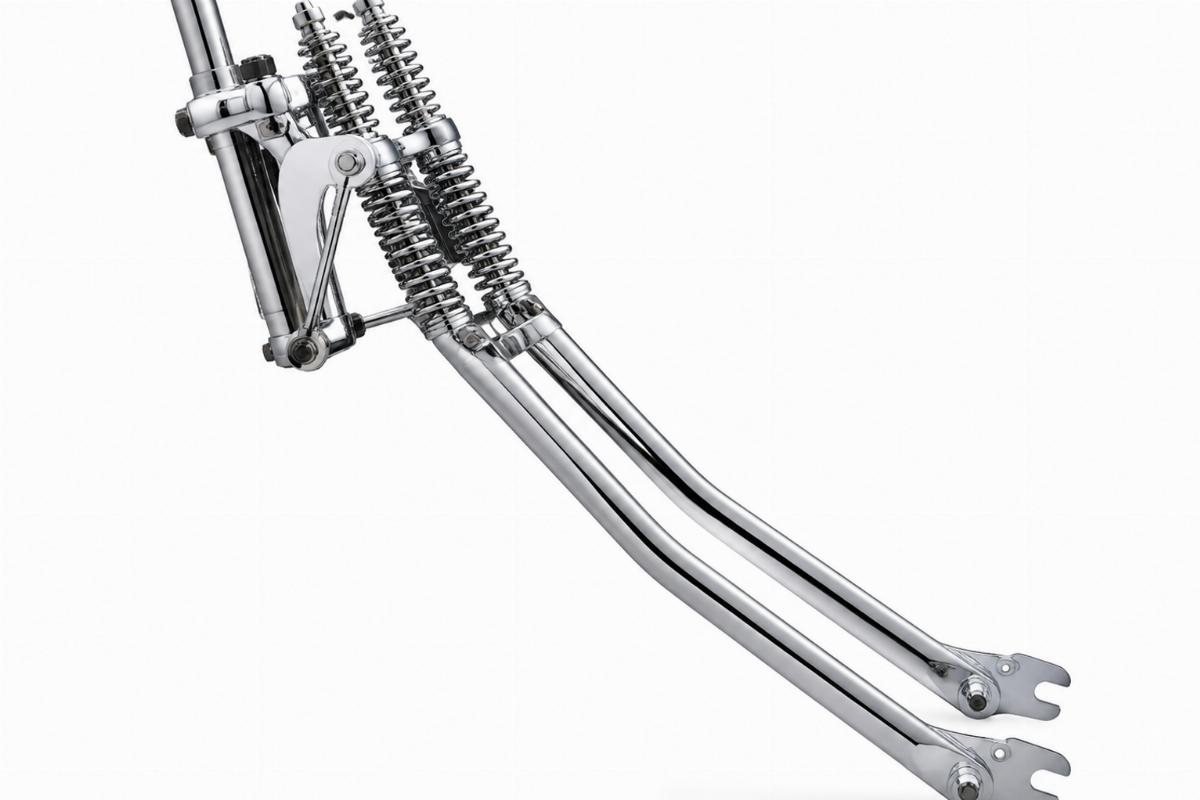

Evaluating the Left Side Rocker Offset
The left side rocker is specifically offset to provide clearance for brake system installations. This design choice is critical when mounting a caliper on a narrow front end. Always measure the distance from the offset rocker face to the leg to ensure your chosen brake setup will not rub during suspension compression [NEED_CITE: brake caliper clearance tolerances for narrow springer setups].
Interpreting Key Dimensions for Custom Builds

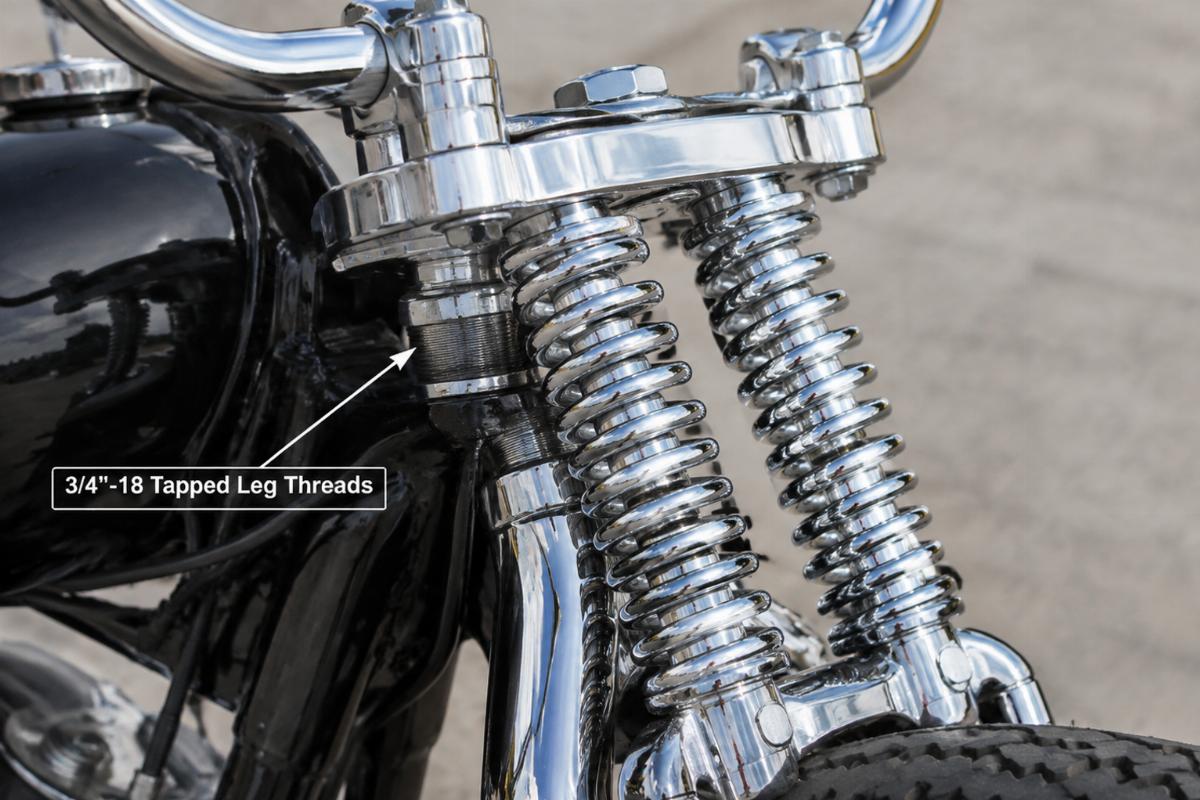

The 20″ overall length dictates the ride height and visual proportion of the front end. The 3/4″ axle outer diameter must match your front hub spacing, while the 3/4″-18 leg threads are drilled and tapped specifically for mounting risers. The 6″ width between rockers determines tire and fender clearance; a narrower width requires a slimmer front tire to prevent rubbing against the legs during steering lock.
The Hidden Cost of Incorrect Front End Dimensions
Ordering a front end without confirming the stem diameter or axle size often leads to a bike sitting on a lift while adapters are machined or parts are returned. If the 6″ rocker width is too narrow for your tire, you cannot simply adjust it; the entire assembly must be swapped. Misidentified dimensions mean wasted labor hours and delayed build timelines, especially when the error is only discovered after the wheel is mounted [NEED_CITE: labor hours lost to front end fitment corrections in custom shops].
Sourcing from a Dedicated Front End Facility
This 20″ narrow springer fork assembly is manufactured in our own facility, meaning the chrome finish and rocker offsets are controlled under one warranty. We offer this front end with a minimum order of one piece, supporting shops building a single custom bike without forcing bulk purchases. Every assembly is measured for left-side rocker offset and brake boss spacing before dispatch to prevent caliper binding. We also provide a fitment sheet confirming the 1″ stem and 3/4″ axle dimensions against your stated platform.
Documentation Provided With Your Shipment
- Fitment sheet stating applicable platforms and year ranges for this 20″ assembly
- Key dimensions including 20″ fork length, 6″ rocker width, and 1″ stem diameter
- Chrome finish specification and quality inspection record for the front end
- Cross-reference sheet with OEM numbers marked reference only for identification
- Packing photographs showing the inline triple tree and offset rocker details
Receipt and Pre-Installation Verification Checklist
- Verify the 1″ stem diameter and 3/4″ axle outer diameter match your steering neck and hub
- Measure the 6″ distance between rockers to confirm tire and fender clearance
- Check that the 3/4″-18 tapped holes on the legs align with your riser mounting needs
- Inspect the chrome finish on the legs and triple tree for any shipping damage or defects
- Ensure the left side rocker offset provides adequate clearance for your brake caliper
- Store the 20″ narrow springer fork assembly in a dry environment to prevent surface rust
Requesting a Fitment Check for Your Build
Send your model and year, along with a photograph or measurements of your steering neck and front hub, for a fitment check. Let us know if you require the chrome finish and whether you need a single sample assembly to verify the 6″ rocker width and left side offset on your frame before placing a bulk order.
Frequently Asked Questions
Q: How do I measure my steering neck to confirm the 1″ stem will fit?
A: Measure the inner diameter of your steering head cups and neck bearings where the stem sits. The 1″ stem diameter must match this inner race dimension exactly. If your current stem measures differently, this 20″ narrow springer fork assembly will require different bearings or steering head cups to fit correctly.
Q: What is the distance between the rockers and how does it affect tire clearance?
A: The width between the rockers on this assembly is 6″. This dimension dictates the maximum tire width and fender size you can run. A 6″ clearance requires a narrower front tire profile to prevent the tire from rubbing against the fork legs when the handlebars are turned to full lock.
Q: Does the left side offset rocker interfere with standard brake caliper mounts?
A: The left side rocker is intentionally offset to create space for brake system applications. This prevents the caliper from binding against the fork leg during suspension compression. You must still verify the exact offset distance against your specific caliper mount and rotor setup to ensure proper clearance.
Q: Can I order a single sample assembly to verify fitment on my custom build?
A: Yes, we support single-piece orders for custom builds and shops. You can order one 20″ narrow springer fork assembly to verify the 1″ stem, 3/4″ axle, and 6″ rocker width on your specific frame and hub before committing to larger quantities or multiple bikes.
Q: Are the original springer components and headlamp brackets compatible with this narrow assembly?
A: Yes, this assembly accepts dog bone or stock Spring Fork handlebars and includes original fittings. It is designed to accept original Spring Fork components, headlamp brackets, and shock assemblies, ensuring your existing hardware can be reused without modification.
