Black Springer Fork Assembly 26″ – Fitment Checked

Springer Fork Assembly 26″ Length 6″ Width — built with black finish and chrome springs for custom setups. Verify the 6″ rocker width and 1″ stem diameter match your frame clearance and steering neck to avoid geometry issues. Fitment is confirmed against your platform before quotation, with samples available and a minimum order of one piece.

Fitment Confirmed
Before Quote
Factory Direct Since 2003
Finish 4 Surface
Options
OEM/ODM Custom
Available

Surface Finish

Triple chrome plating -- maximum shine and corrosion resistance.

Technical Data

Specifications

Category custom springers
Fits Big Twin 1984-Up
Finish Options Chrome · Black · Copper · Raw
OEM / ODM Available -- contact factory
MOQ Flexible -- single pieces welcome
Packaging Individual carton, foam-protected
Lead Time Stock: 3-7 days · Custom: 15-30 days

Compatibility

Fitment Chart

Model / Series Years Fit
Big Twin 1984-Up See description

Not sure it fits your bike?

Ask for fitment check

Full Details

Product Description

Comprehensive Front-End Depth — This 26″ narrow springer fork assembly arrives as a complete unit with triple tree, brake boss, and axle, consolidating multiple over-stock lengths and finish options in a single catalogue.

Product Specification

Part Type | Springer Fork Assembly

Parameter Value
Finish Black with chrome springs
Overall Length 26″
Stem Diameter 1″
Axle Outer Diameter 3/4″
Width Between Rockers 6″
Leg Thread 3/4″-18
Top Triple Tree Design Inline with standard stem and tube locations
Kit Contents Triple tree, brake boss, axle, original fittings

Fitment Verification

Platform Year Range Notes
Custom builds Confirm with model and year Accepts standard springer components, headlamp bracket, shock assembly or ride control; left side rocker is offset to allow space for brake system applications.

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Verifying Rocker Width and Triple Tree Spacing for Custom Builds

Confirm the 6″ distance between rockers matches your frame and fender clearance requirements before ordering.

Narrow glide and custom springer builds often struggle with rocker width and triple tree spacing, making it critical to verify the 6″ measurement and inline tree design. When builders ignore the left-side rocker offset, which is specifically machined to clear the brake caliper, the caliper immediately rubs against the fork leg. This friction scratches the black finish and forces a complete teardown of the freshly assembled front end.

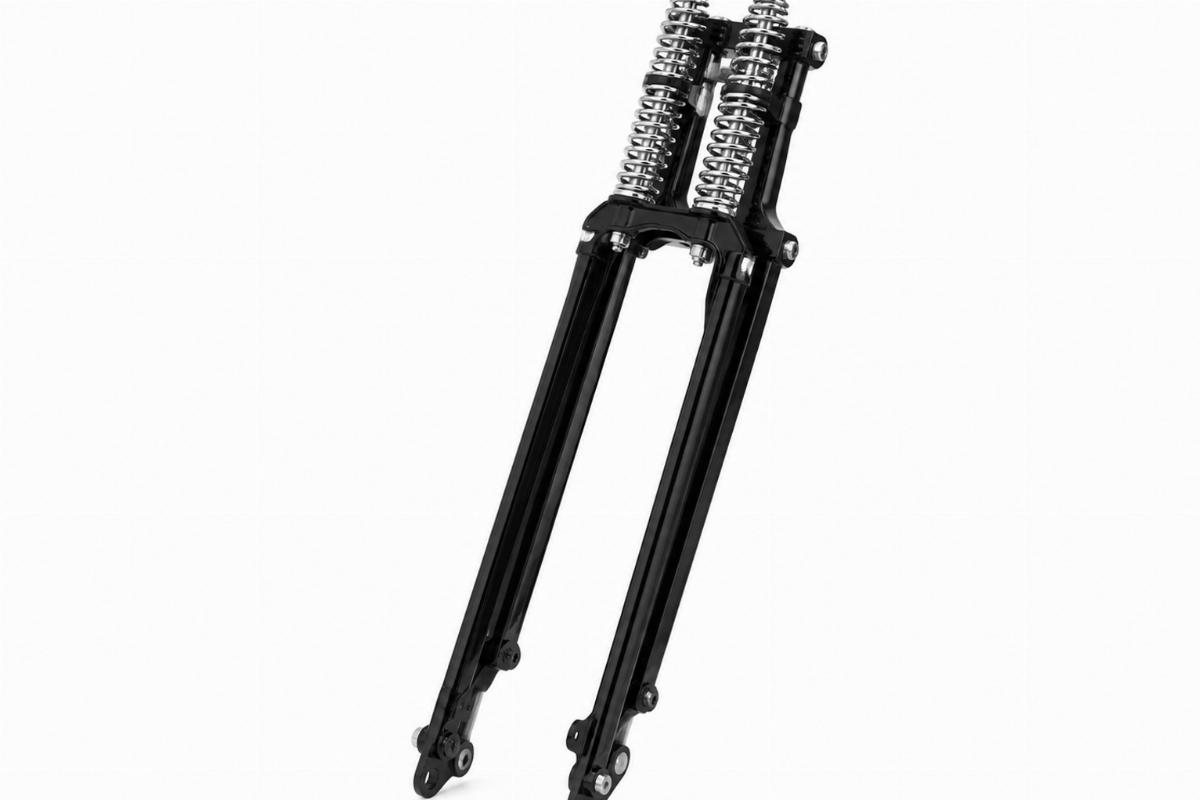

English alt with 26" narrow springer fork assembly and black finish with chrome springs

Checking Inline Triple Tree and Stem Alignment

The inline top triple tree with standard stem and tube locations dictates how the steering neck interfaces with your frame. You must confirm the 1″ stem diameter fits your specific steering neck bearings and handlebar setup. An incorrect stem size will prevent proper bearing seating, leading to steering play or binding.

Evaluating Brake Boss Clearance and Rocker Offset

The left side rocker offset on this 26″ narrow springer fork assembly is engineered to allow space for brake system applications. Verifying this offset against your specific brake caliper mounting ensures the fork leg maintains a clean profile. Overlooking this clearance dimension is a common cause of finish damage during initial assembly and ride-in.

Interpreting Key Dimensions for Riser Mounting

The legs are drilled and tapped 3/4″-18 for mounting risers, directly influencing your handlebar selection. This thread specification accepts dog bone or stock springer handlebars, but the 6″ width between rockers limits the maximum riser pullback. Measuring your desired handlebar width against this 6″ constraint prevents interference with the fuel tank or headlamp bracket during full steering lock.

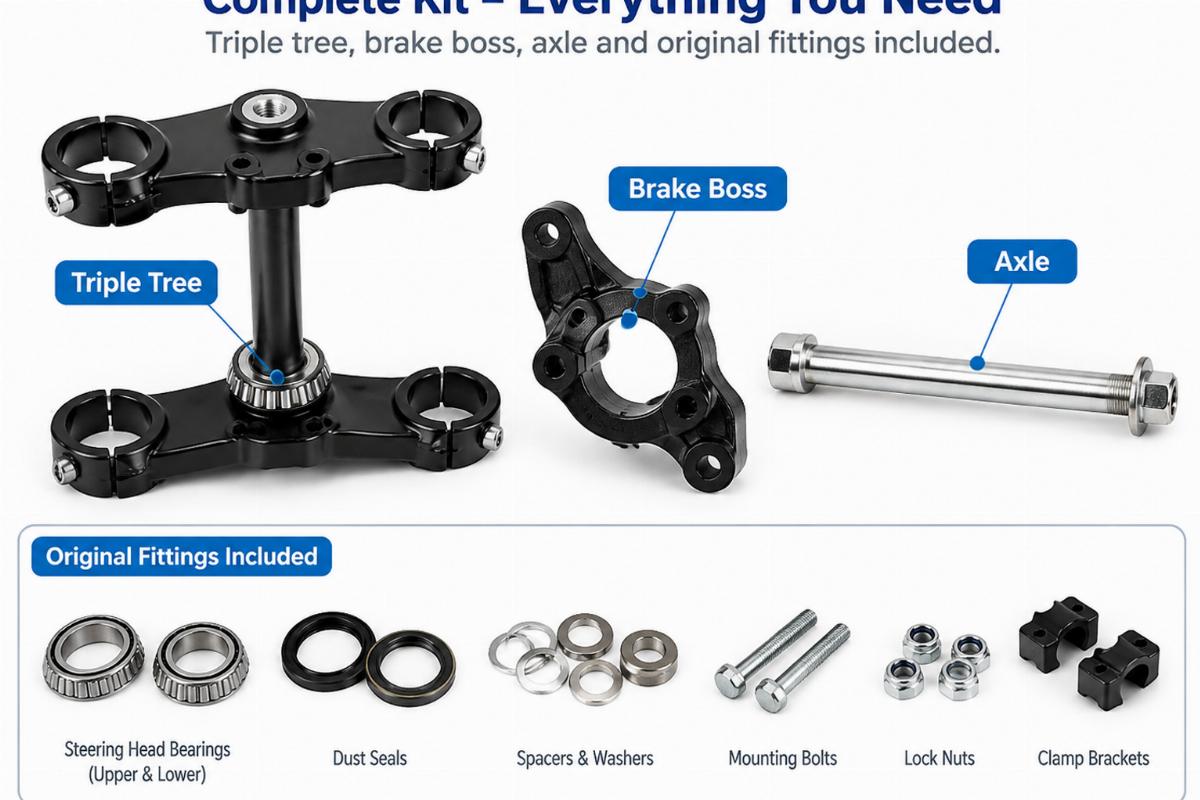

English alt describing the triple tree, brake boss, axle, and original fittings included in the kit
