Aftermarket Replacement 20″ Inline Spring Fork Kit Black
In-house Springer Production — We manufacture this 20″ inline spring fork kit in our own facility to control leg thread alignment and triple tree spacing before shipment.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Inline Spring Fork Kit |
| Overall Length | 20″ |

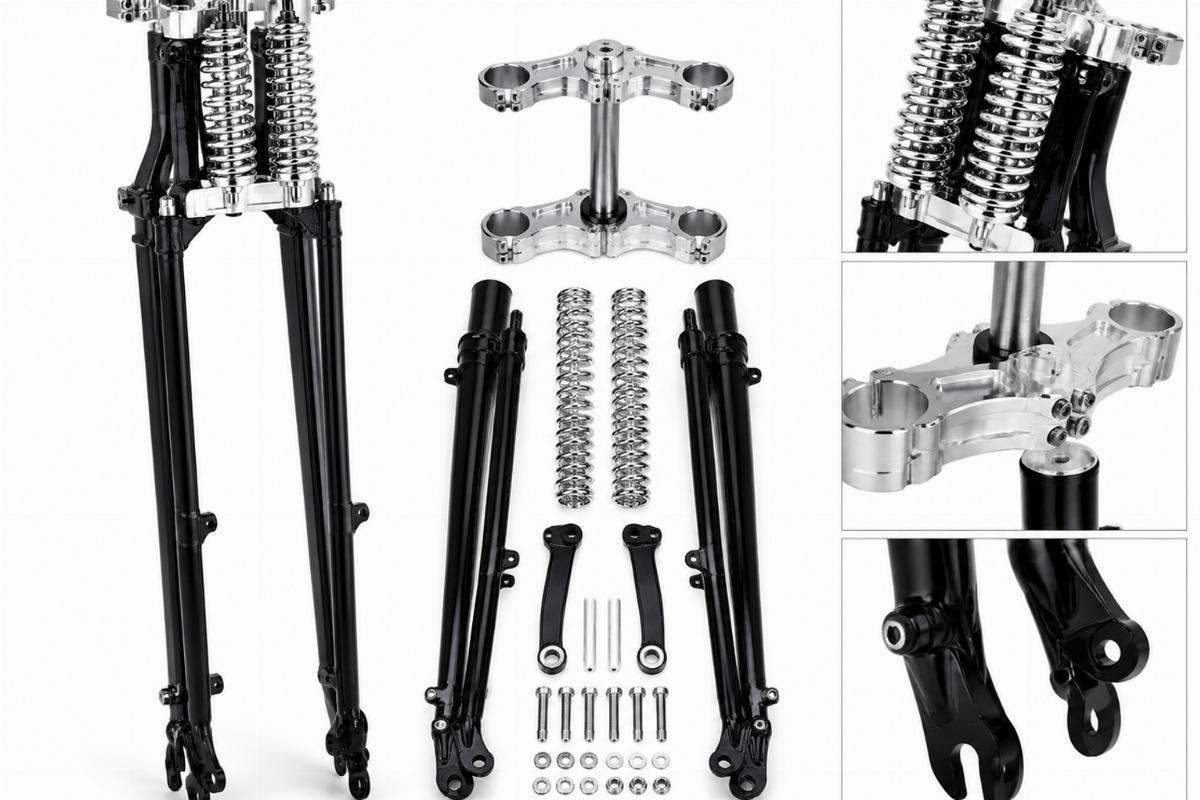

| Finish | Black fork body with chrome springs and machined chrome top triple tree |
| Legs Thread | 1/2″ x 20 |
| Axle Assembly | 3/4″ |
| Rocker Design | Right rocker not offset |
| Brake Tab Location | Right |
| Bearing Kit | 1″ taper bearing kit available separately |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom Builds | Confirm with model and year | Verify frame neck dimensions for the 1″ taper bearing kit and check axle spacing requirements to ensure proper wheel centering with spacers. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Geometry Clarity Matters for a 20″ Inline Spring Fork Kit
Overall length and axle spacing dictate whether your custom front end centers the wheel or binds the steering.
When a springer fork is offered over stock without clear geometry statements, builders struggle to judge ride height and steering setup. A 20″ inline spring fork kit changes the visual stance, but if the triple tree width or axle spacing is overlooked, the wheel will not center even with spacers. We verify these dimensions against your exact build specs to prevent the front end from sitting crooked or failing to accept your specific spool wheel setup [NEED_CITE: frame neck dimensions and steering geometry tolerances by custom build type].
Verifying Triple Tree Width and Axle Hardware
Before clearing any front-end assembly, we check the triple tree width and axle hardware against your exact build specs. This 20″ inline spring fork kit includes a 3/4″ axle assembly and a machined chrome top triple tree without ears. If your custom spool wheel requires a 1″ axle, the included 3/4″ assembly will not match without specific adapters or a different axle setup. Confirming these dimensions early prevents the rockers from misaligning with the wheel hub.
Checking Rocker Alignment and Brake Tab Placement

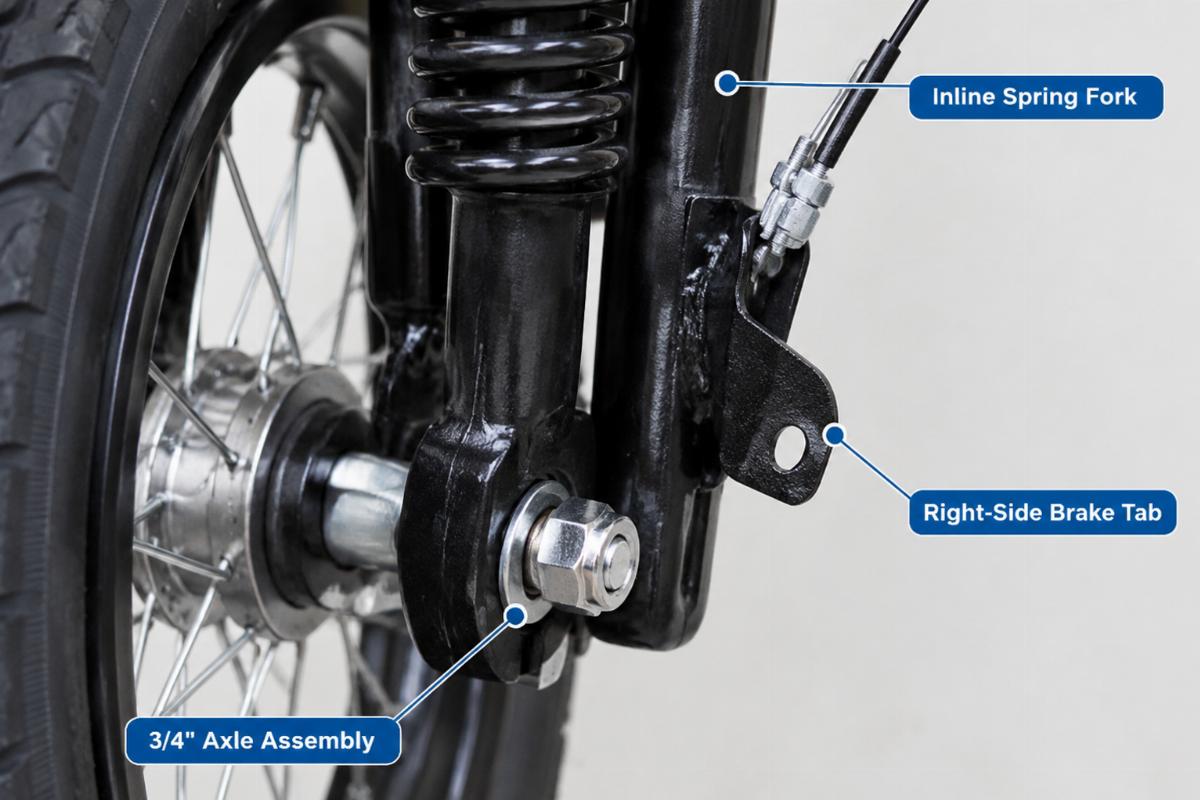

The right rocker on this 20″ inline spring fork kit is designed without an offset, and the brake tab is located on the right side. This configuration requires you to verify your rear fork leg stud compatibility for post risers and ensure your brake caliper mounting matches the right-side tab. Overlooking the rocker design or brake tab location often leads to custom brake setups that cannot be mounted without fabricating new brackets [NEED_CITE: brake caliper mounting standards for custom springer front ends].
Understanding the 20″ Length and Thread Specifications
The 20″ overall length provides a specific custom stance, but it directly impacts the ride height and steering geometry of your motorcycle. The legs feature a 1/2″ x 20 thread, which must match your chosen spring and hardware setup. Additionally, the 1″ taper bearing kit is available separately, meaning you must measure your frame neck to confirm the correct bearing size before installation. Checking threaded and bearing holes for excess plating is also necessary to ensure smooth assembly.
The Hidden Cost of Overlooking Frame Neck Dimensions
When frame neck dimensions are not verified, the 1″ taper bearing kit might not seat correctly, causing the steering to bind or feel loose. This forces the front end to be disassembled, the bearings replaced, and the steering stem rechecked. Such misfits keep the motorcycle stuck in the build bay while waiting for the correct steering head components, delaying the entire project timeline and increasing labor costs [NEED_CITE: steering head bearing fitment issues in custom frames].
Sourcing Directly from the Manufacturer
By sourcing this 20″ inline spring fork kit directly from us, you deal with the actual manufacturer of the springer front ends, ensuring consistent black and chrome finish quality across batches. We offer a one-piece minimum order, allowing shops to test the fitment and finish on a single build before committing to larger quantities. Every kit is checked for leg thread alignment and triple tree spacing, and we provide cross-reference sheets against OEM numbers marked reference only to help identify superseded parts.
Documentation Provided with Your Shipment
- Fitment sheet stating applicable platforms and year ranges for this 20″ inline spring fork kit.
- Cross-reference sheet with OEM numbers marked reference only for steering head components.
- Key dimensions including fork length over stock, tube diameter, and axle assembly size.
- Finish specification detailing the black fork body and chrome spring treatment.
- Quality inspection record verifying the 1/2″ x 20 leg threads and right rocker design.
- Warranty terms covering manufacturing defects on the front-end assembly.
Receiving and Inspecting the Fork Kit
- Verify the 20″ overall length and black finish with chrome springs against the packing list.
- Check the 1/2″ x 20 leg threads and 3/4″ axle assembly for any shipping damage or excess plating.
- Confirm the right rocker is not offset and the right-side brake tab matches your caliper setup.
- Measure the machined chrome top triple tree width to ensure it fits your custom handlebar risers.
- Inspect the 1″ taper bearing kit (if ordered separately) for correct sizing before pressing into the frame.
- Store the fork kit in a dry environment to protect the black finish and chrome components from moisture.
Requesting a Fitment Check
Send your model and year, along with a photograph or measurements of your frame neck and axle spacing, for a fitment check. Let us know if you require the 1″ taper bearing kit and whether you need a single sample to verify the black and chrome finish quality before a bulk order. We will confirm the triple tree width and axle hardware compatibility against your exact build specs.
