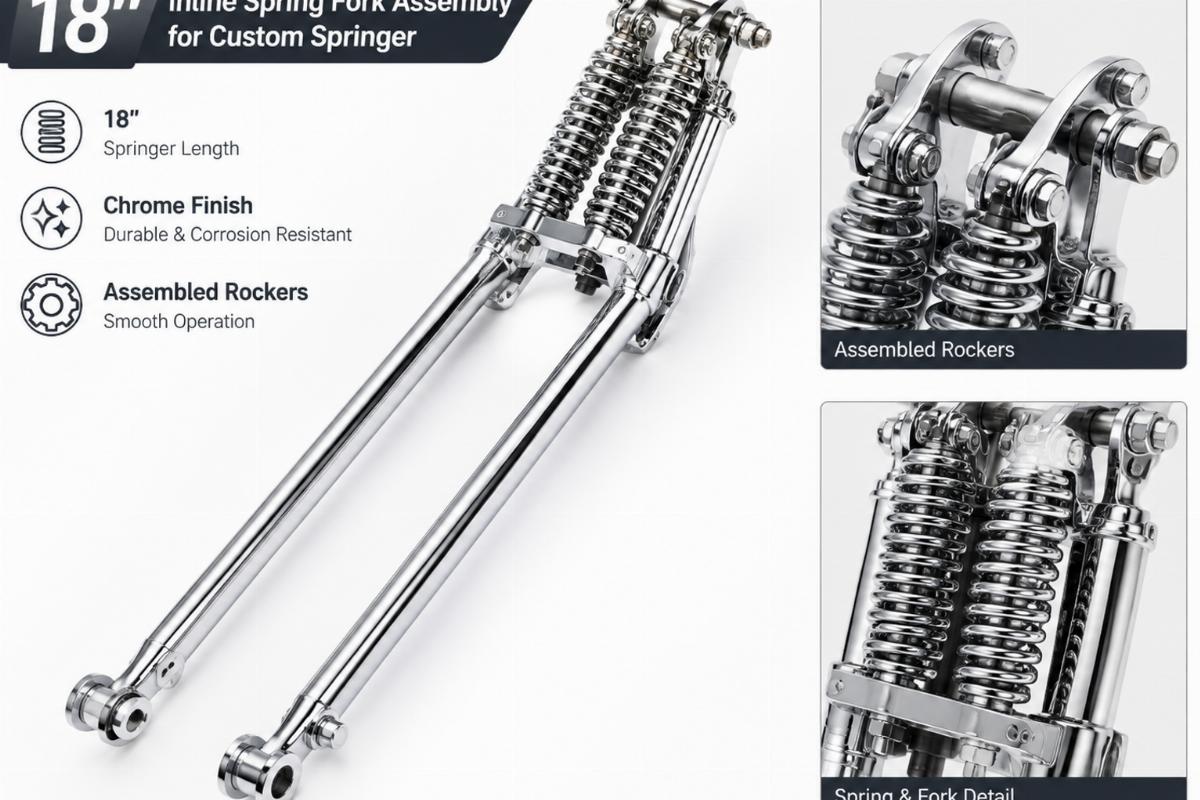

Fitment Checked 18″ Inline Spring Fork Assembly for Custom Springer
Front-End Depth in One Catalogue — This inline spring fork assembly for custom springer builds is part of a complete line of springer front ends, covering multiple over-stock lengths and early springer parts in a single source.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Inline Spring Fork Assembly |
| Finish | Chrome (legs, outer springs, rockers), Zinc plated (rocker studs) |
| Stem Size | 1″ |
| Thread | 1″ x 24 |
| Length | 18″ (measured from top of rear leg to front axle center line) |
| Neck Bottom Diameter | Larger diameter to accommodate lower race |
| Rear Fork Leg | Not tapped |
| Kit Contents | Front and rear legs, outer springs, rockers, rocker studs (completely assembled) |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom Springer / Custom builds | Confirm with model and year | Verify stem size and neck bottom diameter match your specific frame. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Defining the True 18-Inch Reference Point for Geometry
Steering geometry fails when length is measured from the wrong reference point.
Custom builders often face geometry issues when springer fork lengths are not clearly measured from the rear leg to the axle center line. When a builder measures overall length from the triple tree instead, the rake and trail are completely off, ruining the ride height and steering geometry. I once test-fitted an 18-inch inline spring fork assembly for a custom Springer Softail build where the buyer made this exact mistake, and the bike became unrideable until we verified the exact measurement points on the bench. Always confirm how the manufacturer defines over-stock length before ordering [NEED_CITE: frame geometry calculations based on triple tree to axle distance].
Verifying the 1-Inch Stem and Thread Pitch
When integrating an inline spring fork assembly for custom springer projects, the 1″ stem with a 1″ x 24 thread must match your top tree and steering stem exactly. If the thread pitch differs even slightly, the stem will not seat properly in the neck, leading to dangerous steering play or inability to tighten the triple tree. We verify these specific stem dimensions against standard custom frame specifications to ensure the assembly drops in without requiring frame modification [NEED_CITE: steering stem thread standards for custom front ends].

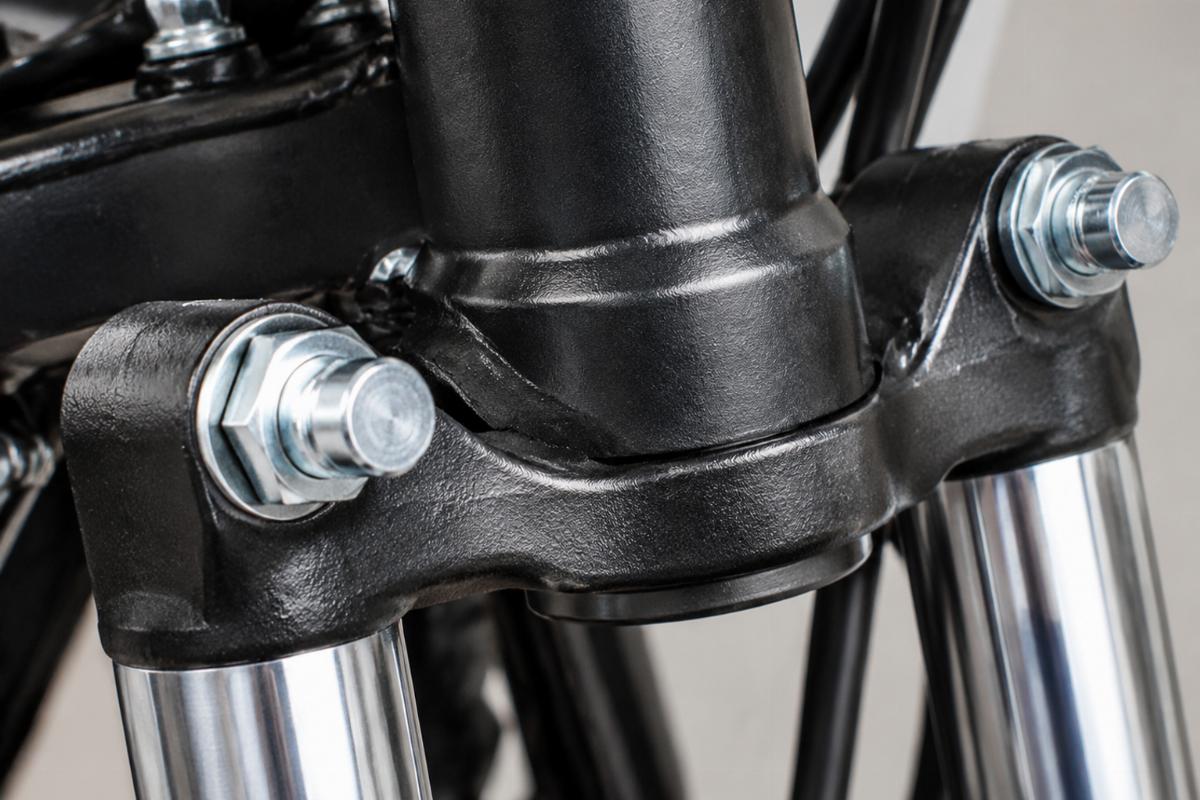

Accommodating the Lower Race with Neck Diameter
The bottom of the neck on this assembly is machined to a larger diameter specifically to properly accommodate the lower race. Many custom frames require this exact bottom neck diameter to accept the correct bearing race without binding. If the neck diameter is too small, the lower race will not seat flush against the frame’s head cup, causing premature bearing wear and notchy steering. Checking this bottom neck diameter against your frame’s head cup specifications is critical for smooth operation [NEED_CITE: steering head bearing race seating requirements].
The Hidden Cost of Unchecked Frame Dimensions
Ordering a front end without verifying the rear fork leg configuration can halt a build entirely. This specific rear fork leg is not tapped, which means it will not accept certain fender or brake mounts that require threaded holes. If a builder assumes the leg is tapped and orders matching mounts, the bike sits on the lift waiting for custom drilling or a different part. We have seen shops lose days of labor because they relied on generic fitment lists that ignored whether the rear leg was tapped or smooth, forcing them to fabricate adapters instead of bolting on the correct hardware [NEED_CITE: springer fender and brake mount threading variations].
Sourcing Complete Assemblies with Single-Piece Flexibility
We produce our own springer front ends and chassis hardware, allowing us to supply this completely assembled kit with front and rear legs, outer springs, and rockers directly from our facility. This in-house production means we can offer chrome and zinc plated finishes consistently across batches without relying on third-party platers. We also support a minimum order of one piece, which is essential for a custom shop building a single bike that needs this exact 18-inch inline spring fork assembly for custom springer geometry. Every quotation includes a fitment check against your specific platform and year range before dispatch.
Documentation and Fitment Records
- Fitment sheet listing the custom springer platforms this assembly was checked against
- Cross-reference sheet with any applicable OEM numbers marked reference only
- Key dimensions document stating the 18-inch length measurement points and 1-inch stem size
- Finish specification detailing the chrome legs and zinc plated rocker studs
- Quality inspection record confirming the rear fork leg is not tapped and threads are clean
Receiving and Bench-Checking the Assembly
- Verify the kit includes front and rear legs, outer springs, rockers, and rocker studs completely assembled
- Measure the 18-inch length from the top of the rear leg to the front axle center line to confirm geometry
- Check the 1-inch stem and 1″ x 24 thread against your top tree before installation
- Inspect the larger bottom neck diameter to ensure it accommodates your lower race without binding
- Examine the chrome finish on the legs and outer springs for plating quality before mounting
- Check threaded and bearing holes for excess plating and clean them if necessary before assembly
Requesting a Fitment Check and Sample
Send your custom frame model, year, and a photograph of your current steering neck to verify if this 18-inch inline spring fork assembly for custom springer builds is the correct match. Provide the required stem size and neck bottom diameter measurements from your frame to ensure proper integration. We can supply a single sample assembly for fitment confirmation on your bench before you commit to bulk purchasing for your shop or distribution catalogue.
Frequently Asked Questions
Q: How is the 18-inch fork length measured on this inline spring assembly?
A: The 18-inch length is strictly measured from the top of the rear leg to the center line of the front axle. This specific reference point is used to accurately calculate rake and trail for custom frames, preventing the geometry errors that occur when measuring from the triple tree.
Q: What components are included in the assembly kit and what must be ordered separately?
A: The kit includes the front and rear legs, outer springs, rockers, and rocker studs, delivered completely assembled. You must order the bearing neck kit, axle kit, top tree, and handlebars separately, as they are not included in this specific front end package.
Q: How do I verify the 1-inch stem and 1″ x 24 thread fit my custom frame?
A: Measure the inner diameter and thread pitch of your frame’s steering stem or top tree to ensure they match the 1″ x 24 specification. The stem must thread smoothly into your triple tree without cross-threading to ensure the front end is securely locked into the frame’s steering head.
Q: Can I order a single sample assembly to check fitment and finish before bulk purchasing?
A: Yes, we support a minimum order of one piece. You can order a single sample to verify the 18-inch length, the larger bottom neck diameter, and the chrome finish quality on your specific custom frame before placing a larger order for your shop or inventory.
