Aftermarket Replacement 18″ Chrome Springer Fork Kit for Custom V-Twin
Verified stem and bearing fitment — We confirm your 1″ fork stem and 1″ taper bearing requirements before releasing any 18″ spring fork kit for custom v-twin builds.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Kit |
| Finish | Chrome |

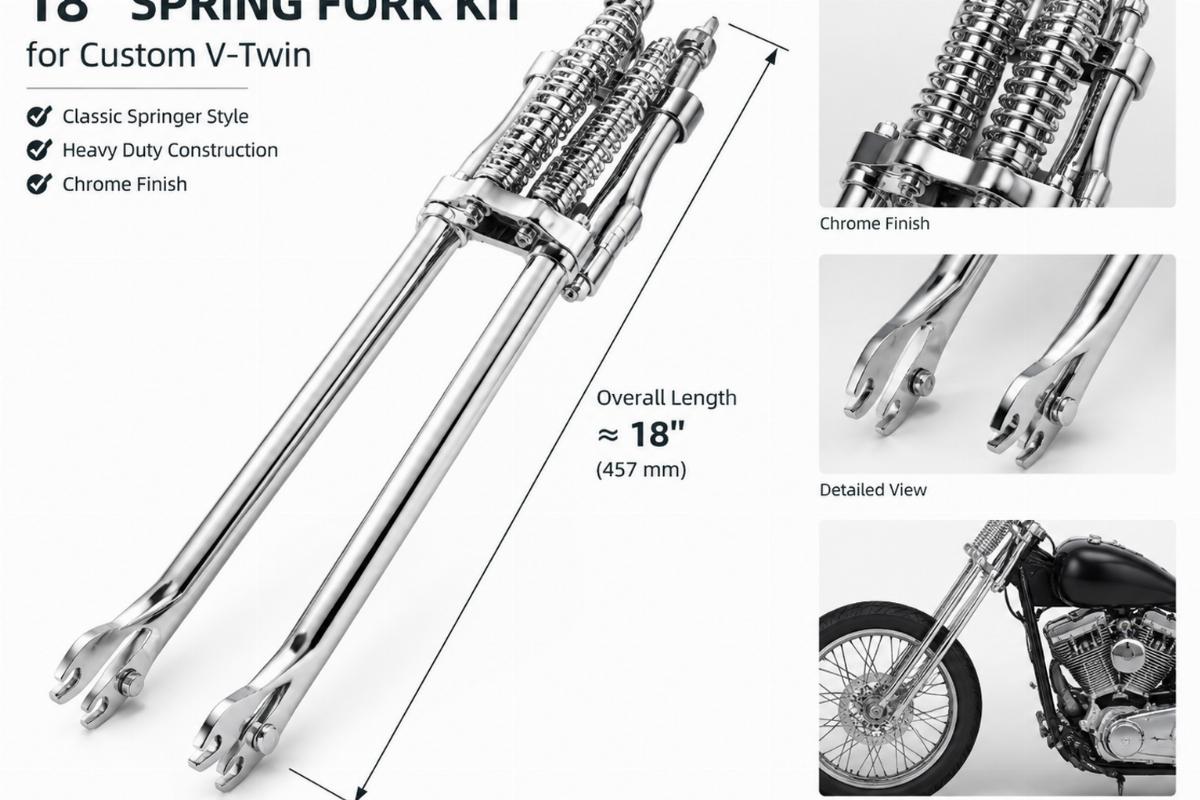

| Overall Length | 18″ |
| Fork Stem Diameter | 1″ |
| Axle Assembly Diameter | 3/4″ |

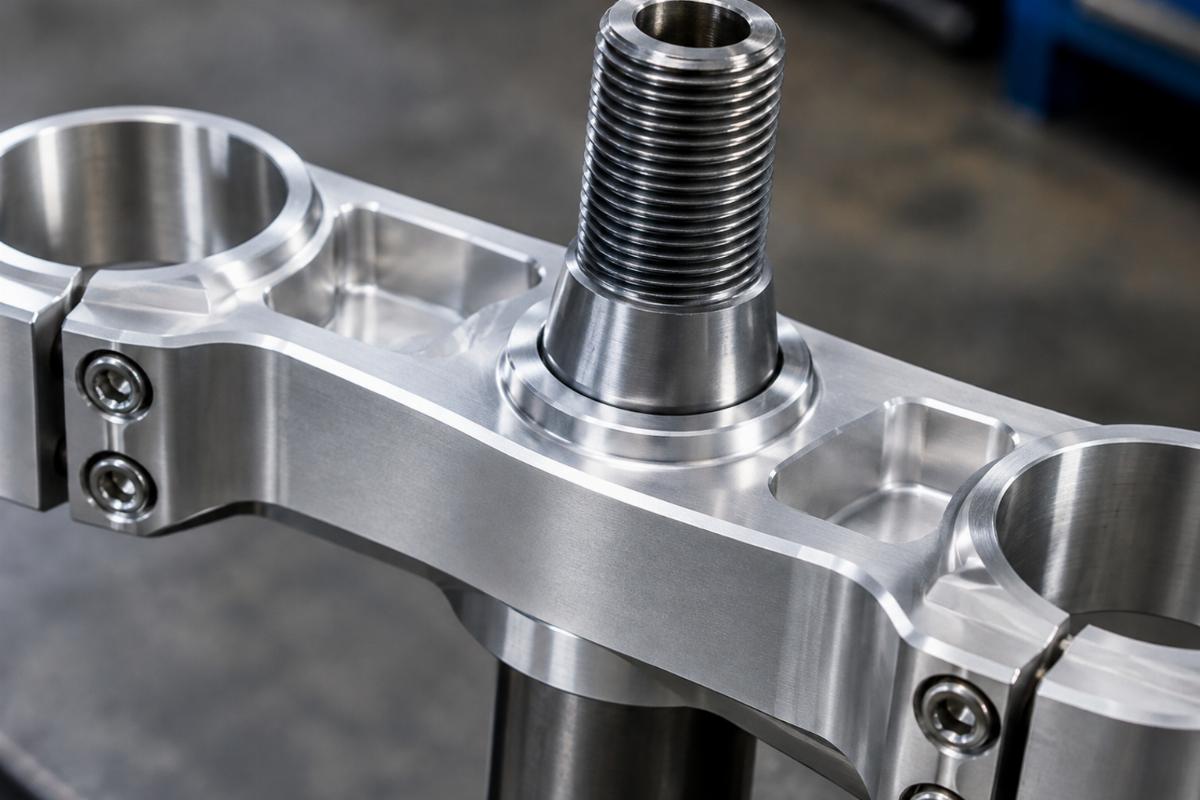

| Top Triple Tree | Machined chrome without ears |
| Rear Fork Legs Thread | 1/2″ x 20 |
| Riser Type | Post risers with stud to top of rear fork legs |
| Rockers | Standard design (excluding offset) |
| Shape | Standard shape components and design |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom V-Twin builds | Confirm with model and year | Requires 1″ taper bearing kit; verify frame neck dimensions. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Dimension Clarity Matters for Your Custom Build
Missing stem or thread specs turn a simple fork swap into a weeks-long machining delay.
When builders order a 18″ spring fork kit for custom v-twin projects without verifying the steering neck dimensions, the fork stem often fails to seat properly. I have seen frames sit on blocks because the 1″ fork stem required a different taper bearing kit, or the 1/2″ x 20 rear fork legs thread refused to accept the original risers [NEED_CITE: steering head cup and bearing dimension variations across custom frame builders]. Without clear overall length and thread specifications, judging ride height and steering geometry becomes a guessing game.
Checking the Steering Neck and Stem Match
Before mounting this 18″ spring fork kit for custom v-twin, you must measure the frame’s steering neck to ensure it accepts a 1″ fork stem and the corresponding 1″ taper bearing kit. The machined top triple tree without ears requires specific post risers with a stud reaching the top of the rear fork legs. If your frame was built for a different stem diameter or bearing type, the triple tree will not align correctly, affecting the entire front-end geometry [NEED_CITE: frame neck dimension standards for custom springer installations].
Verifying Leg Threads and Riser Compatibility
The rear fork legs feature a 1/2″ x 20 thread, which dictates the handlebar riser setup you can use. You need to confirm that your chosen post risers match this exact thread pitch and that the stud length reaches the top of the legs without binding. Overlooking this thread specification means your handlebars will not mount securely, forcing you to machine adapters or reorder risers after the kit has already arrived at your shop.
Understanding the Core Dimensions and Geometry
The 18″ overall length directly influences your ride height and trail, so compare it against your desired stance. The 3/4″ axle assembly requires specific spacers to center the wheel, especially when pairing this kit with a custom brake and spool wheel installation. The standard design rockers and standard shape components maintain a classic profile, but the lack of offset means your wheel alignment relies entirely on correct spacer measurement and axle hardware [NEED_CITE: axle spacer requirements for custom spool wheel setups].
The Hidden Cost of Incorrect Front-End Specs
Ordering a springer kit without confirming the triple tree width or stem length often leads to the bike sitting on blocks for weeks. When the 1″ stem does not match the frame’s bearing cup, or the 1/2″ x 20 legs thread does not accept your risers, the entire build halts. Shops then have to pay for custom machining or wait for replacement parts, turning a straightforward front-end swap into a costly delay that disrupts the entire project timeline [NEED_CITE: machining delays caused by mismatched steering stem and bearing kits].
Sourcing Front-End Parts with Confidence
We produce our springer front ends in-house, allowing us to control the chrome finish consistency across batches. Every 18″ spring fork kit for custom v-twin is checked against its platform and dimension requirements before quotation. We offer a one-piece minimum order, meaning you can buy a single kit for a custom build without meeting bulk thresholds. You also receive a fitment sheet detailing the exact stem and thread specs before you commit to the purchase.
Documentation and Quality Records
- Fitment sheet stating applicable platforms and confirmed dimensions
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions including fork length, stem size, and thread pitch
- Chrome finish specification and quality inspection record
- Packing photographs showing the machined triple tree and axle assembly
Pre-Installation Verification Steps
- Verify the 1″ fork stem matches your frame’s steering neck bearing cup.
- Confirm the 1/2″ x 20 legs thread accepts your planned post risers.
- Check the 3/4″ axle assembly and measure spacers for your custom wheel.
- Inspect the chrome finish on the triple tree and legs for any shipping damage.
- Ensure the 1″ taper bearing kit is sourced separately before assembly.
- Have a qualified technician review the frame geometry before final mounting.
Request a Fitment Check
Send your model and year, along with a photograph or measurements of your steering neck and riser requirements, to verify if this 18″ spring fork kit for custom v-twin fits your frame. Let us know your required finish and quantity, and whether you need a sample for fitment confirmation before placing a larger order. We will reply with a fitment sheet and quotation tailored to your specific build dimensions.
Frequently Asked Questions
Q: How do I confirm if this 18″ spring fork kit fits my custom frame?
A: You need to measure your steering neck to ensure it accepts a 1″ fork stem and a 1″ taper bearing kit. Additionally, verify that the 1/2″ x 20 rear fork legs thread matches your handlebar risers. Send us your frame measurements or a photograph, and we will provide a fitment sheet confirming compatibility before you order.
Q: What dimensions must I measure before ordering this springer kit?
A: Measure your steering neck to confirm it fits a 1″ fork stem and the required taper bearing. Check the triple tree width and ensure your frame can accommodate the 18″ overall length. You must also verify the spacing for the 3/4″ axle assembly to properly center your custom brake and spool wheel.
Q: Does this kit include the taper bearing kit?
A: No, the 1″ taper bearing kit is available separately and is not included in this 18″ spring fork kit for custom v-twin. You must source the correct bearing kit that matches your specific frame’s steering head cups. We can supply the bearing kit alongside the fork if you confirm your frame requirements during the inquiry.
Q: Can I order a single fork kit for a custom build?
A: Yes, we support a one-piece minimum order, allowing shops and custom builders to purchase a single kit without meeting bulk quantity requirements. This is ideal for one-off custom builds where you need to verify the fitment and chrome finish before considering larger orders for future projects.
Q: How is the chrome finish consistency maintained?
A: We produce our springer front ends in our own facility, which allows us to control the chrome plating process directly. This ensures consistency between the machined top triple tree, the legs, and the rockers. Every order is accompanied by a finish specification and a quality inspection record detailing the surface treatment.
