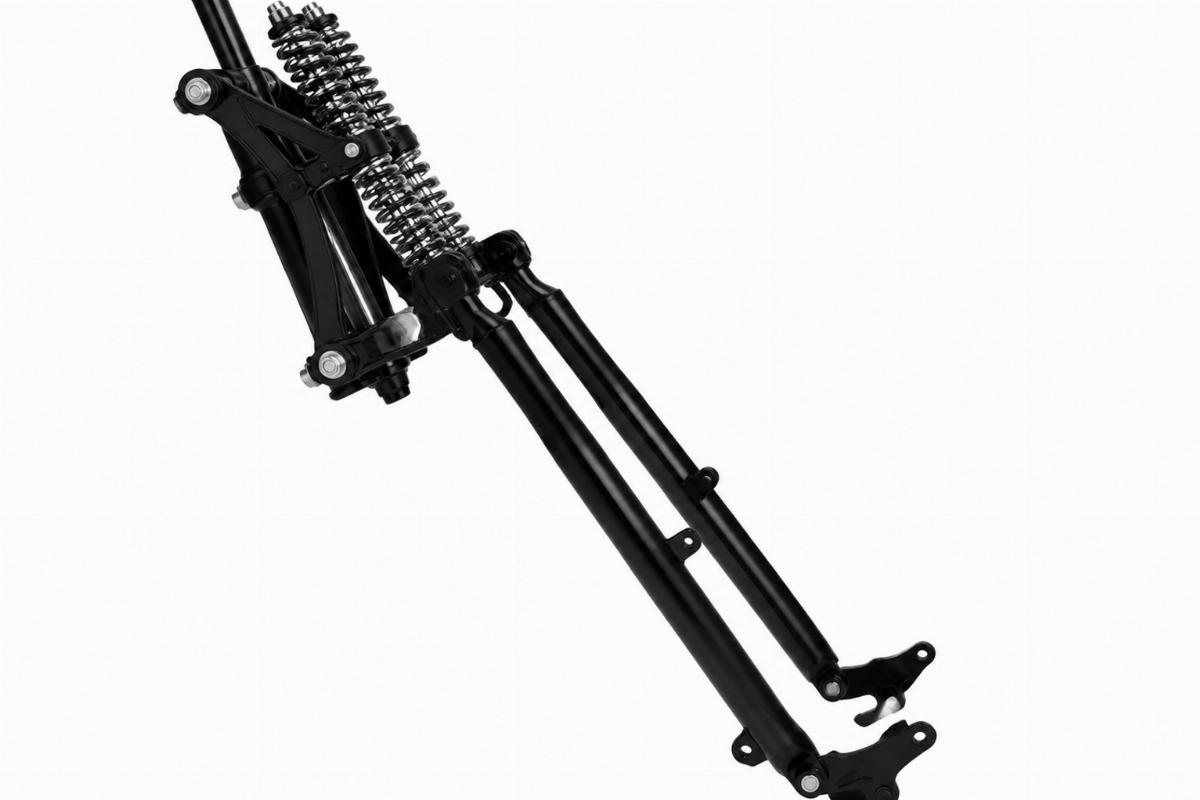

25-1/2″ Offset Custom Springer Fork Kit Black – Fitment Checked
Verified Front-End Depth — We supply complete springer assemblies in multiple over-stock lengths, ensuring your 25-1/2″ offset build gets the exact geometry required without guessing ride height.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Kit |
| Overall Length | 25-1/2″ |
| Finish | Black with chrome springs |
| Offset Design | Offset |
| Top Triple Tree | Machined chrome design without ears |
| Leg Thread | 1/2″ x 20 |
| Bearing Type | 1″ taper bearing (kit order separately) |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Not stated | Not stated | Confirm with model and year |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Over-Stock Springer Lengths Require Strict Geometry Checks
A 25-1/2″ offset custom springer fork kit changes rake and trail significantly compared to stock setups.
When builders select an over-stock length, the visual appeal often overshadows the steering geometry impact. Without verifying how the offset design and overall length interact with the specific frame neck angle, the front end can alter handling characteristics unpredictably [NEED_CITE: frame geometry calculations for over-stock springer lengths]. We measure every 25-1/2″ assembly to ensure the dimensions match the stated specifications before it reaches your shop.

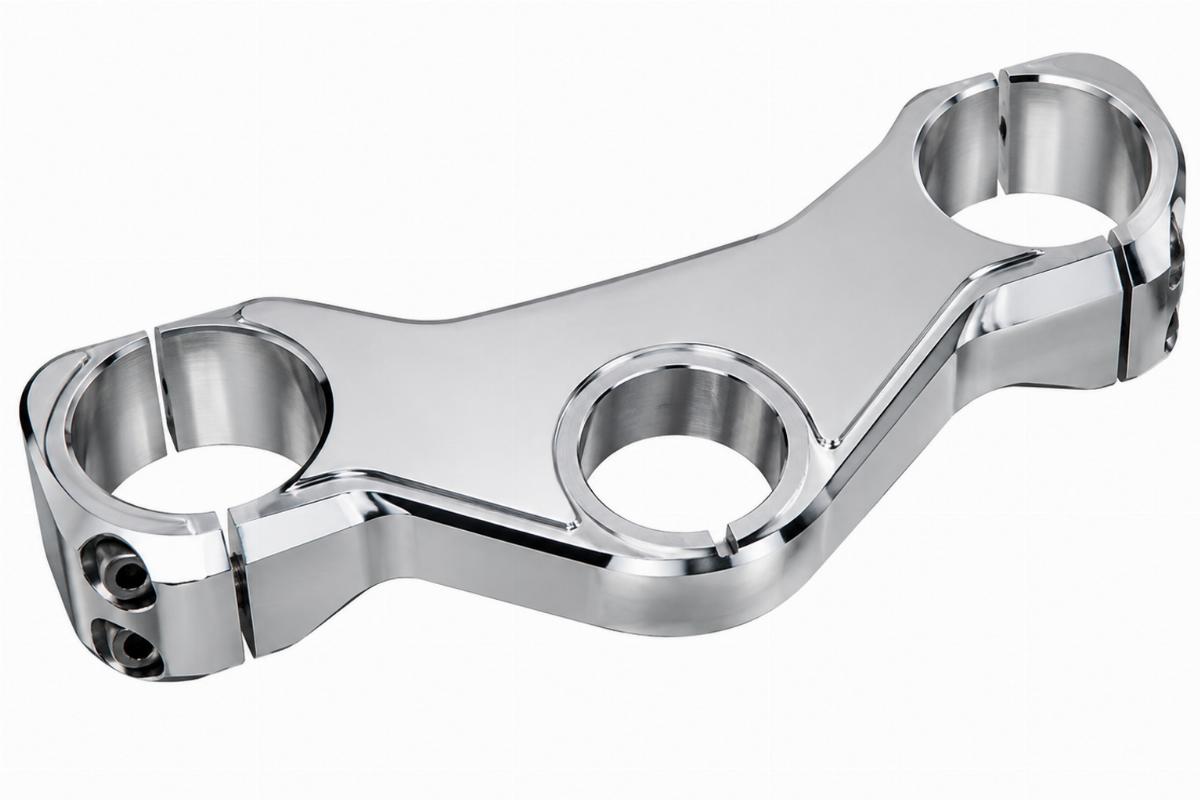

Verifying Triple Tree Compatibility for Earless Designs
The machined chrome top triple tree without ears requires a specific post riser setup to function correctly. Unlike traditional trees with integrated ear mounts, this design relies entirely on the stud connection to the top of the rear fork legs. You must confirm that your chosen risers provide the correct clamping surface and clearance for this specific machined profile. Failing to match the riser base to the earless tree can result in improper steering stem alignment.
Checking Steering Stem and Bearing Requirements
This custom springer fork kit requires a 1″ taper bearing kit, which must be ordered separately. The steering stem diameter and taper angle must perfectly match the neck cups installed in your frame. Mixing early and late frame bearing sizes is a common error that leads to binding or loose steering [NEED_CITE: steering stem bearing size variations across frame generations]. Always verify the 1″ taper specification against your frame’s actual neck bearing dimensions before finalizing the order.
The Hidden Cost of Unverified Offset Dimensions
Ordering an offset front end without confirming the exact triple tree width and axle spacing can leave a custom build stranded on the lift. I have seen shops assume that a 25-1/2″ offset springer fits universally, only to find the wheel refuses to center without massive spacers. This mismatch ruins the steering geometry and forces a complete teardown to source the correct axle hardware or spacers. Verifying these dimensions against the specific frame prevents costly rebuild delays [NEED_CITE: axle spacing variations in custom springer applications].
Sourcing Front-End Assemblies with Confirmed Dimensions
We produce these front-end assemblies in our own facility, allowing us to control the critical dimensions like the 25-1/2″ overall length and 1/2″ x 20 leg thread. Our catalogue consolidates complete springer assemblies and multiple over-stock lengths under one account, simplifying your procurement. We offer both black and chrome finish options, ensuring the black legs and chrome springs meet consistent quality standards. You can order a single custom springer fork kit for a one-off build without facing minimum order quantity blocks.
Documentation and Fitment Records
- Fitment sheet stating applicable platforms and year ranges for your specific build
- Cross-reference sheet with OEM numbers marked reference only for identification
- Key dimensions document detailing the 25-1/2″ length and offset specifications
- Finish specification outlining the black legs and chrome spring components
- Quality inspection record verifying the machined chrome top triple tree dimensions
- Packing photographs showing the exact condition of the fork kit before dispatch
Pre-Installation Inspection and Verification
- Verify the 25-1/2″ overall length and offset design against your frame clearance requirements
- Check the machined chrome top triple tree without ears for any shipping damage or threading issues
- Confirm the 1/2″ x 20 leg thread specification matches your chosen axle hardware
- Inspect the black finish and chrome springs for consistency before mounting
- Ensure the 1″ taper bearing kit is ordered separately and matches your steering stem
- Store the fork kit in a dry environment to protect the black finish and chrome components
Requesting a Fitment Check for Your Build
Send your model and year for a fitment check to ensure this 25-1/2″ offset design matches your frame geometry. Provide photographs or measurements of your current steering stem and neck cups to verify the 1″ taper bearing requirement. Let us know if you need a sample supply for fitment confirmation before placing a bulk order for your shop.
Frequently Asked Questions
Q: How do I confirm if this 25-1/2″ offset springer fits my custom frame?
A: You must measure your frame’s neck angle, triple tree width, and axle spacing. The 25-1/2″ length and offset design change the ride height and steering geometry. Send us your frame specifications and photos for a detailed fitment verification before ordering.
Q: What dimensions should I measure to ensure the top triple tree fits my risers?
A: Measure the mounting hole spacing and the diameter of the stud connection on your post risers. The machined chrome top triple tree without ears requires a specific clamping surface. Verify that your risers are designed to mate directly with this earless profile.
Q: Does the kit include the 1″ taper bearing or do I need to order it separately?
A: The 1″ taper bearing kit must be ordered separately. It is not included in the fork kit. You need to ensure the bearing matches your frame’s steering stem diameter and neck cup taper angle.
Q: Can I order a single springer fork kit for a one-off custom build?
A: Yes, we accept minimum orders from one piece. You can order a single custom springer fork kit for a custom build without meeting high volume requirements. We also offer sample supply for fitment confirmation before you commit to larger quantities.
Q: How do you ensure finish consistency between the black legs and chrome springs?
A: We control the finishing process in our own facility for our main front-end lines. The black finish on the legs and the chrome plating on the springs are processed to maintain visual consistency across batches. We inspect the finish quality before dispatch to ensure they match the specifications.
