Most builders assume a hotter stator fixes charging issues; the real failure point is often poor regulator heat sinking or rotor mismatch.
Upgrading a Shovelhead front end requires synchronizing mechanical geometry with electrical thermal limits. Mismatched components cause premature failure in high-heat environments because extended forks alter wiring routes and vibration patterns, stressing connections that were stable in stock configurations. A reliable Shovelhead restoration front end electrical upgrades supplier must provide parts where phase alignment and heat dissipation capacity are verified together, not just sold as individual high-output units.
I have seen this pattern repeat in workshops from Dubai to Detroit. A customer brings in a bike with a custom springer front end, proud of the look but frustrated by repeated electrical failures. The stator burns out after a few long rides in hot weather. The culprit is rarely the stator itself but the combination of inadequate airflow around the regulator and the physical tension on the harness caused by the new fork geometry. When the rake changes, the wire path lengthens and tightens against moving parts. Without recalculating these clearances, even the best electrical components will fail under stress. [NEED_CITE: impact of fork geometry on wiring harness tension]
This guide breaks down why these failures happen and how to select components that survive real-world use. It focuses on the technical checks that separate a functional restoration from a roadside breakdown.
Why Do Shovelhead Charging Systems Fail After Front End Upgrades?
Mechanical changes often overlook electrical thermal constraints, leading to systemic overheating.

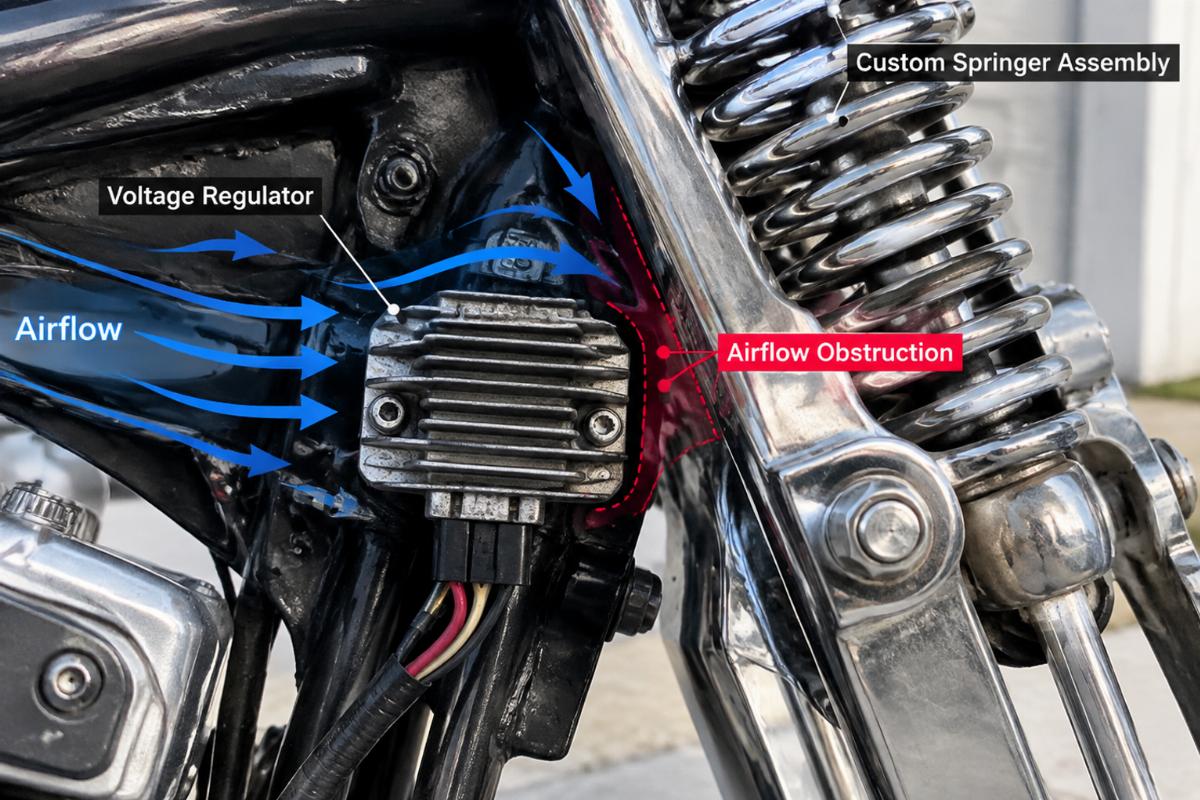

The Shovelhead engine is known for running hot, but adding a custom front end exacerbates this issue in ways many builders miss. When you swap a stock hydraulic fork for a springer or an extended unit, you change the air flow dynamics around the engine and the physical layout of the chassis. The regulator, often mounted near the head or on the frame neck, relies on ambient air to dissipate heat. If the new front end blocks this airflow or if the regulator is moved to a tighter space without additional cooling fins, it cannot shed heat efficiently. [NEED_CITE: thermal dissipation requirements for motorcycle voltage regulators]
In a desert touring scenario, high ambient temperatures make this worse. The regulator efficiency drops as temperature rises, causing it to dump excess voltage as heat. If the heat sink is insufficient, the internal components degrade rapidly. This is not a problem of amperage output but of thermal management. Many aftermarket kits focus on higher output stators, assuming more power solves charging issues. In reality, a standard output stator paired with a well-cooled, correctly matched regulator is more reliable than a high-output unit struggling in a heat trap.
A common mistake is ignoring the rotor-stator pairing. Even if the stator fits physically, the magnetic gap and phase alignment must match the rotor. A mismatch causes irregular voltage spikes that stress the regulator beyond its design limits. This is why verifying the specific model year and engine type is critical before installation. A Shovelhead restoration front end electrical upgrades supplier should cross-reference these pairings rather than offering generic “fits all” solutions.
How Does Springer Geometry Affect Electrical Component Placement?
Extended forks require recalculated wiring routes to prevent stress and fatigue failure.

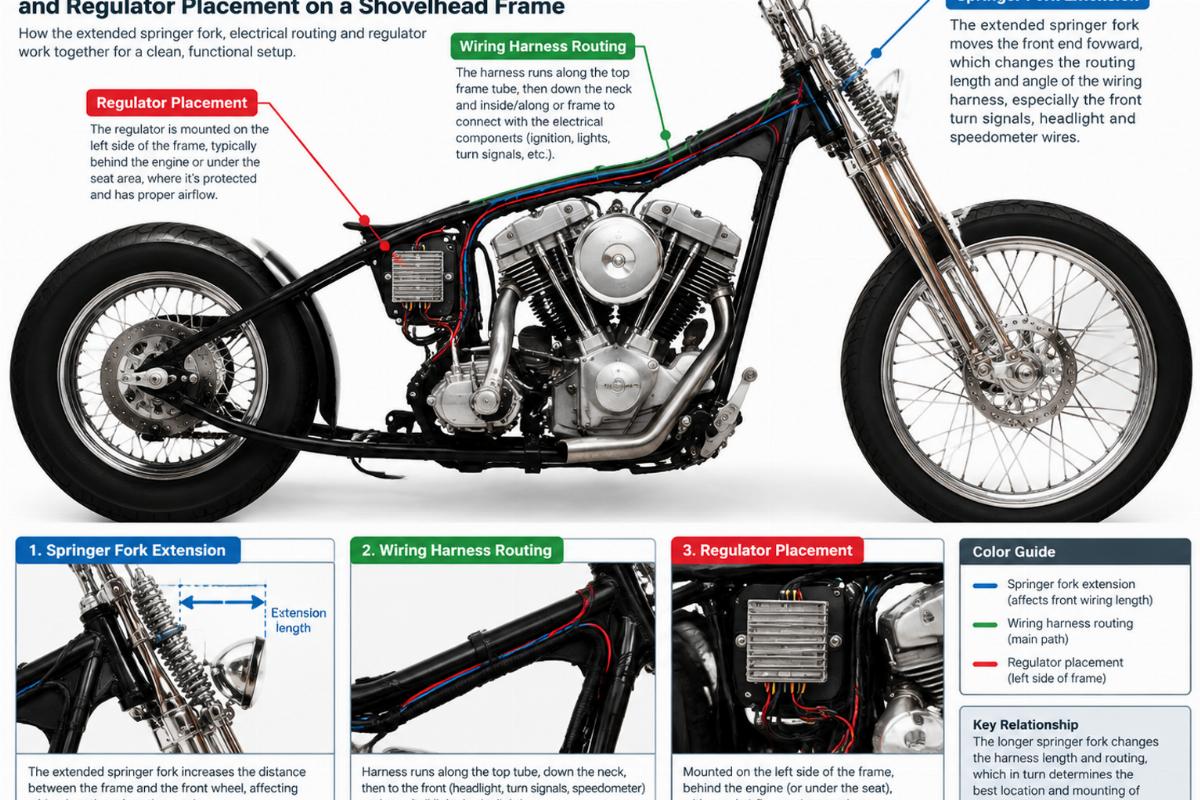

Springer forks are often viewed as purely mechanical upgrades, but their altered geometry has significant electrical implications. The extended rake and trail change the distance between the steering head and the handlebars. This means the original wiring harness may be too short, forcing it to stretch when the bars are turned. Over time, this tension leads to broken wires inside the insulation, causing intermittent charging faults that are difficult to diagnose. [NEED_CITE: mechanical stress effects on automotive wiring harnesses]
In one case, a builder installed a springer kit with a significant increase in length over stock. He reused the original harness, tucking it tightly along the new fork legs. After a few hundred miles, the bike began losing charge at high speeds. The investigation revealed that the harness was rubbing against the spring rods, wearing through the insulation and shorting to ground. The vibration from the springer action accelerated this wear.

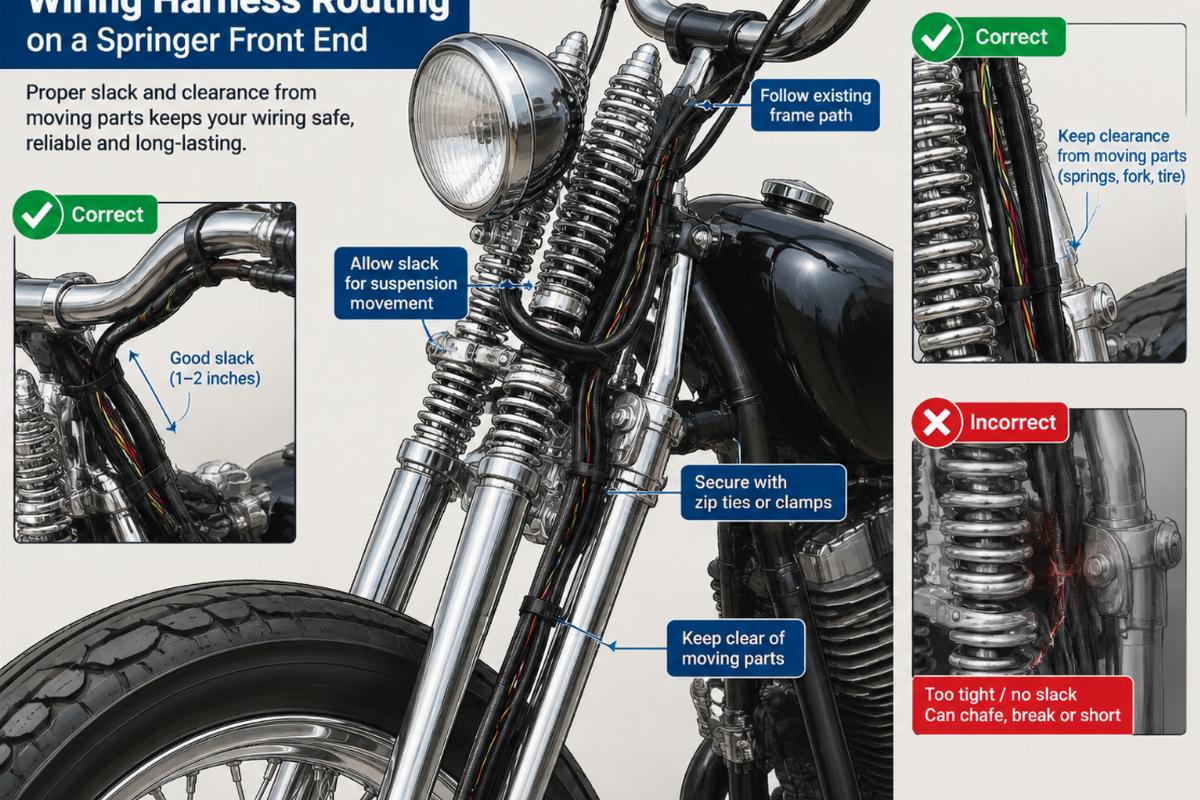

To avoid this, measure the clearance gaps between the fork legs and the wiring path at full lock. The harness must have enough slack to accommodate the turn without binding. If the original harness is insufficient, a custom-length harness or an extension kit is necessary. Additionally, secure the wiring away from moving parts using high-quality clamps. A reputable Shovelhead restoration front end electrical upgrades supplier will provide fitment sheets that detail these clearance requirements for specific model years, ensuring the electrical system survives the mechanical changes.
What Are the Critical Checks for Stator and Regulator Matching?
Phase alignment and heat dissipation capacity must be verified together to ensure system stability.
Matching a stator to a regulator is not just about connecting the right wires. The electrical phase of the stator output must align with the input specifications of the regulator. If the phases are mismatched, the rectifier inside the regulator works inefficiently, generating excess heat and failing to charge the battery properly. This is particularly important when mixing components from different batches or suppliers. [NEED_CITE: three-phase alternator rectification principles]

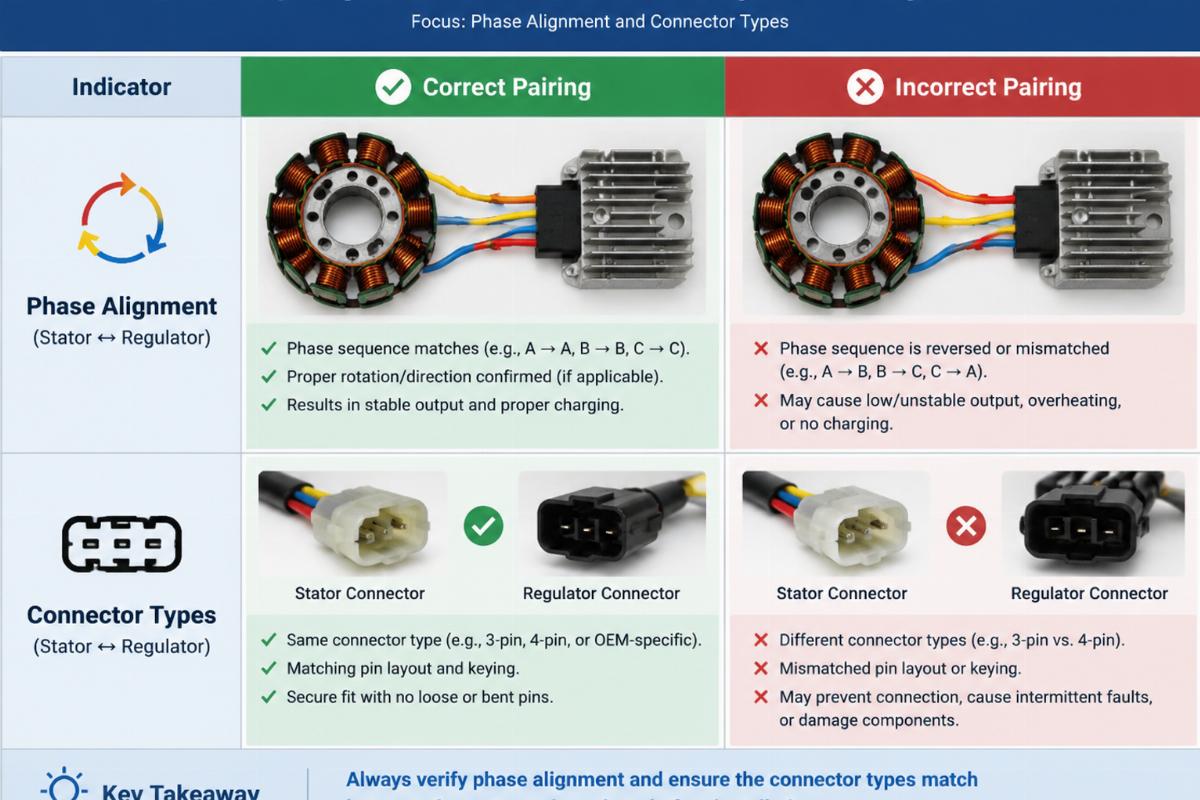

Before installation, verify the stator output phase against the regulator input. Use a multimeter to check the resistance between the stator leads. They should be equal. If one lead shows a different resistance, the stator may be damaged or poorly manufactured. Next, check the regulator connector type. Ensure it matches the stator plug exactly. Adapters can introduce resistance and potential failure points, so direct matching is preferred.
Cross-reference OEM part numbers for correct rotor-stator pairing. While aftermarket parts may not carry OEM branding, they should reference the original numbers for fitment. This ensures the magnetic gap is correct. A Shovelhead restoration front end electrical upgrades supplier who provides these cross-references helps builders avoid the guesswork that leads to premature failure. Always consult the factory service manual for specific testing protocols and torque values, as these are the definitive sources for your model year.
How to Prevent Premature Failure in High-Temperature Environments?
Select components with proven thermal stability, not just high output ratings.

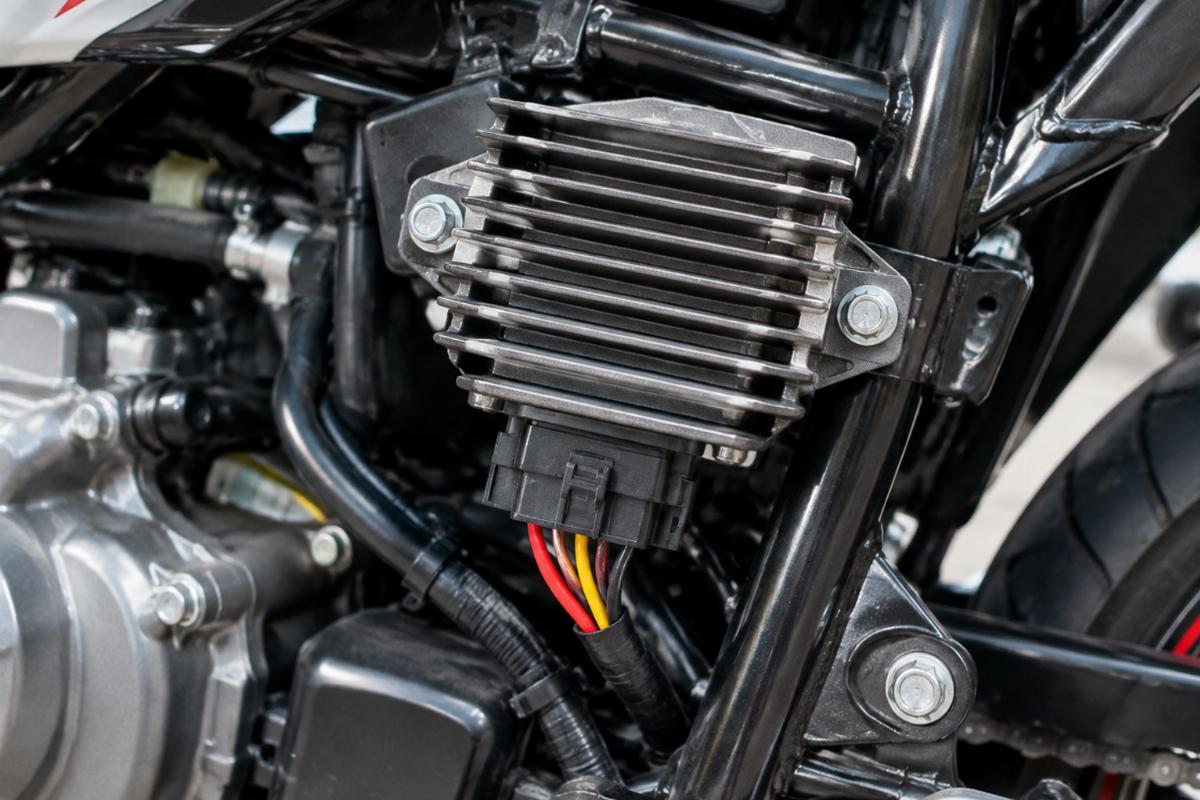

High-temperature environments, such as summer touring or stop-and-go traffic, push charging systems to their limits. To prevent failure, choose components designed for thermal stability. Look for regulators with large surface areas for heat dissipation or those made from materials with high thermal conductivity. Some aftermarket regulators come with integrated heat sinks or mounting brackets that position them in cooler areas of the frame.
Avoid placing the regulator near exhaust pipes or other heat sources. If the stock location is too hot, consider relocating the regulator to a spot with better airflow, such as under the seat or on the side of the frame, provided the wiring length allows it. Ensure the new location is protected from water and debris.
When sourcing parts, ask for documentation on thermal testing. A reliable Shovelhead restoration front end electrical upgrades supplier will have data on how their components perform under sustained load. This information is more valuable than a simple amp rating. Additionally, use high-temperature rated wiring and connectors. Standard automotive wire may melt or degrade in the harsh environment of a vintage V-twin engine bay. Upgrading to silicone-insulated wire can significantly improve longevity.
Conclusion
Synchronizing mechanical and electrical upgrades is key to a reliable Shovelhead restoration.
Front end changes alter more than just the look of the bike; they impact the entire electrical system’s thermal and mechanical environment. By focusing on heat management, wiring clearance, and component matching, builders can avoid common pitfalls. Selecting parts from a knowledgeable Shovelhead restoration front end electrical upgrades supplier ensures that every component works in harmony, providing the reliability needed for long rides.
